Nauticam SmallHD 502 and 501 Monitor Underwater Housing NA-502-H (HDMI)
Nauticam SmallHD 502 and 501 Monitor Underwater Housing NA-502-H (HDMI)
The SmallHD 500 series, the sharpest and lightest 5-inch field monitors available, are the perfect complement to a Nauticam underwater video system. These products combine a stunning 5", 1920 x 1080 Full HD Display with an amazing suite of software tools for image monitoring in a compact form factor.
SKU: # na-17906
Price $1,827.00
This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.
This product has been discontinued and is no longer in stock. Please scroll down for accessories and other options.
Custom Options
Price as Configured
Articles & Videos About This Item ALL ARTICLES ALL VIDEOS
Overview / Product Description
Nauticam NA-502H Underwater Housing for SmallHD 502 and 501 Monitors (HDMI)
The SmallHD 500 series, the sharpest and lightest 5-inch field monitors available, are the perfect complement to a Nauticam underwater video system. These products combine a stunning 5", 1920 x 1080 Full HD Display with an amazing suite of software tools for image monitoring in a compact form factor.
The monitor feels immediately familiar, almost identical in size to your favorite smartphone. A rubberized joystick is used to effortlessly flip through video "pages". Each page accepts multiple imagine analysis tools, configured by the user for their individual needs. The NA-502 housing provides access to all monitor controls, and the complete menu system is available in the housing, and at depth. To learn more, a complete 500 Series "Test Drive" is available here.
There aren't enough good things that can be said about this screen... Pixel density (the specification that results in sharpness) is greater than iPhone 6. The monitor is capable of displaying 85% of the NTSC color gamut, surpassing REC 709. These tech specs simply translate into the best color, contrast, and resolution available in this class.

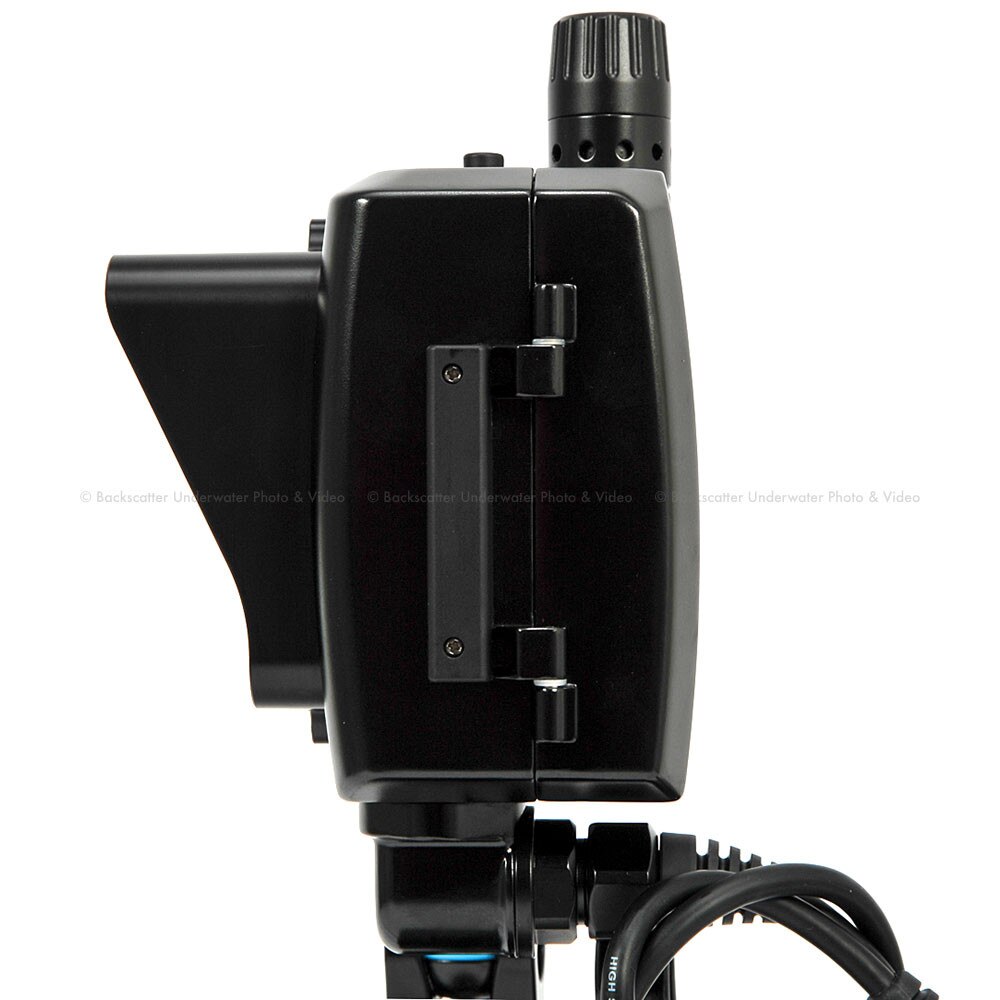

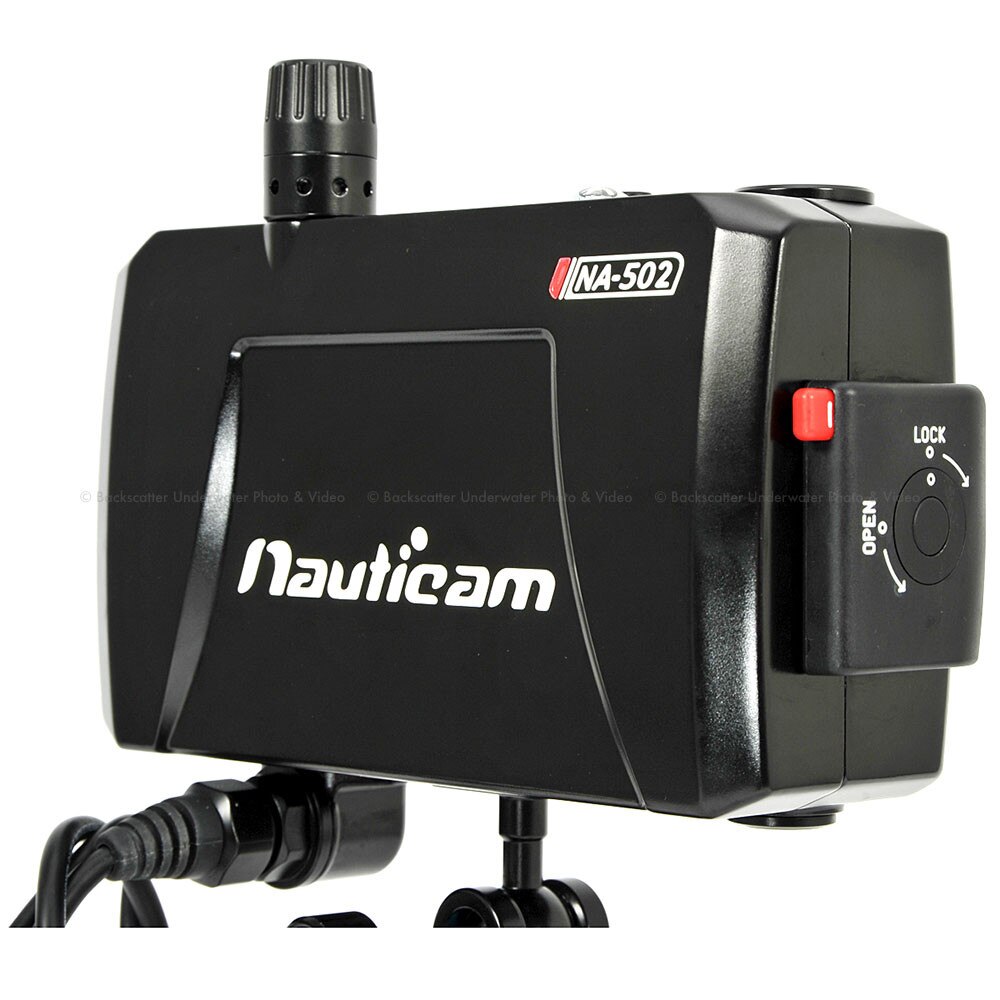

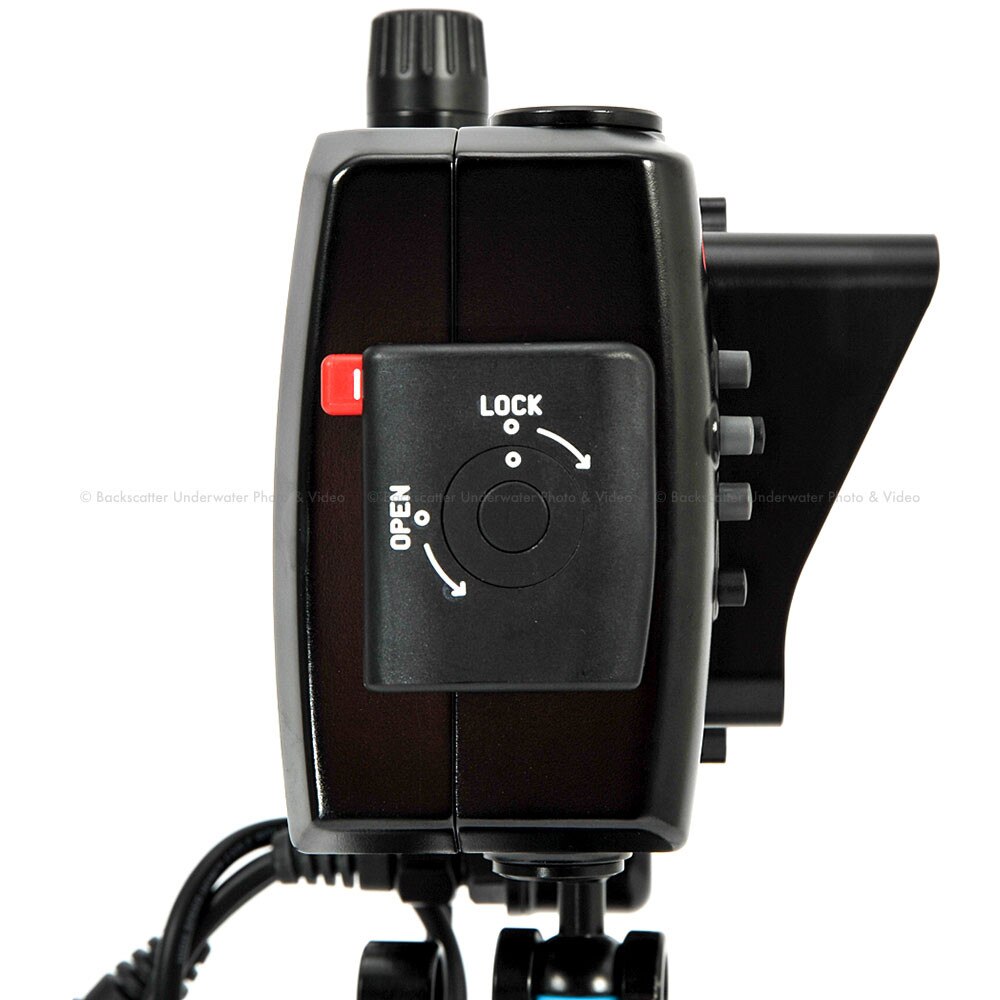

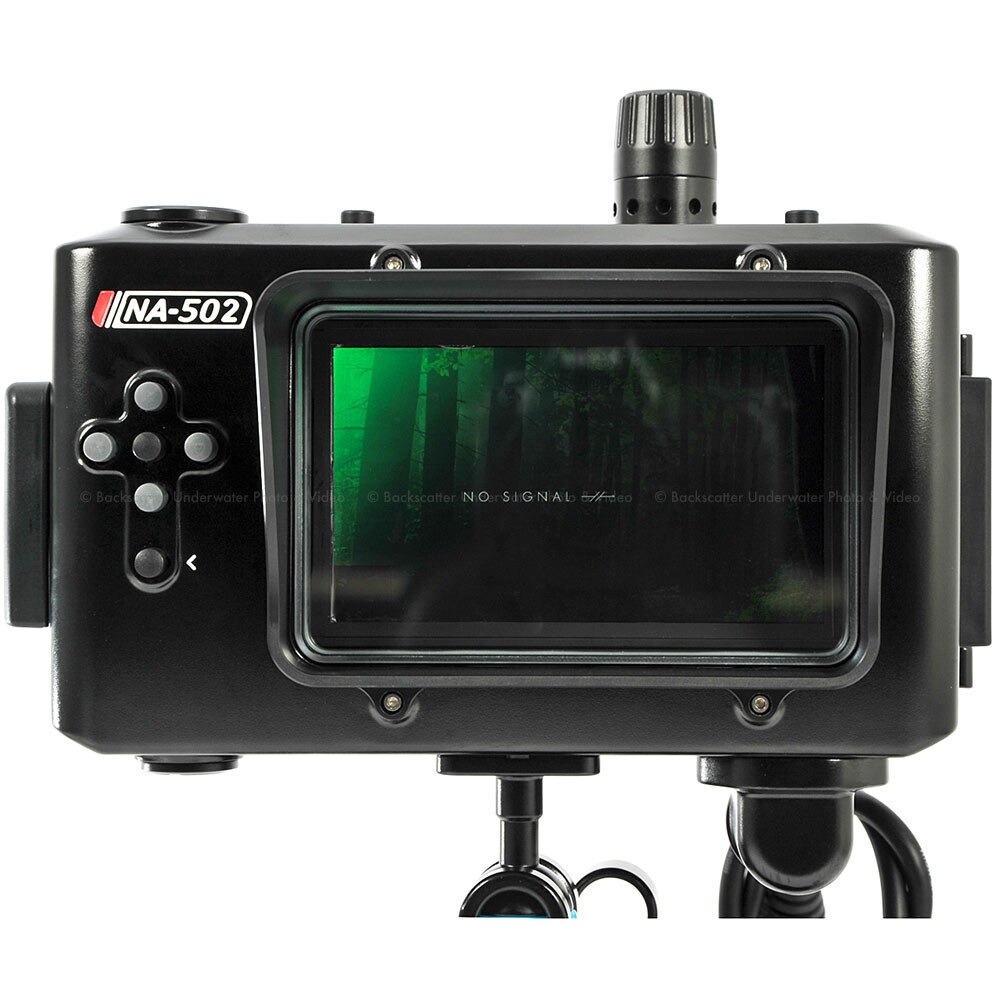

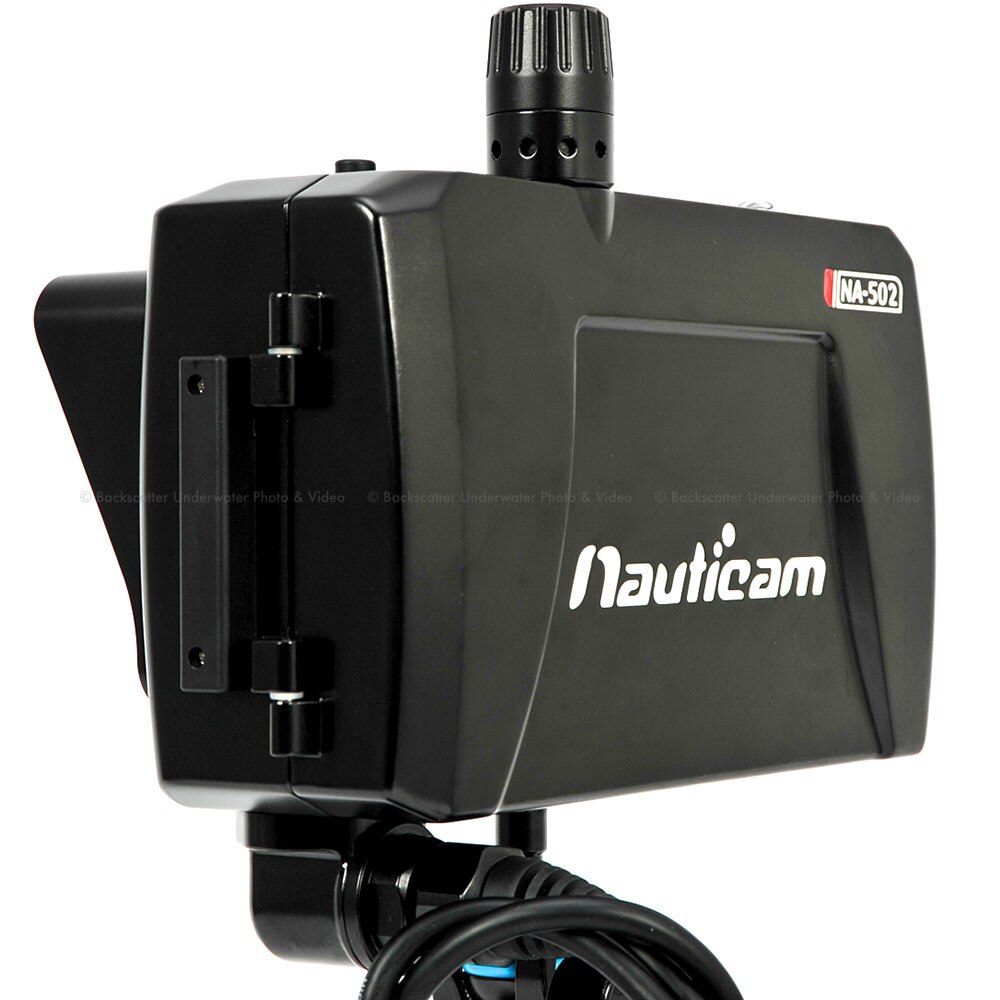

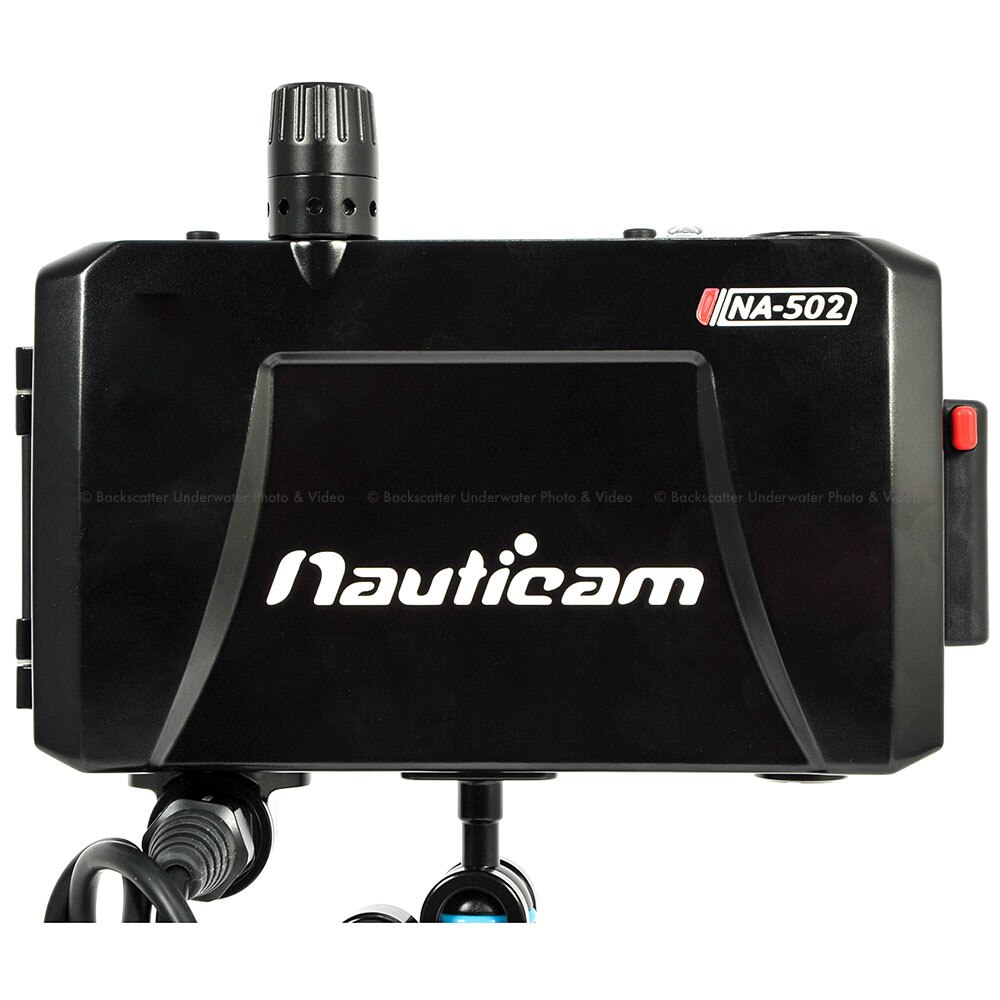

The Nauticam NA-502 housing features the rugged build quality and advanced manufacturing expertise Nauticam's user base has come to expect. The joystick navigation system used by the 500 series monitors is translated to four directional arrows, a center select button, and the dedicated "back" button. The interface is simple but elegant, and perfectly suited to the underwater environment.
Cable Routing & Power

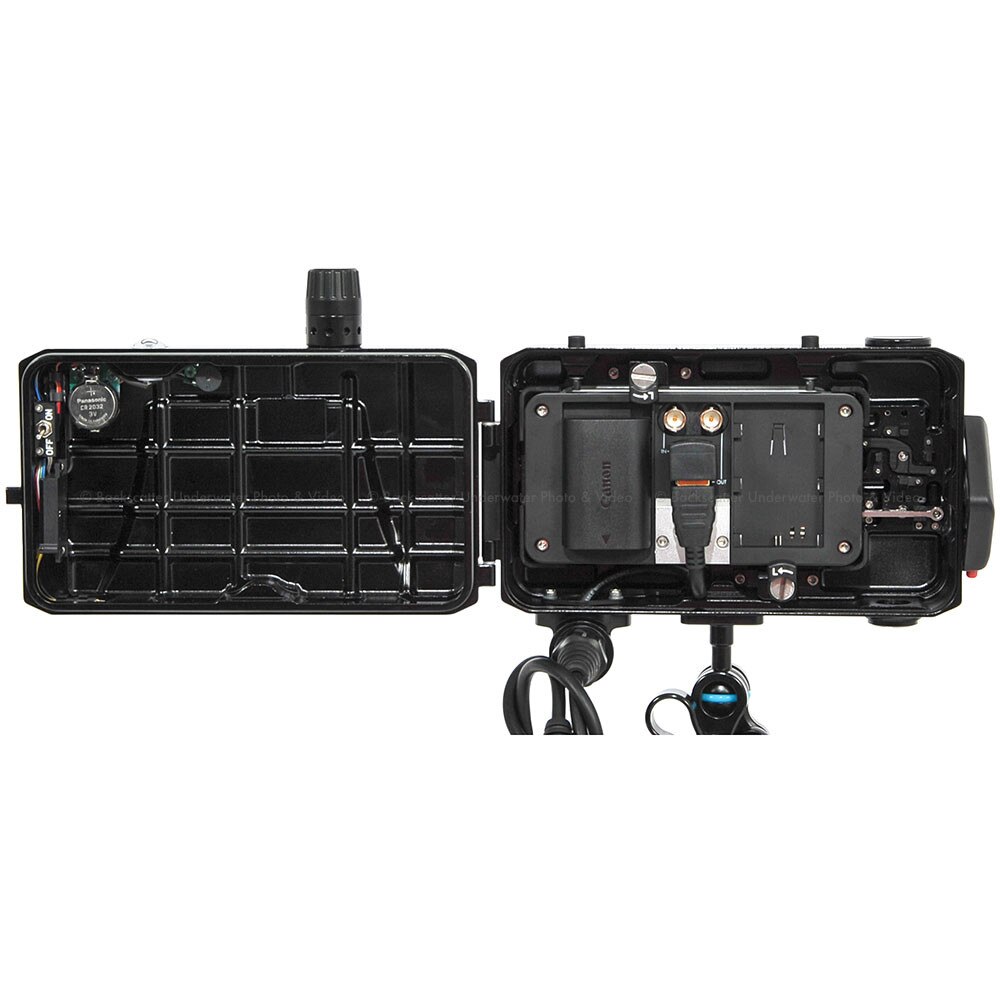

The form factor of 501/502 monitors is ideal for an underwater housing, with HDMI / HD-SDI cables nestled between two readily available Canon LP-E6 Batteries.HDMI and HD-SDI (502) are both supported by a single housing, providing an extremely broad range of camera support in a single underwater monitor system.
Advanced Software

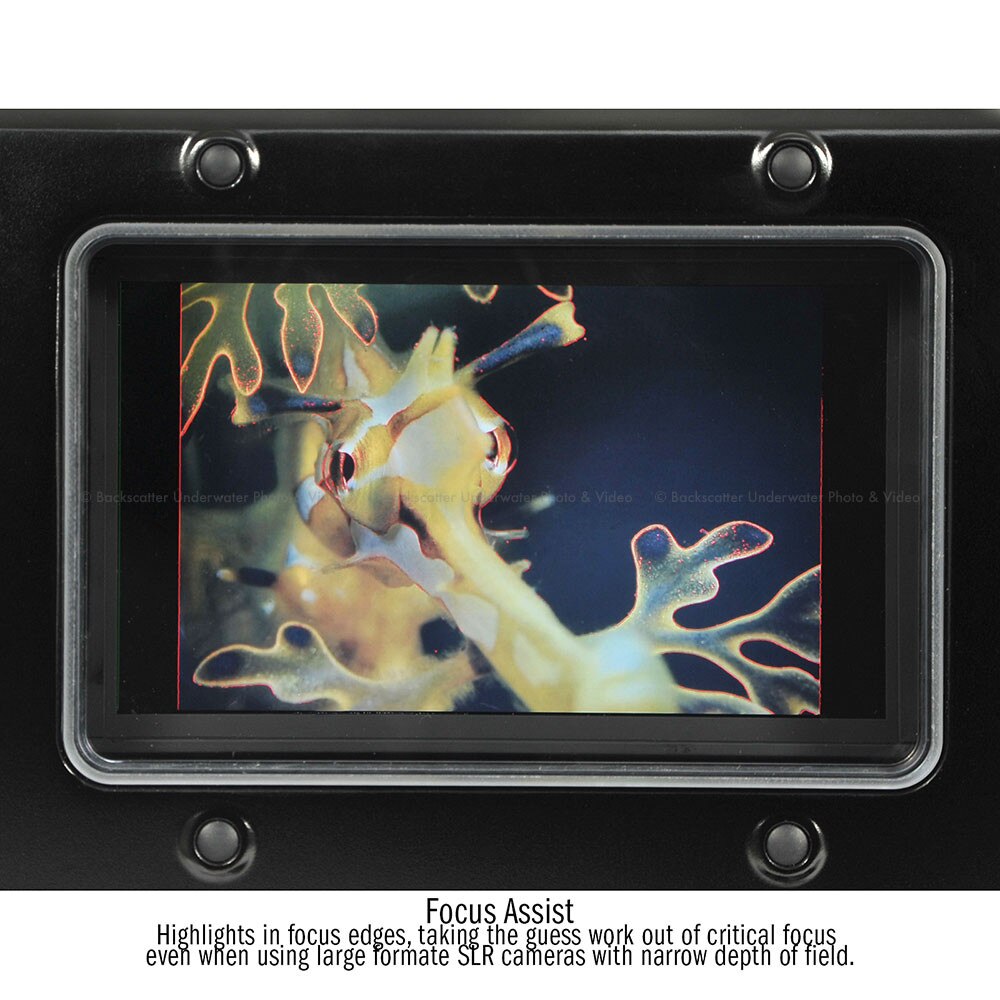

Joystick navigation, combined with a very well thought out image analysis toolset, makes these monitors extremely useful for judging focus and exposure. Examples of some of these tools (but not all) are:Focus Assist

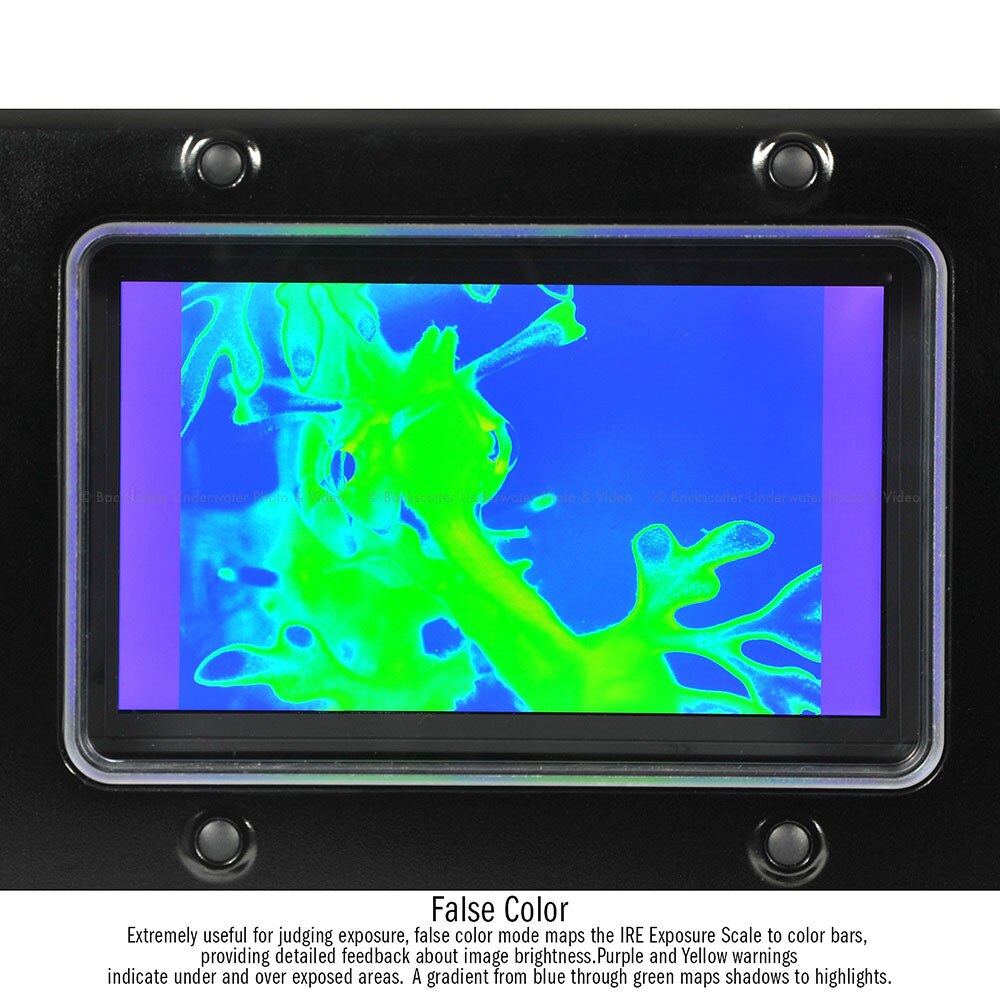

Highlights in-focus edges, taking the guesswork out of critical focus even when using large format SLR cameras with narrow depth of field.False Color
Extremely useful for judging exposure, false color mode maps the IRE Exposure Scale to color bars, providing detailed feedback about image brightness. Purple and Yellow warnings indicate under and over exposed areas. A gradient from blue through green maps shadows to highlights.Pixel Zoom

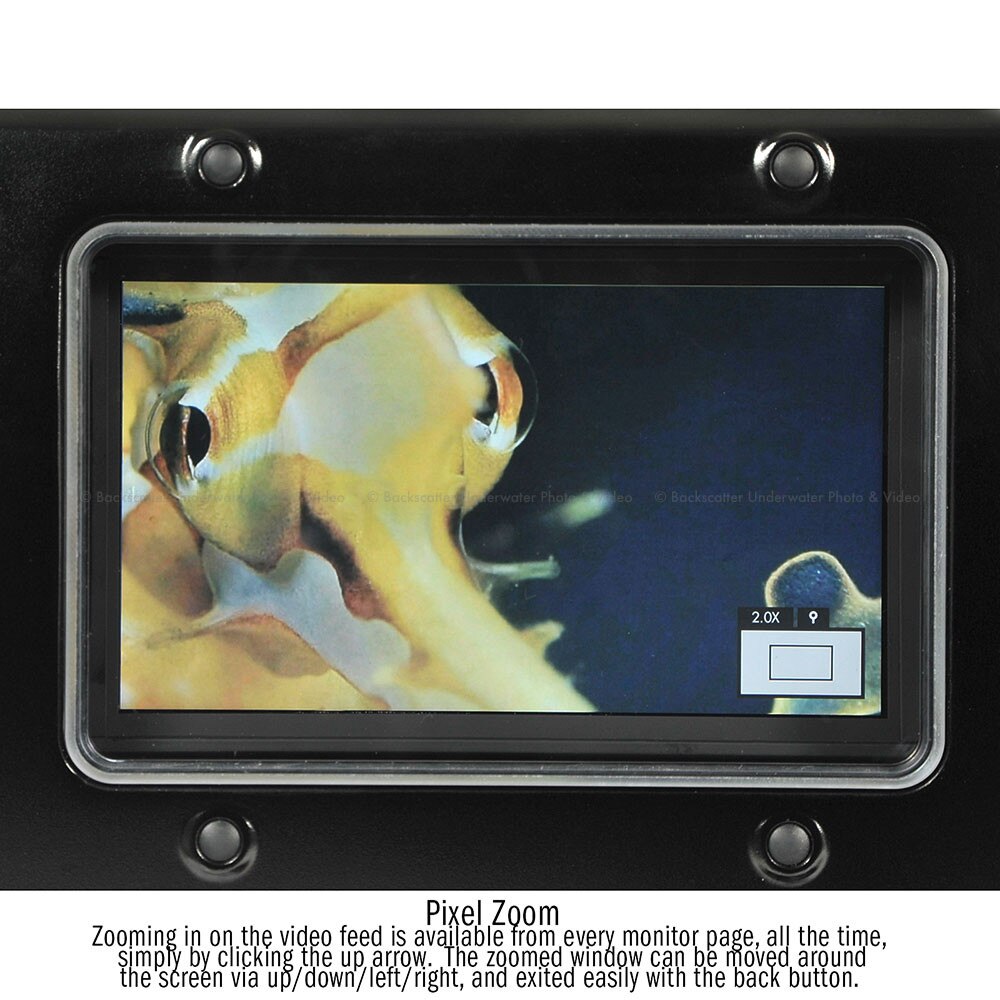

Zooming in on the video feed is available from every monitor page, all the time, simply by clicking the up arrow. The zoomed window can be moved around the screen via up/down/left/right and exited easily with the back button.Zebra Lines

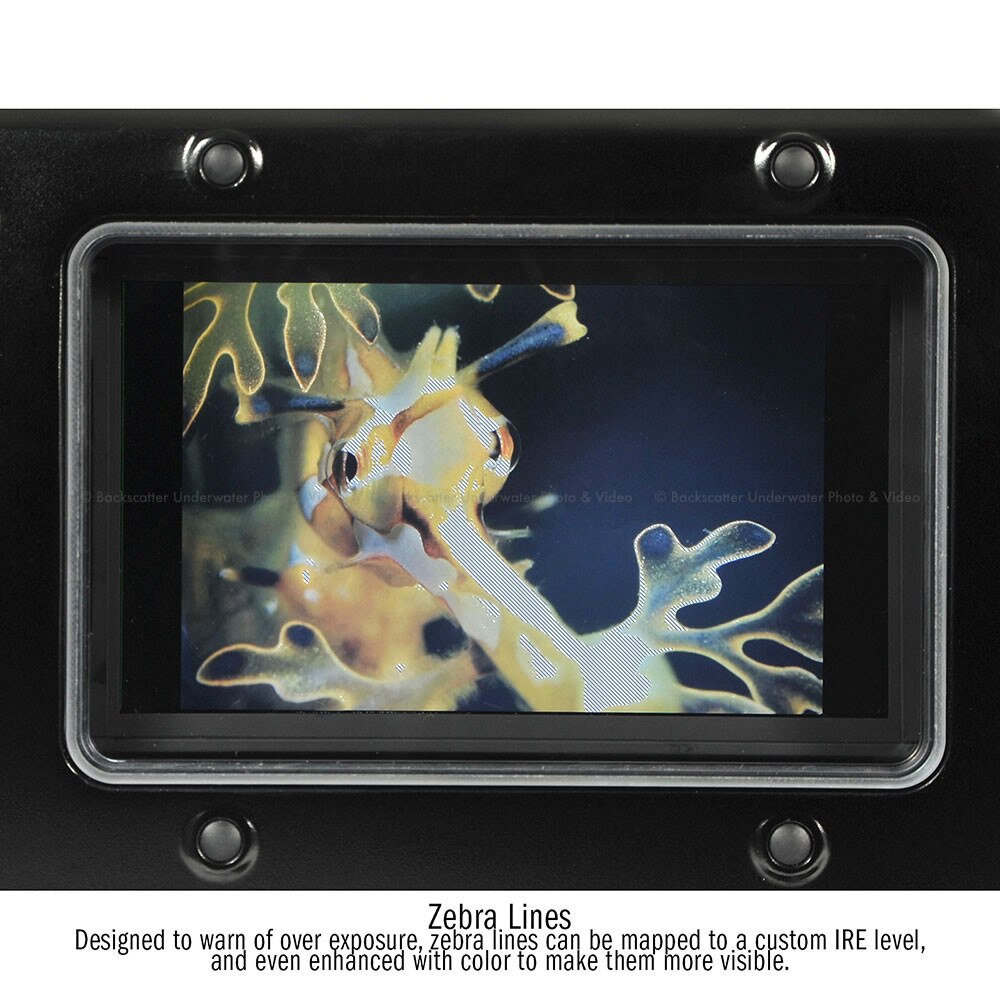

Designed to warn of overexposure, zebra lines can be mapped to a custom IRE level, and even enhanced with color to make them more visible.NA-502 Features

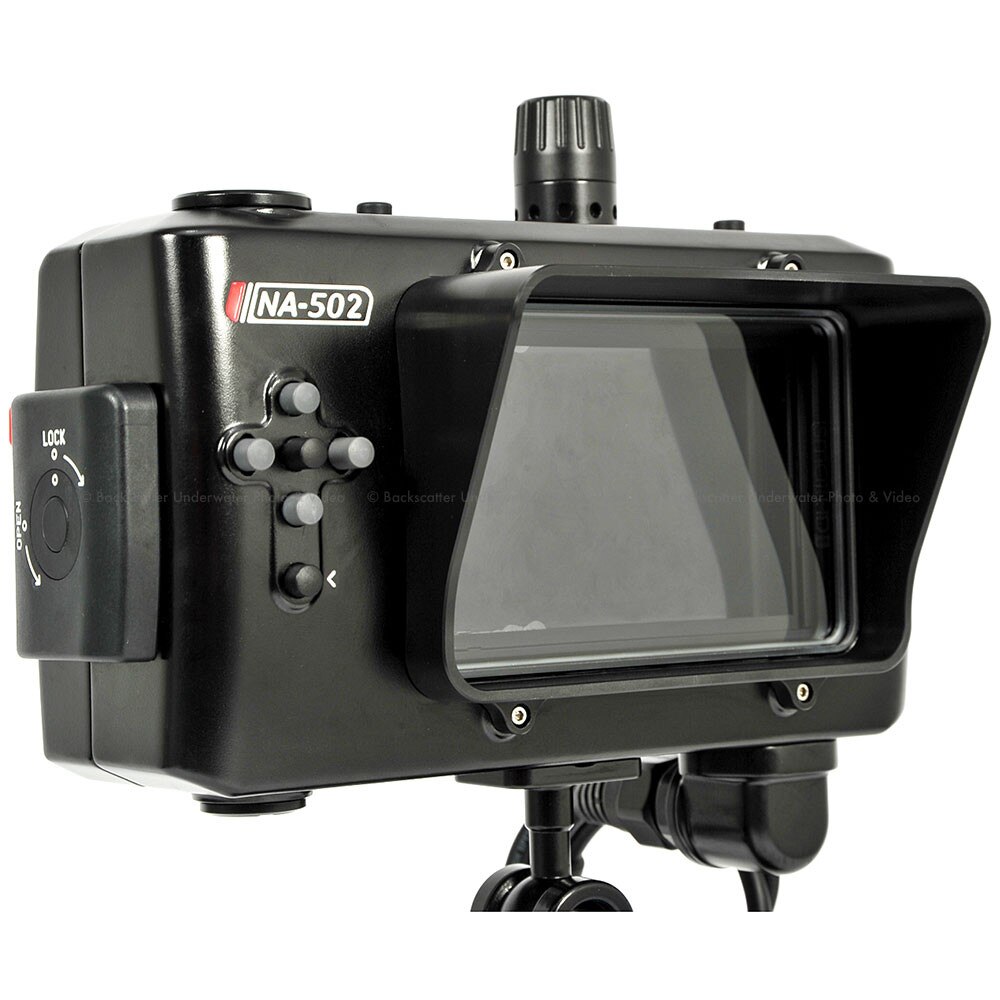

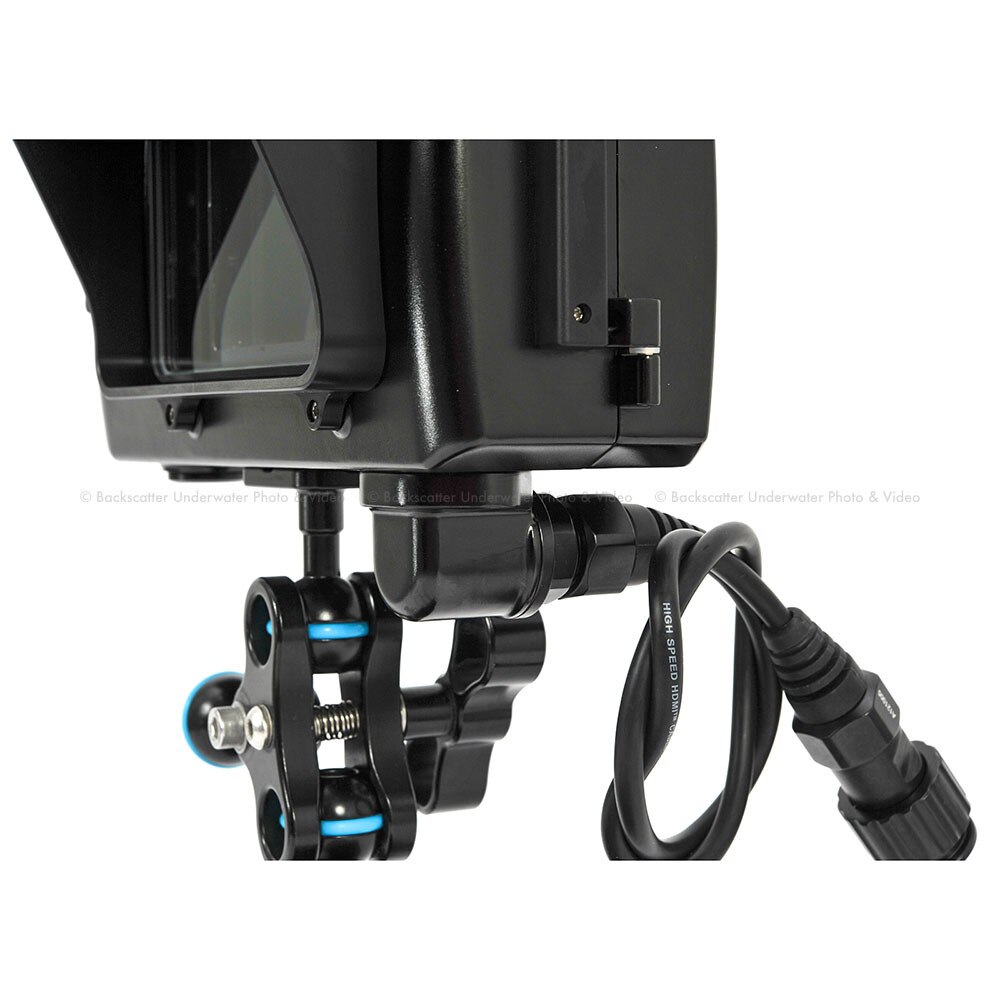

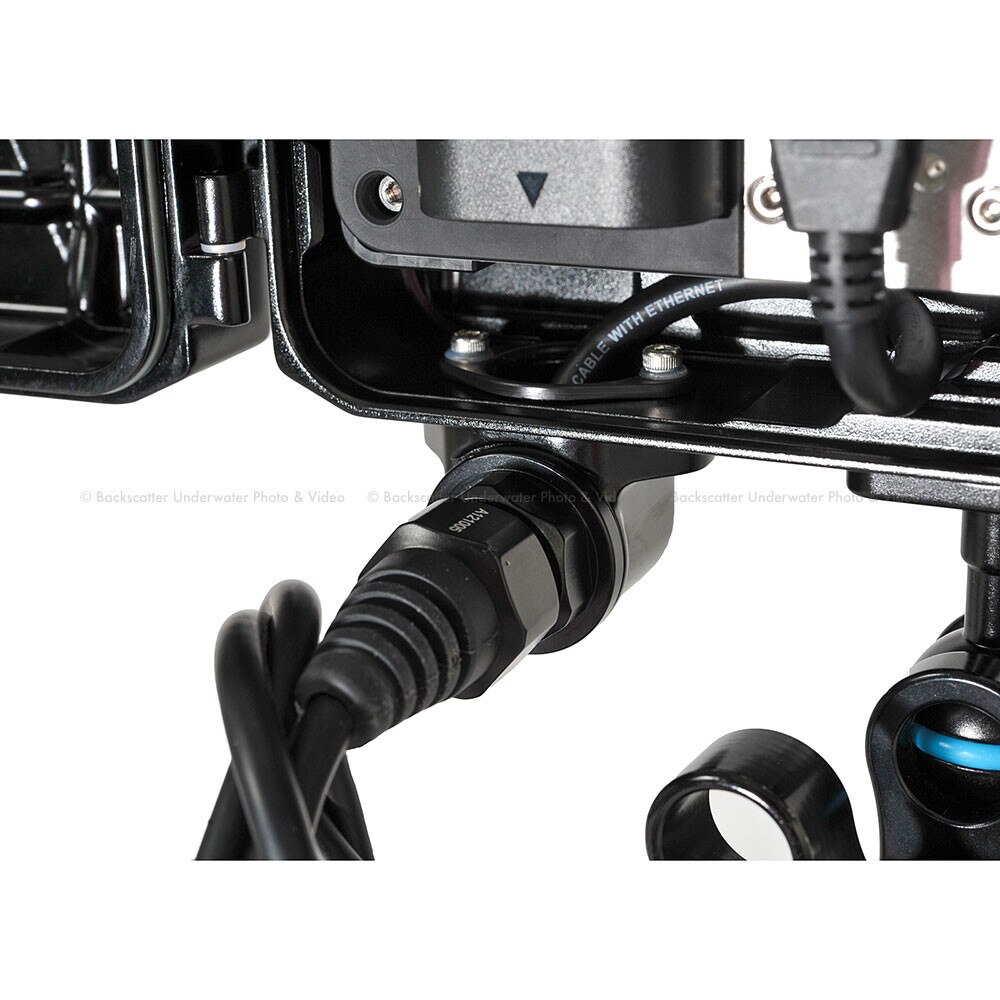

Right angle cable connector provides clean cable routing, and protects the cable from wear and tear at the housing connection.Joystick navigation is translated to a 5 push button directional pad on the housing front, with enhanced spacing that is easy to use even when wearing gloves.
A Vacuum Valve, along with the Nauticam Vacuum Check and Leak Detection System is included as standard equipment. A temperature compensated monitoring circuit with LED indicator provides constant feedback about vacuum status. The green led means the system is safe to dive!
Optional Accessories

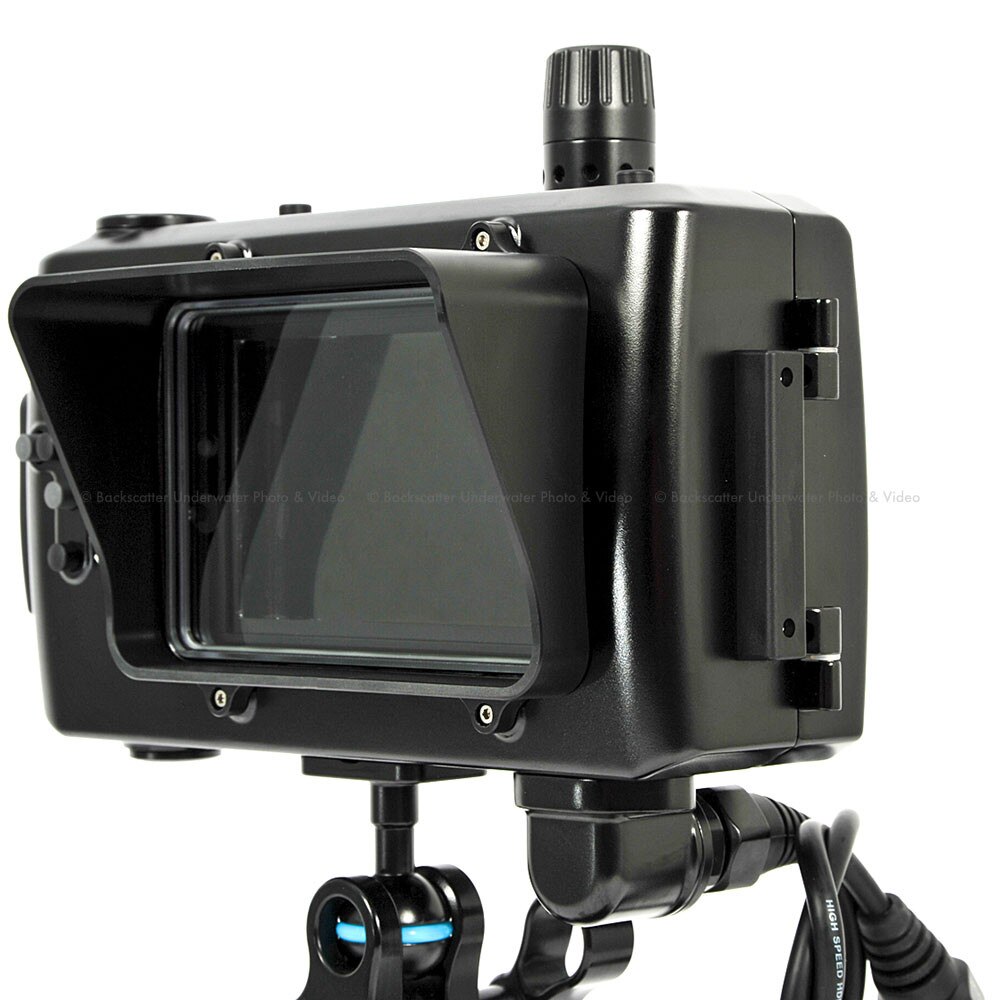

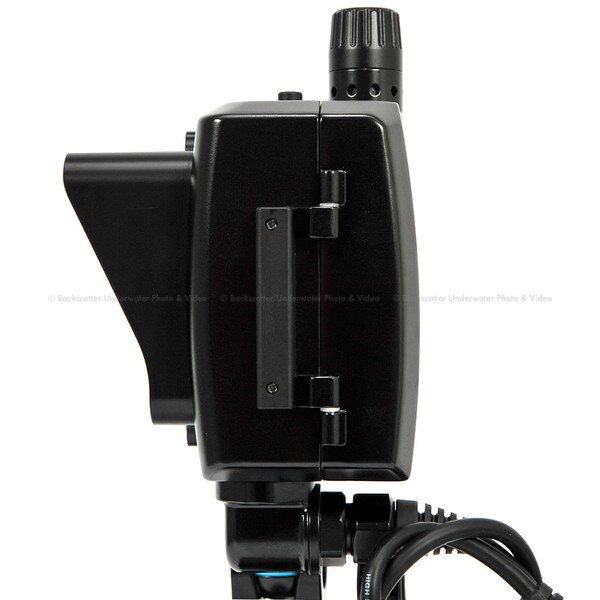

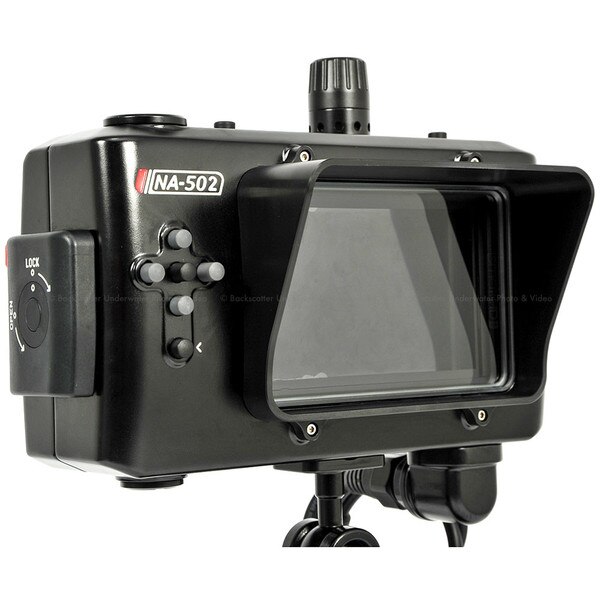

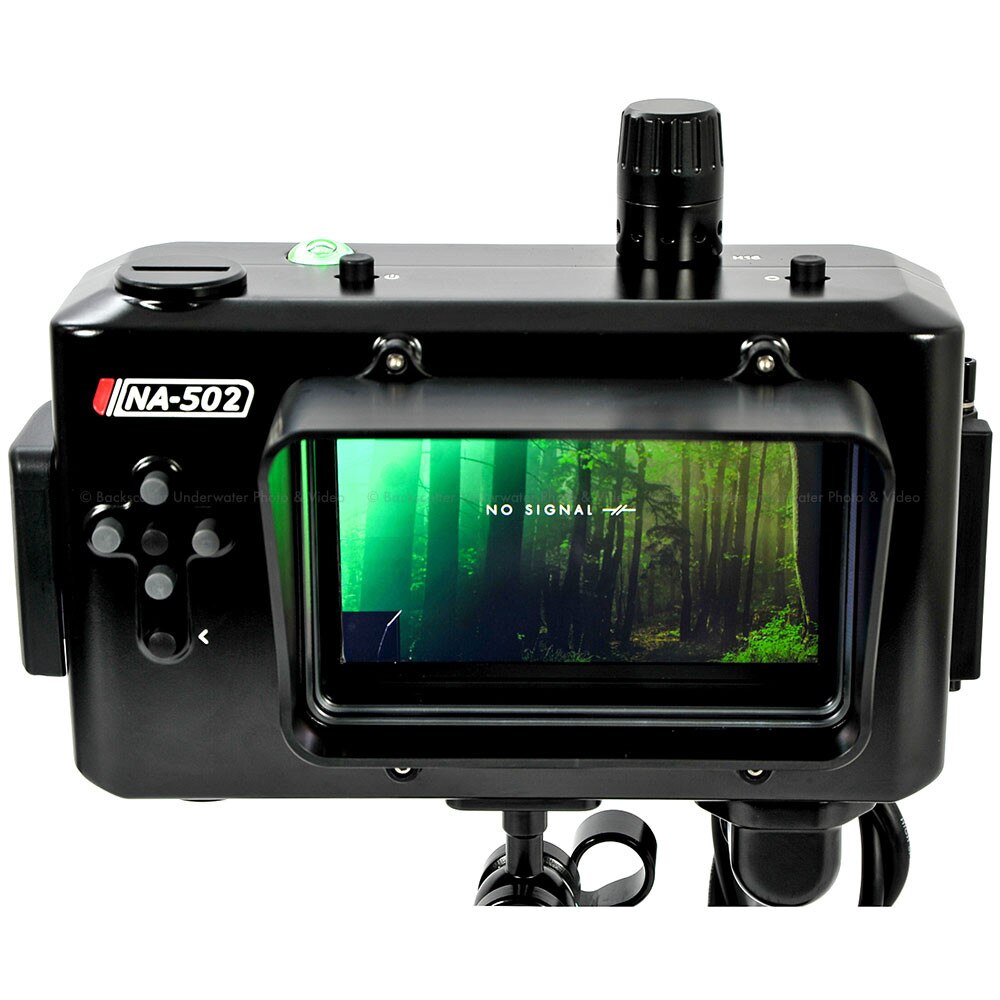

Optional NA-502 Monitor Hood (#17916) provides generous shading, and reduces glare in shallow water.SDI Surface Feed Cables (#25064 15m or #25065 45m) provide a reliable SDI feed capable of traveling over long distances to a topside director's monitor.
INCLUDES:
- NA-502H Housing
- M16 Extension Ring
- 25033 Standard HDMI Bulkhead with M16 Thread
- 25038 HDMI (A-D) Cable in 750mm Length (Monitor Housing to HDMI Bulkhead, Pre-installed)
- 25036 HDMI (D-C) Cable in 190mm Length (HDMI Bulkhead to Camera)
- 25046 HDMI (D-D) Cable in 200mm Length (HDMI Bulkhead to Camera)
- 25625 M16 Vacuum Valve II (Pre-installed)
- 25623 Hand Pump for Vacuum Valve
- 25639 Vacuum Valve Fastening Tool
- USB Flash Drive with Instruction Manual
- Mounting Ball with Screws for NA-502 Housing
- 90136 Spare O-ring, lubricant and removal tool
- Alarm battery
Tech Specs:
- Depth Rating : 100m
- Weight : 1.39 kg
- Dimensions : 222 x 118 x 67mm (excluding ball mount & cables)
