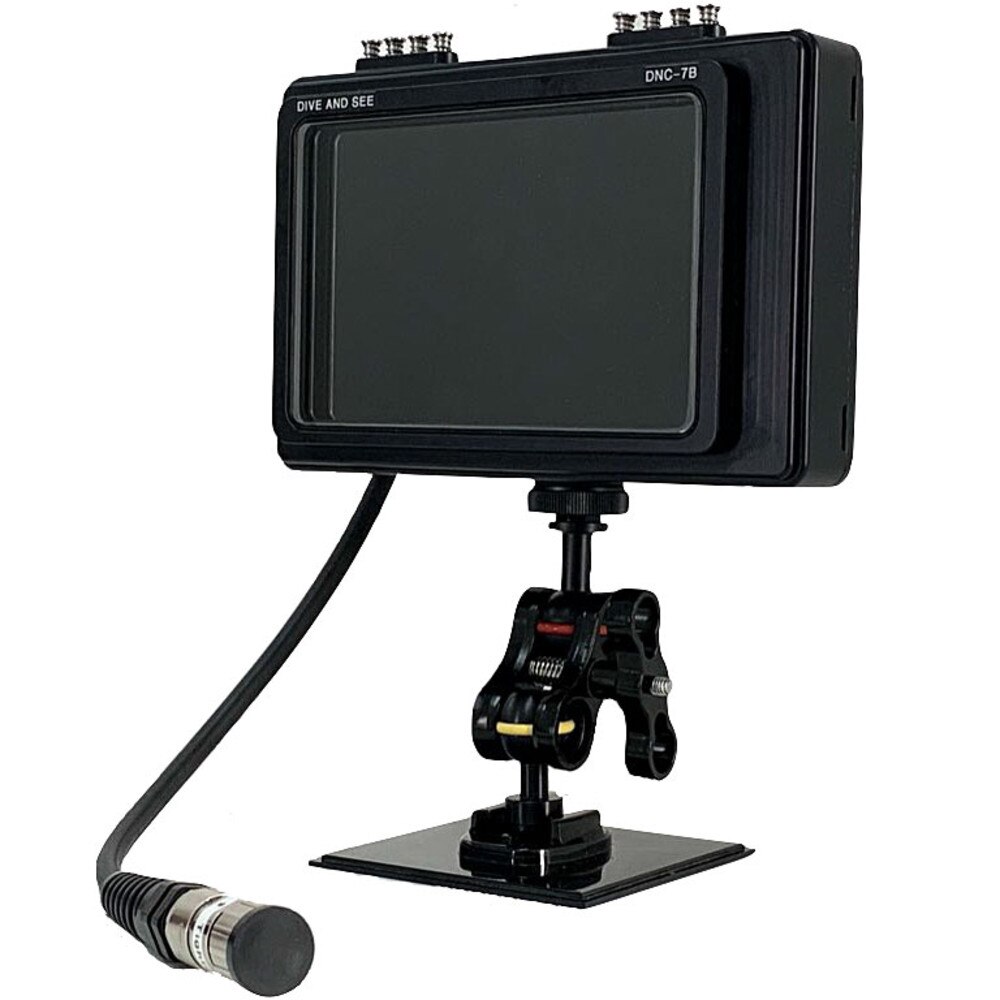

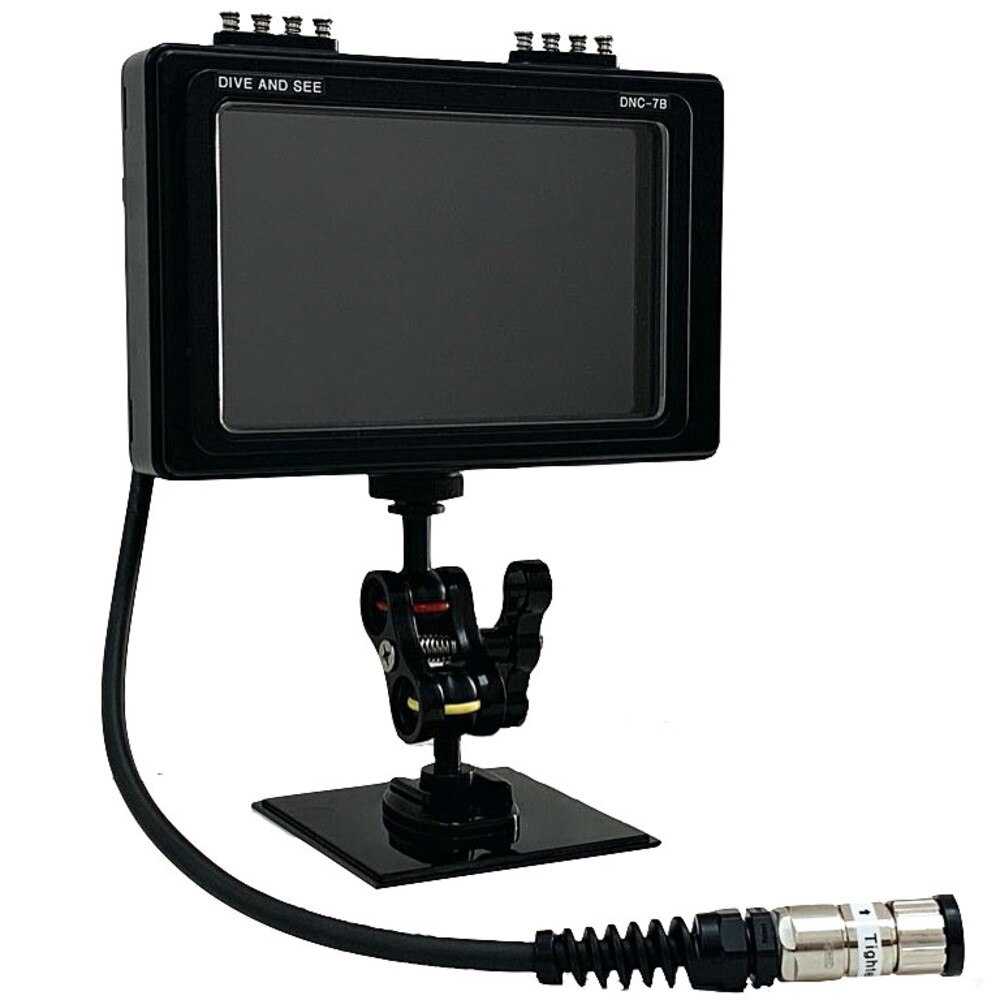

Dive & See DNC-7B (H1) 7-inch Monitor & Housing with HDMI Input

7 Inch External Underwater Monitor | 4k HDMI or SDI | Anamorphic Mode | Completely sealed, Embedded Battery | 6 Hours Of Non-stop Operation

• HDMI Video Monitor fits and works with all brands of the housings
• Set of the monitor includes: Sealed monitor, Battery charger, Monitor Hood, Hot shoe Ball Mount, Bulkhead connector per your choice
• The monitor is manufacturing sealed and cannot be opened, Depth Rating: 328 ft / 100 m
• Screen Size: Diagonal 7" (16:10), resolution 1920x1200
• Video Formats: Supports 4K 3840x2160p 4096x2160p (24Hz)
• Battery Life: One battery charge - 6 h 30 min of continuous use

DNC-7B(H1) - underwater broadcast-quality Video Monitor with HDMI input, works seamlessly with Sony A7R II, Blackmagic Cinema Camera, Panasonic GH5, Canon cameras, and any 4K cameras.

Completely manufacture sealed design eliminate one most common problem leakage of the equipment after the open-close procedure.

This is the monitor with resolution 1920 by 1200 pixels, IPS type of the panel with 450 nits brightness, wide view angle allowed to see the color-critical picture without color distortion and contrast ratio 1200:1.

The weights of the monitor in the water is neutrally buoyant.

The Video Screen has full menu access.

It is very rich menu futures.

External push buttons help you navigate through the menu.

Power ON/OFF switch, onscreen battery status indicator, and 2 user-configurable push buttons for most common functions, allowed users quick access without scrolling through the menu.

The advanced feature includes Peaking filter, Anamorphic Mode, Pixel to Pixel, Image Flip, Screen marker, Check Field, False colors, Histogram, Scanning mode, Center marker, Segmentation, Zoom, Freeze, and much more.

For evaluation of the focus, the monitor has Pixel To Pixel future.

Peaking filter or Focus Assist – will turn an image to mono and give you a color outline, when a subject is in a focus.

Another mode of Peaking filter switches images to the full-color stage and be able to see an image in color outline.

Features:

• Display panel: IPS LED
• Two user-programmable function buttons
• HDMI Input/Output Support Formats:
• 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4K UHD 3840x2160p (30/29.97/25/24/23.98 Hz)
• 4K 4096x2160p (24Hz)
• SDI Support Formats:
• 480i/576i
• 720p (60/59.94/50/30/29/25/24/23.98
• 1080i (60/59.94/50)
• 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.89sF)
• Brightness: 450 cd/m2, sunlight readable
• Depth Rating: 270 ft / 82 m
• Weight: 3.54 lbs. / 1.6 kg
• Size: 7 x 5.5 x 2.36 inch / 179 x 140 x 60 mm
• Reverse polarity protection circuit

DURABLE & SEALED

• Compact 201 x 142 x 74 mm, rugged, safe design.
• The monitor guarantees NEMA 6 (IP 68).
• Strong and lightweight aluminum shell, over hard anodized coating, resistant to saltwater, a perfect tool for professional underwater photography.
• The monitor is sealed and cannot be taken apart or opened.
• You will never get water or sand inside, or have to worry about properly sealing the monitor after charging it.

MOUNTING CAPABILITY

• The set includes a detachable mount adapter, allowing the underwater monitor to be tilted and rotated, with a 1" ball on the end.
• Binding T-slots on the top and bottom allow convenient connection with underwater housings and arms.
• It is useful for lighting or an external microphone.

BULKHEAD CONNECTOR

• Dive & See has bulkhead connectors (fittings) for all brands of housings.
• Custom length and other HDMI connector types are available.
• All of the Dive & See bulkhead connectors have water blocks and are open face pressure rated to 150 PSI (100 meters).
• Water block will protect keep the vacuum inside of the housing when using AirLock Vacuum System.
• Also protect the housing against penetration of the water, if something happening with an external cable or connection between the cable and bulkhead connector.

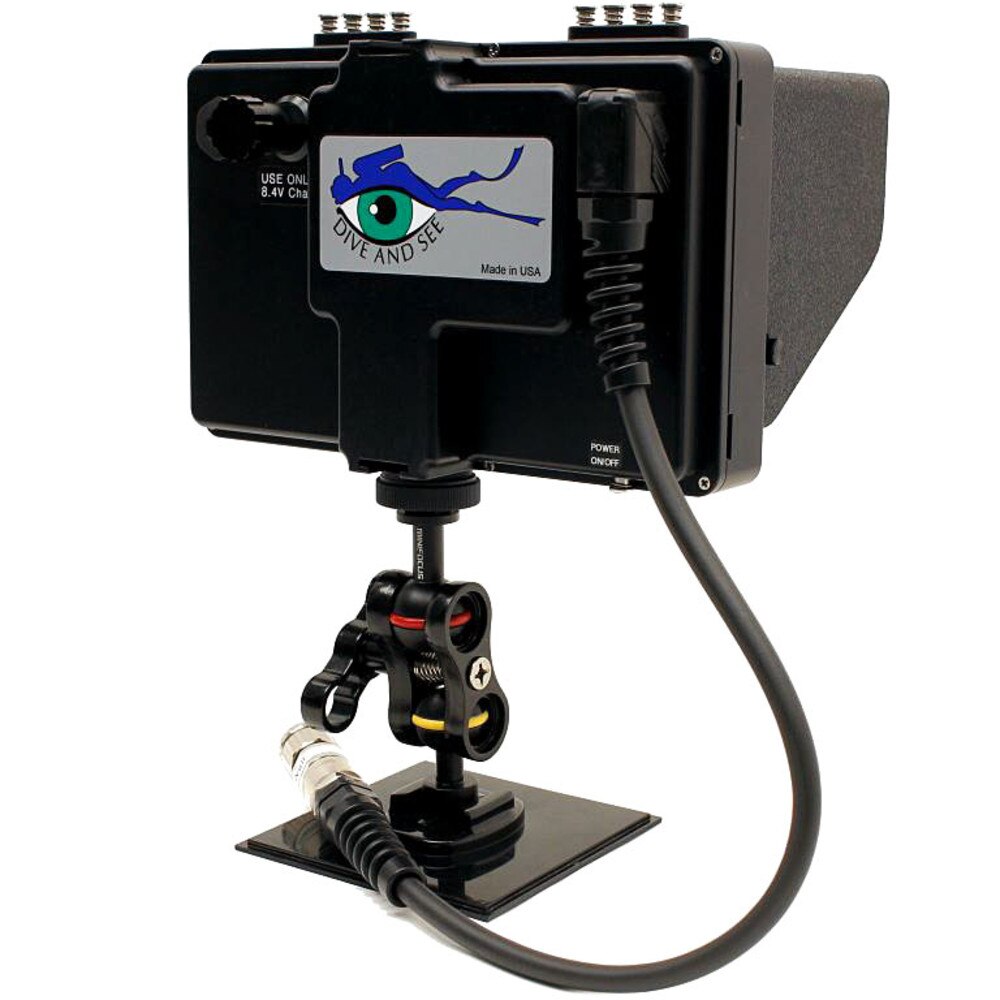

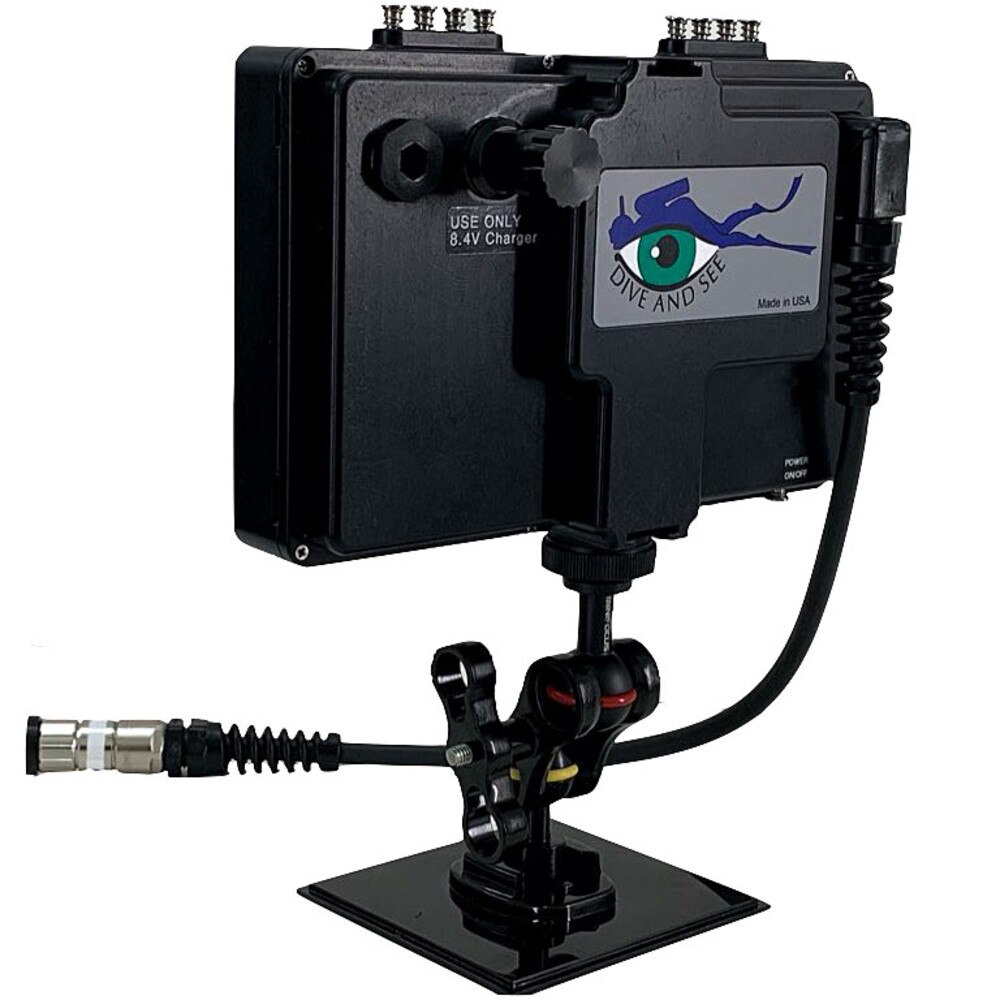

• The DNC-7B(H1) has a detachable HDMI cable for a quick connection with a bulkhead connector on the housing.
• The unpluggable cable is convenient for transportation.
• On the picture, M16 bulkhead with right angle Mini HDMI connector (Type C) on the end, for Aquatica, Amphibico, Nauticam, Aquatica housings, Canon cameras, Panasonic GH4

QUICK DETACHABLE CONNECTORS

• Dive & See is using a custom-made HDMI cable with its developed HDMI connection system.
• HDMI cable has a Heavy-duty rubber jacket and build-in water block.
• The outside diameter of the cable is 8mm.
• The strain relief on both sides of the connectors allows the cables to move without cracking and breaking.
• This cable is designed to ensure a perfect transfer of 1080p60 and 4Kx24fps HDMI signal (before any drop-off in signal or quality is detected).
• The unpluggable cable is convenient for transportation.

POWER AND CHARGING CONFIGURATION

Option 1: Standard

• Built-in rechargeable UN/DOT 38.3 Certified Li-Ion battery.
• Continuous run time of HDMI version - 6 hours 30 minutes.
• Recharging time of the battery - 5 hours.



Option 2:

• No battery inside.
• This option suitable
• When you need to use the monitor extended time.
• Or you do not have time to recharge the battery of the monitor.
• In this configuration, you will take power from Camera Housing, such as a Nauticam Weapon LT Underwater Housing for Red Weapon DSMC2 Cameras.
• Power for the monitor and SDI signal going through one combo waterproof cable with an appropriate waterproof connector (option).
• This Power configuration works only for the SDI signal, not for HDMI.
• For the HDMI version, need to use a separate Power cable, which you will connect to the underwater Camera housing.
• Power consumption of the monitor: 9W
• The monitor has a reverse polarity protection circuit.
• This circuit will prevent damage to the monitor, in case if you by accident connect in the wrong polarity.



SWITCH PROTECTOR

• The Switch Guard design of the power button protects the monitor from self-activation during transportation.
• All push buttons made are from non-corrosive steel.



SPECIFICATION

• Screen Size: Diagonal 7" (16:10)
• Display panel: IPS LED
• Physical Resolution: 1920 x 1200
• Video Formats: 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
• 4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz)
• 4096×2160p (24Hz)
• View Angle: 178(H) 178(V)
• Brightness: 450 cd/m2
• Contrast Ratio: 1200:1
• Depth Rating: 328 ft / 100 m
• Weight: 3.54 lbs. / 1.6 kg
• Size: 7.91 x 5.59 x 2.91 inch / 201 x 142 x 74 mm
• Voltage: DC 8.6V
• Buoyancy: neutral in fresh water/salt
• Battery Life: 6 hours 30 minutes - continuous.
• Battery recharge time: 5 hours

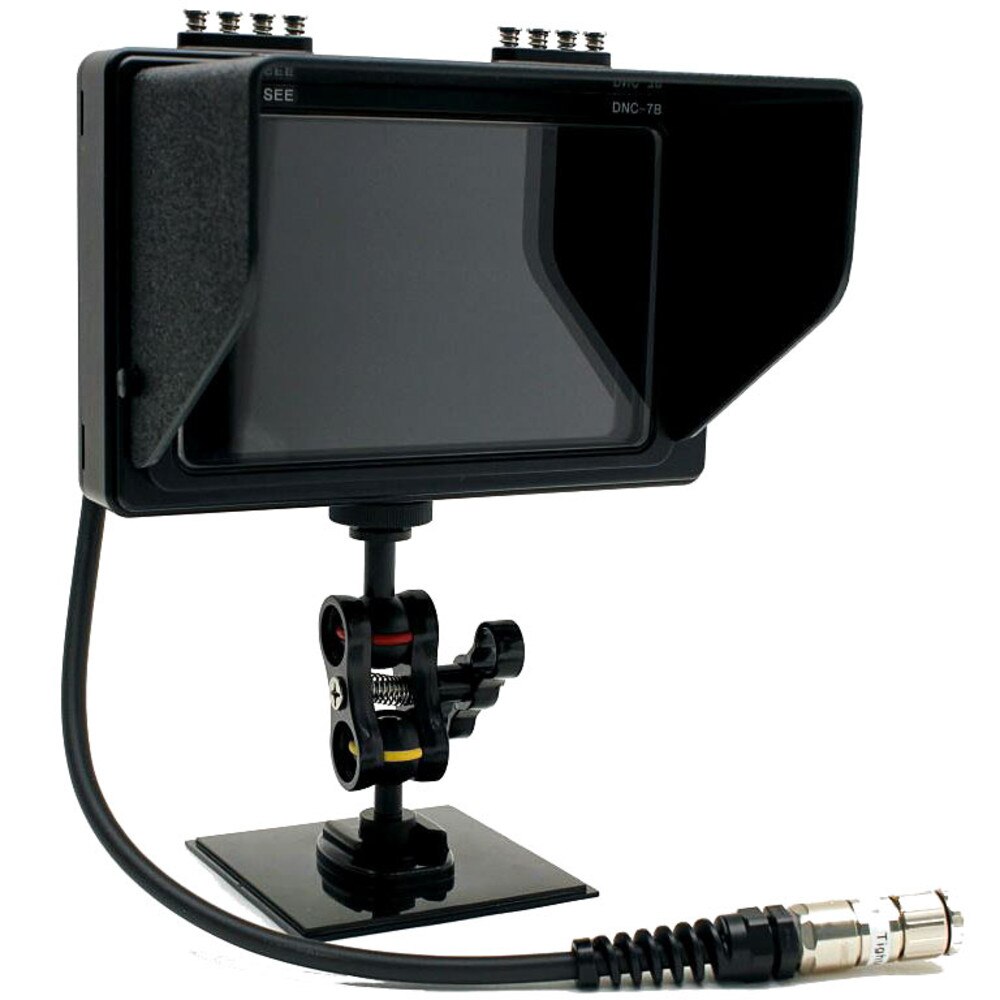

Monitor Hood

• Removable Sun hood greatly eliminates glare in shallow water, outdoor viewing and protects delicate monitors from the elements.
• Constructed of durable plastic can stand up to the rigors of use in the field.
• Spare screws include the monitor kit. Monitor hood easy to install.

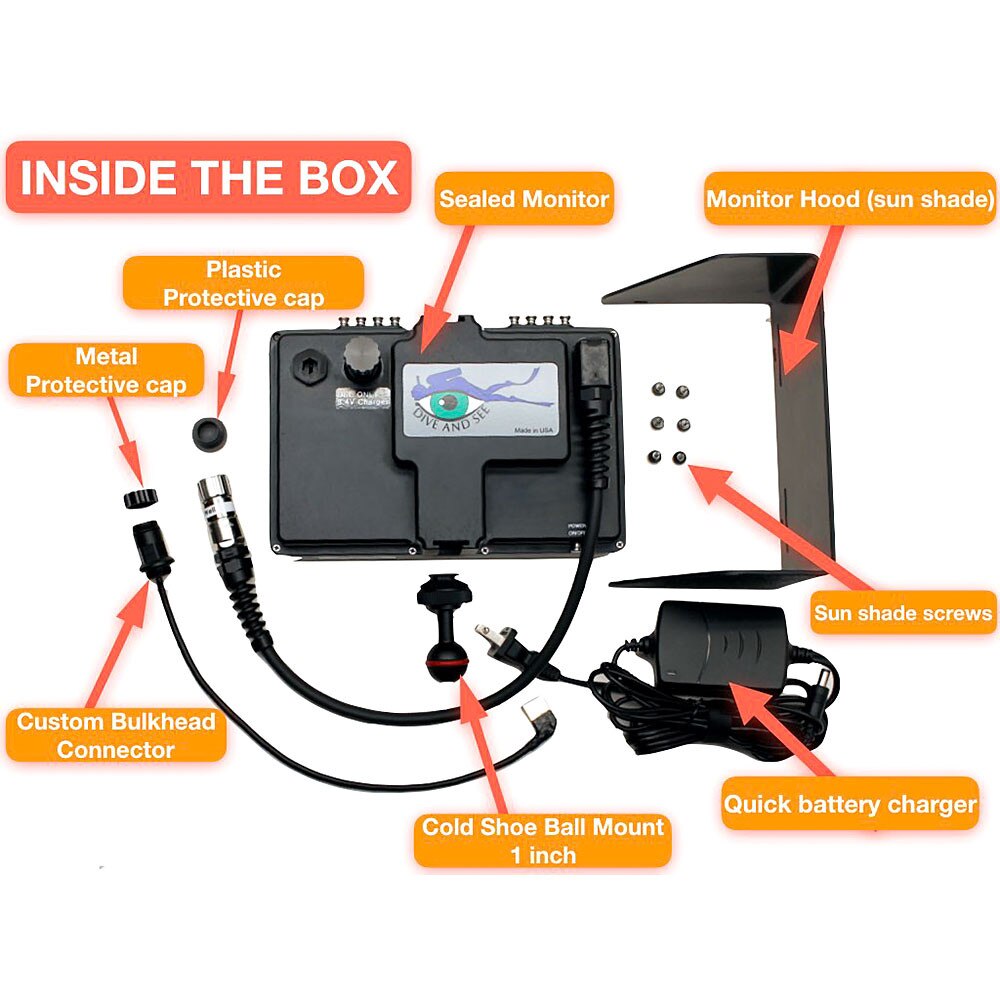

THE SET INCLUDES:

• Sealed Monitor
• One bulkhead connector (specify a type of your housing)
• 1 metal and 1 plastic protective cap
• Cold shoe ball mount 1 inch
• Battery charger
• Monitor hood (sunshade)
