Dive and See DNC-2083 Full-Size HDMI M16 connector for Sony a7S III in Nauticam Housing
- HDMI 2.0 bulkhead connector, Support 4KP60 4:2:2 10-BIT of Atomos Ninja V
- Underwater full-size Type A (90 degrees), HDMI bulkhead connector is designed to transmit 1080p60 signal and 4K from the HDMI output of the camera Panasonic GH5. This DNC-2083 bulkhead connector compatible with Nauticam NA-A7SIII underwater housings (M24 to M16 thread reducer is required)
- Bulkhead connector has a water block, which is allowing to keep a vacuum inside of your underwater housing
- Depth - 240 PSI (160 m / 525 ft)
- Contacts: Gold plated, brass
- Water Protective cap is included
- Material: Marine Aluminum with Hard Anodizing coating
Brief Description

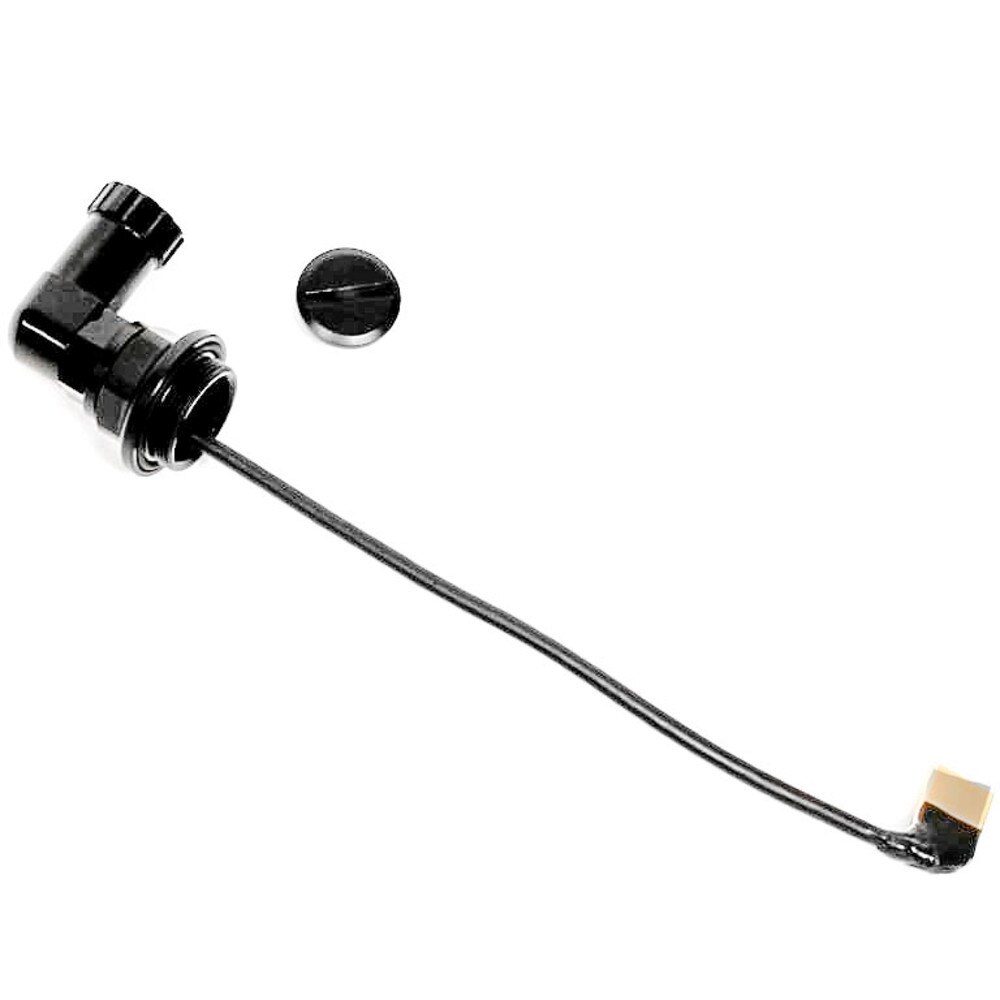

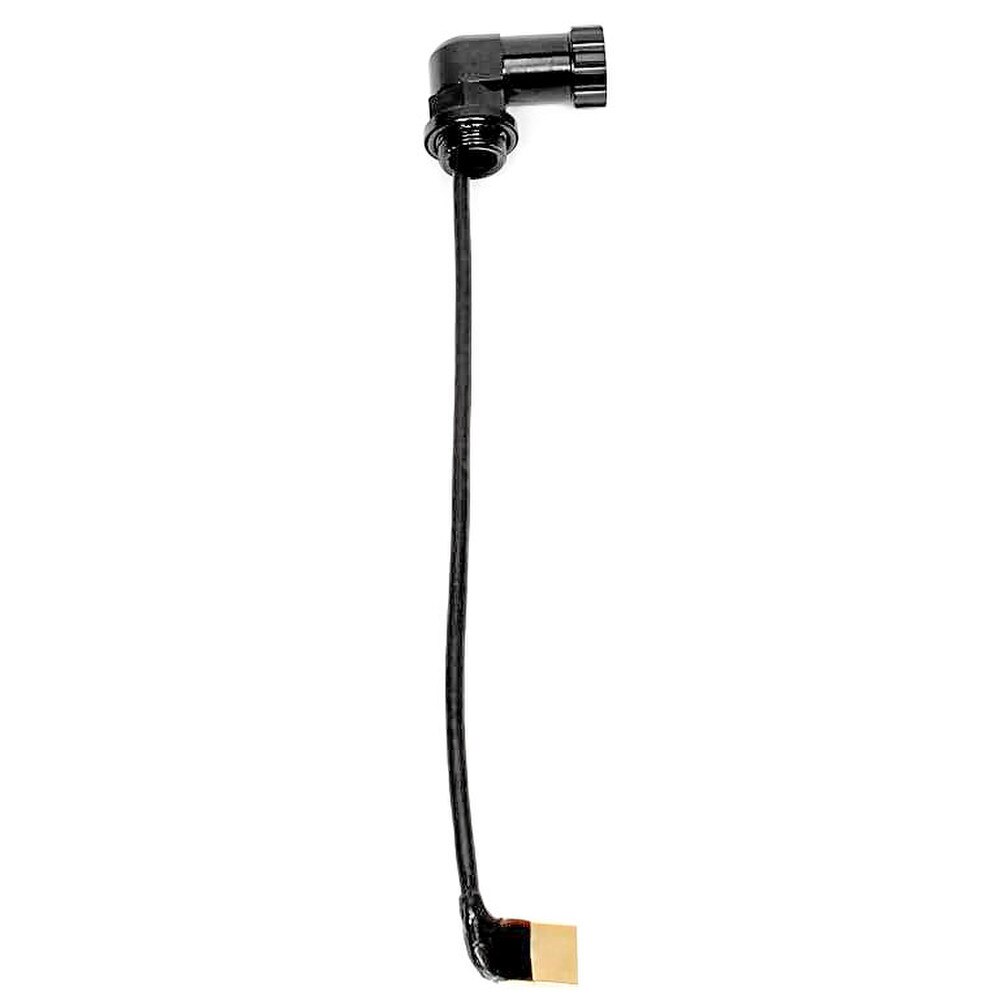

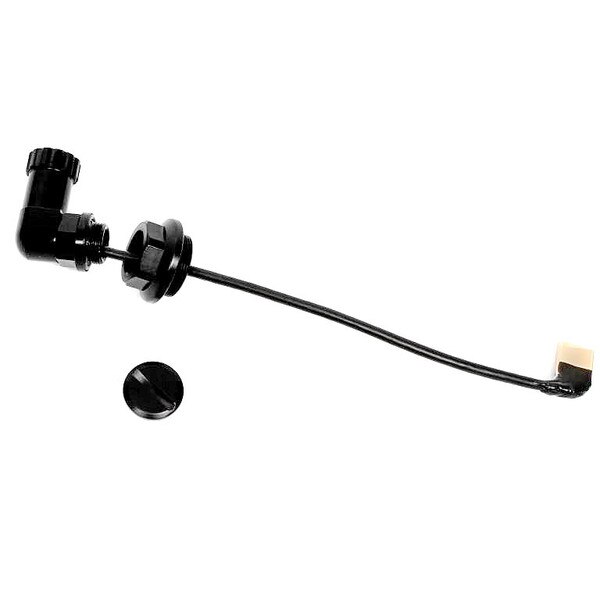

Dive and See has developed an Elbow style, rotatable bulkhead connector for the Nauticam NA-A7SIII housing, with a full-size HDMI connector.
The new design allows installing the bulkhead connector in available - desirable direction on your housing. The Elbow shape (90 degrees) of the connector keeps the external cable horizontally, instead of the standard vertical style of the connection.
Thread of the connector M16x1.
Low profile Right angle HDMI connector fits tight space of the underwater housing.
The rotatable portion of the bulkhead connector consists triple o-ring system for reliable sealing.
Water Block
Underwater Bulkhead connector DNC-2083 comes with a built-in water block.
The water block keeps the vacuum inside of the housing when using the AirLock Vacuum System.
Also protect the housing against penetration of the water, if something happening with the external cable or connection between the external cable and bulkhead connector.
Options
Custom length of the cable and different type of connectors are available.
Compatibility
Elbow-style bulkhead connector is compatible with any Dive And See waterproof - underwater HDMI cables and HDMI monitors.
