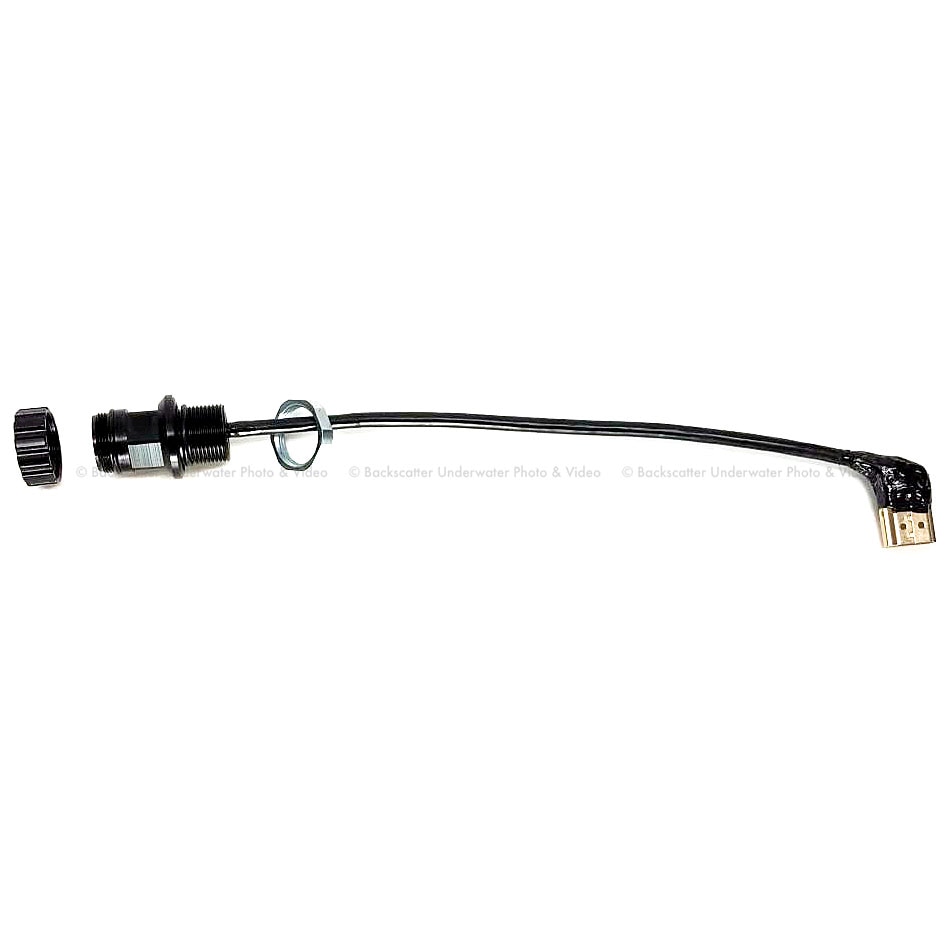

Dive and See Underwater HDMI A bulkhead connector M16 for Aquatica GH5 Housing

Underwater full-size Type A (90 degrees), HDMI bulkhead connector is designed to transmit a 1080p60 signal and 4Kx60 from the HDMI output of the camera Panasonic GH5. This DNC-2060 bulkhead connector compatible with Aquatica GH5 underwater housings (M16 long tread)

• Bulkhead connector have water block, which is allowing to keep vacuum inside of your underwater housing
• Depth - 240 PSI (160 meters)
• Contacts: Gold plated, brass
• Protective cap and security M16 nut are included
• Material: Marine Aluminum with Hard Anodizing coating

Dive and See have developed bulkhead connector for the Aquatica GH5 housing, with full size of HDMI connector of Panasonic GH5.

Tread of the connector M16x1, the length is 0.5 inches.

Low profile Right angle connector fits tight space of the underwater housing. The bulkhead connector comes with the built-in water block. Water block will protect keep the vacuum inside of the housing when using the AirLock Vacuum System. Also protect the housing against penetration of the water, if something happening with external cable or connection between the cable and bulkhead connector.
