Gates RED DSMC3 Touch 7.0" Underwater Housing RT73

This is what real, reliable innovation looks like: Gates *cable-less* RT73 External Monitor. Designed for DSMC3 RED Touch 7.0" LCD, RT73 utilizes genuine RMI (RED Monitor Interface) cable, passing through a dry, sealed tilt/swivel mount. There is no external cable connecting the monitor to the housing. A new level of reliability and usability. RT73 is a bespoke, glove-fit for the vivid 1920 x 1200 display with 1300 nit LCD and superb color accuracy. All user button are accessible, too, giving you full control. The RT73 is available solely with Gates PRO RAPTOR Underwater Housing, offering a new level in user authority field maintainability, and performance. Additionally, for the perfect trim, RT73 can be either slightly negative or perfectly neutral buoyancy with included trim float -- no 'turtling'. Of course, Gates RT73 Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.

Key Features

• GATES "CABLE-LESS" DESIGN: The RT73 does not have an external Monitor-to-Camera housing cable. It utilizes the RED Monitor Interface (RMI) Cable, passing through a sealed, dry tilt/swivel mount. This is genuine innovation.
• EASY-TO-SEE DAYLIGHT BRIGHT 1300 NIT DISPLAY: DSMC3 RED TOUCH 7.0" (730-0029) LCD is a big 7" / 178 mm 1920 x 1200 display with brilliant HDR illumination.
• 2-YEAR WARRANTY: Only Gates offers a professional 2-year renewable warranty on all housings.
• TILT / SWIVEL BASE MOUNT adjust RT73 for the perfect viewing angle. A true professional touch.
• NO 'TURTLING': Neutrally buoyant design means no fighting a rig that wants to flip over.

Specifications

DISPLAY

• DSMC3 RED TOUCH 7.0"
• Illumination: 1300 nits
• Widescreen 7.0 inch / 178mm color LCD
• 1920x1200 resolution

CONTROLS

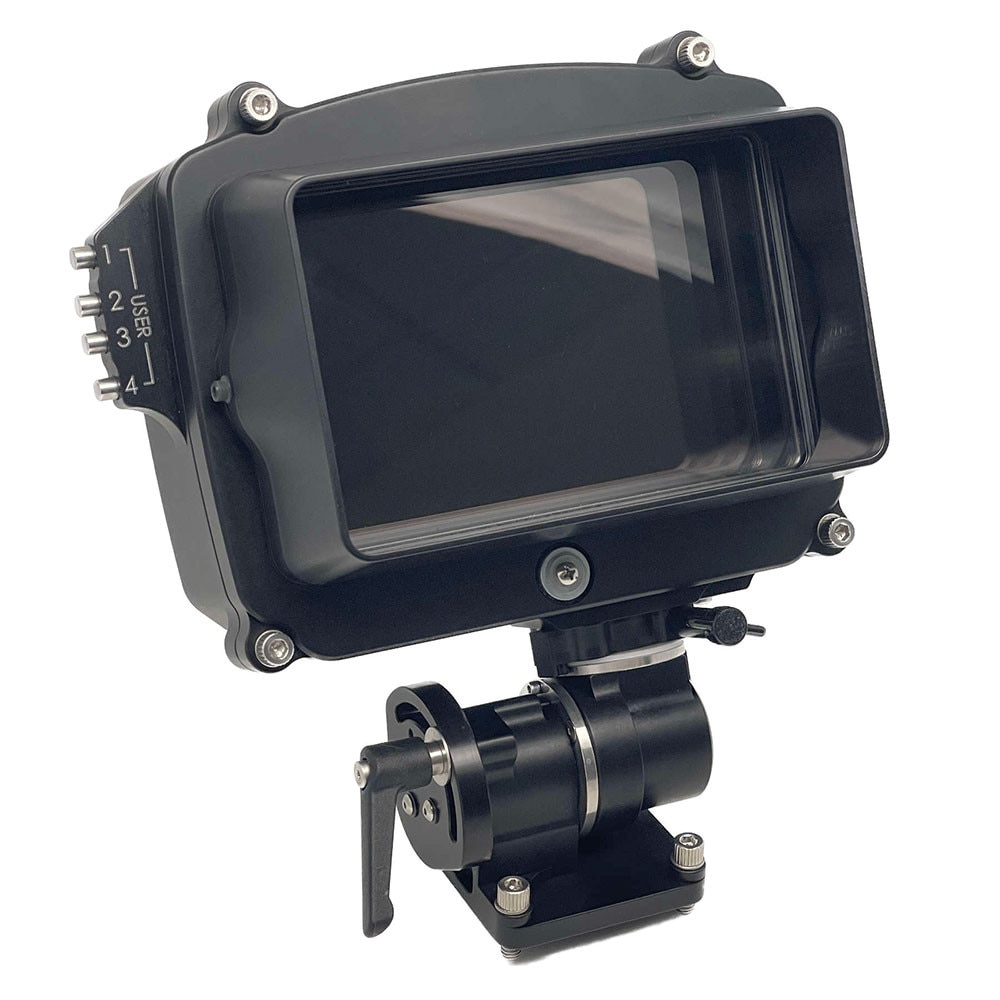

• User 1/2/3/4

INPUT FORMAT

• RED Monitor Interface (RMI)

MATERIAL

• Machined Aluminum, Type III 'Hard' Anodized finish
• Stainless steel hardware

WEIGHT

• Dry: 5.4 lbs / 2.5 kg
• In Water: Neutral (w/included trim float)

DEPTH RATING

• 250 ft / 76 m

WARRANTY

• 2-Years Renewable

CABLE / CONNECTORS

• None. RMI cable passes through dry, sealed tilt / swivel mount.

POWER SOURCE / RUN TIME

• Powered by DSMC3 camera.
• Run time variable depending on DSMC3 battery capacity.
