Gates UHT Helios Tube Underwater Housing with Push Button Panel

UNDERWATER / SURFACE CONTROL OF CINEMA LIGHTING IN GATES-TOUGH HOUSING

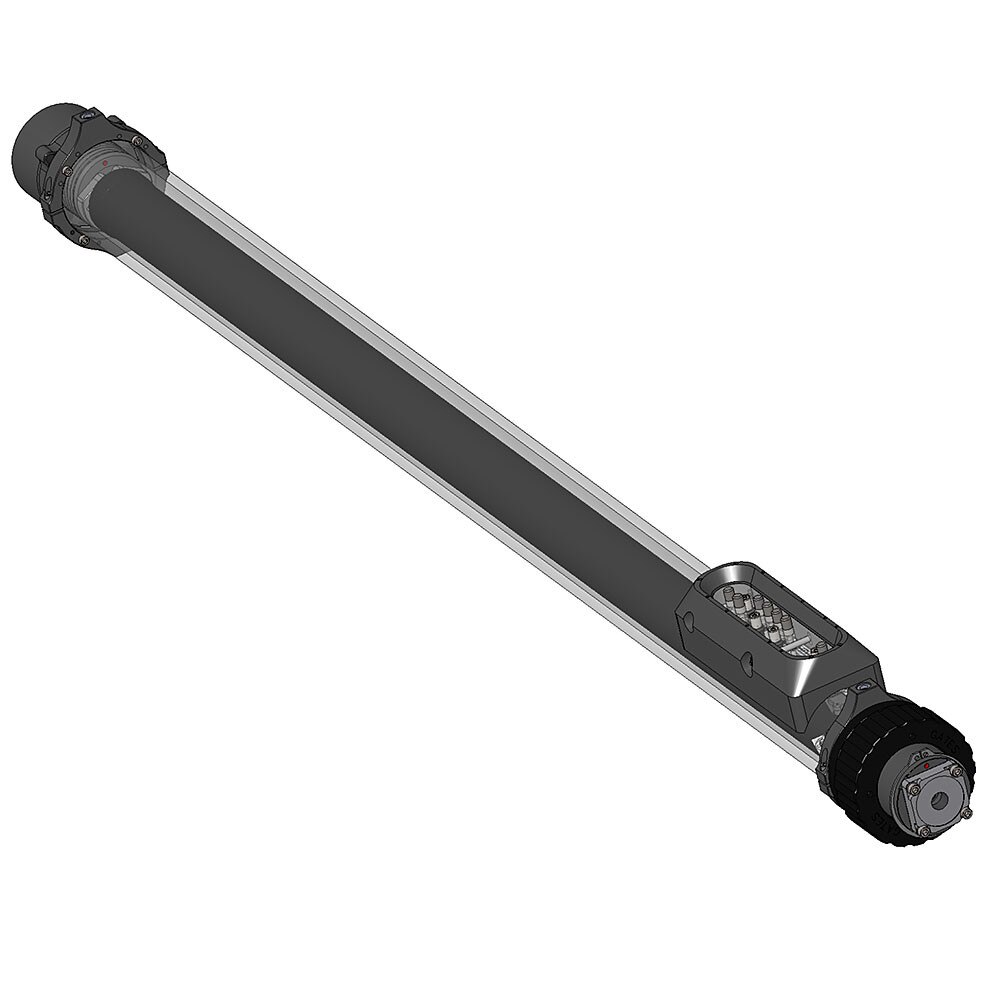

Gates Underwater UHT Helios Tube Housing is designed specifically for Astera Titan Tubes, providing complete command/control from either topside with a cable tether or underwater via the built-in control panel. UHT uniquely adapts "the ultimate LED tube for filmmakers, TV studios and any creative person" to the underwater professional realm.

UHT is constructed of tough, 1/4 in / 6mm thick polycarbonate cylinders, and sealed with aluminum, stainless steel, and acetyl hardware. Pushbutton controls are Gates standard of 316 Stainless Steel, virtually impervious to salt water. Four UHT's are mountable in an optional rack for bank illumination, which in turn is secured to a set via the cheeseplate or any stand/mount with a conventional studio pin.

UHT is A Gates through and through, meeting the demands of underwater cinematographers with powerful, full-spectrum illumination. And of course, backed by Gates distinguished support and warranty – the hallmark of commitment to your success.

KEY FEATURES

UNDERWATER COMMAND / CONTROL

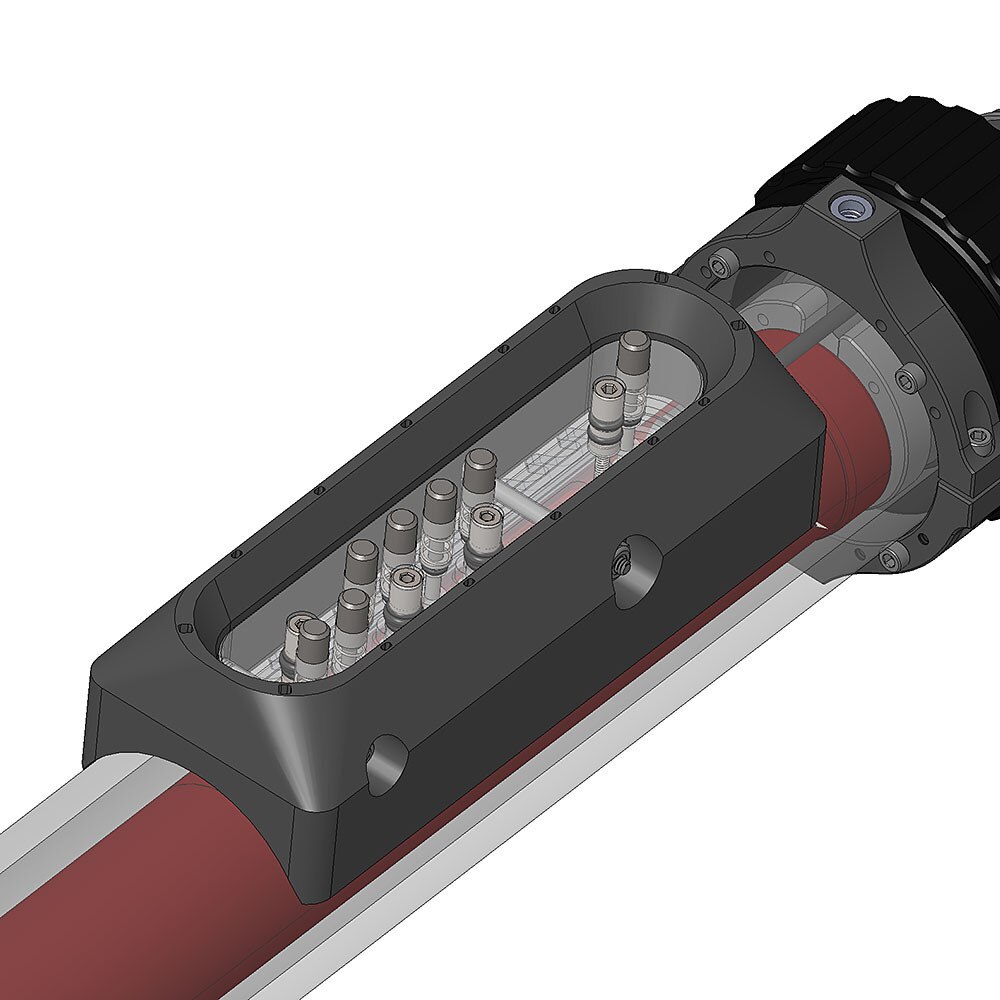

A protected push button panel provides direct access to Astera Titan Tube panel.

SURFACE CONTROL (OPTIONAL)

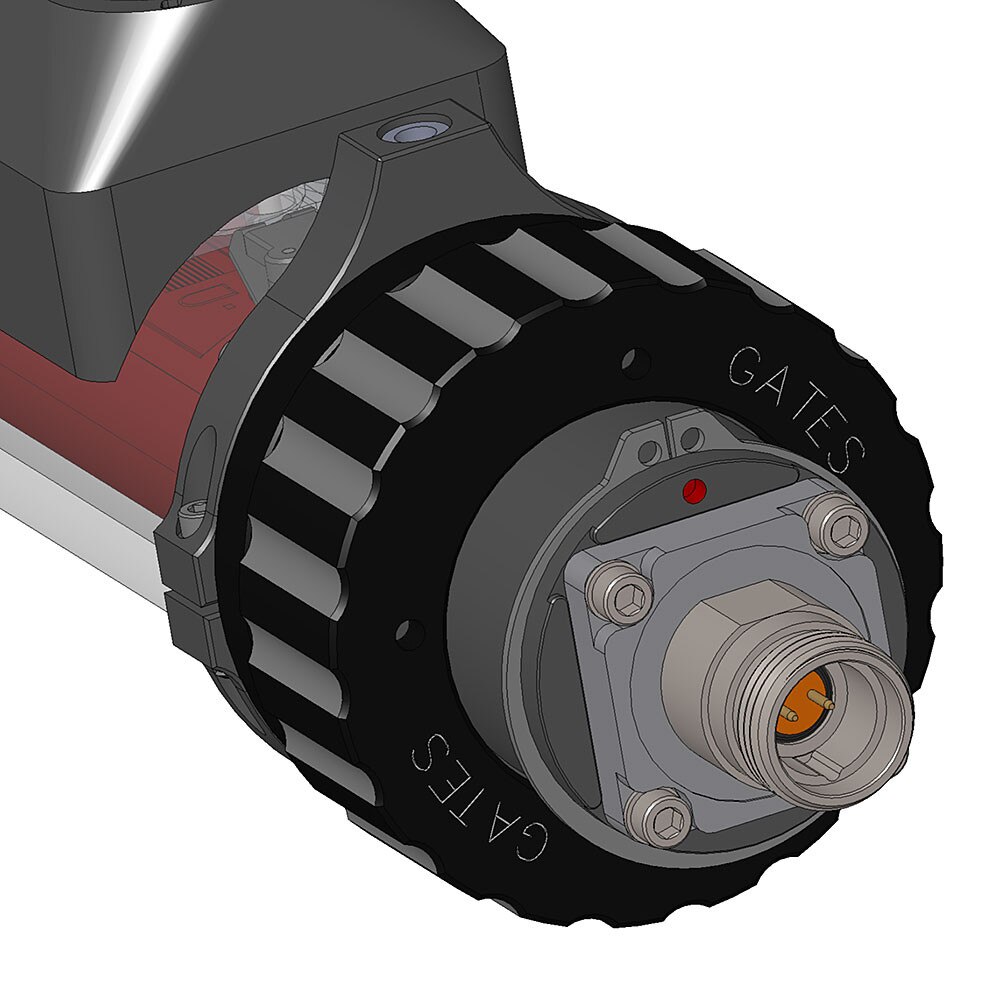

100 ft / 33m surface cable provides both power *and* control via various Astera control units. Gates MultiConn (GMC) marine connectors provide robust, reliable interfaces.

DURABLE, "BULLETPROOF" CLEAR POLYCARBONATE TUBE

With brackets of machined aluminum/type III hard anodize finish and Stainless Steel hardware.

UHT RACK PANEL (OPTIONAL)

Four-tube rack for powerful, controlled illumination, and includes standardized studio pin or cheeseplate mounting.

CONVERTIBLE BUOYANCY / TRIM

UHT base configuration is nearly neutral, perfect for underwater handling. But with included Base Weight is several pounds negative for secure, stationary placement.

GATES WARRANTY

And legendary service stands behind Underwater Titan Tubes.

SPECIFICATIONS

• DEPTH RATING: 150 feet / 45 meters
• WEIGHT
• 6 lbs / 3kg (preliminary) base configuration, without Astera Titan Tube
• Neutral underwater in the base configuration
• SKB Case + Rack Panel + 4x UHT Housings + 4x Surface Cables: 125 lbs / 57kg
• POWER
• Internal Astera Helios Tube Battery
• Optional surface Command / Control cable
• WARRANTY:
• 2 years material/workmanship
• 1 year electronics / cables
• Gates Warranty Details

OPTIONAL ACCESSORIES

SURFACE CONTROL

100 ft / 33m surface cable provides both power *and* control via various Astera control units. Gates MultiConn (GMC) marine connectors provide robust, reliable interfaces.

UHT RACK PANEL (OPTIONAL)

Four-tube rack for powerful, controlled illumination, and includes standardized studio pin or cheeseplate mounting.

UHT SURFACE CONTROL ONLY VERSION

Built to order, UHT with Surface Control option and no pushbutton panel is available.

TRANSPORT CASE

Military-grade SKB Case with custom foam fits 4x UT2 tubes, UT2 Rack Panel, and 4x surface cables
