Inon UWL-95S M52 C24 Underwater Wide Angle Conversion Lens
Inon UWL-95S M52 C24 Underwater Wide Angle Conversion Lens
SKU: # in-uwl-95s-m52
Price $375.00
Custom Options
Add a Dome Unit
Get up to 140° with these dome units.
Price as Configured
Articles & Videos About This Item ALL ARTICLES ALL VIDEOS
Overview / Product Description

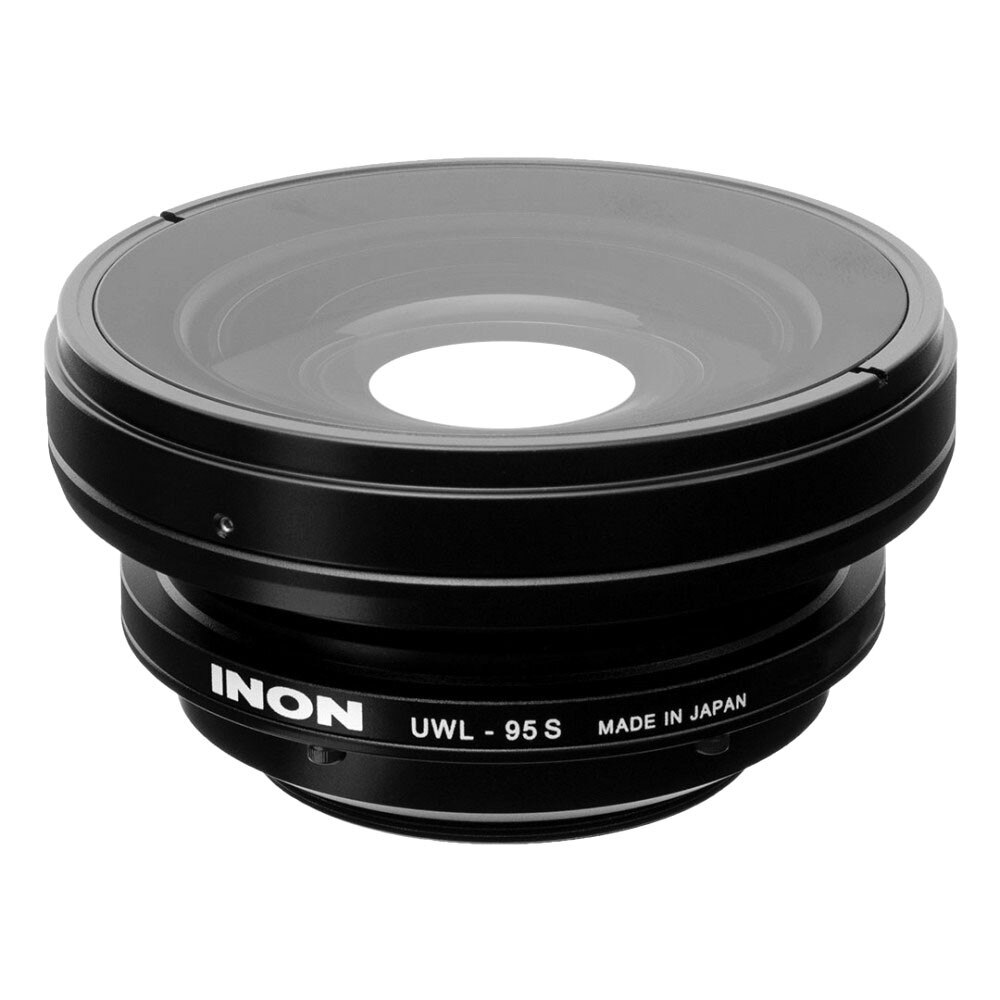

Inon UWL-95S M52 C24 Underwater Wide Angle Conversion Lens
- Maximum view angle 95° underwater/159° in air.
- Optional Dome Lens Unit IIIA/Dome Lens Unit IIIG further increases view angle underwater up to 141°.
- Optimally designed optics effectively suppresses flare/ghost even in backlit conditions to provide a sharp and high-quality image.
- 1.0-inch type sensor with bright master lens camera compatibility.
- Minimum focusing distance 0 cm both on land and underwater.
The maximum view angle is 95° underwater / 159° in the air. Combination with the optional super-wide option Dome Lens Unit IIIA or Dome Lens Unit IIIG further increases the view angle underwater up to 141°.
The renewed optical design effectively suppresses flare/ghost even in a backlit condition to provide a sharp and high-quality image. The UWL-95S C24 is designed to support a camera of the large 1.0 type sensor with a bright master lens. Using the UWL-95S C24 can dramatically reduce the minimum focusing distance enabling one to get the subject to the lens in focus both on land and underwater.
The newly released UWL-95S M52 and UWL-95S M67 lenses now have the same lens barrel as the existing UWL-95S XD. This design feature allows budget lens type conversion among three different lens mounts (M52, M67, or XD) only by changing the lens mount. Optional lens mounts (M52, M67, XD bayonet) are available to purchase separately.
Specifications
- Outer diameter: φ90.0 mm/3.5 in
- Length: 48.3mm / 1.9in
- Weight: [air] 611g / 21.6oz [underwater] approx. 392g / 13.8oz
- Mount system: INON M52 Mount
- Depth rating: 60m / 196.9ft
- Material: Corrosion-resistant aluminum alloy
- Surface finishing: Rigid black almite, POM, etc.
- Glass/Coating: Optical glass/both side anti-reflection coating
- Lens construction/magnification: 3 groups 4 elements / 0.63 (afocal)
- Max. view angle: [underwater] approx. 95.1°, [air] 159.0°
