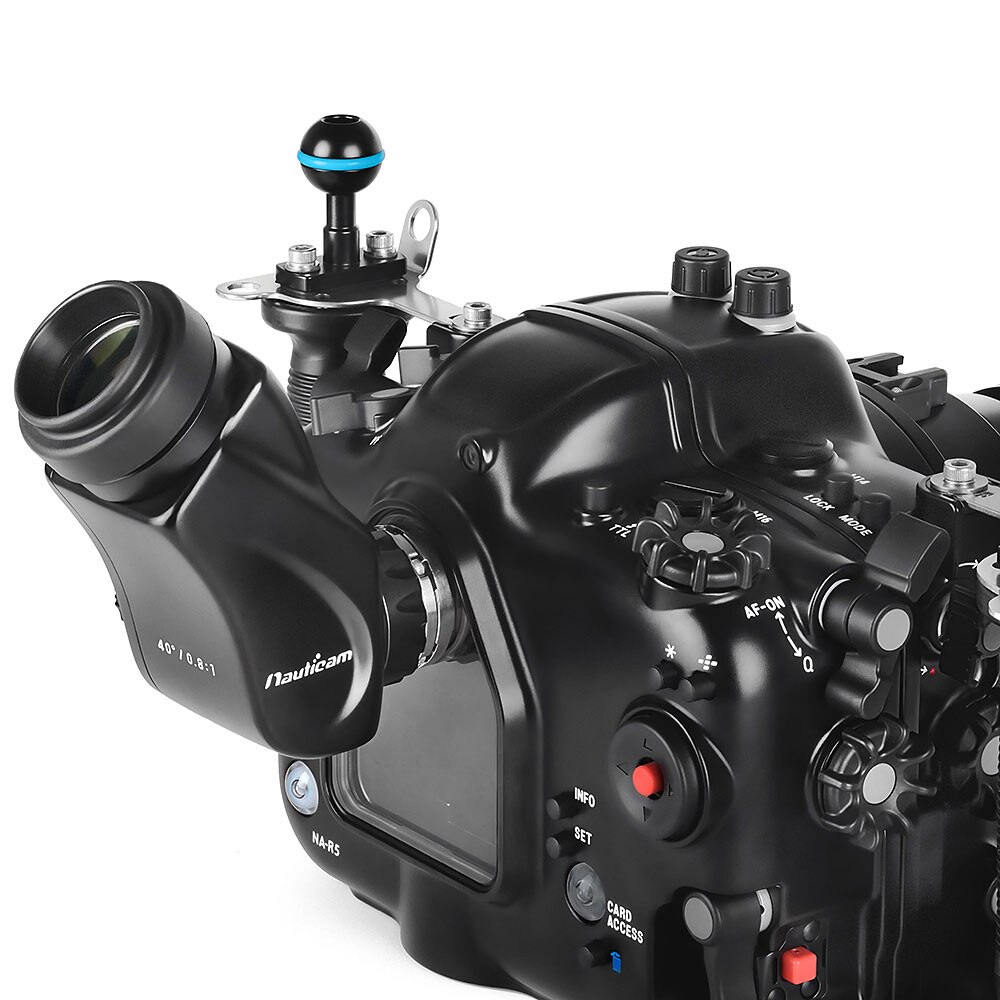

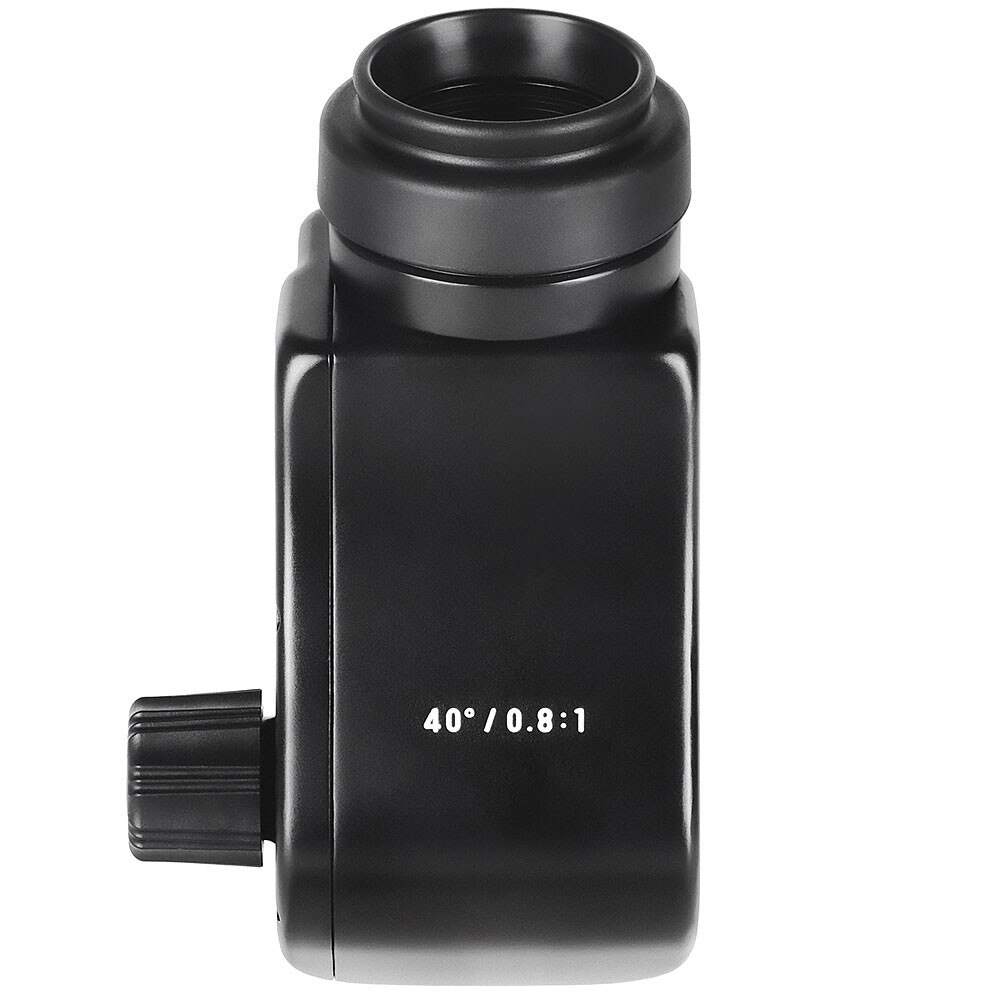

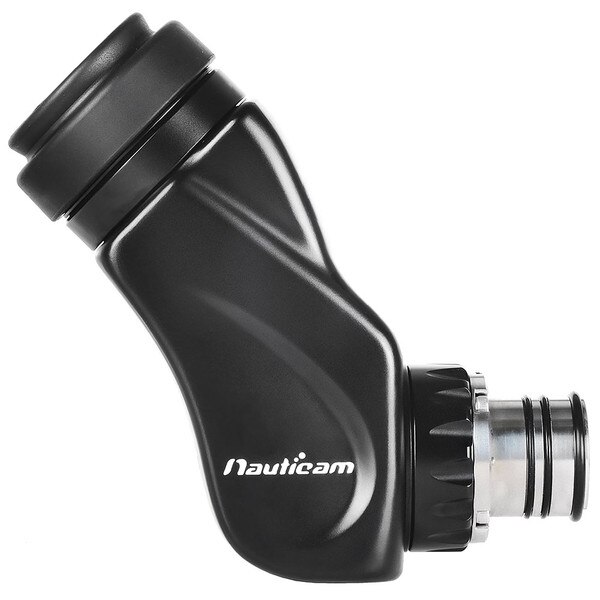

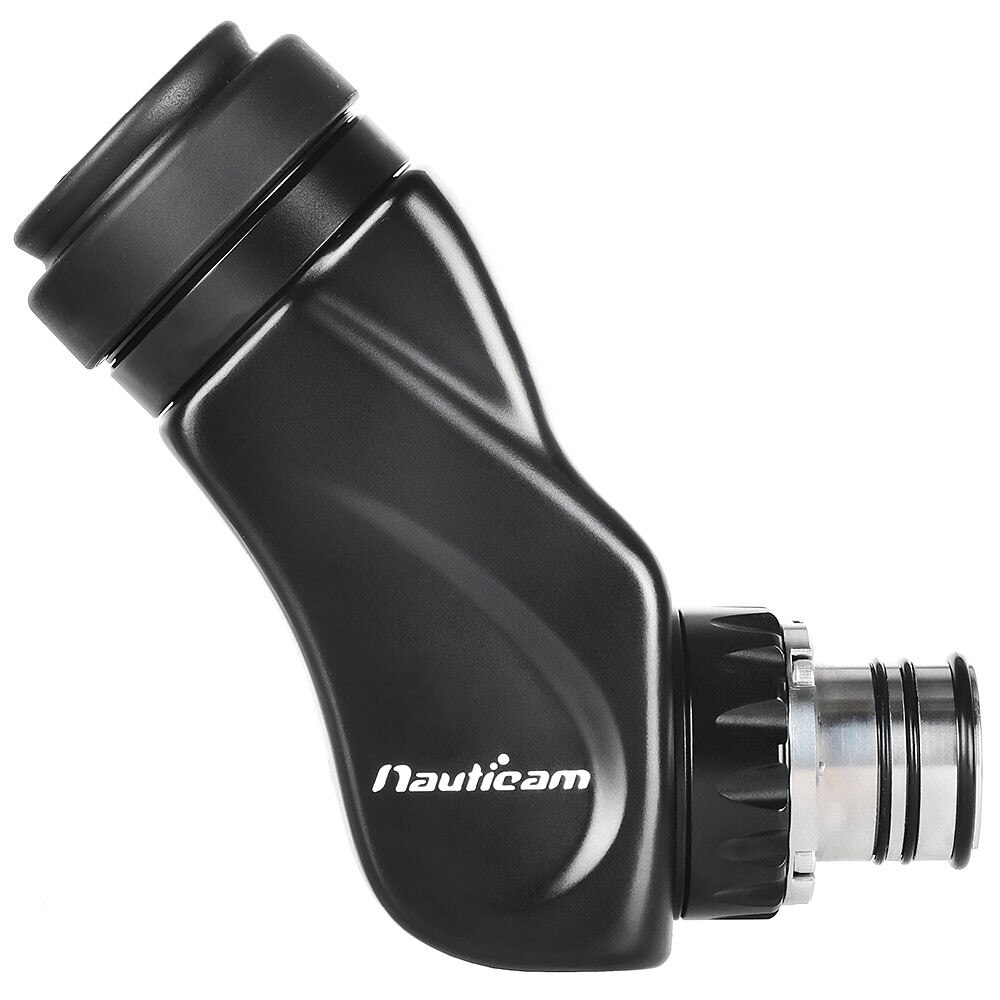

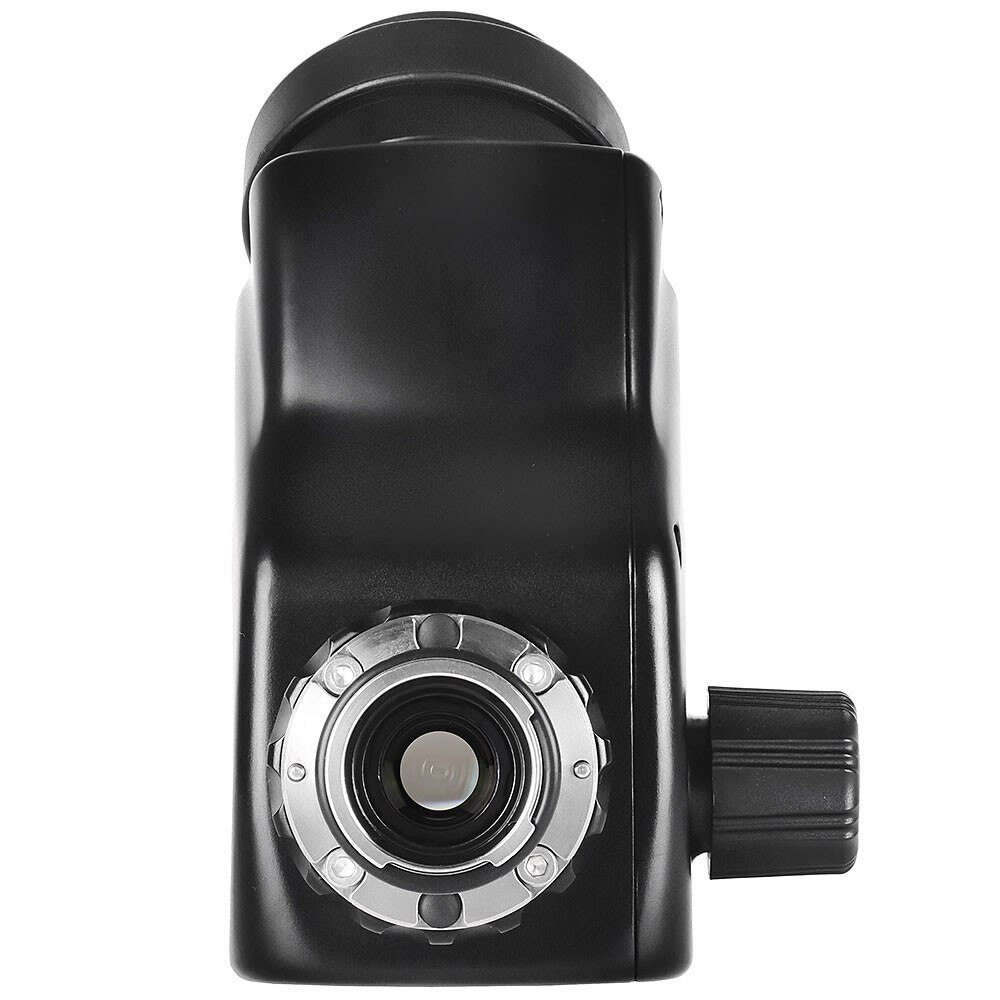

Nauticam Reverse Angled Viewfinder 40° / 0.8:1 for EMWL Lenses

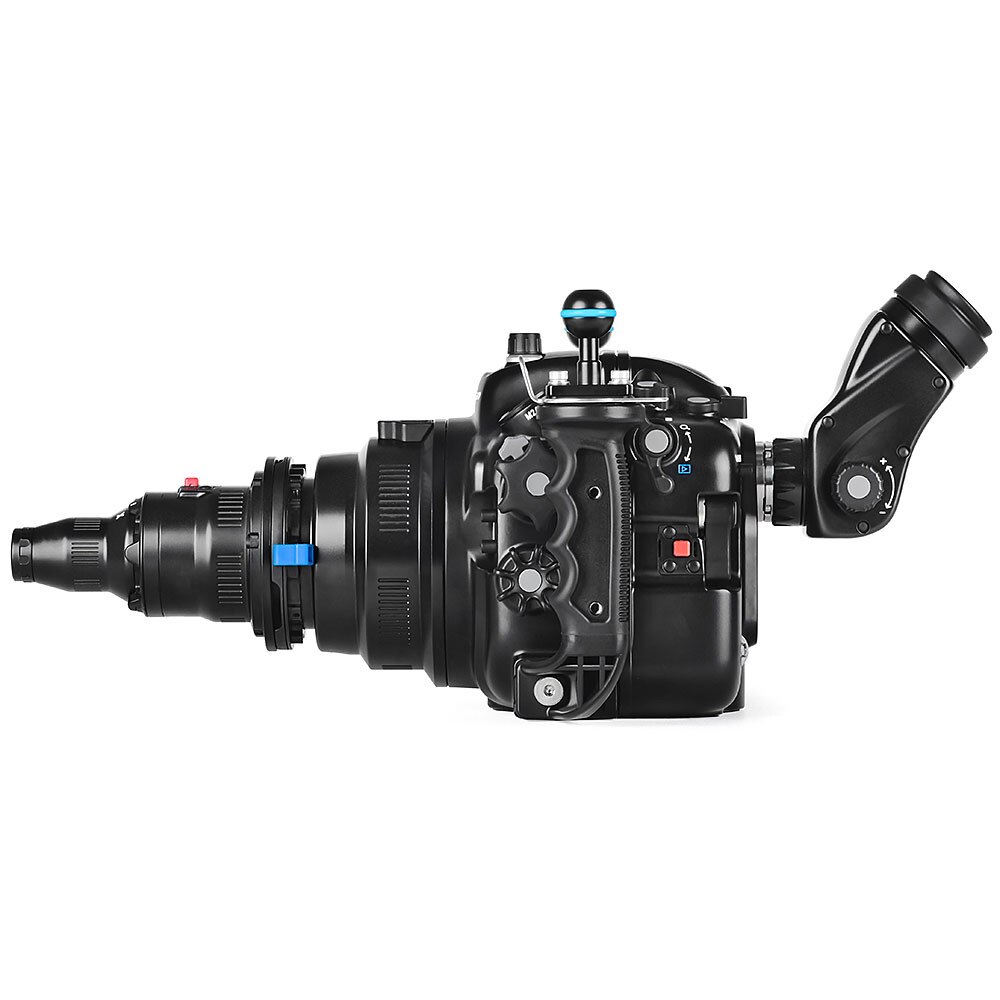

This specialized version of the Nauticam Enhanced Full-Frame Angled Viewfinder (40º/0.8:1) is designed to work specifically with the EMWL using ONLY the Focus Unit and the Objective Lens.

INTRODUCING REVERSE STRAIGHT VIEWFINDER FOR EMWL （40°/ 0.8:1）

REVERSE ANGLED VIEWFINDER FOR EMWL（40°/ 0.8:1）

In this setup, without the relay lens, the image appears inverted in the viewfinder/EVF. This version allows the image to appear in its proper orientation. Removing the real lens allows for easier operation in certain conditions where a longer distance to the subject is not required.

COMPATIBILITY

This viewfinder is compatible with ALL Full-frame DSLR and Full-frame Mirrorless housings except the NA-A7C which requires the same adapter (#32215) as other mirrorless housings.

What's In The Box

• Front and rear covers
• Neoprene bag
• Spare O-rings x 3
• Manual card

Optional Accessories

• 32215 Viewfinder Collar Adaptor for 87213/87214 to use with MIL Housings
• 90020 45/180˚ viewfinder O-ring set
• 90037 Rubber caps for EVF rear, front and eye cap (3 parts)

Compatible Housing Systems

• Digital Single Lens Reflex (DSLR) Camera Housings
• Full Frame Mirrorless Camera Housings (except NA-A7C)
• Mirrorless Interchangeable Lens (MIL) Camera Housings through using #32215 Viewfinder Collar Adaptor

TECHNICAL SPECS

• Magnification Ratio: 0.8:1

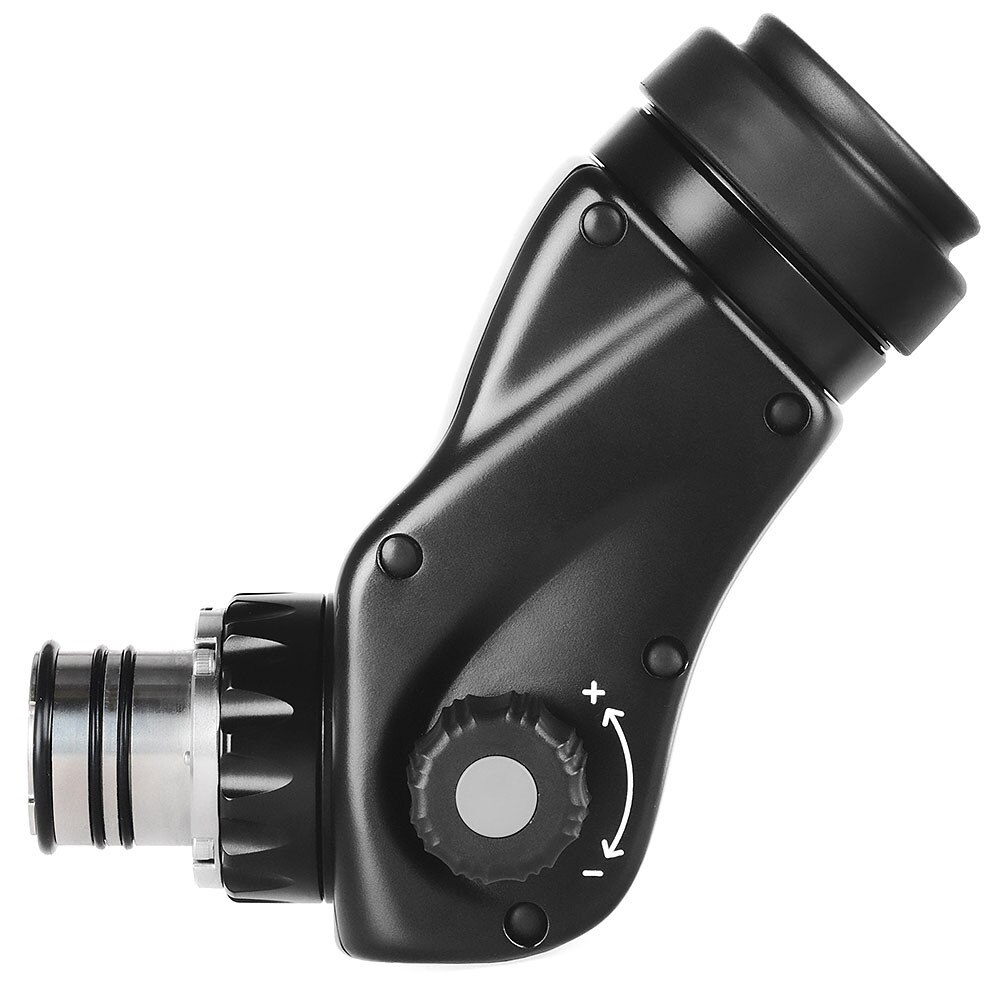

• Dioptric Adjustment Range: -3 to +3
• Depth Rating: 100m / 330ft
