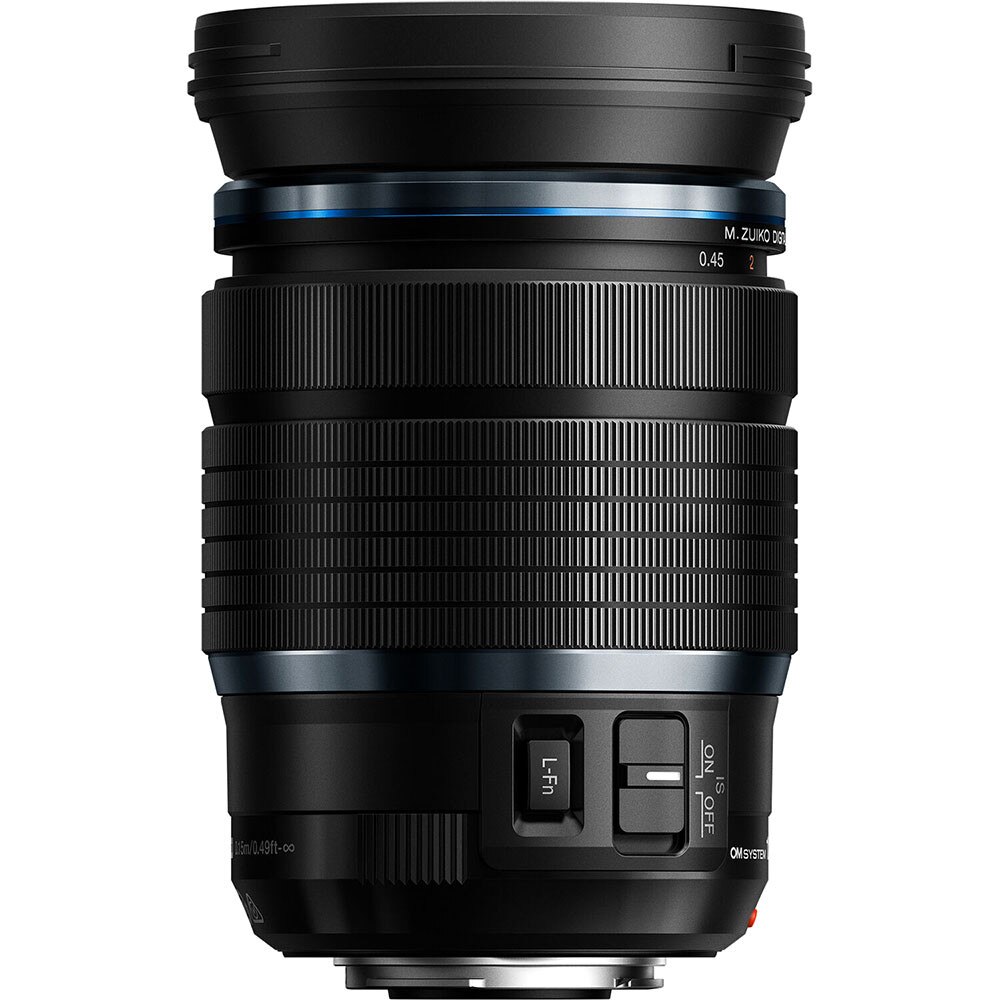

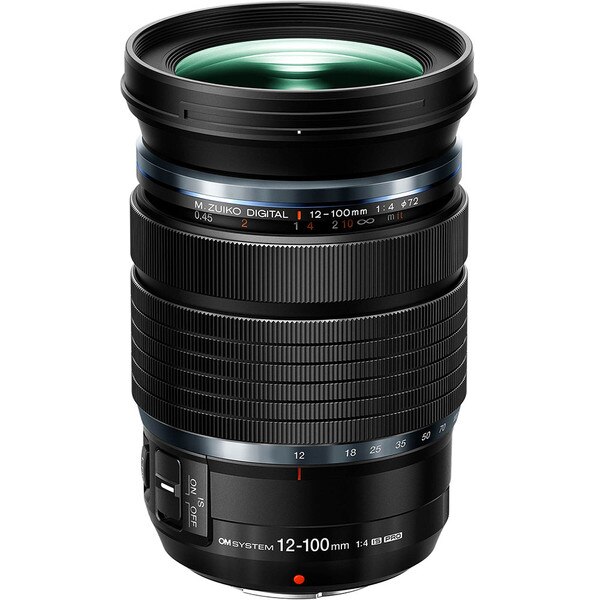

OM System M.Zuiko Digital ED 12-100mm f/4.0 IS PRO Lens

M.Zuiko ED 12-100mm f4.0 IS PRO at a Glance

The M. Zuiko Digital ED 12-100mm f4.0 IS PRO Lens is in a class by itself. It’s the only professional high magnification zoom to cover a 35mm equivalent 24-200mm focal range all on its own. This Micro Four Thirds lens features premium construction and superior glass to provide spectacular optical performance. Thanks to 5-Axis Sync IS, the world’s most powerful image stabilization system, it captures razor-sharp images. Every inch of this Lens is PRO: weatherproof construction, fast autofocusing, and effortless control. Its broad focal length lets you shoot portraits, wide-angle landscapes, and macro—one Lens. Unprecedented versatility.

• F4.0: Bright 4.0 Aperture
• 24-200mm: 35MM Equivalent Focal Length
• 0.6x - 0.42x: 35mm Equivalent Max. Image Magnification

HIGH PERFORMANCE

M.Zuiko PRO lenses are built for the highest level of performance, incorporating fast apertures and weather-sealed construction.

Powerful IS

The 12-100mm f4.0 IS PRO features effective in-lens image stabilization. On its own, this Lens provides up to 5 shutter speed steps of compensation.

Weather-sealed

Pair this Lens with a weatherproof OM-D body to take advantage of every photo opportunity without worrying about your equipment.

Micro Shooting

We designed the 12-100mm f4.0 PRO so that you can shoot near and far, even at exceedingly close range. This Lens has a minimum working distance of 15 cm.

TECH SPECS

Lens Construction

• Lens configuration: 17 elements / 11 groups
• Maximum image magnification: 0.3x (Micro Four Thirds) / 0.6x (35mm format)
• Angle of view: 84 - 12°
• Closest focusing distance: 0.15m
• Minimum field size: 57.7 x 43.3mm
• ED lens elements: 5
• Aspherical glass elements: 3
• DSA lens elements: 1
• HR elements: 1
• Super HR elements: 2

Focal Length

• Focal length: 12 - 100mm
• Focal length (Equiv. 35mm): 24 - 200mm

Aperture

• Maximum aperture: F4
• Minimum aperture: F22
• Number of aperture blades: 7 Circular aperture diaphragm for natural background blurring

Image Stabiliser

• Effective Compensation Range: Up to 6.5 EV steps 5-axis Sync IS ----- Up to 5 EV steps Lens IS
• Type: Lens shift

Pro Features

• Dust, splash & freezeproof: Available
• Note: According to IP53
• Lens Hood locking: Safety button
• L-Fn Button: Available
• MF Clutch: Available

Dimensions / Weight

• Diameter: 77.5mm / 3.05in
• Length: 116.5mm / 4.589in
• Filter diamater: 72mm
• Weight: 561g / 1.24lbs
