SmallHD Gold Mount Micro Power Plate

SmallHD Micro Power Plate for SmallHD Ultra 5 Series (V-Mount)

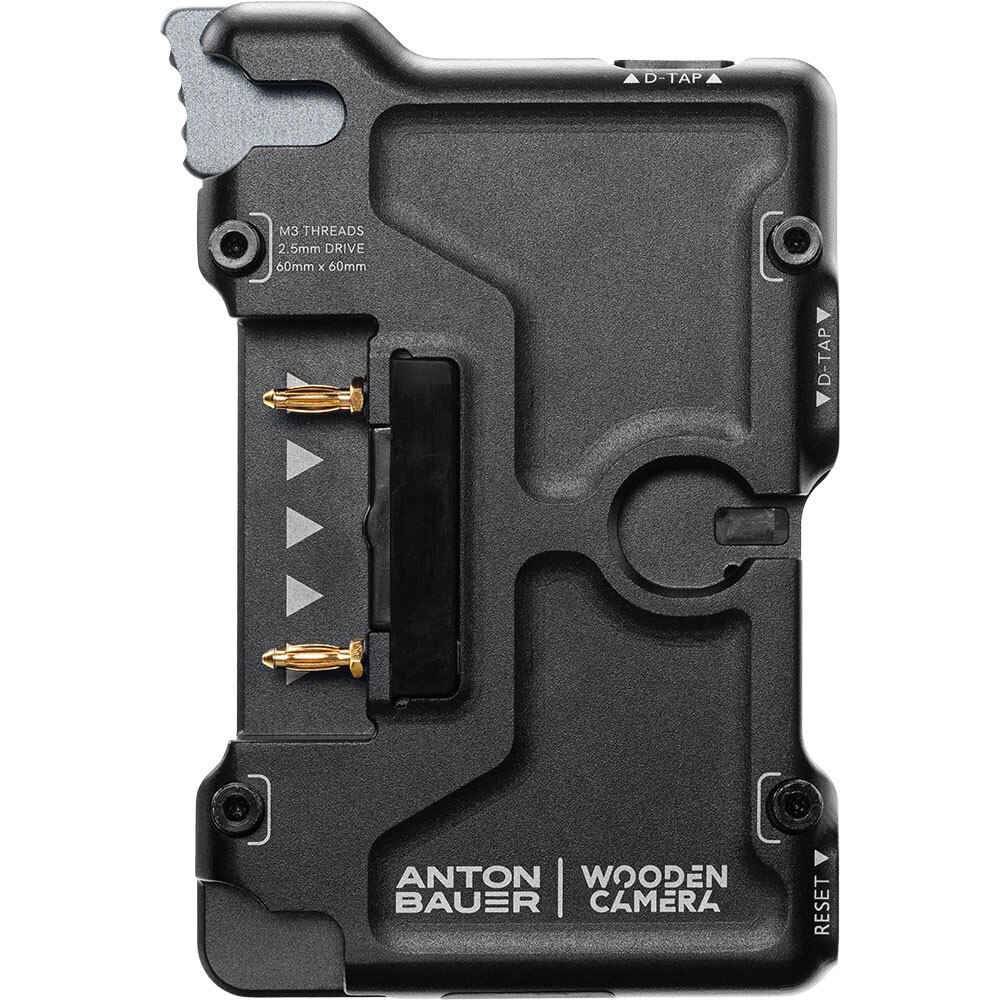

The Micro Battery Plate for SmallHD Ultra Series is made from anodized aluminum, which ensures durability and secure battery mounting. Its small form factor was designed to pair with your Ultra 5 and Ultra 7 monitors.

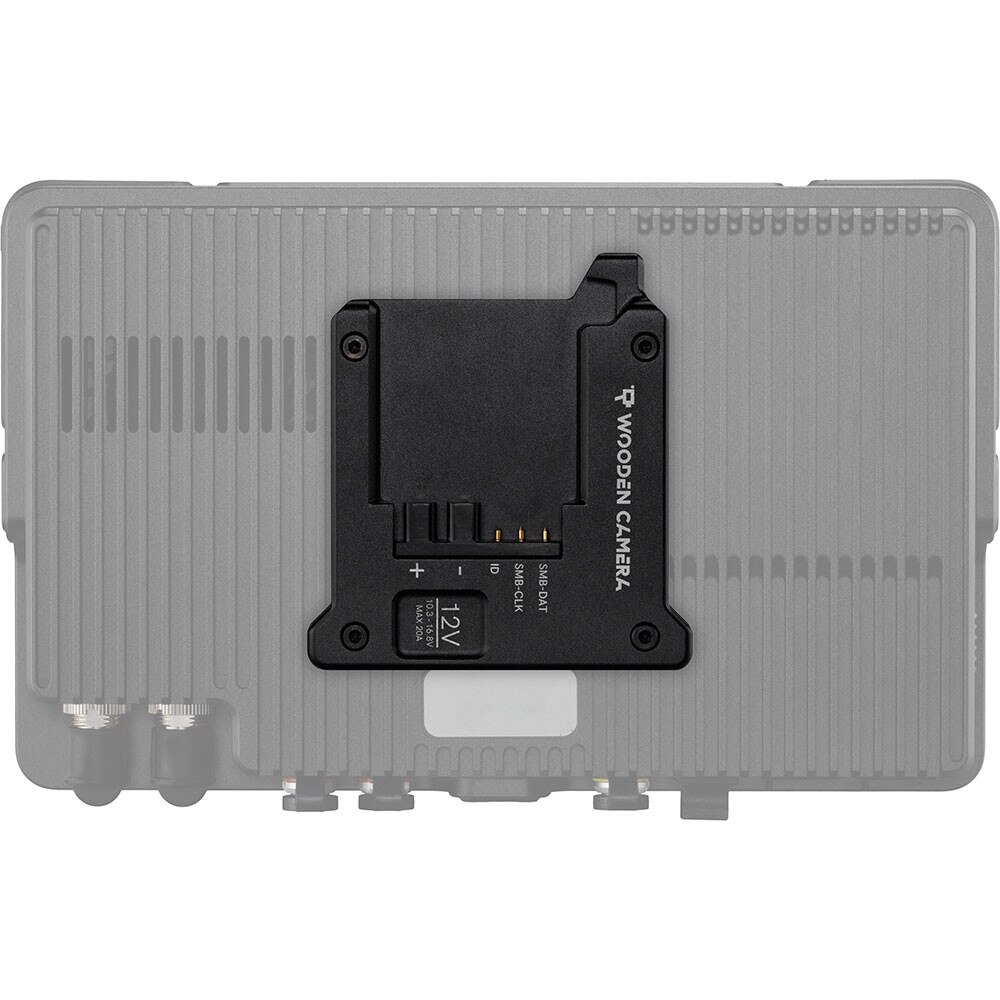

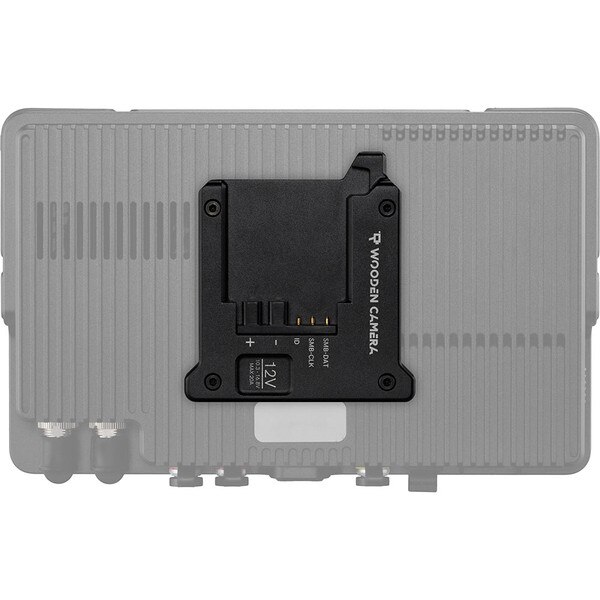

V-Mount or Gold Mount options: This power plate features 2x D-Taps for accessory power at battery voltage (11-17V) - supported by a resettable 5.8A digital E-Fuse - captive mounting screws, and a seamless, cableless integration with SmallHD’s Ultra Series monitors. Should the user exceed the set current for accessories, only the accessory outputs are disabled, leaving the monitor running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again. It is compatible with both micro and full-sized cinema batteries.

Each plate includes a 2.5mm Hex Key for installation purposes.
