Overview / Product Description

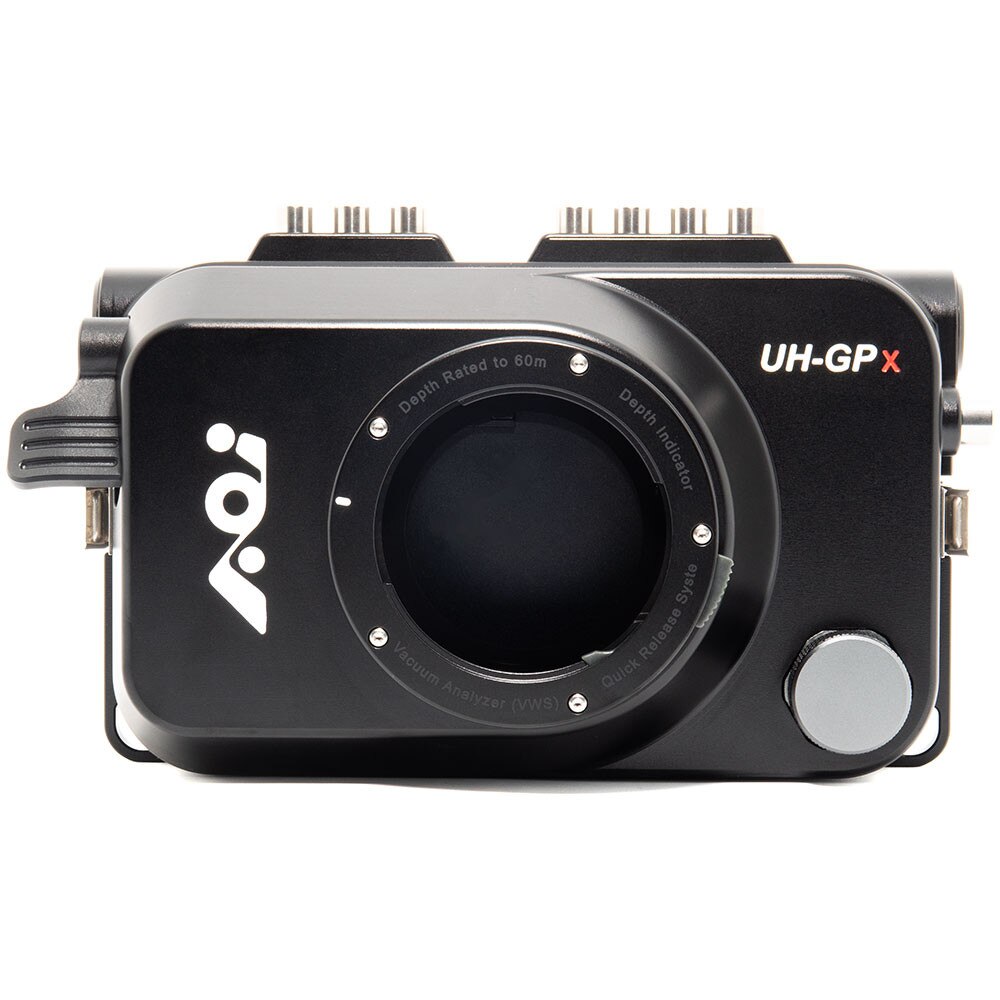

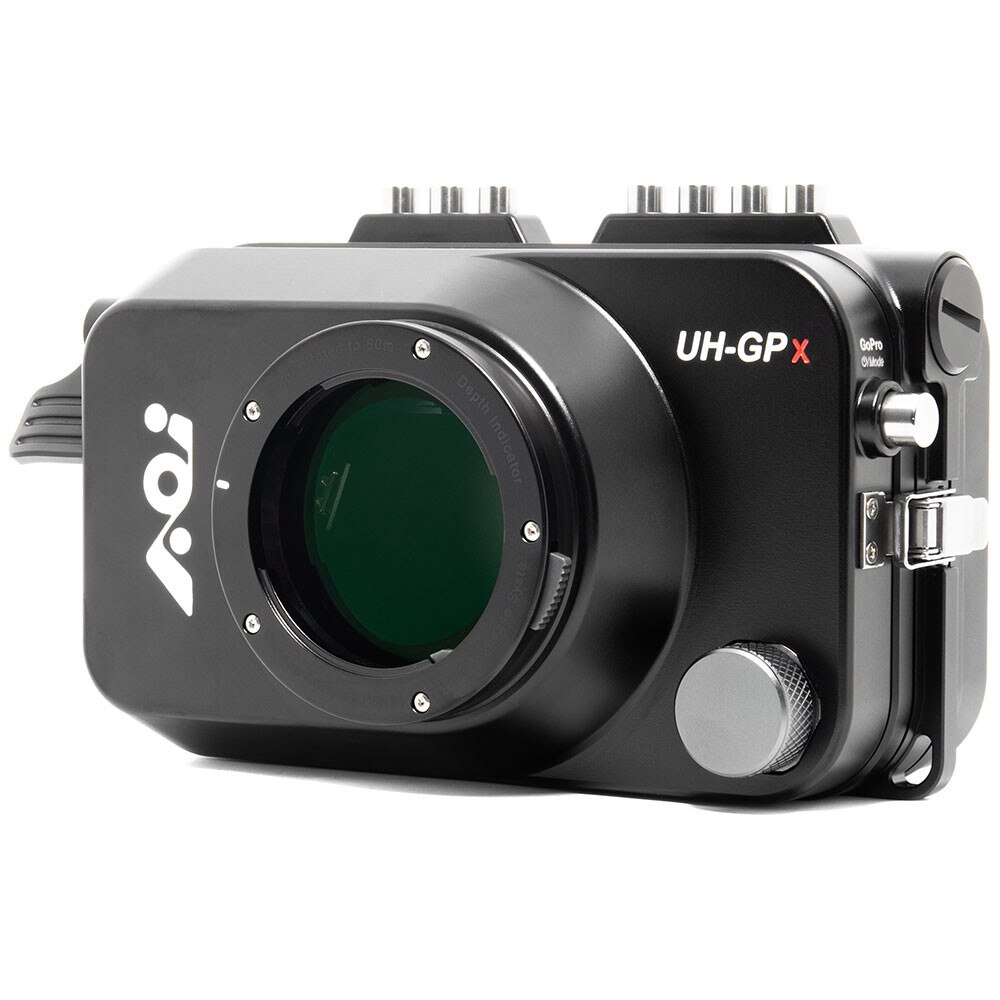

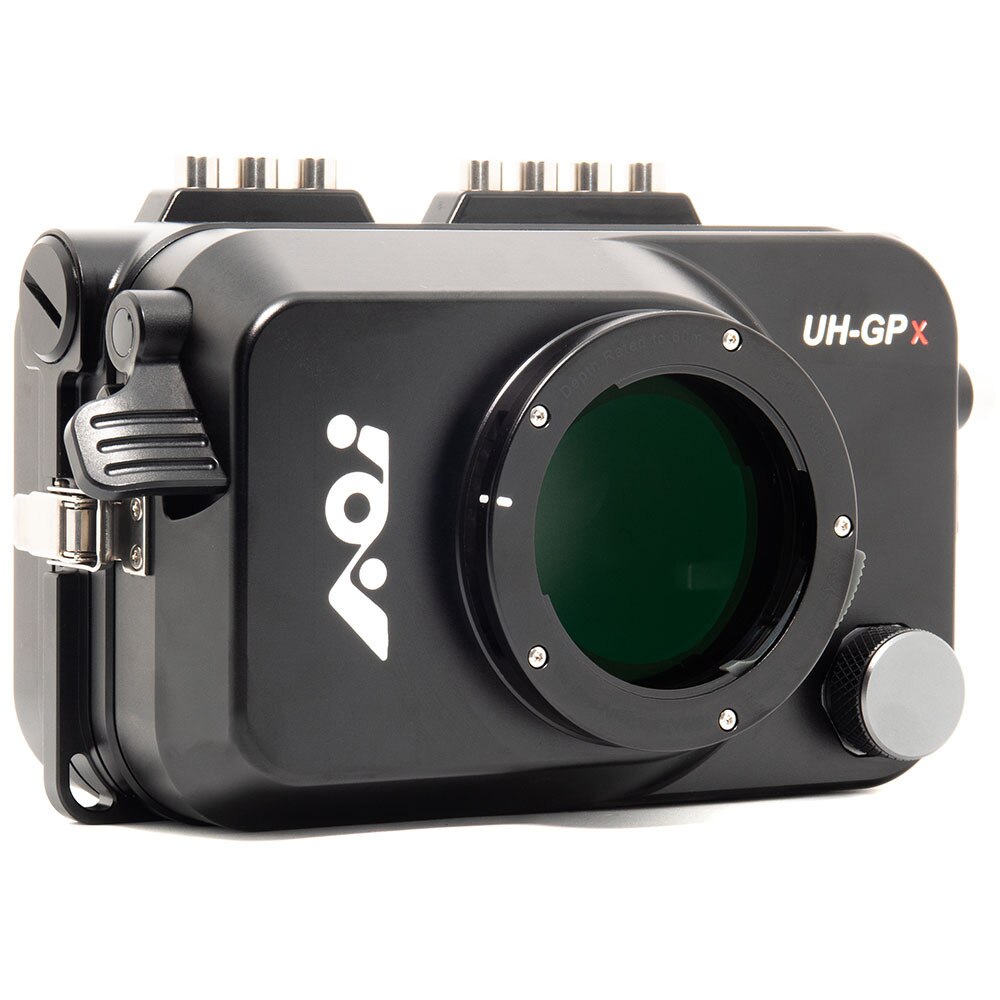

AOI GoPro HERO 9, 10, 11, 12, 13 Underwater Housing & Monitor UH-GPX
Unrivaled Durability:
Constructed from aluminum using state-of-the-art design and engineering, the housing will provide unparalleled protection for GoPro cameras, ensuring they can withstand the harshest underwater environments.
Optical Clarity:
The housing will feature advanced optical elements to maintain the highest quality image and video capture, even in challenging underwater conditions. The housing will have the hugely popular Quick Release systems built in, enabling it to attach the UWL-03 and UCL-03 lenses, significantly improving the optical capabilities of GoPros.
Ergonomic Design:

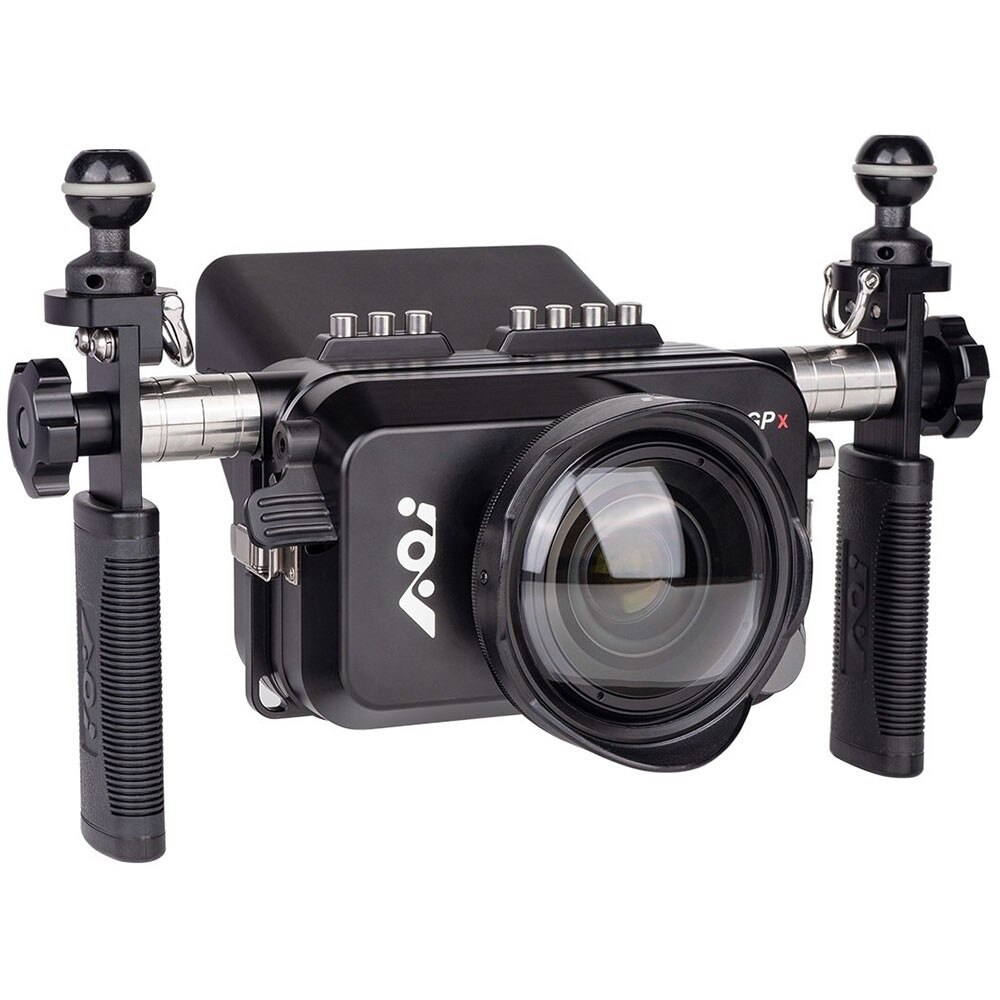

Designed with user comfort and handling in mind, the housing will offer intuitive controls and easy access to camera settings through a built-in monitor. The use of orientable arms on the underwater housing offers unapparelled composition opportunities. Making it a preferred choice for both professionals and enthusiasts.
Compatibility:
The "Signature Series" underwater housing will be compatible with a range of GoPro camera models, ensuring broad accessibility to our innovative product.
Professional Seal of Approval:
An exclusive edition with an entire ensemble of accessories will bear Kay Burn Lim's signature, signifying its endorsement by a respected figure in the underwater videography community.
SPECS:
- COMPATIBILITY: GoPro HERO 12, 11, 10, and 9
- DEPTH RATING: 60 Meters / 196 feet
- BODY MAIN MATERIAL: Marine Grade Aluminum Alloy
- SURFACE FINISHING: Hardcoat Type III Anodizing
- MAIN BODY COLOR: Anodize Flat Black
- LENS PORT MOUNT & FILTER SLOT: AOI Quick Release System (QRS) - QR2 Mount with Color Filter Slot
- LENS PORT GLASS: Multi-layer AR and Hydrophobic Coating
- WATER LEAKAGE PROTECTION: Built-in Vacuum Analyzation & Water Detection System (VWS)
- BUILT-IN WATER DEPTH MONITOR: Max. Monitoring Depth up to 100 Meters with Preset Depth Alarm Function

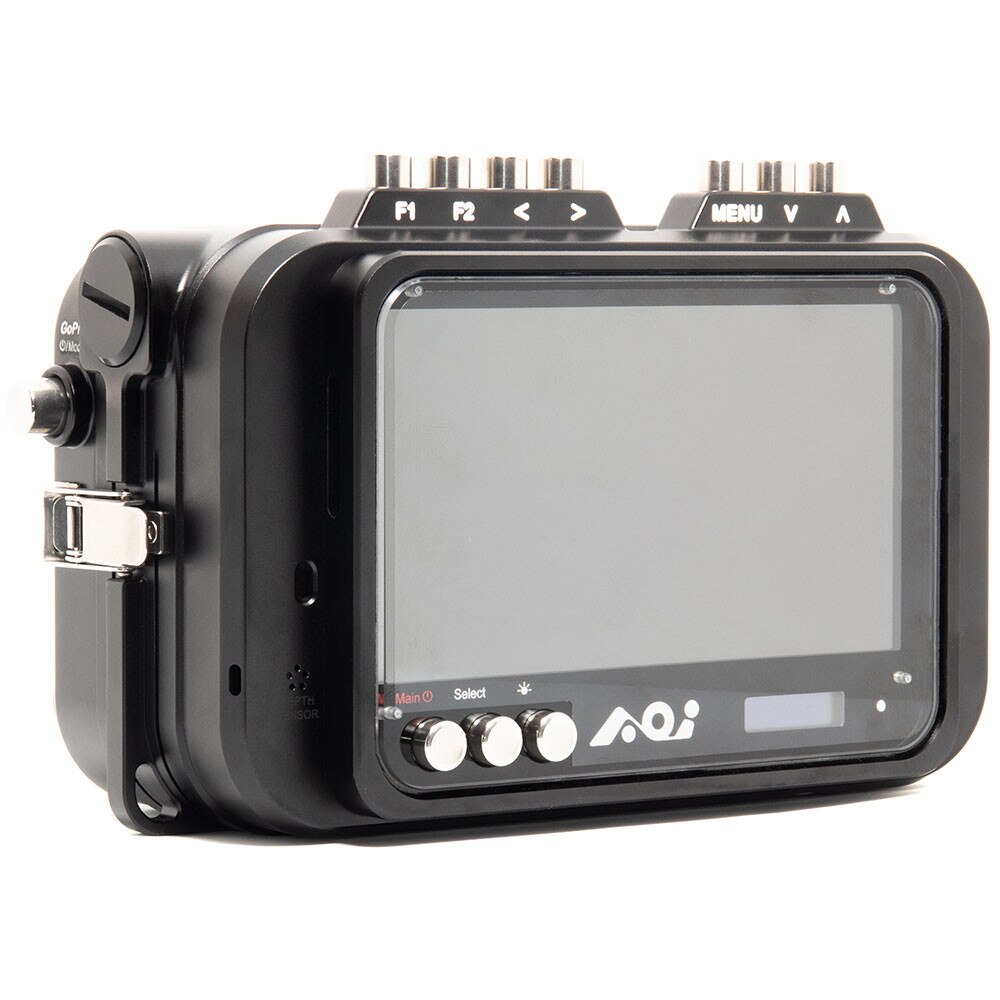

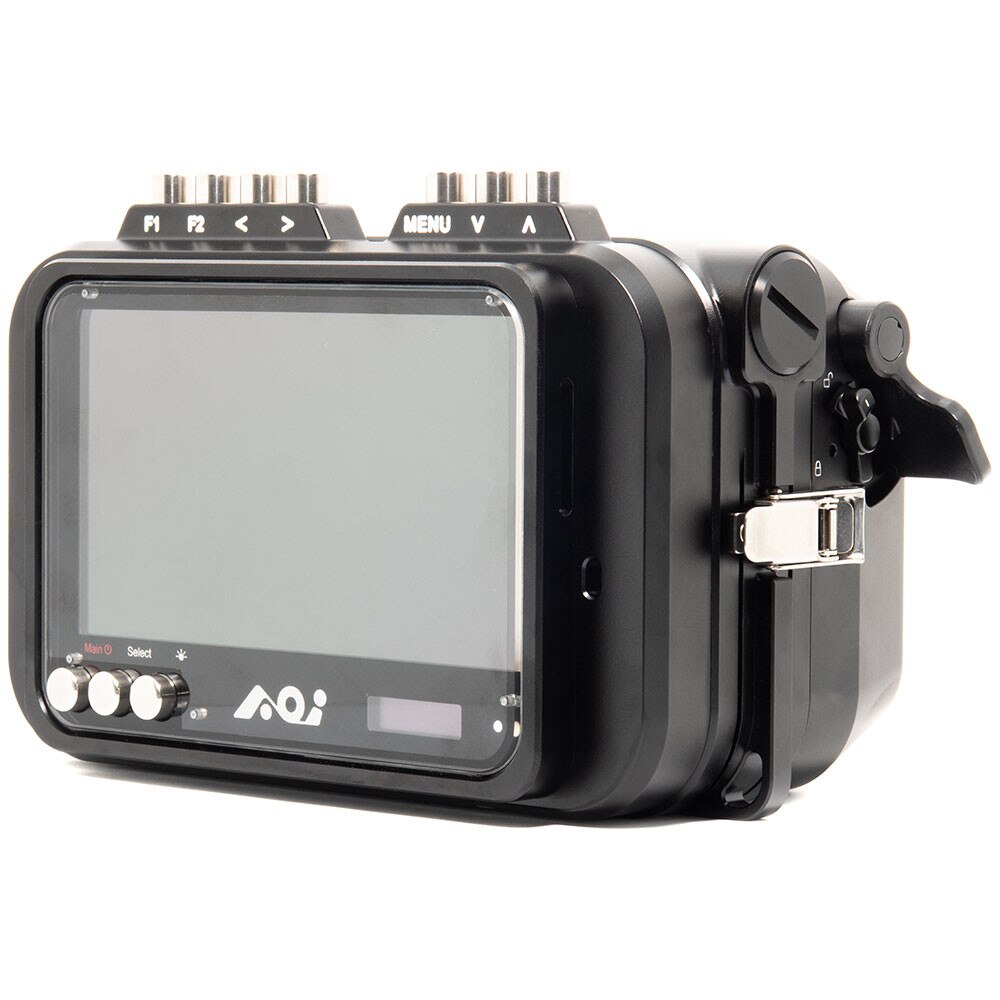

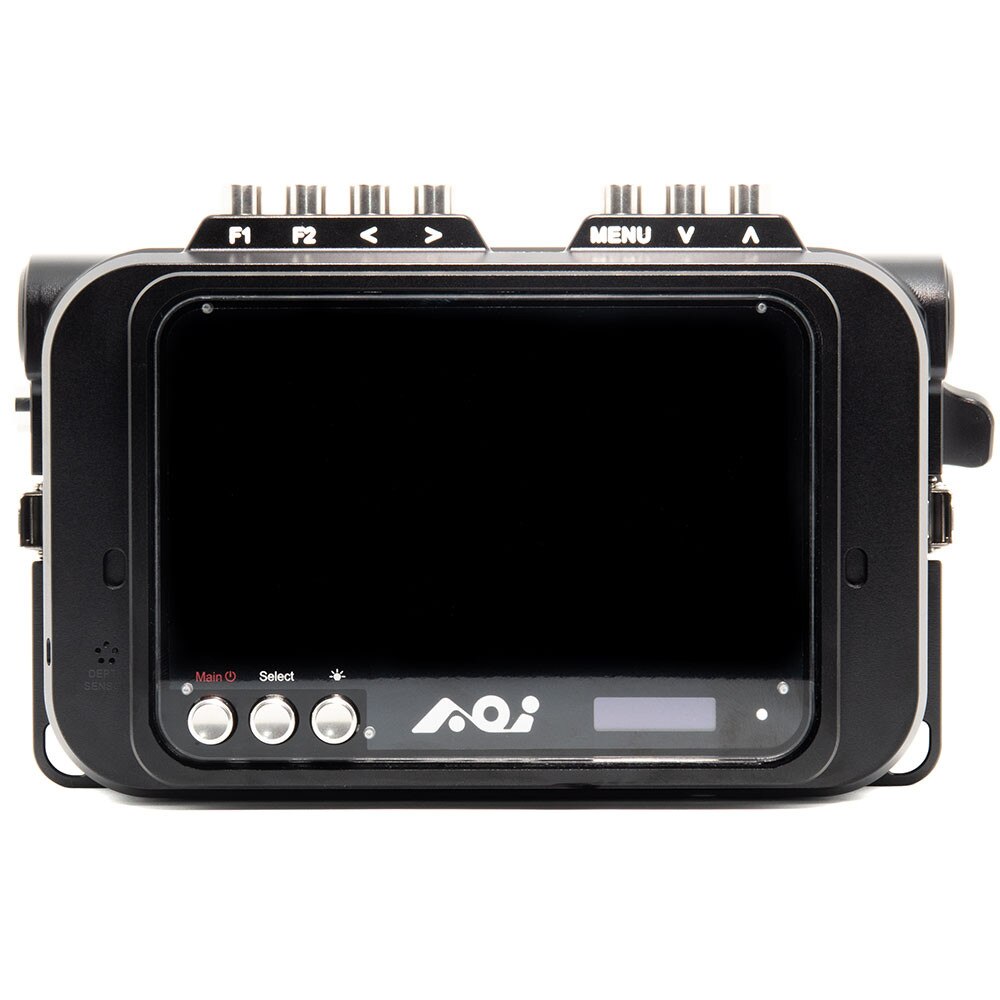

- BUILT-IN DISPLAY MONITOR:
- 5" Full HD (1920x1080 pixels) 16:9 Display Monitor
- Viewing Angle 80° / 80° (L/R & U/D)
- High Brightness 400 cd/m2 and Contrast 1000:1
- Focus Peaking Assist
- Digital Zoom (4x, 9x, 16x) Assist
- RGB Histogram, Waveform, Vector Scope & Monochrome …etc. Functions
- Two Custom-setting Buttons (F1 & F2)
- POWER SUPPLY: Removable Power Bank (22.5W, 10,000mAh) - Operation Time: 2 Hours 30 minutes
- MAIN BODY DIMENSIONS: 192mm(W) x 114mm(H) x 106mm(D) / 7.5in (W) x 4.5in(H) x 4.2in(D)
- MAIN BODY WEIGHT: On Land: Approx. 1,877g / 4.1lb - Underwater: Approx. 546g / 1.2lb
- STANDARD ACCESSORIES:
- Detachable & Foldable Monitor Hood x 1pc.
- Removable Power Bank (22.5W, 10,000mAh) x 1pc.
- Vacuum Hand Pump x 1pc.
- Spare Main Seal O-ring x 1pc.
- Spare O-ring for Vacuum Valve Protection Cap x 1pc.
- Silicone Grease x 1pc.
- Moisture Muncher Capsules x 1pc.
