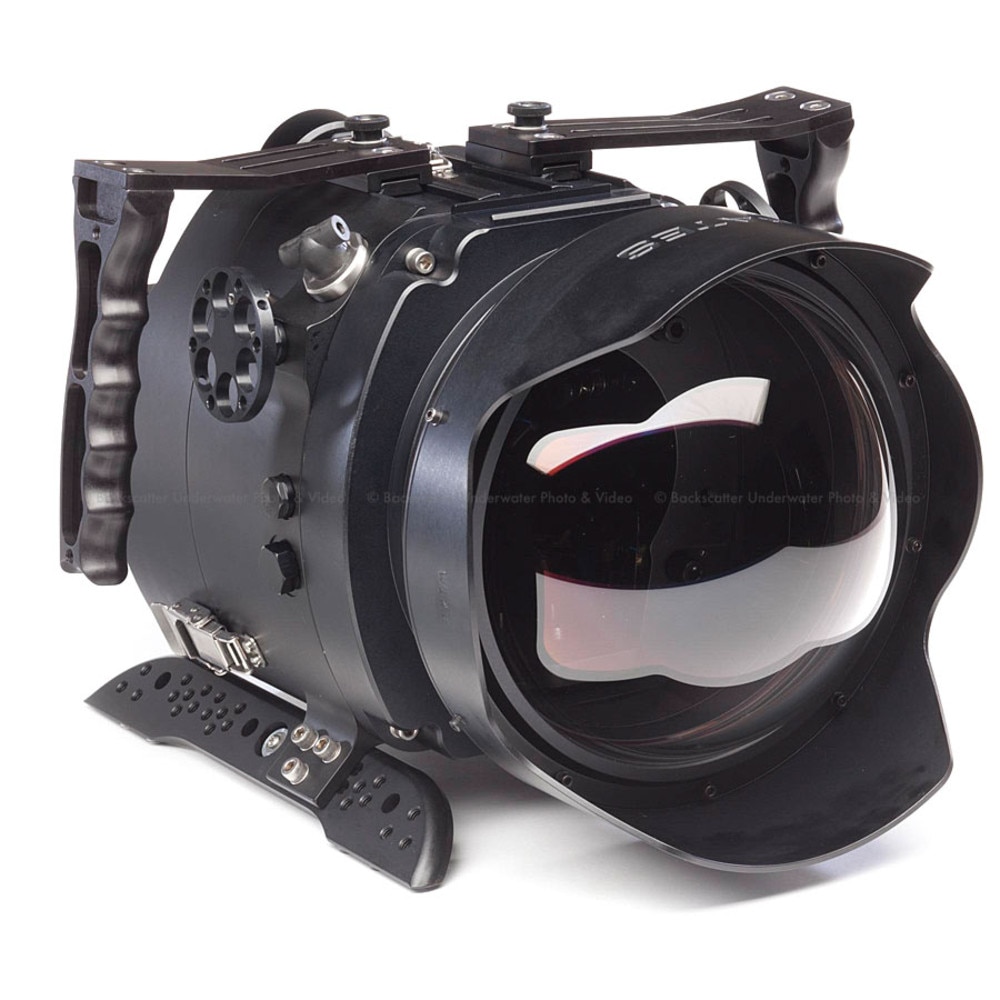

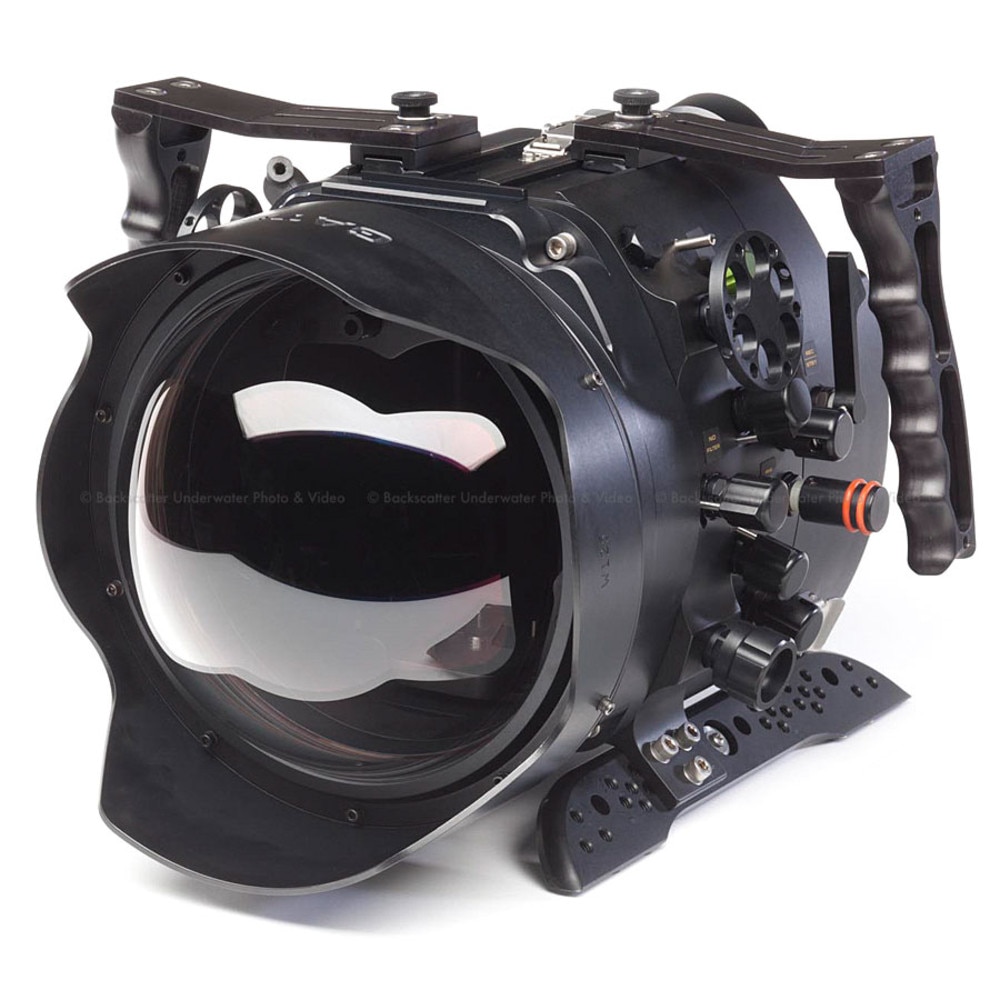

Gates C300 MkII Underwater Housing for Canon EOS C300 MkII Camera

Gates C300 MkII Underwater Housing for Canon EOS C300 MkII Camera

COMPACT 4K. TRAVEL-LIGHT. “BULLETPROOF”. GATES.

Like it’s compact predecessor C500, the new Gates C300 MKII Housing is designed specifically to closely fit the Canon EOS C300 MkII camera. That means it’s small and travel-friendly.

Cinema caliber

The C300 MKII Housing shares many features with its Gates cinema housing cousins including full camera and lens control, support for over 150 EF and PL mount lenses, External Monitor options, and Gates Precision ports for no-compromises image quality.

Capture Confidence

Gates 'bulletproof' durability is naturally inherent in the C300 MKII Housing. When failure is not an option, the C300 MKII Housing is ready.

Professionals know that failure is not an option, so they never take a chance…. they take a Gates!

KEY FEATURES

DURABLE

"Bulletproof" machined aluminum, black type III 'hard' anodize finish and sealed with a nickel-acetate process.

CLEAN. UNCOMPLICATED.

User-friendly field serviceable controls are 100% mechanical. No complex mechanisms.Simplicity = Reliability

INCLUDED STARLITE ST5 EXTERNAL MONITOR

The ultralight, feature-rich ST5 Monitor is designed specifically for the Transvideo Starlite HD5 OLED field monitor. Other External Monitors like EM43 and TVL55 are optional. See Monitor Options tab for details.

GRIP IT YOUR WAY.

Adjust the handle grips to fit your hand/glove and perfect control access.

FIZ CONTROL MADE EASY

Set the Focus / Iris / Zoom knobs just the way you like: close, mid or stacked. Fine lens adjustments were never easier.

2-YEAR WARRANTY

Only Gates offers a professional 2-year, renewable warranty on all housings.

OVER 150 SUPPORTED LENSES

The C300 MKII Housing is designed to accommodate a wide variety of EF and PL mount lenses. Over 150 in fact.

PERFECT BUOYANCY AND TRIM

Any seasoned professional pro knows the key to stable, fluid shots is a perfectly neutral and balanced rig. Gates Trim Weight system adjusts for any lens/monitor/accessory configuration.

Seal Check System

Seal Check II The Gates Seal Check II is included with every F55 and assures housing integrity before entering the water.

PRECISION PORTS

Quality Optics means clarity, sharpness and no vignetting (cutoff dark corners) to ruin your images.

ACCESSORIES SUITE

An extensive set of accessories is available for cinema, natural history, broadcast TV, research, military and many more applications.

FIELD SERVICEABLE

Gates products are nearly 100% serviceable in the field.

SPECIFICATIONS

• CONTROLS (ALL MECHANICAL)
• Manual 3 Axis Lens Control (Focus / Iris / Zoom)
• Power
• Record/Standby
• ND Filter
• Assign 1/2 Assign 3/4
• Select / Set
• White Balance Set / Playback
• Menu
• Cancel
• Function / Backlight
• DIMENSIONS: BASIC SHELL
• Transport size. Housing + SP80 Dome Port
• 13.8" L x 8.7" H x 8.6" W ”
• 35 cm x 22 cm x 21.8 cm
• Fully assembled with Starlite monitor, handles, SP80 Dome Port
• 13.8" L x 16" H x 13.1" W ”
• 35 cm x 40 cm x 33.2 cm

CONSTRUCTION

• Machined Aluminum, Type III Hard Anodized finish.
• Stainless steel hardware.

WEIGHT IN AIR

• Transport: 20.3 lbs / 9.2 kg (Housing + SP80 Glass Port)

WEIGHT IN WATER

• Fully adjustable buoyancy / trim.

DEPTH RATING

• 300feet / 92meters.

BATTERIES

• Canon BP-A30 and BP-A60.
• TBD Battery required to use Starlite ST5 External Monitor

WARRANTY

• 2 Years Renewable. Gates Warranty Details.

CANON C300 / C500 ITEMS REQUIRED

• Canon EOS-C300 MKII Camera.
• Batteries;
• Canon BP-A30 and BP-A60.
• TBD Battery for use with Starlite ST5 External Monitor.
• Media.

LENS of choice
