Ikelite Underwater Housing for Canon 5D Mark IV, 5D Mark III, 5DS & 5DS R

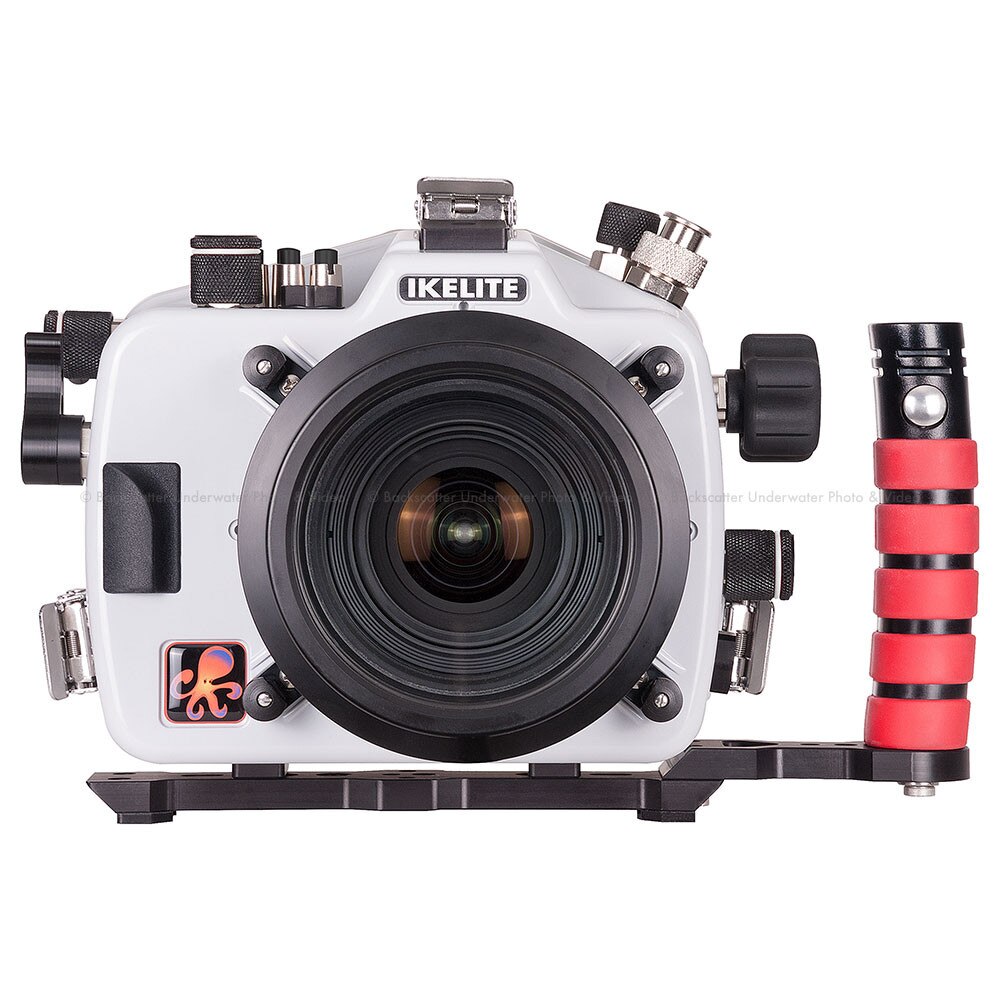

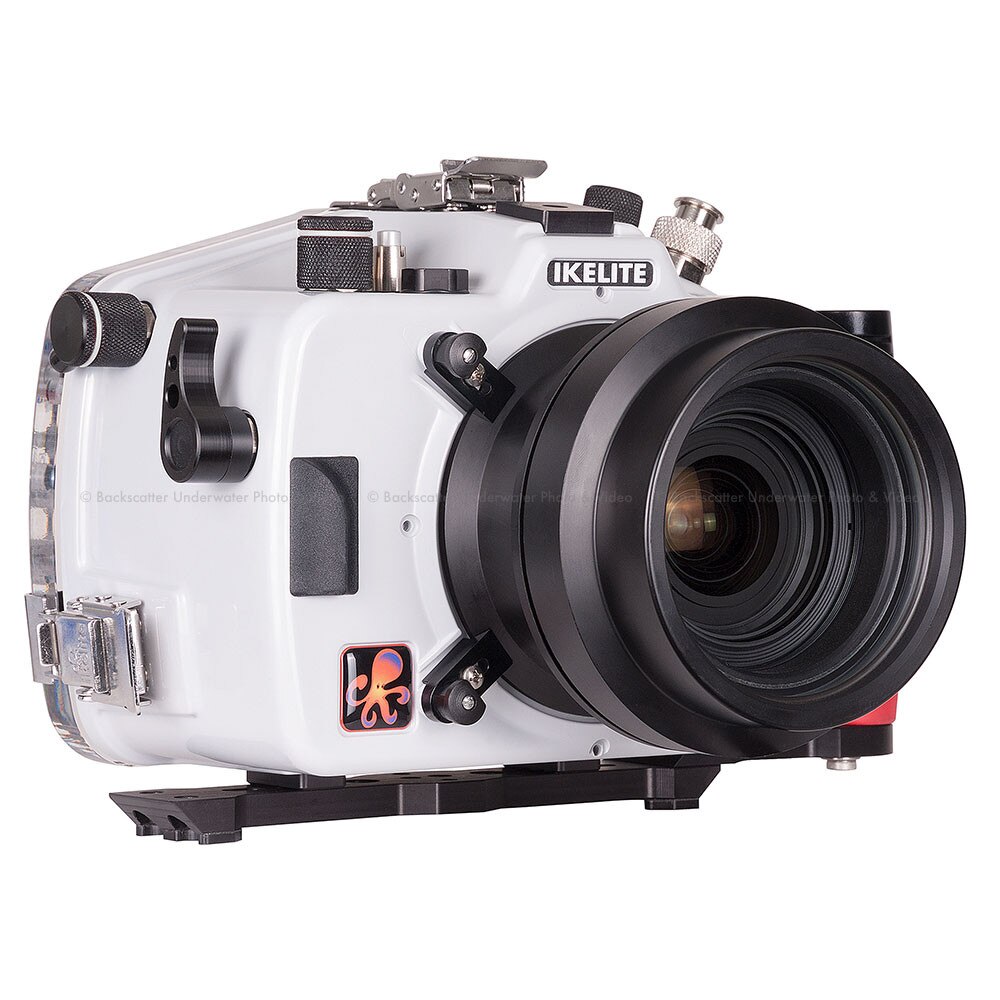

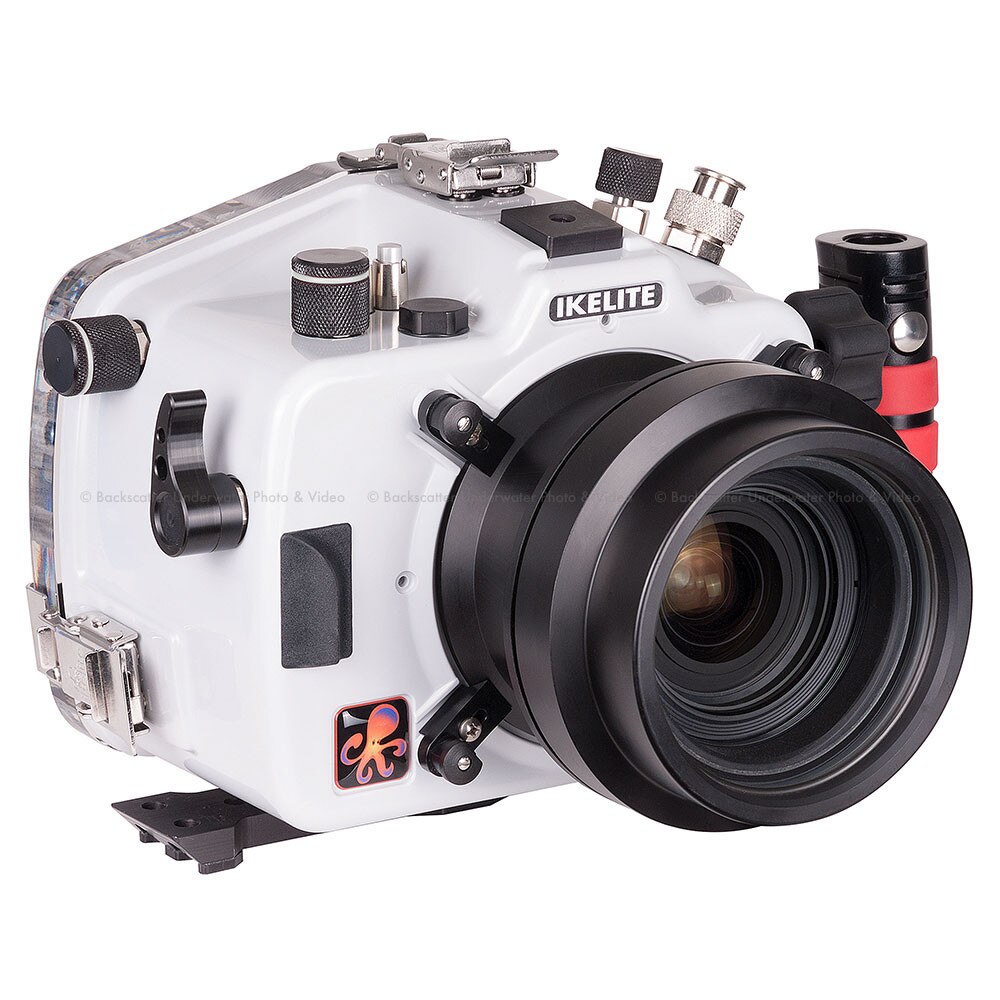

Ikelite 200FL Underwater Housing

for Canon EOS 5D Mark III, 5D Mark IV,

5DS, 5DS R DSLR Cameras

Featuring the legacy Four Lock (FL) port system with a dive back rated to 200' (60m). TTL circuitry sold separately.

• Four Lock (FL) Port System is compatible with legacy Ikelite standard and modular ports ports; the FL system makes it quick and easy to change lenses
• Extra-large, soft touch zoom knob; Zoom is accessible for many lenses using our unique universal zoom gear system
• Included Ikelite ICS-5 bulkhead connector with manual hotshoe for reliable electrical triggering of underwater strobes; Optional TTL circuitry provides automatic exposure with compatible Ikelite DS strobes

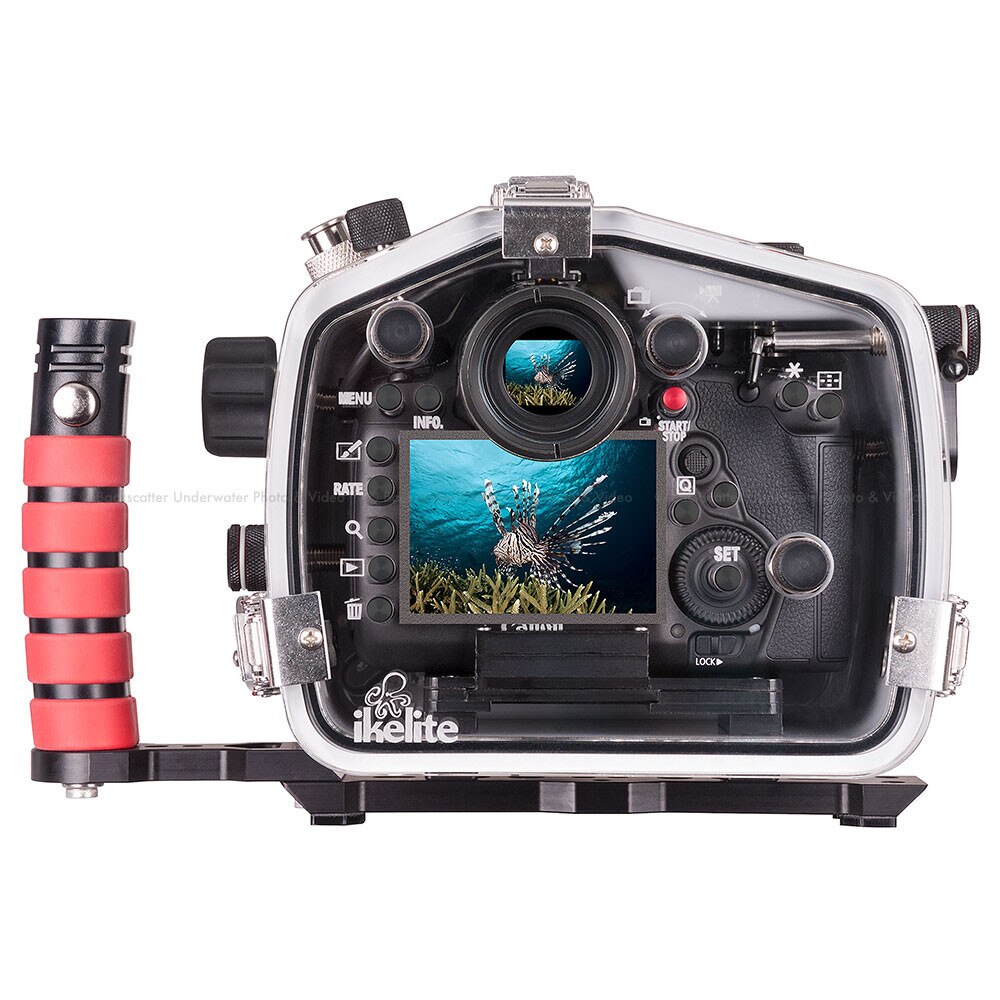

• Control symbols are laser etched into the back and will never fade or rub off
• Quick install camera mount plate does not need to be removed for battery or memory card access
• Two spare 1/2-20 threaded accessory port locations on the front of the housing for the addition of optional accessories
• Includes a balanced aluminum base with left-hand quick release handle; Right-hand handle sold separately
• Signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel
• ABS-PC and Lexan construction is fundamentally corrosion-resistant
• Made in the USA; Individually inspected for fit and water pressure tested to 200' (60m)
• 1 year limited warranty

Controls Provided

• Shutter-release button
• Zoom control (see port chart)
• Power switch
• Record start/stop button
• Main dial
• Mode dial (lock release)
• Metering mode/white balance button
• AF mode/drive mode button
• ISO button
• Lens release button
• AF-ON button
• MENU button
• INFO button
• Creative photo/comparitive playback button
• RATE button
• Index/magnify/reduce button
• Playback button
• Erase button
• Live view shooting/movie shooting switch
• * AE Lock button
• AF point selection button
• Quick control button
• SET Setting button
• [Q] Quick control dial

What's Included

• Underwater Housing with 200ft Back
• Base with Left-Hand Quick Release Handle # 4077.67

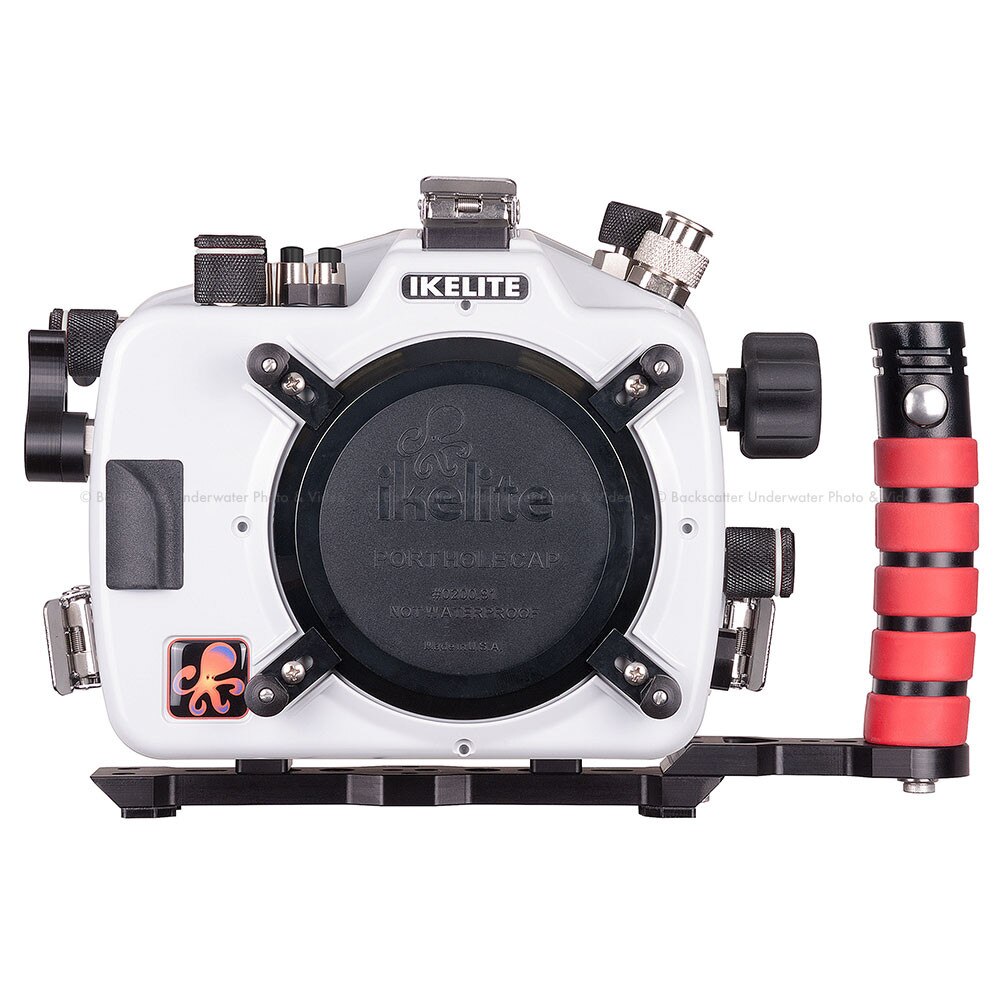

• Port Hole Cap # 0200.91
• Waterproof Bulkhead Cap # 9104.5
• Universal Zoom Set for Lenses Up to to 2.8" Diameter # 5509.27
• Universal Zoom Set for Lenses 2.8 to 3.0" Diameter # 5509.28
• Silicone Lubricant 1cc Tube # 0184.1

Optional Accessories

• Right-Hand Quick Release Handle with Extension # 4077.02
• Straight Magnified Viewfinder # 6890
• 45 Magnified Viewfinder Type 1 # 6891.1

Camera Compatibility
This housing is only compatible with the Canon EOS 5D Mark III, 5D Mark IV, 5DS, 5DS R DSLR as shipped by the manufacturer. Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other DSLR models from being used in this housing. We are not aware of any other models which may be used in or adapted to this particular housing.Strobe Options
TTL Exposure
Install optional Canon TTL Kit Product number 46070 for automatic TTL exposure with compatible Ikelite DS-model Strobes. Ikelite DS-model strobes may be used with this system without the Canon TTL Kit installed, but will not provide TTL exposure.Non-Ikelite Strobes
SEA&SEA, INON, and Nikonos strobes with an electrical connection can be triggered in manual exposure modes using an electrical sync cord. Strobes without an electrical sync cord connection cannot be attached to this system unless slaved off of a hard-wired strobe.Ikelite Non-Digital Strobes
Older non-digital strobes featuring an ICS-5 electrical sync cord bulkhead can be used with this system in manual exposure modes.Fiber Optic
Fiber optic only strobes are not compatible with this installation. An external strobe must be connected by electrical sync cord.Remote Triggering
Strobes with remote slave capabilities may be triggered off of a flash attached to the housing by electrical sync cord. Ikelite DS strobes support remote triggering using the Optical Slave Converter Product number 4403 or the Water Wizard system (manufactured and sold by Aquatica).

Specifications

• 200' (60m) depth rating
• 1/4-20 thread base mounts with 3.5" spacing
• Near neutral buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port
• Weight 5.1 lb (2.3 kg) not including tray + handles
• Dimensions 9.2 x 7.1 x 6.6" (234 x 180 x 168 mm) including projections

Spare Parts

• 0132.61 - Main o-ring
• 0105 - Port o-ring
• 9104.5 - Waterproof bulkhead cap
• 0200.91 - Housing body cap
• 0184.2 - Silicone lubricant resealable 2cc tube
