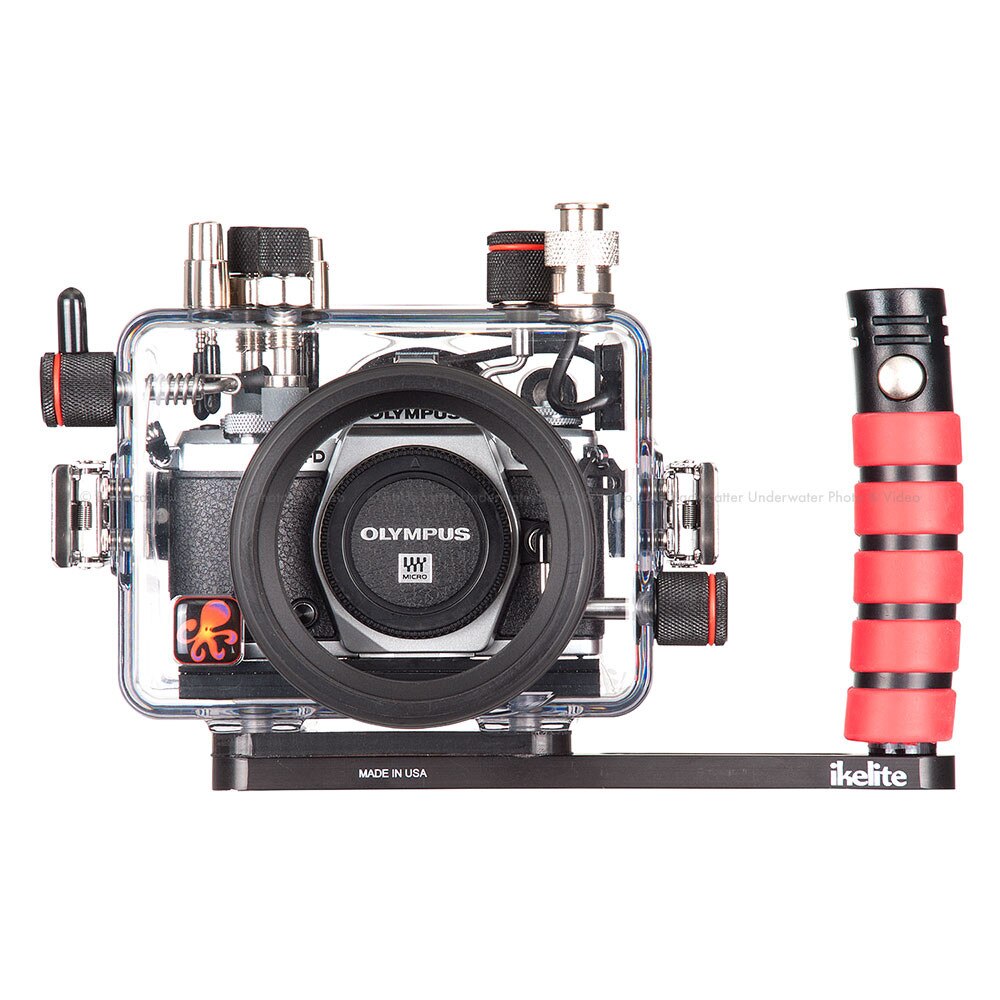

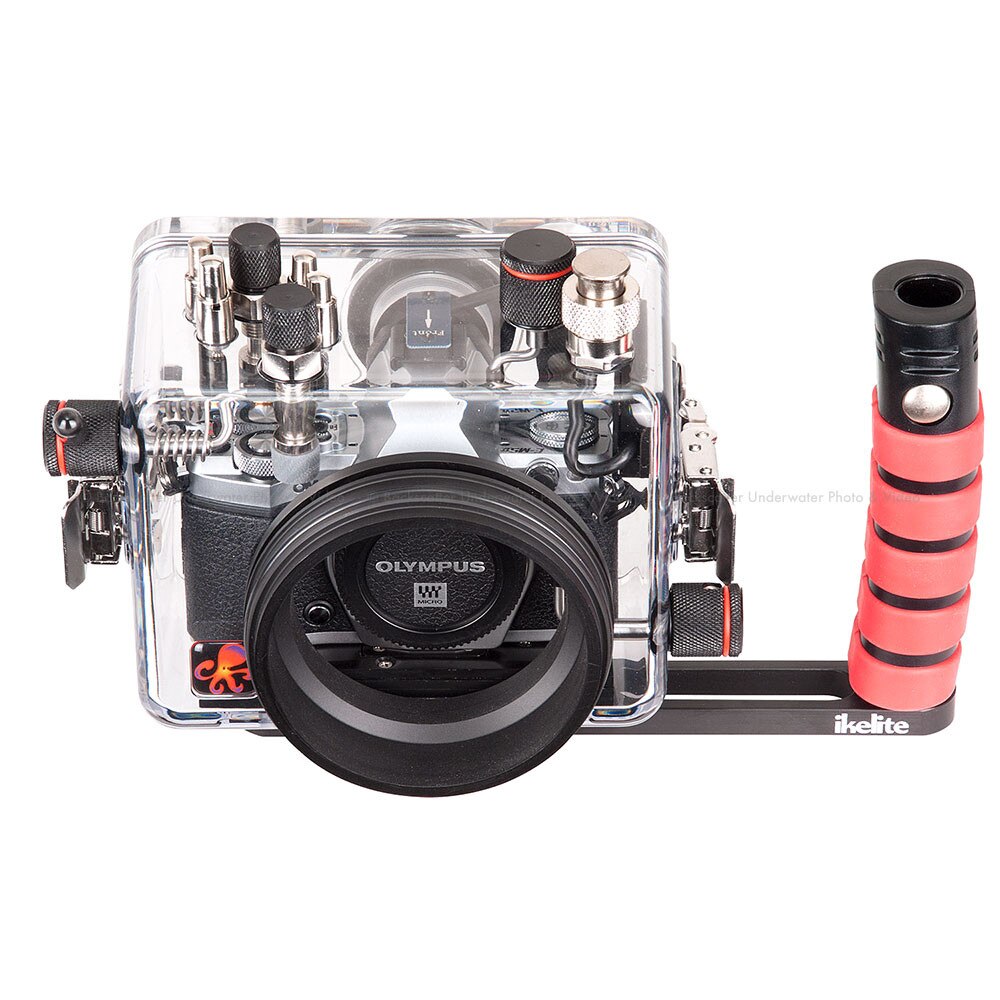

Ikelite Underwater TTL Housing for Olympus OM-D E-M5 Mark II Micro Four-Thirds Cameras

Ikelite Underwater TTL Housing for Olympus OM-D E-M5 Mark II Micro Four-Thirds Cameras

It's everything you love about an Ikelite DSLR Housing, shrunk down into a perfectly-sized package for travel. With dedicated ports and a wide variety of lenses, you can be sure to capture the scene you are looking for. This is the only housing with a built-in TTL system to help you get great exposure every time!

Please note that a compatible Mirrorless Port is required for waterproof operation of this housing.

The True TTL Advantage
Other housings simply waterproof your camera. An Ikelite TTL housing improves your photos. TTL or "Through-The-Lens" flash metering means the camera controls flash duration to properly expose an image. Ikelite's built-in proprietary circuitry tells your camera that a TTL external flash is attached, allowing the camera to adjust exposure more accurately than with slave fiber optic TTL strobes.

Fiber optic slave flash units require the camera's flash to fire every time. Firing the camera's flash creates a shutter lag as you wait for the it to recycle in between shots, drains your camera's battery life, and builds up heat inside of the housing. Ikelite electronics translate direct electrical impulses from your camera, triggering your strobe and precisely adjusting its power without the need to fire the camera's flash. This eliminates the slave TTL strobe issues of signal interference, inconsistent exposure due to weak fiber optic transmission and false triggering caused by light rays bouncing off the water's surface or your buddy's flash going off.

This camera does not have a built-in flash. In order to keep the housing as compact as possible, attachment of the camera's external flash is not supported in this installation. Non-Ikelite strobes may be attached with the appropriate electrical sync cord and operate non-TTL (manual exposure modes only) with this housing.

Fiber Optic
The OM-D E-M5 Mark II does not have a built-in flash, rather it is bundled with an accessory flash which attaches to the camera's hotshoe. In order to keep the housing as compact as possible, space is not available to attach the camera's accessory flash. Therefore it is not possible to trigger an external strobe via fiber optic cable.

Take full advantage of this powerful and compact camera by attaching a compatible external strobe via electrical sync cord. Electrical sync connection is the standard in surface photography and provides the added benefits of lighting fast recycle times and extended camera battery life. Sync cords are available for most popular strobes by Ikelite, SEA&SEA, INON, and Nikonos. Non-Ikelite strobes are not capable of powering the built-in TTL electronics, therefore must be used in manual power settings.

Lens Port System
Ikelite's Mirrorless Interchangeable Lens Ports represent the most versatile, affordable, and astonishingly effortless system on the market today. Each port simply slides onto the front of the housing and secures with three thumbscrews, which provide positive reinforcement that the port is secure without any complex moving parts that can jam or break in a remote location.

Ports are available with either optical grade acrylic dome for wide angle zoom photography, or a glass flat front to focus on macro close-up. Unique interchangeable zoom sleeves are super lightweight and allow the camera to be slide into the housing with the lens attached for easy installation.

A compatible lens port is required for waterproof operation of this housing. Lens ports sold separately. View Ikelite's Mirrorless Port Charts to find the right match for your zoom, macro, and wide angle lenses from Olympus and Panasonic.

Viewing

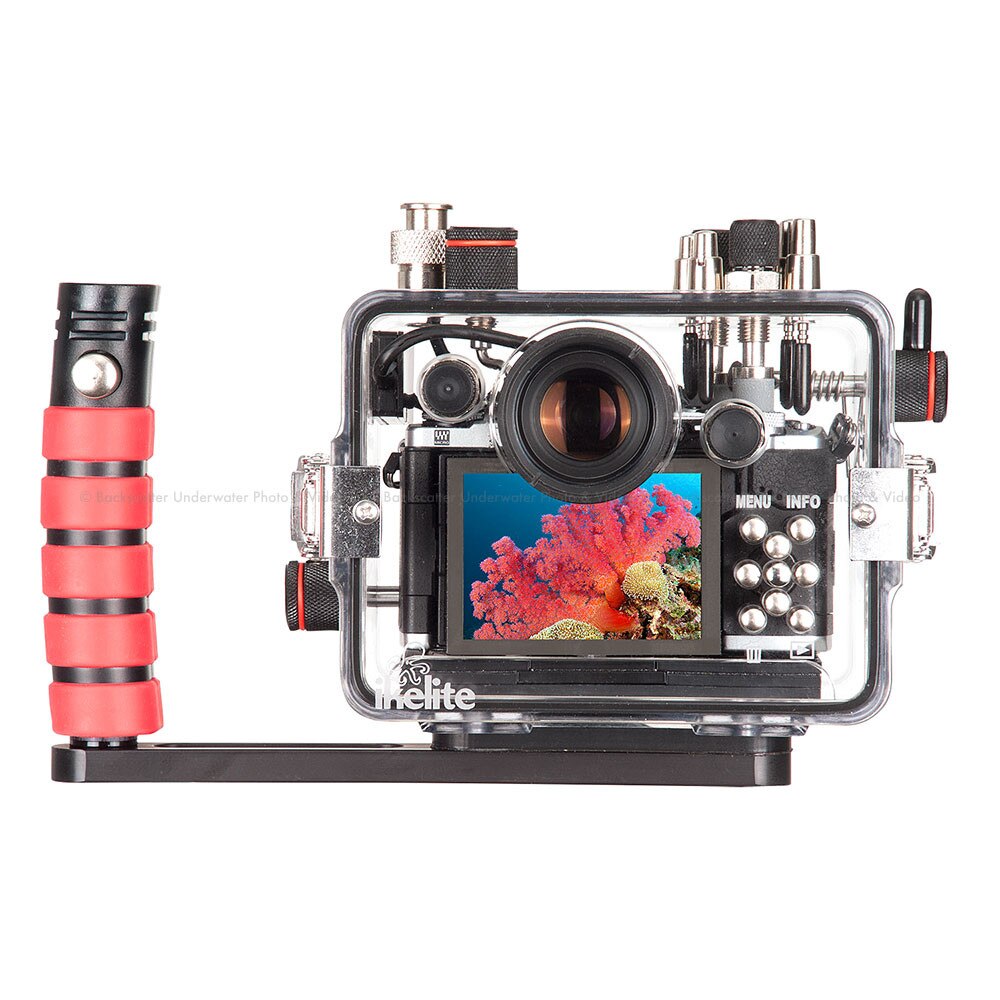

The camera's large, super-bright LCD screen is viewable edge-to-edge through the back of the housing. A built-in magnifying viewfinder includes specially optics to provides a clear view of the camera's EVF when wearing a dive mask. This housing is also compatible with Ikelite's Straight and 45_ Magnified Viewfinders, sold separately, see below.

After you surface, use the camera's built-in WiFi function to transfer your photos for viewing on a compatible smartphone or tablet. Ikelite's signature polycarbonate construction allows the WiFi signal to pass through the housing for instant gratification!

Ergonomics
Controls are put right at your fingertips for all important camera functions. Control symbols laser engraved into the back of the housing will never peel off or fade even with years of use.

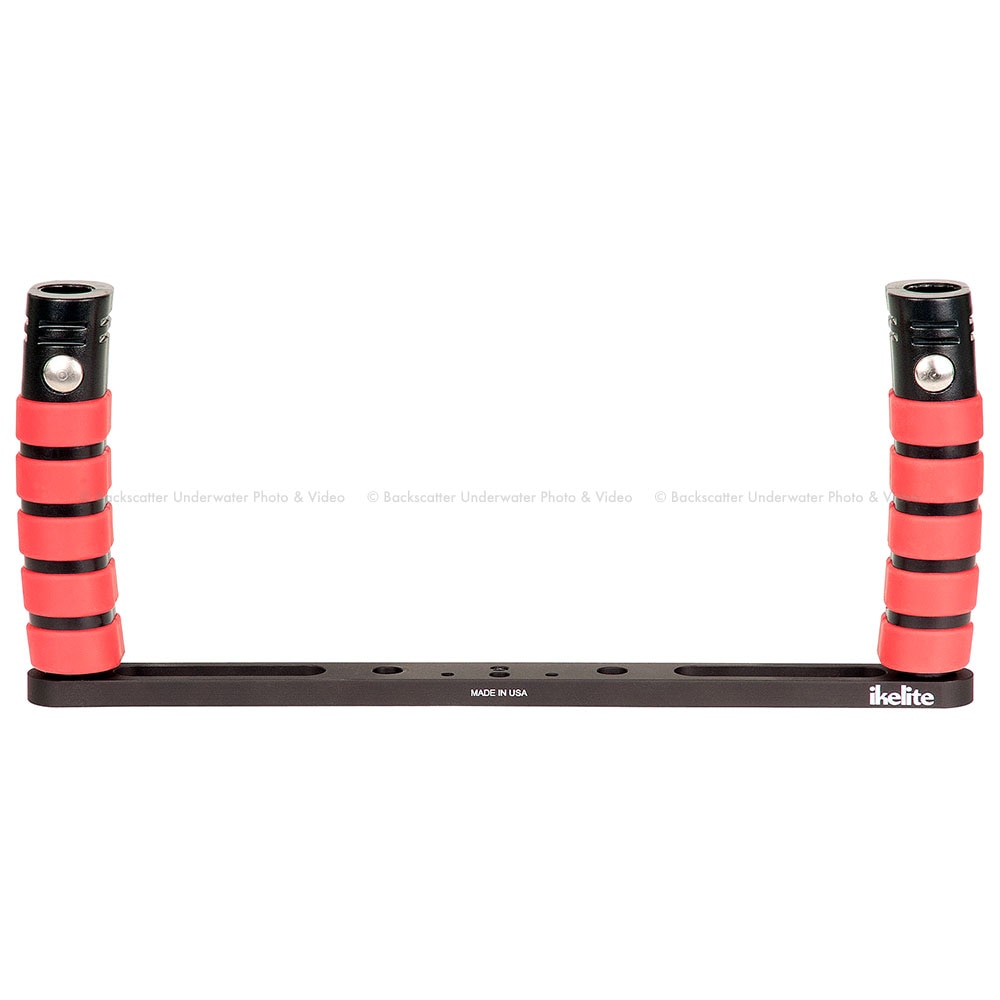

With a system of this caliber, a tray with handle is essential for the attachment of lighting and comfortable handling in a wide variety of shooting scenarios. This housing includes a balanced aluminum tray with Ikelite's signature quick release handle for easy attachment and removal of strobes and video lights. This unique handle is curved slightly to fit the nature curvature of your hand, and features a soft rubber over-mold which makes it a delight to hold. The complete tray and handle detaches with the removal of two nuts for packing or to attach the optional Tray with Dual Handles.

Smaller than most other comparable mirrorless housings on the market, this system is as compact as possible to minimize bulkiness, strain, and drag in the water.

Construction
Special polycarbonate blends allow us to create an extremely strong yet clear and lightweight enclosure. Ikelite believes there's no substitute for inspecting the actual o-ring seal once your housing is closed. Ikelite's signature clear construction lets you see that the housing is watertight and dry before you enter the water, and provides full view of the camera while you're diving. Unlike aluminum, polycarbonate is fundamentally corrosion-resistant for easy maintenance year after year.

Like every Ikelite product, Ikelite's housings are designed, built, and tested in the USA. Ikelite use locally sourced, top-grade materials. Ikelite's housings are built by hand and individually tested for fit, function and waterproof integrity. The average assembly technician is a certified scuba diver and has over 16 years of experience building Ikelite products. Ikelites backs their products with over 50 years of experience and the most accessible and responsive customer service staff in the dive industry.

This housing requires the addition of a compatible lens port for waterproof operation. Lens port not included.

Strobe Compatibility

• AF35: no
• DS50: yes, above serial number 70000
• DS51: yes
• DS125: yes, above serial number 5000
• DS160, DS161: yes
• DS200: yes, above serial number 7163
• Non-Ikelite: yes, manual flash exposure only

What's Included

• Housing
• Tray with quick release handle
• Waterproof bulkhead cap
• Silicone lubricant 1cc tube
• 1 year manufacturer warranty

Specifications

• 200 ft (60m) depth rating
• All important camera functions are accessible
• Controls are not provided for Rear Touch Screen, Fn1 button, Mode Dial Lock, Diopter Adjustment Dial, or External Flash Connector
• Ikelite bulkhead connector with built-in TTL circuitry
• Slightly negative buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port
• Weight 3.28 lb (1486 g) not including tray, handles or port
• Weight of tray with handle 8.7 oz (247 g)
• Dimensions 6.5 x 7.0 x 5.3 in (165 x 177 x 135 mm) including controls, port mount, and tray mounts

Spare Parts

• 0110 - Main o-ring
• 9104.5 - Waterproof bulkhead cap
• 0184.2 - Silicone lubricant resealable 2cc tube
