Ikelite Underwater TTL Housing for Sony Alpha a7, a7R, a7S Mirrorless Digital Cameras

Ikelite Underwater TTL Housing for Sony Alpha a7, a7R, a7S Mirrorless Digital Cameras

Full-frame, low-light performance in a packable package.

True Sony TTL

Ikelite would like to introduce an important term that has been missing from all previous discussions about taking the Sony Alpha 7 series underwater: TTL. When your subject is quickly approaching, you'll be glad to have the only housing that provides TTL support for Alpha 7 cameras. An integrated TTL circuit features model-specific encoding, which has been fine-tuned to Sony's latest flash exposure protocol. The circuit is powered by the strobe for zero maintenance and no batteries to change. Exposure compensation in TTL mode is supported using the camera's built-in control. At this time, only Ikelite DS strobes are capable of powering the circuitry. SEA&SEA, INON, and Nikonos strobes will still enjoy fast recycle times and improved battery life, but must be used in manual exposure modes only.

A fast and reliable strobe connection is essential to getting the shot underwater. This housing provides a direct electrical connection to the camera's external flash hot shoe. Cord attachment is as easy as screwing in a lightbulb, and the threaded fit prevents accidental detachment during use. The bulkhead connection has been moved to the top of the housing to keep cords out of your way and reduce strain on the cord ends. A variety of sync cord terminations are available for Ikelite, SEA&SEA, INON, or Nikonos strobes for ultimate versatility.

The Lens Support You Want

It couldn't be faster to change ports than this systemjust press the port on and snap the four locks closed. This housing accepts a variety of ports to accommodate all of the most popular zoom, macro, and wide angle lenses from Sony, Canon, Sigma, and more. Ikelite's custom optical grade acrylic domes provide the color, clarity, and durability of glass at a fraction of the travel weight.

Ikelite's new soft touch lobed zoom knob puts a unique system of universal zoom gears right at your fingertips. Ikelite provides two zoom sets with each housing, one for use with most popular larger diameter zoom lenses and a second designed for use with smaller diameter zoom lenses. Both sets are lightweight and easy to install with no modification to the lens required. A variety of dome and flat ports attach with four locking latches for maximum security and quick changes between dives.

This housing requires the addition of a compatible Lens Port for waterproof operation. Lens Port not included.

Great Handling

A compact mounting tray attaches to the camera's tripod attachment point and slides into the front of the housing simply and securely. The mounting tray features a 1/4-20 tripod mount so that it doesn't need to be removed when you switch to surface photography.

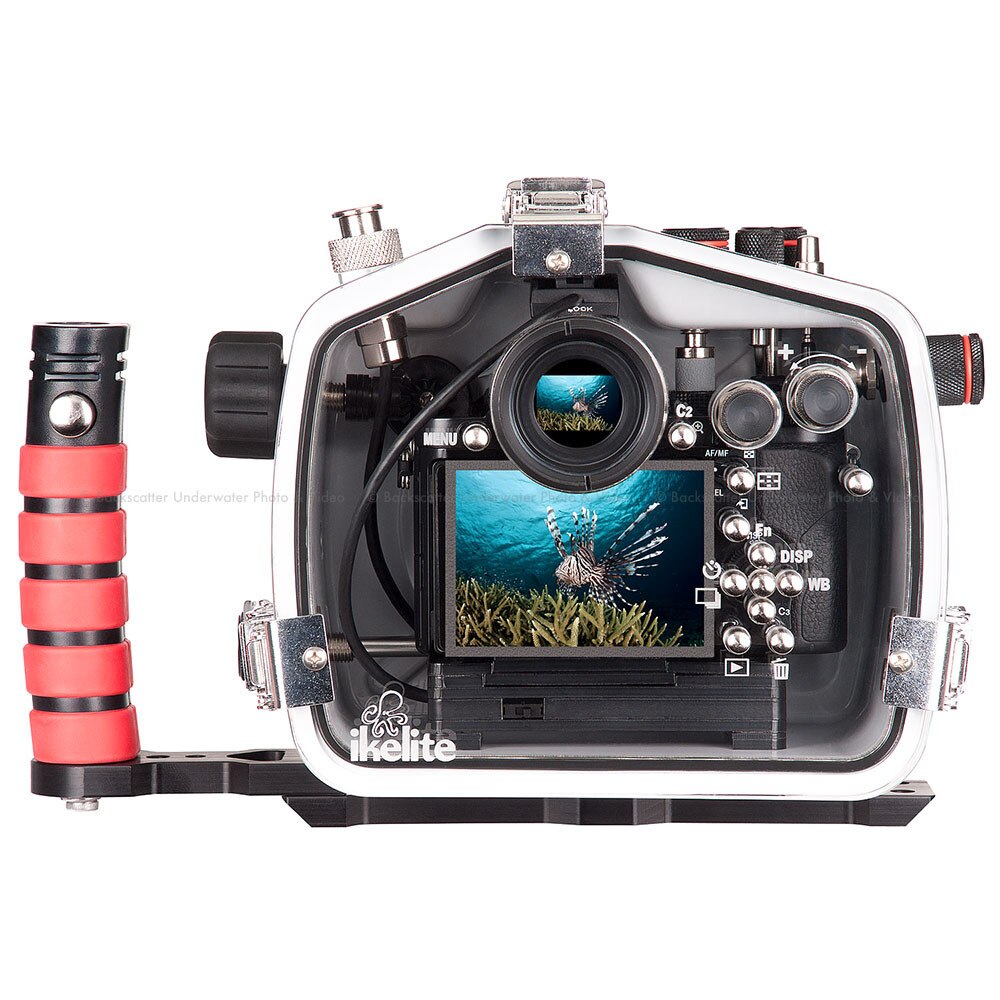

Sony created a fantastic control set for this camera series, mimicked in the housing by larger controls and push buttons which are easy to access even with thick gloves. Whenever possible, controls are located in the same configuration as on the camera to replicate the muscle memory and familiarity you've developed with your camera on the surface. Control symbols laser engraved into the back of the housing will never peel off or fade even with years of use.

With a system of this caliber, a tray with handle is essential for the attachment of lighting and comfortable handling in a wide variety of shooting scenarios. This housing includes a balanced aluminum tray with Ikelite's signature quick release handle for easy attachment and removal of strobes and video lights. This unique handle is curved slightly to fit the natural curvature of your hand, and features a soft over-mold which makes it a delight to hold. The complete tray and handle detaches quickly with the removal of two screws for travel. A new modular tray provides a 1/4-20 tripod mount and allows for the attachment of a second right-hand handle to the existing tray.

See the O-Ring Seal

An o-ring works best when it's true to its original form. Ikelite's signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. For added reassurance, there's no substitute for inspecting the actual o-ring seal through the back of your housing once it is closed. Polycarbonate is fundamentally corrosion-resistant for easy maintenance year after year.

Ikelite is proud to offer the only housing and lighting system for Sony Alpha a7 series cameras that is 100% designed, built, and tested in the USA. Ikelite's housings are handmade and individually inspected for fit, function and waterproof integrity. The average assembly technician is a certified scuba diver and has over 16 years of experience building Ikelite products. Ikelite back their products with over 50 years of experience and the most accessible and responsive customer service staff in the dive industry.

Camera Compatibility

The newer Mark II generation of a7-series cameras are very similar to the the original a7-series cameras, but not interchangeable. Differences in size and lens placement prevent the Sony Alpha a7 II, a7R II, or a7S II cameras from being used in this housing. Please see the Ikelite a7II, a7R II & a7S II housing.

Strobe Compatibility

• Serial number requirements
• Ikelite AF35: not compatible
• Ikelite DS50: yes, above serial number 70000
• Ikelite DS51: yes
• Ikelite DS125: yes, above serial number 5000
• Ikelite DS160, DS161: yes
• Ikelite DS200: yes, above serial number 7163
• Electrical sync cord compatibility
• Ikelite-to-Ikelite TTL Sync Cord (TTL) Product 4103.51
• Ikelite-to-Ikelite TTL Dual Sync Cord (TTL) Product 4103.52
• SEA&SEA / INON Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4118.1
• SEA&SEA / INON Strobe-to-Ikelite Non-TTL Dual Sync Cord (Manual) Product 4118.2
• Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4116.31
• Nikonos SB Strobe-to-Ikelite Non-TTL Sync Cord (Manual) Product 4116.32

What's Included

• Housing
• Aluminum tray
• Left-Hand Quick Release Handle with rubberized grip
• Port hole cover
• Waterproof bulkhead cap
• 5509.27 Universal zoom set up to 2.8-inch diameter
• 5509.28 Universal zoom set 2.8 to 3.0-inch diameter
• Silicone lubricant 1cc tube
• Micro-fiber lens cloth
• 1 year manufacturer warranty

Specifications

• 200 ft (60m) depth rating
• All important camera functions are accessible
• Controls are not provided for AF/MF/AEL switch lever, Control wheel, or Diopter Adjustment Dial
• Ikelite bulkhead connector with integrated TTL circuitry
• Near neutral buoyancy in fresh water
• Actual buoyancy varies depending on choice of lens and port
• Weighs only 5 lb (2.3 kg) not including tray + handles
• Dimensions 9.1 x 7.1 x 6.1 inches (230 x 180 x 150 mm) including projections

Spare Parts

• 5512.68 - Spare o-ring set with main o-ring, port o-ring and lubricant
• 0132.59 - Main o-ring
• 0105 - Port o-ring
• 9104.5 - Waterproof bulkhead cap
• 0200.91 - Housing body cap
• 0184.2 - Silicone lubricant resealable 2cc tube
