Isotta Sony a7 IV Underwater Housing

CONTROLS

• On and off lever of the Sony Alpha 7 IV
• Ergonomic camera focusing and shutter lever, easy to use with gloves
• Lens release lever
• Front dial
• C1 button
• C2 button
• C3 button
• C4/Delete button
• Mode dial
• Still/Movie/S&Q dial
• Zoom knob
• Port safety lever
• Movie lever (REC)
• AF-ON lever
• Rear dial L
• Rear dial R
• Lock button rear dial R
• Menu button
• AEL button
• Multi-selector
• Playback button
• Control wheel
• Fn button

WHAT IS INCLUDED

• Housing
• Front lid
• Handles
• ISOTTA standard viewfinder
• Moisture sensor
• Fiber optic connections (to shoot it needs an additional trigger)
• Spare o-ring kit
• Silicone grease 15gr / 0,5 oz
• 2 years manufacturer warranty

TECHNICAL DATA

• Red color anodized aluminum body
• Ergonomic side handles, adjustable (via optional accessory)
• Two fiber optic connections standard (to shoot it needs an additional trigger)

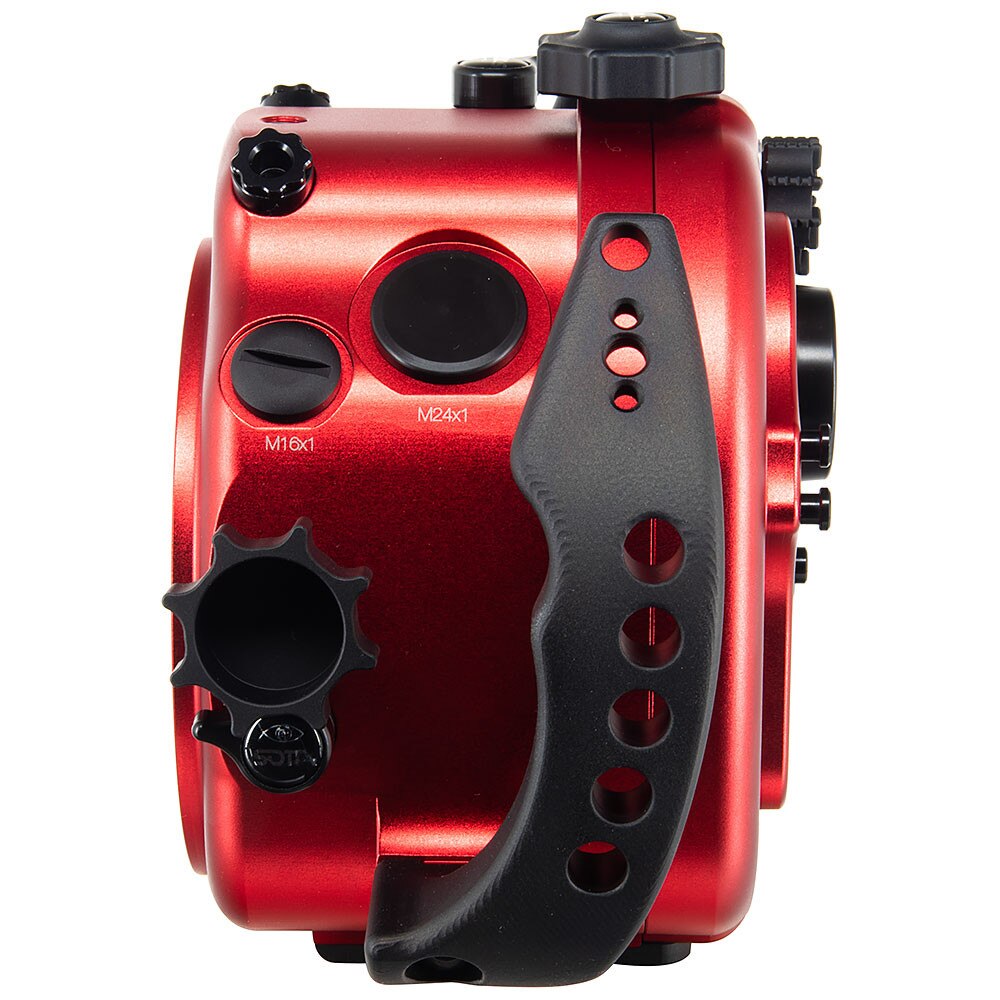

• Three M16 holes and one M24 for installation of accessories, e.g. sync cords, vacuum valves, monitors
• Back housing completely detachable from the front housing
• Tray with lock for the easy insertion of the camera
• Single-hand closing knob for the back of the housing
• Aluminum buttons and dials with engraved symbols identical to camera controls
• Wide back display viewfinder glass
• Double O-Ring seals on all buttons and removable parts
• Moisture sensor with LED indicator (replaceable battery)
• Removable port 120 mm bayonet
• Ports security latch to prevent accidental opening
• Wide, rubber-covered feet for solid footing on boat floors or sea floor
• M8 hole located on the upper side of the housing for various accessories such as focus lights
• Two M6 holes located on the housing bottom side for different accessories such as brackets for strobes or tripods
• External viewfinders can be mounted, INON X-2 compatible
• Sizes (LxHxP): 281.6x185.3x126.9
• Depth rated to 100 meters / 330ft
