Nauticam N120 Epic Lt Underwater Housing with Extended Battery Pack for Red Epic Dragon, Red Epic & Red Scarlet Cameras with RedTouch 5 Back

The RED Epic-M and Scarlet cameras share the DSMC body and feature the same 5K MYSTERIUM-X sensor with the Epic leading the way at 5K at 120fps and the Scarlet, also able to shoot 4K at 30fps are able to shoot 5K at only 12fps. The newer Epic Dragon features a DRAGON sensor capable of 6K at up to 75fps. The Nauticam Epic LT series of housings gives unfettered access to all the controls needed to take full advantage of these dynamic cinema cameras underwater in an extremely easy to use and portable package.


INTRODUCING NAUTICAM EPIC LT FOR RED EPIC & SCARLET (N120 PORT, REDTOUCH 5" LCD)

THE RED EPIC AND SCARLET CAMERAS

The RED Epic (M and K versions supported) and Scarlet cinema cameras raise the bar of what's possible with underwater video. With over 13.5 stops of dynamic range and the ability to capture stunning 4K REDCODE RAW video at 30fps (4K at 150fps and 5K at 120fps for the Epic-M as well as 6K at 75fps for the Epic-X) these cameras are ideal for underwater productions.


RED Epic-Dragon Key Camera Specifications

• 19.4MP Dragon Sensor 35mm Format
• 16.5 Stops of Dynamic Range
• HD-SDI Clean Feed Output
• 6K (FF) RAW at 75fps
• 4K (FF) RAW at 120fps



RED Scarlet Key Camera Specifications

• 14MP Mysterium-X Sensor Super 35 Format
• 13.5 Stops of Dynamic Range (18 Stops with HDRx)
• HD-SDI Clean Feed Output
• 5K RAW at 18fps
• 4K RAW at 30fps



RED Epic-M Key Camera Specifications

• 14MP Mysterium-X Sensor Super 35 Format
• 13.5 Stops of Dynamic Range (18 Stops with HDRx)
• HD-SDI Clean Feed Output
• 5K RAW at 120fps
• 4K RAW at 150fps

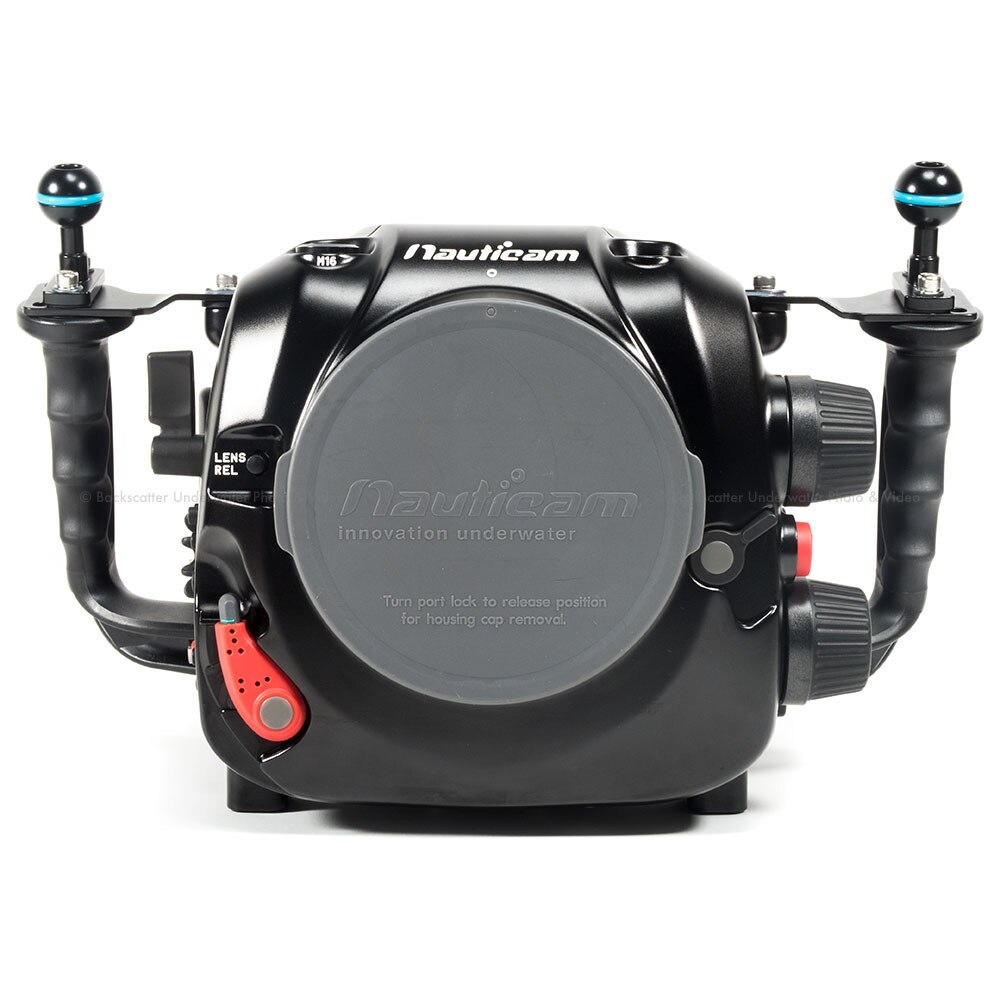

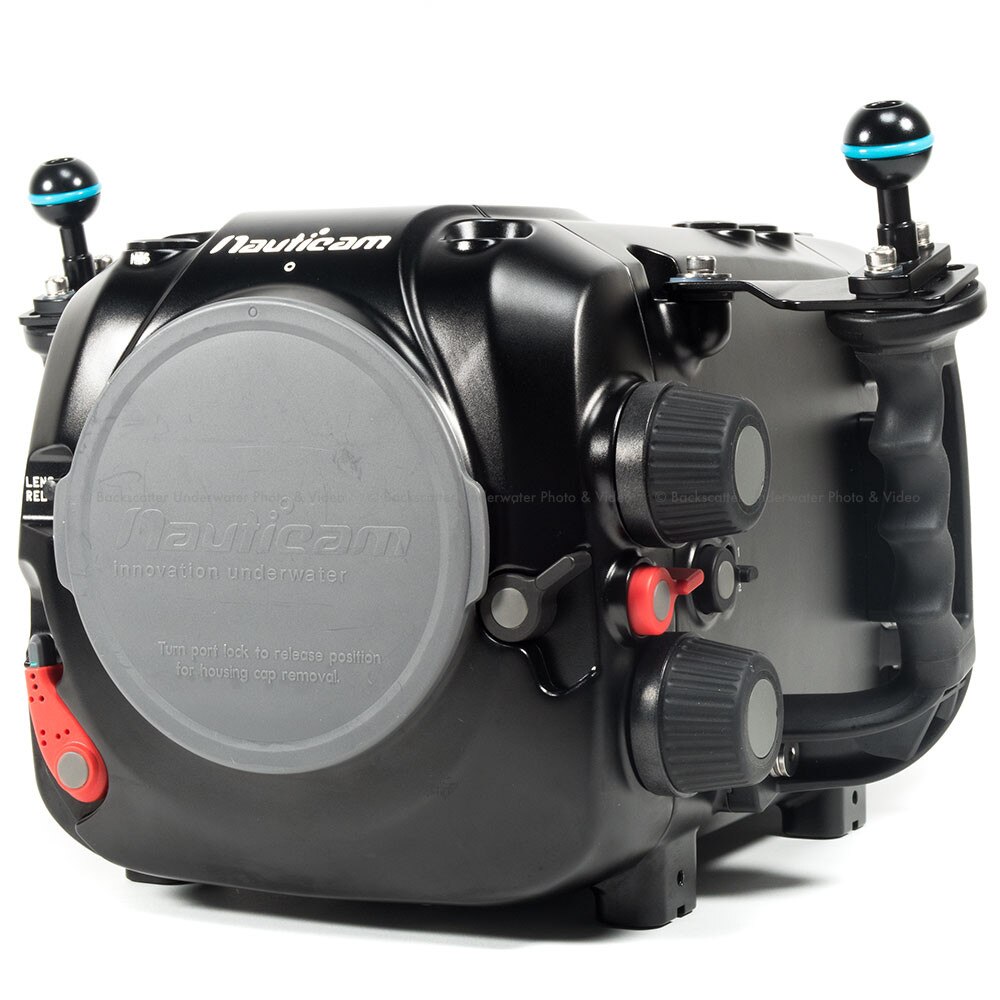

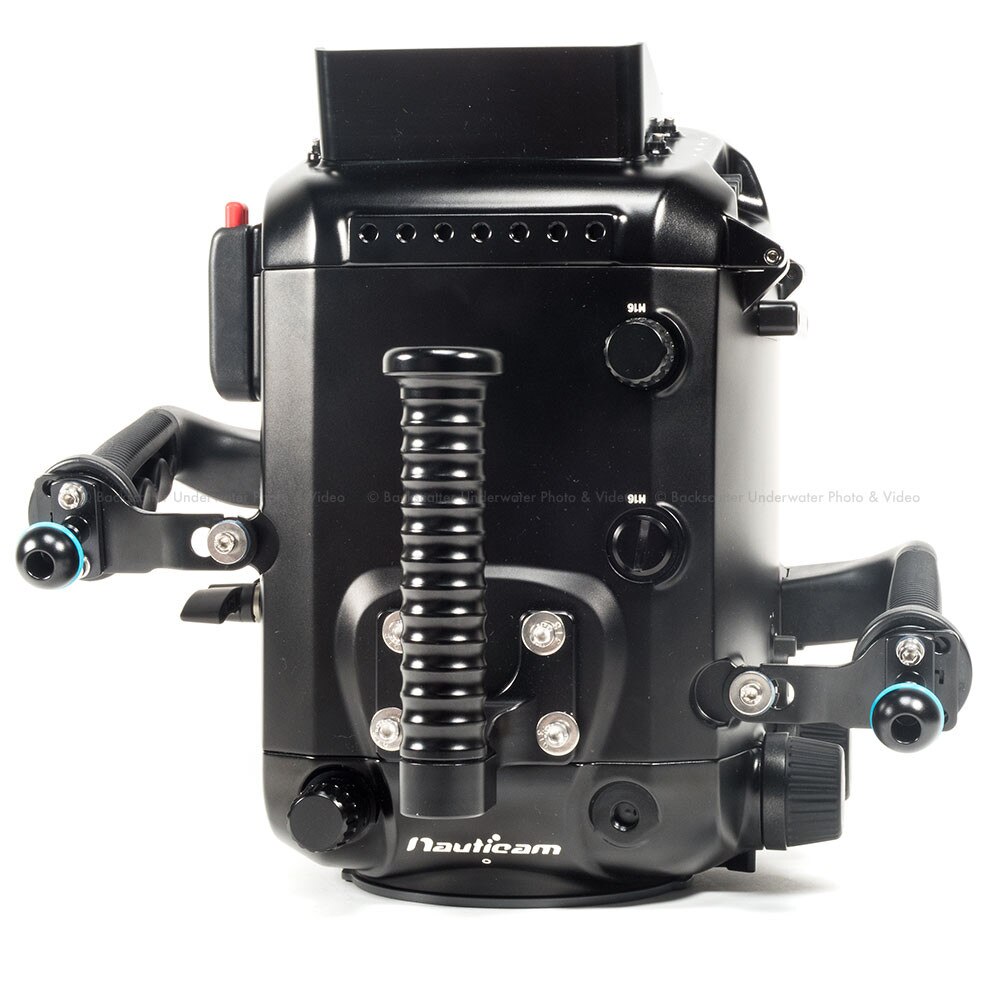

THE NAUTICAM EPIC LT UNDERWATER HOUSING

Taking full advantage of the incredible RED Epic and Scarlet cinema cameras underwater requires an equally incredible housing. The Nauticam Epic LT is built around the N120 port system that supports over a dozen Canon EF lenses.

The Epic LT weights in at under 7kg and its small form factor means it can literally fit in a backpack that can fit under the seat in front of you. The entire Epic LT system can be assembled in a matter of minutes! A top mounted Arri Dovetail Plate use used to mount the camera in the housing, and an intermediate "block" interfaces between the SWITCHBLADE Module and the housing. Controls need not be pre-set when installing the camera, and the camera can even be installed with Red's quick release plate mounted on the bottom.


POWER SOLUTIONS

The Epic LT housing was designed to integrate seamlessly with the REDVOLT XL Module and REDVOLT XL Battery pack from RED. When using this system battery changes are possible without removing the camera from the housing. Other popular battery configurations supported are Anton Bauer Dionic HC with Gold Mount Plate, and select V-Mount Batteries with a V-Mount Adaptor Plate. The PAGLink PL96 has proven to be popular with the Nauticam user base and is fully compatible.


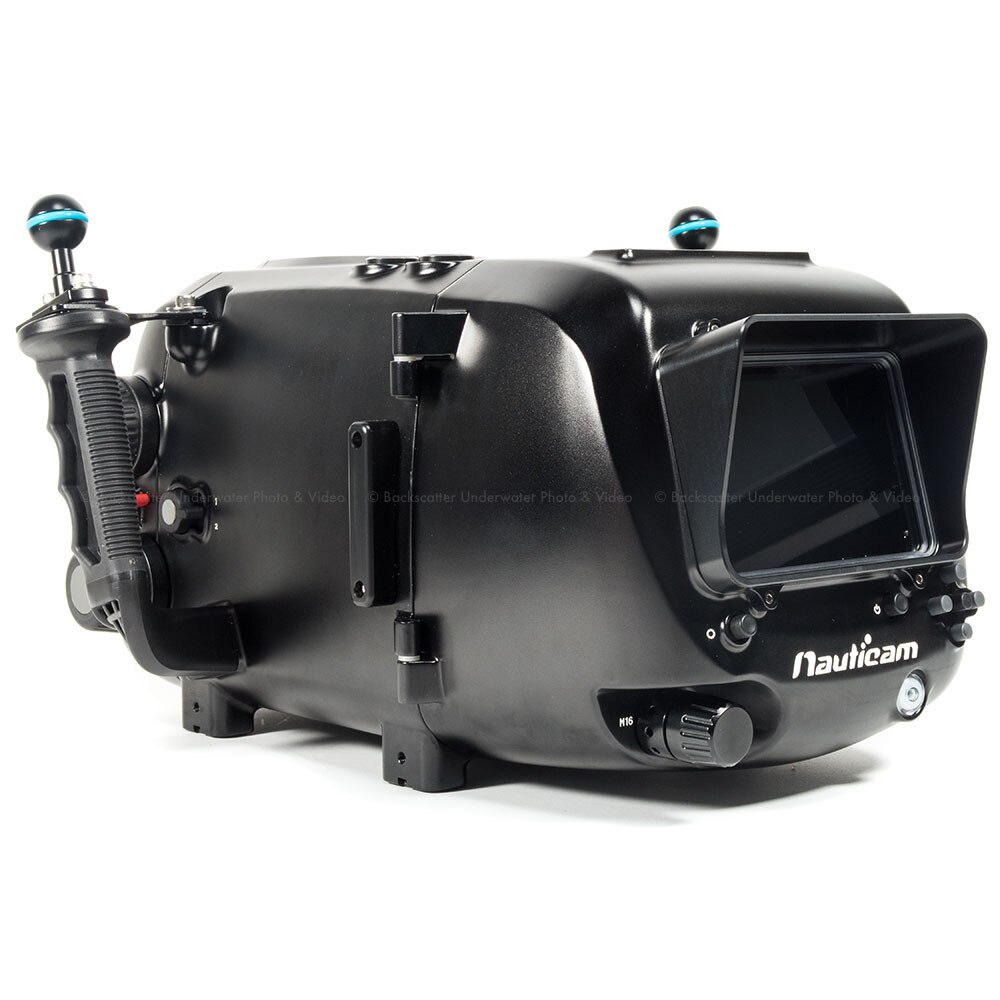

INTEGRATED REDTOUCH 5" LCD MONITOR

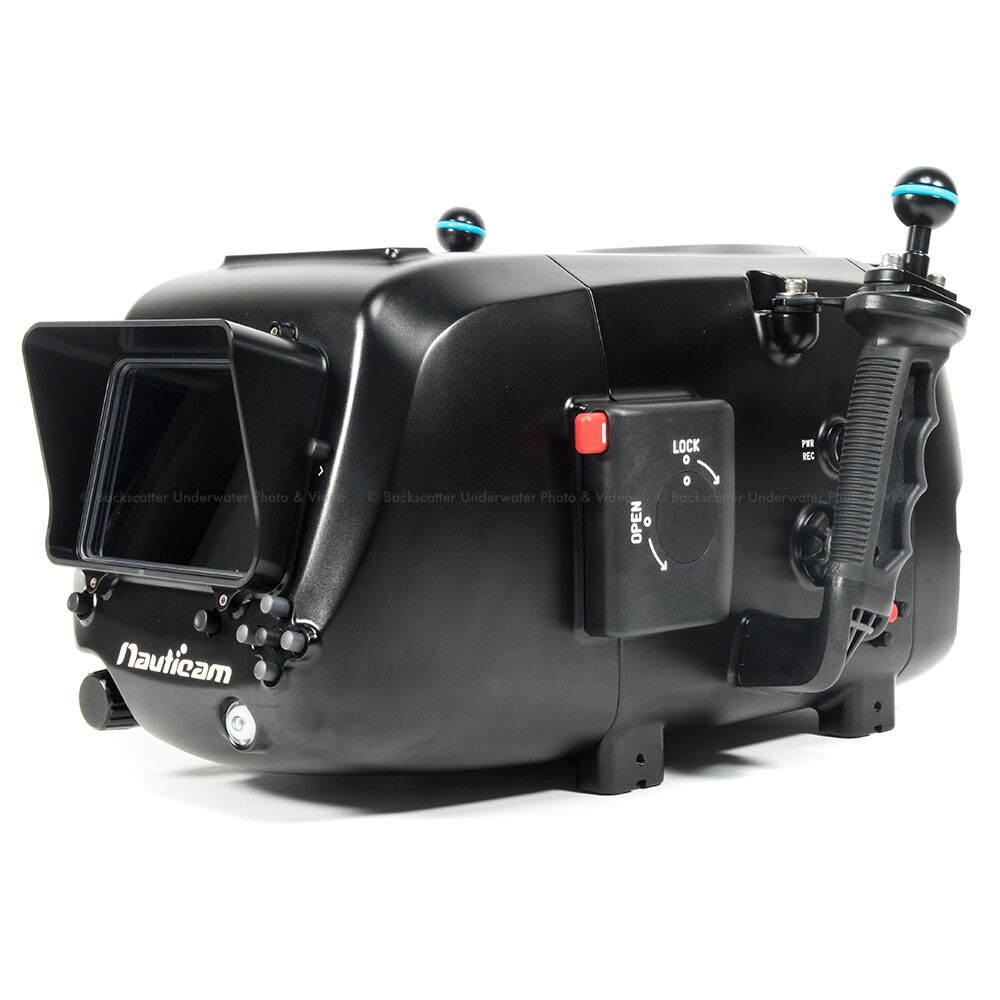

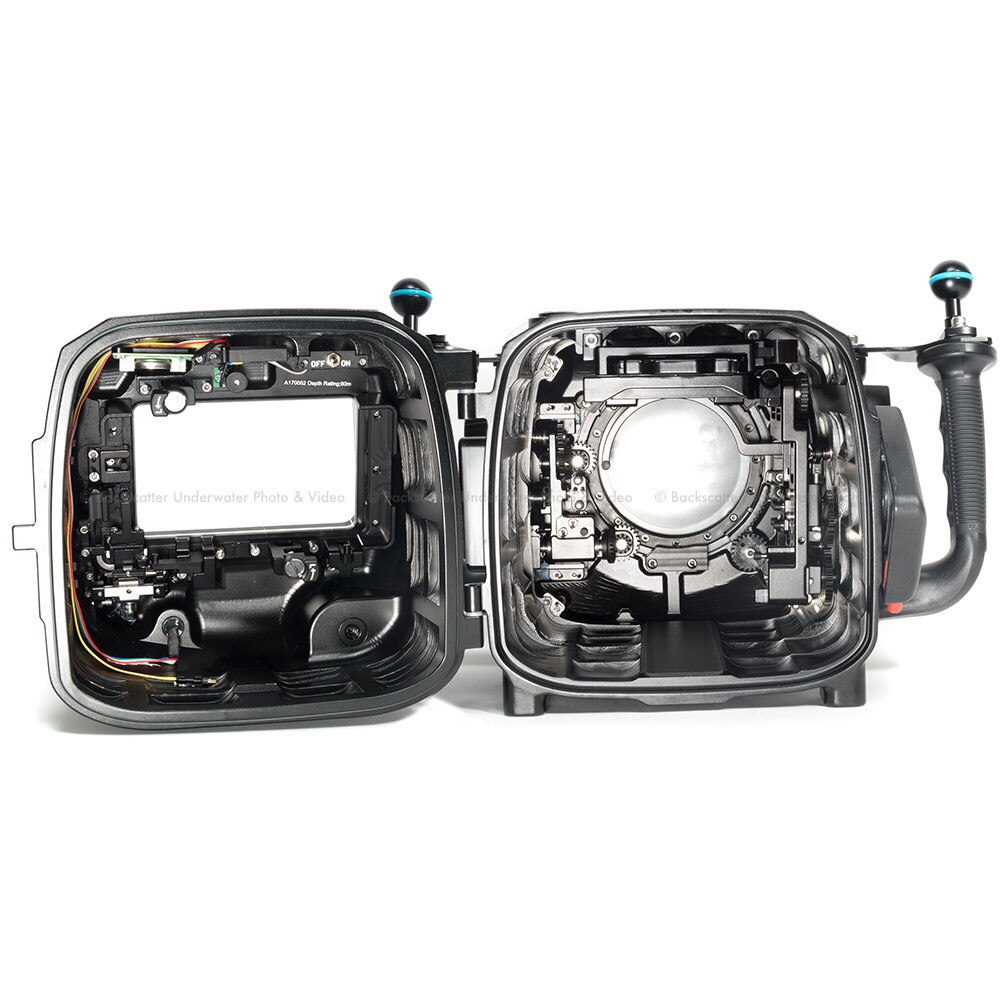

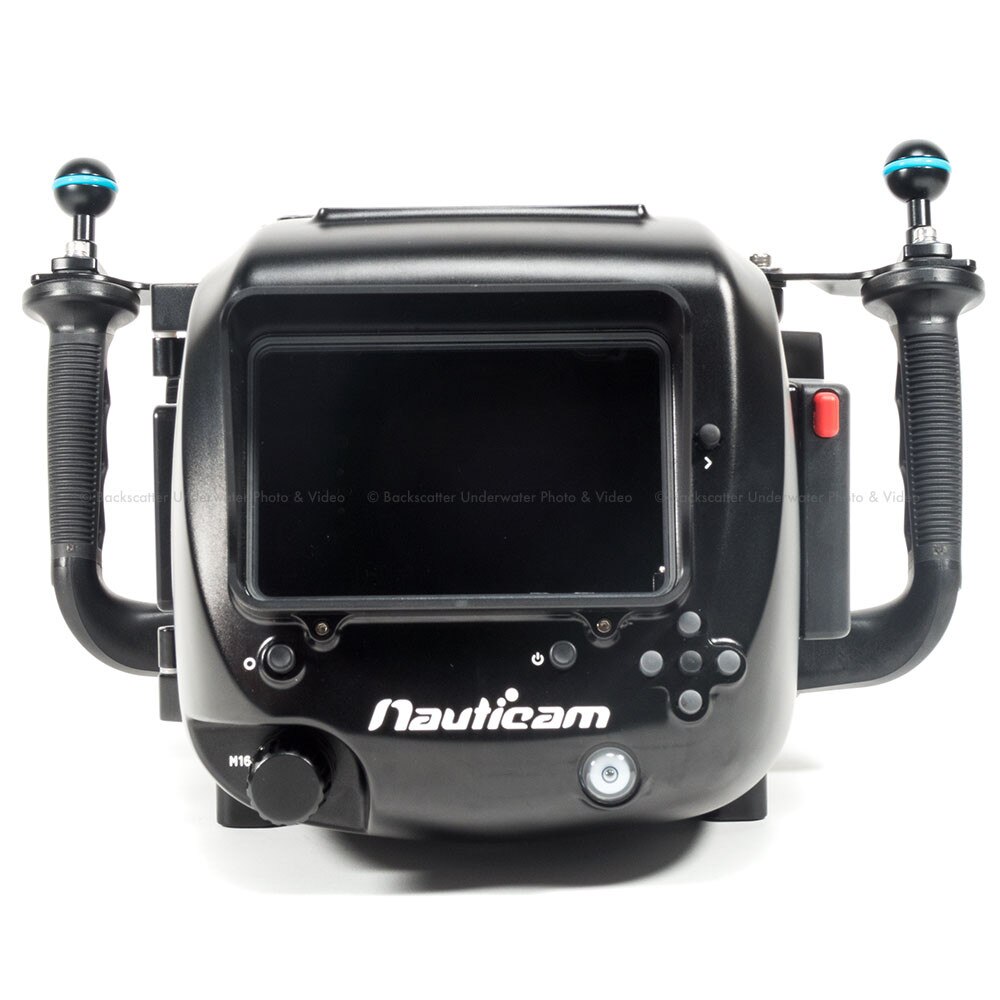

The Epic LT (16106) features space for the REDTouch 5" LCD monitor inside the housing and is visible via a window in the rear of the housing that includes a removable shade. The monitor sits inside the rear portion of the housing and swings out of the way when the housing is opened to allow unobstructed access to the batteries and monitor connections.


INTEGRATED VACUUM CHEK AND LEAK DETECTION SYSTEM

The Nauticam vacuum check and leak detection system is shipped with Epic LT as standard equipment. Combined with an accessory vacuum valve, this monitoring system provides constant updates on the watertight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.


FEATURES

PATENTED PORT LOCKING SYSTEM

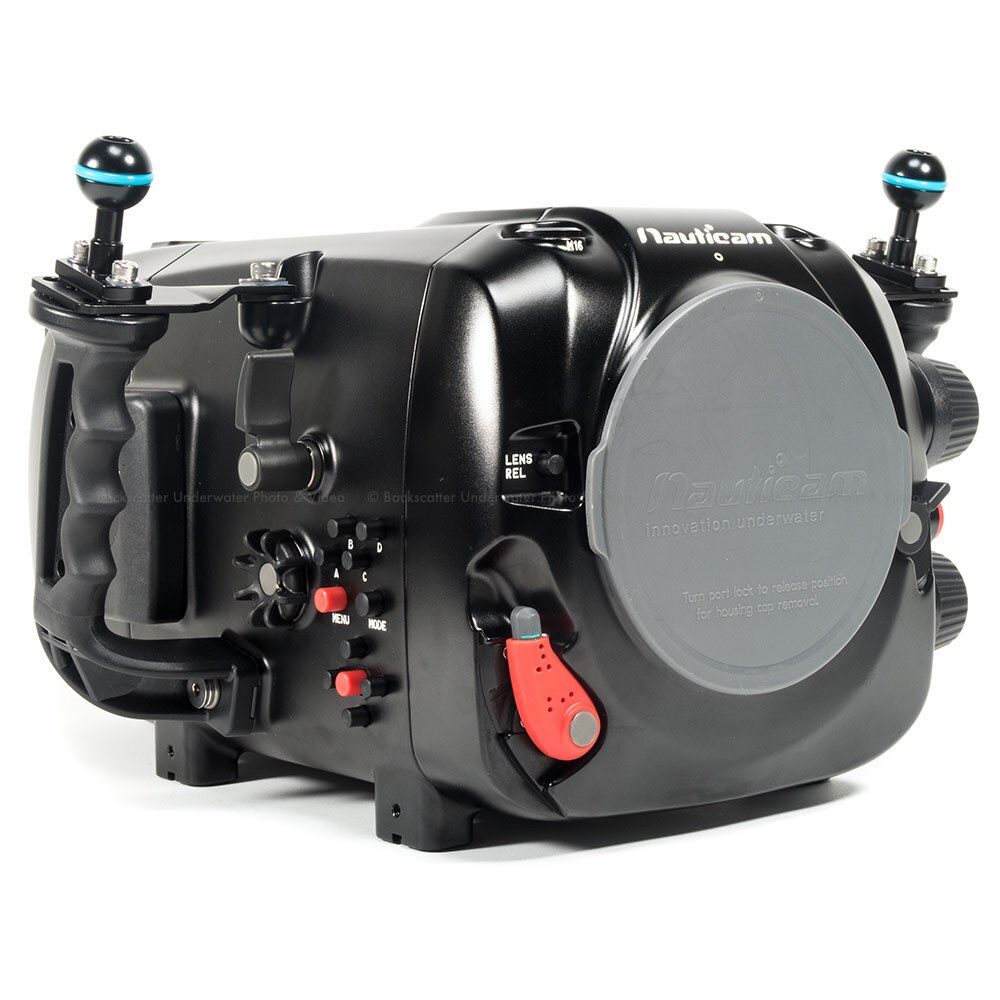

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.


HOUSING LOCKING LATCH

The secure single rotating housing latch opens the housing back allowing for quick and easy battery or media changes.


TOOL-FREE LENS CHANGES

An external lens release button allows EF lenses to be removed while the camera is installed in the housing and the internal focus/zoom gears can be swung out of the way with a convenient external lever to allow easy lens removal.


CINEMA SYLE ZOOM AND FOCUS KNOBS

Oversized, Rubberized Zoom and Focus Knobs placed at the left handle provide precise lens control and feature erasable surfaces for zoom/focus marks.


ACCESSORY MOUNTING

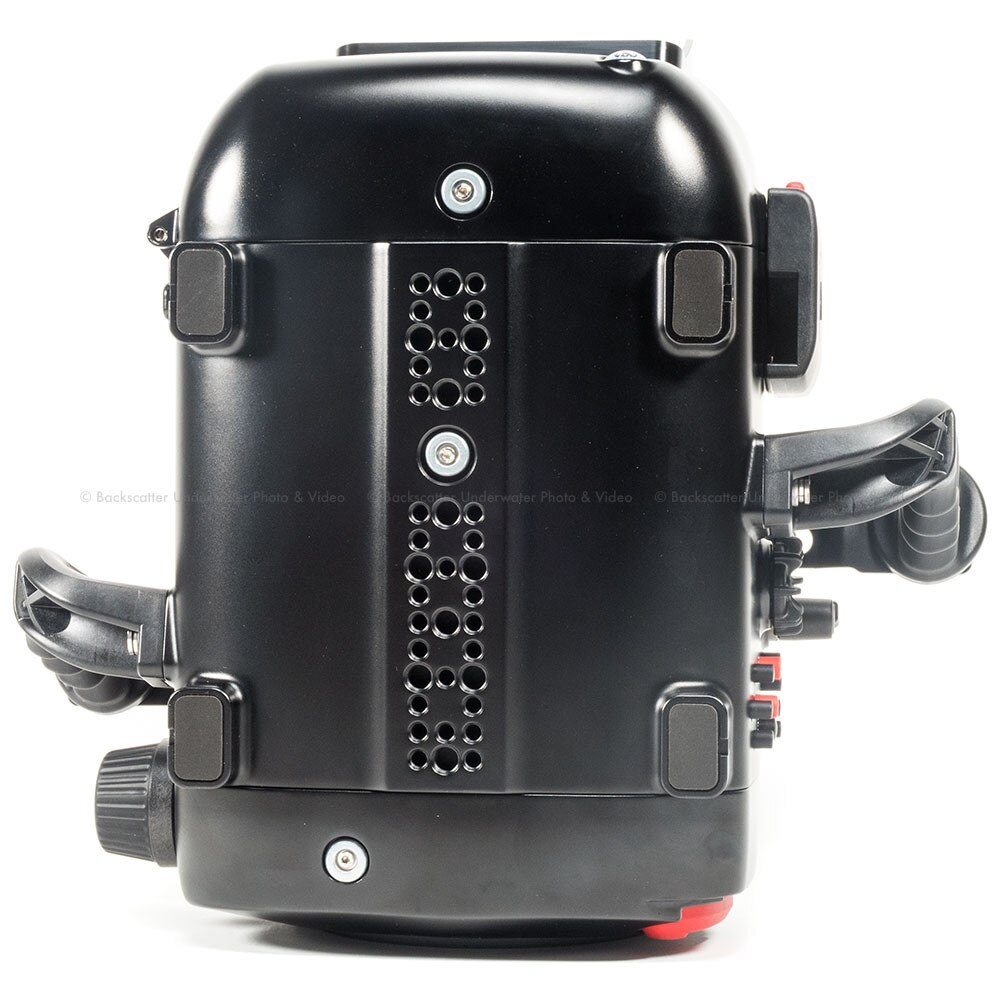

The Epic LT features several bulkheads, threaded M10 mounts as well as 1" ball mounts on the handles to support a variety of external lighting and other accessories.


Included with Housing:

• All Required Mounting Hardware.
• LCD Monitor Shade.
• Handles with 1 Base Balls.
• Port Cap.
• Vacuum Valve and Vacuum Monitoring Circuitry.
• Pelican 1620 Travel Case.



Other Required Components:

• RED SWITCHBLADE.
• REDTOUCH 5 LCD Panel.
• RED LCD/EVF CABLE (RIGHT-TO-RIGHT) 18 inch or Longer.
• RED Mini-Mag Side SSD Module or DSMC 1.8 Side SSD Module.
• A Power Solution
• REDVOLT XL Module & 1x REDVOLT XL Battery.
• Anton Bauer Dionic HC & Gold Mount Plate.
• Small V-Mount Battery (like PAGLink PL96) & V-Mount Plate.



Specifications:

• Model Number:
• 16106 Nauticam Epic LT with RedTouch 5 Back.
• 16227 Nauticam Epic LT with SmallHD 502 Back.
• Weight: under 7kg.
• Dimensions: 305 x 335 x 200mm (305 x 244 x 200mm without handles)



Optional Accessories:

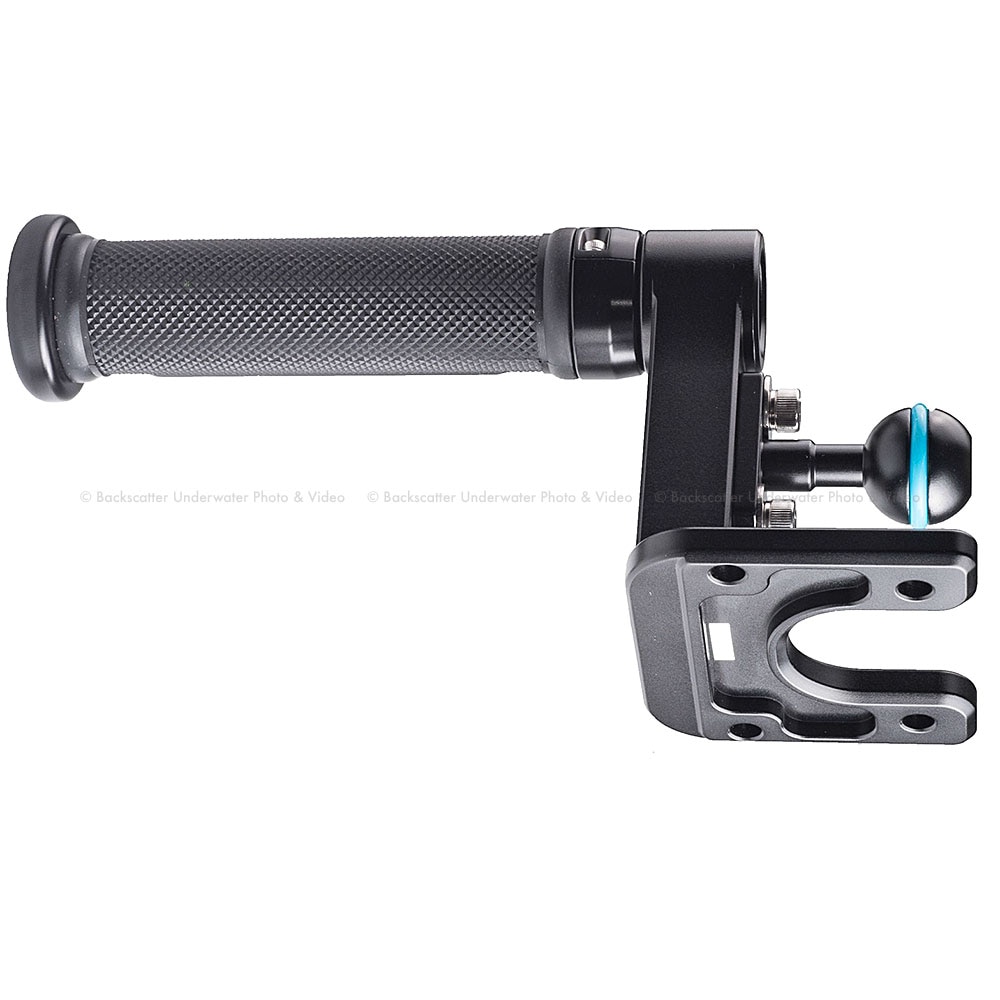

• Top Handle.
• 5mm Ball Mounts (for tripod leg attachment).
• External Monitor Housings for SmallHD 502, SmallHD DP4, Atomos Shogun, Atomos Ninja, and TVLogic VFM-058.
• SDI Surface Feeds for Director Monitoring.
