Nauticam Fujifilm X-T2 Underwater Housing NA-XT2

NAUTICAM LENS & PORT CHARTS

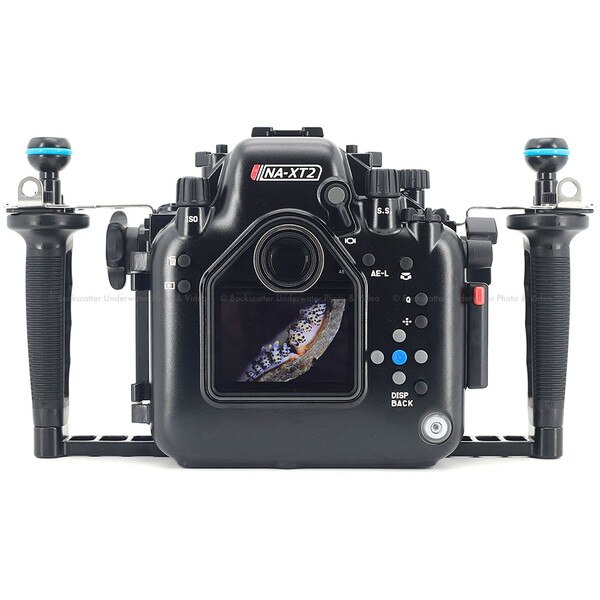

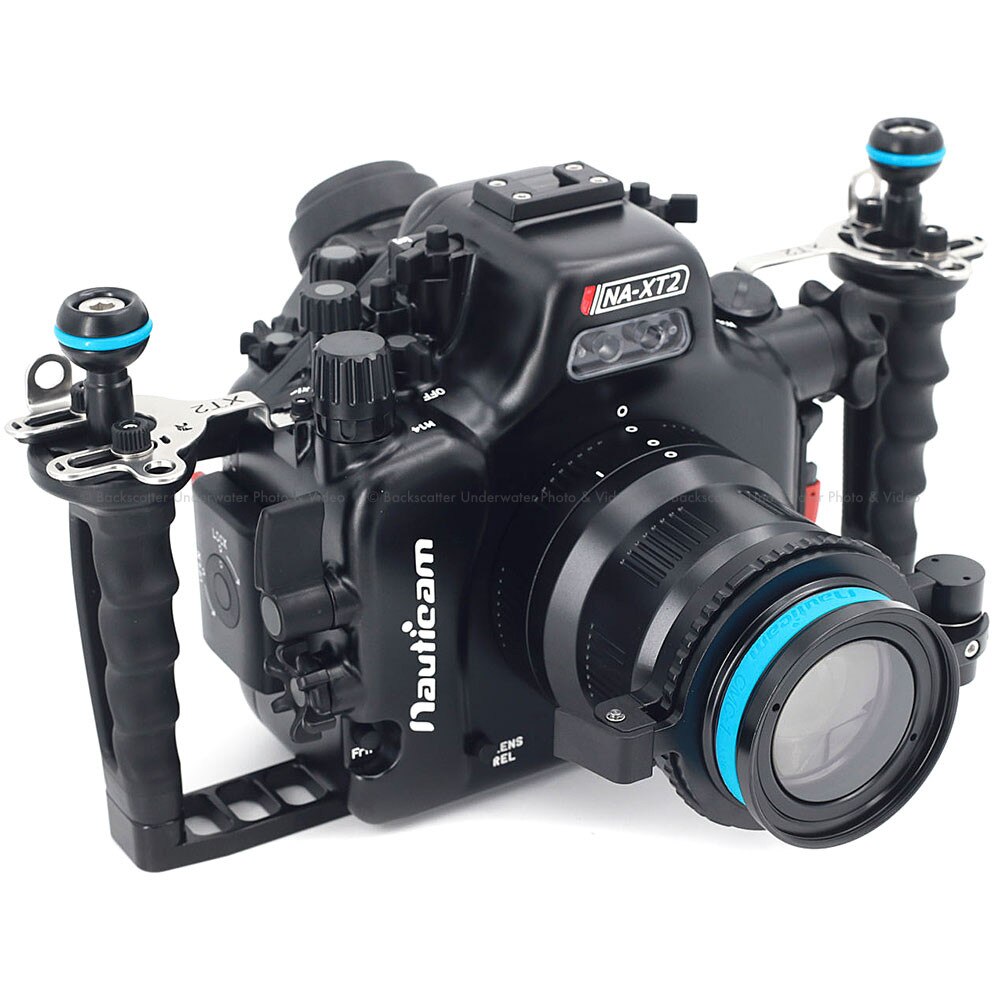

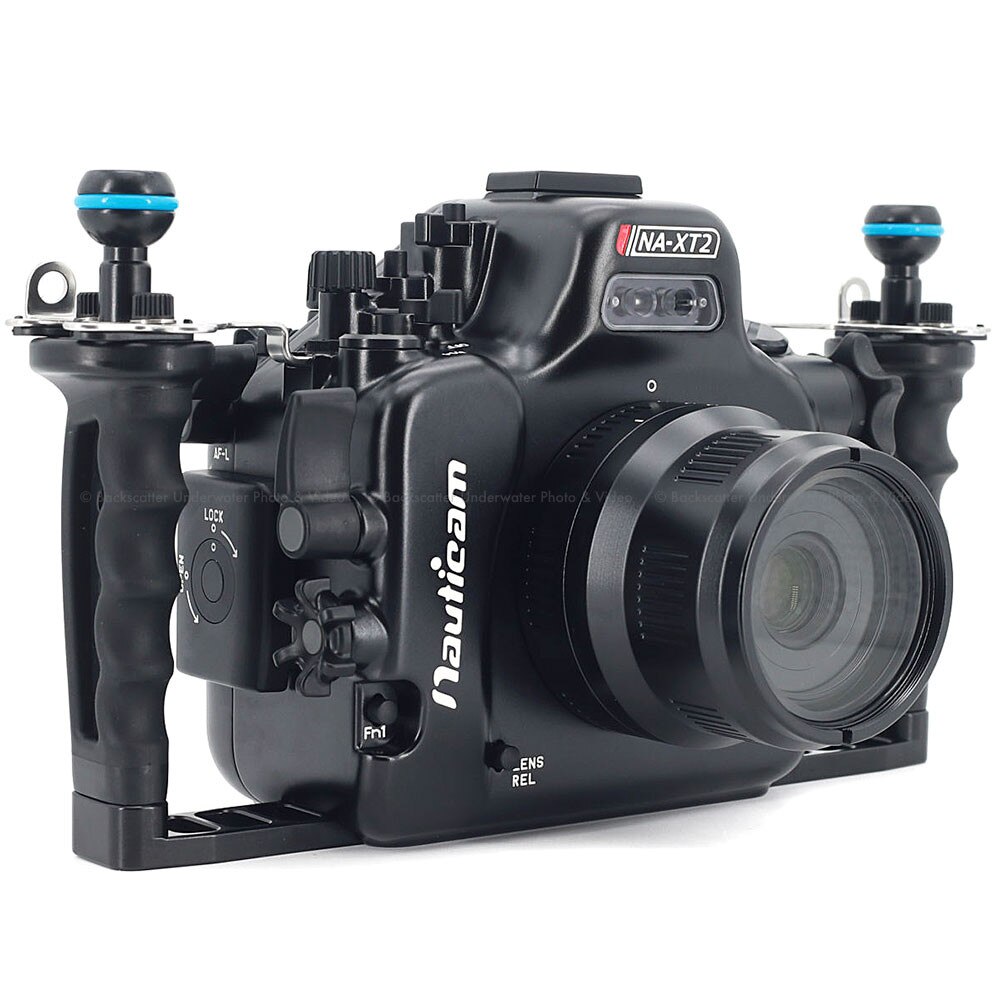

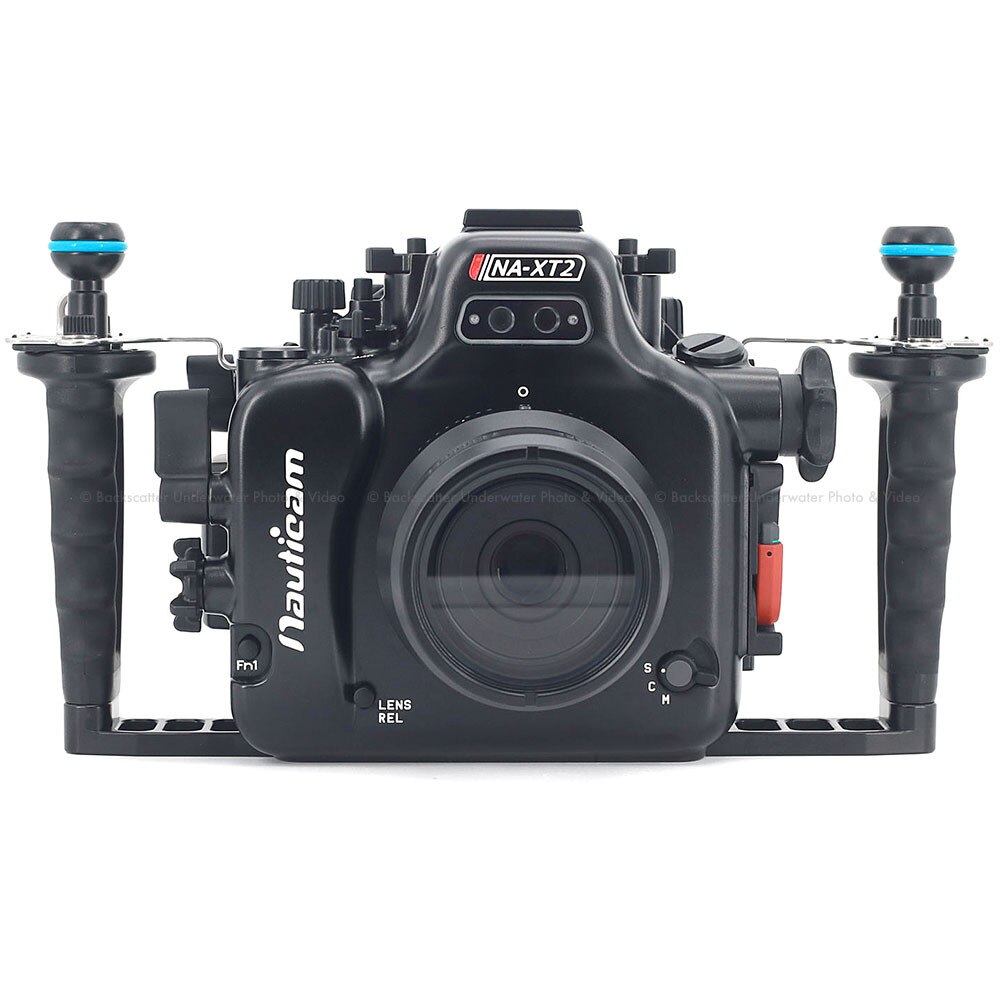

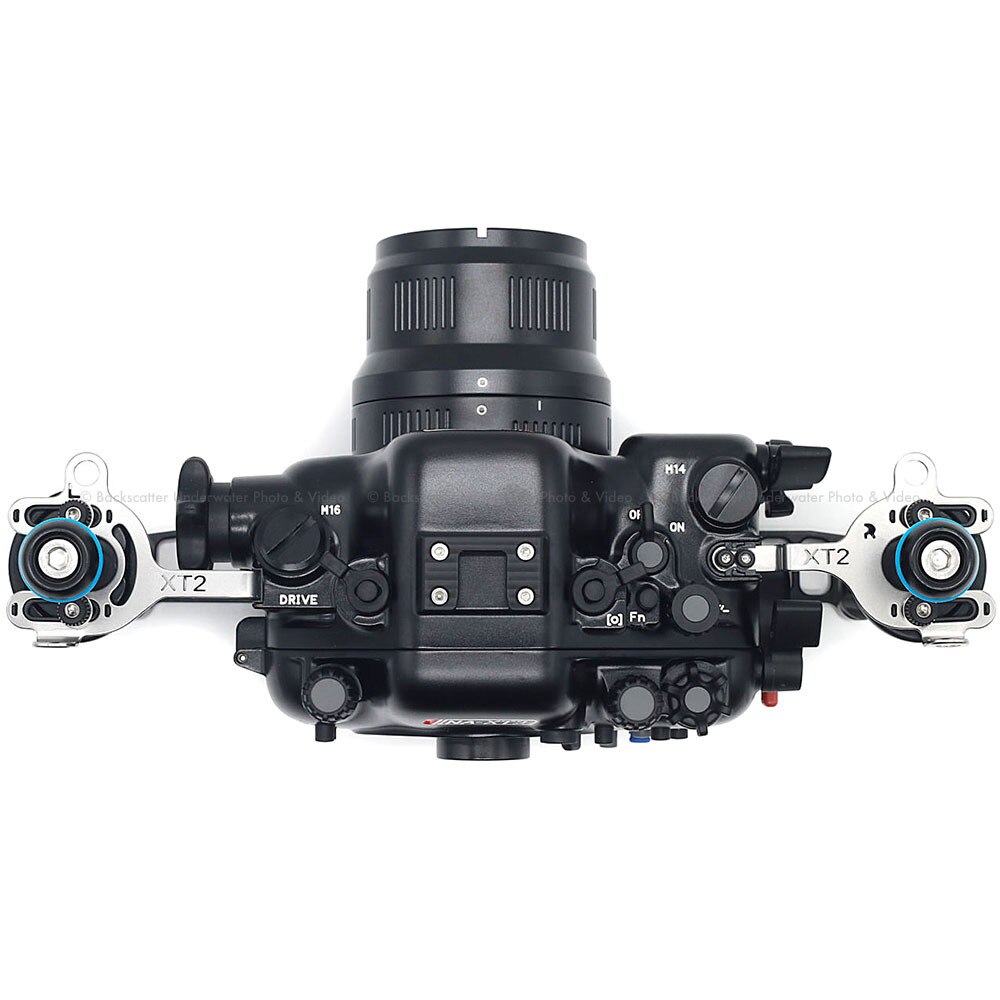

Nauticam NA-XT2 Underwater Housing for Fujifilm X-T2 Mirrorless Camera

Classic Design with a 24.3MP APS-C X-Trans Sensor and UHD 4K Recording Don’t let the retro design fool you! Equipped with a 24.3MP APS-C X-Trans CMOS III image sensor and the X-Processor Pro Engine, the X-T2 is able to capture up to 8 fps with full AF tracking or up to 14 fps using the silent electronic shutter. The Intelligent Hybrid AF system with 325 points ensures fast, accurate tracking of subjects in all modes.

The X-Trans CMOS III APS-C sensor with its highly random pixel array effectively reduces moiré and false colors without the use of an optical low-pass filter. When combined with an XF lens, the sensor delivers images with a perceived resolution far greater than the number of pixels used.

The X-T2 offers internal UHD 4K video as well as an 8-bit 4:2:2 clean HDMI output. Fine detail is captured with ultra high resolution (3840 x 2160), at an excellent 100 Mbps bit rate and with a minor 1.17x crop of the sensor. It uses a 5120 x 2880 sample area of the sensor that is 1.8x more resolution than the UHD 4K frame created, ensuring maximum detail. An F-Log Gamma setting is available for capturing a flat tone picture style, for use in advanced color grading software during editing.

Fujifilm has a long history in traditional film-based photography and the X-T2 integrates several classic film simulation and grain effects, including PROVIA and Velvia to reproduce vibrant colors. All 15 simulation modes can be applied to both photo and video.


Key Camera Specifications

24MP X-Trans CMOS III sensor

• 325 AF points (169 of which offer phase detection)
• AF point selection joystick
• 2.36M-dot OLED EVF with 0.005 sec refresh time (60 fps or 100 fps in boost mode)
• 3″ 1.04M-dot articulating LCD
• 4K UHD video at up to 30 fps for up to 10 min (30 min with booster grip)
• F-Log flat profile and 4K out over HDMI
• 8 fps continuous shooting with AF (11 fps with booster grip)
• 5 fps continuous shooting with live view updates between capture
• 14 fps continuous shooting with electronic shutter
• Dual SD card slots (UHS-II compatible)
• USB 3.0 socket

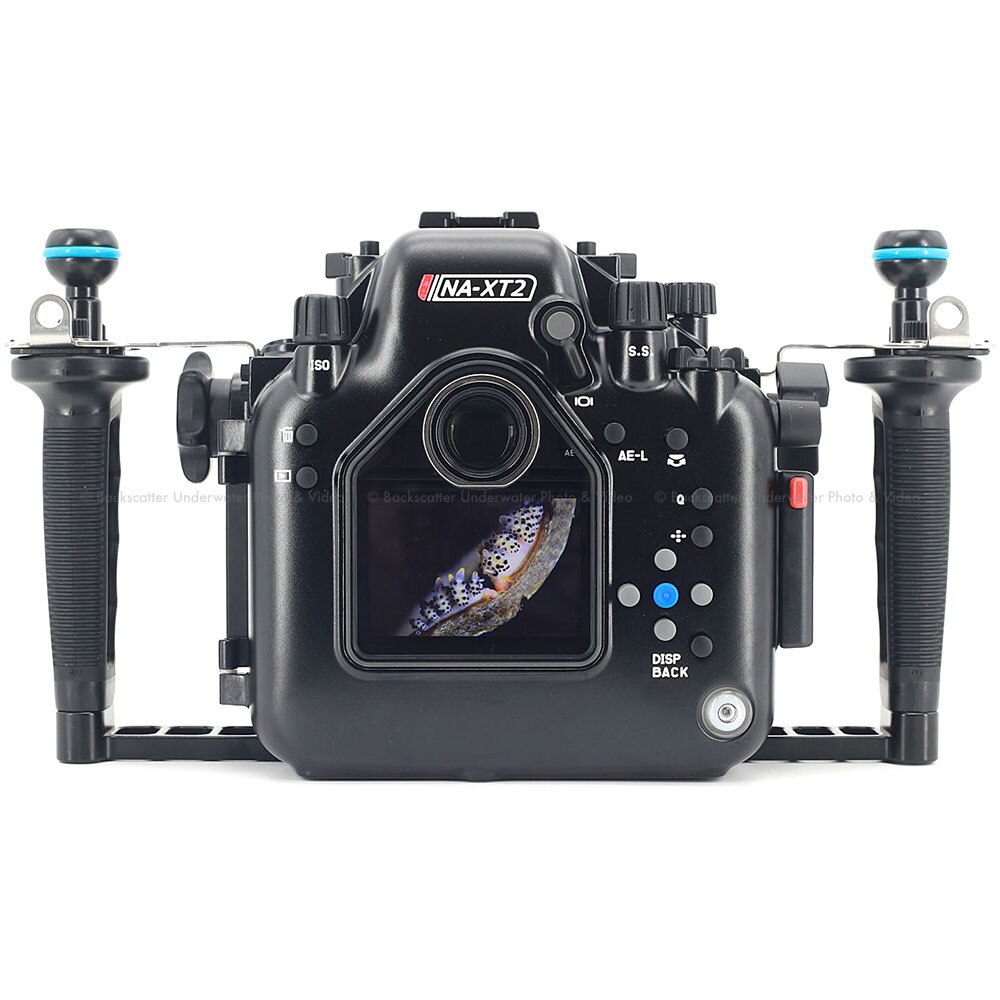

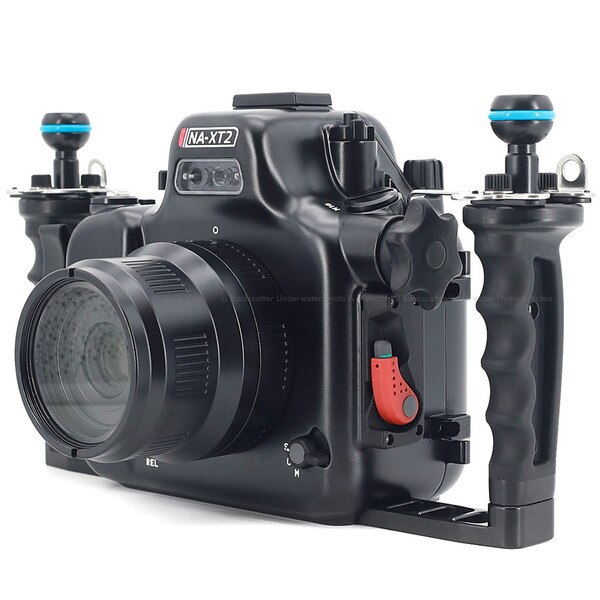

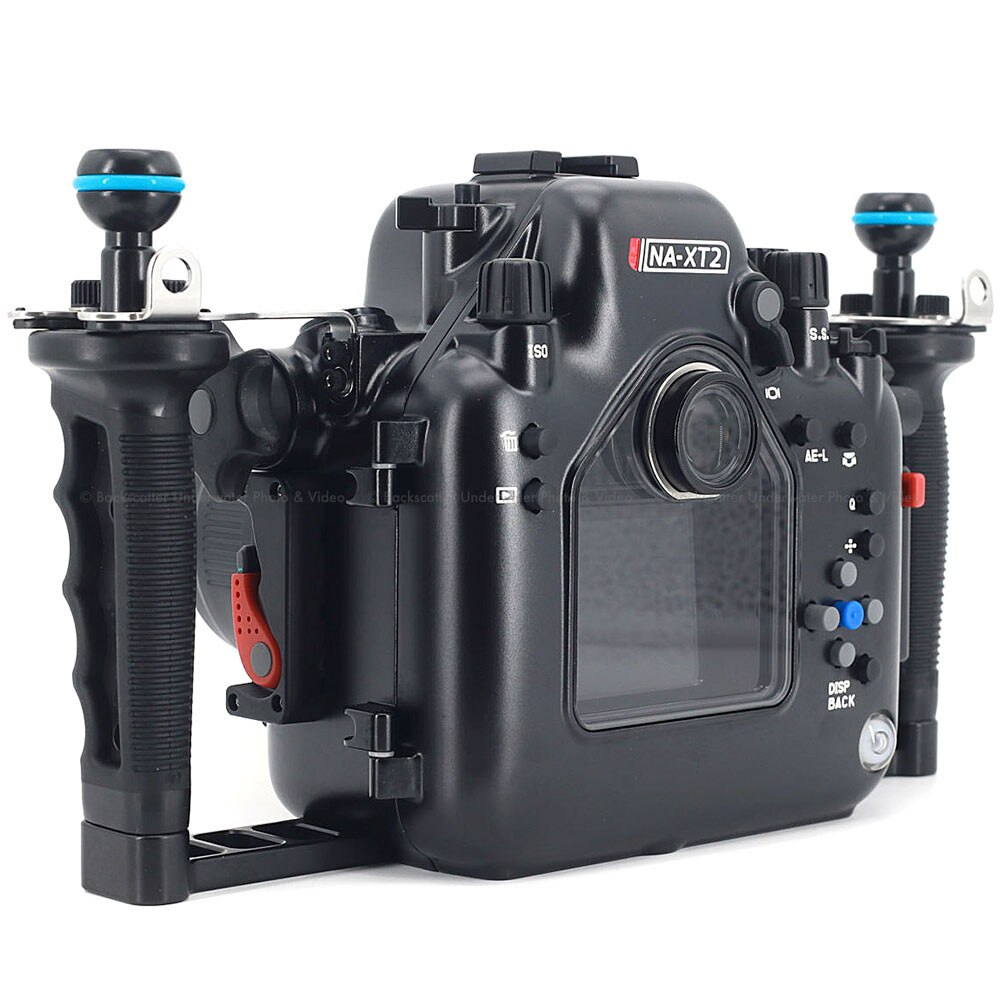

THE NA-XT2 HOUSING

The NA-XT2 inherits the best of previous DSLR and high-end mirrorless Nauticam housings while tackling the manual aperture control needed for this particular camera.

The housing is small, but not at the expense of functionality or ergonomics. Integrated handles provide a sturdy and comfortable base to operate the system from. An ergonomic shutter release lever and well-placed control dials provide excellent tactile feel. Important push buttons are placed within easy reach of the handles. Camera controls have sufficient spacing to allow easy operation, even with gloves.

A new accessory battery pack has been released along with the NA-XT2! This larger capacity battery greatly extends the time between battery swaps and allows the housing to remain sealed between dives. The battery pack conveniently slides into the underwater housing below the camera mounting plate.

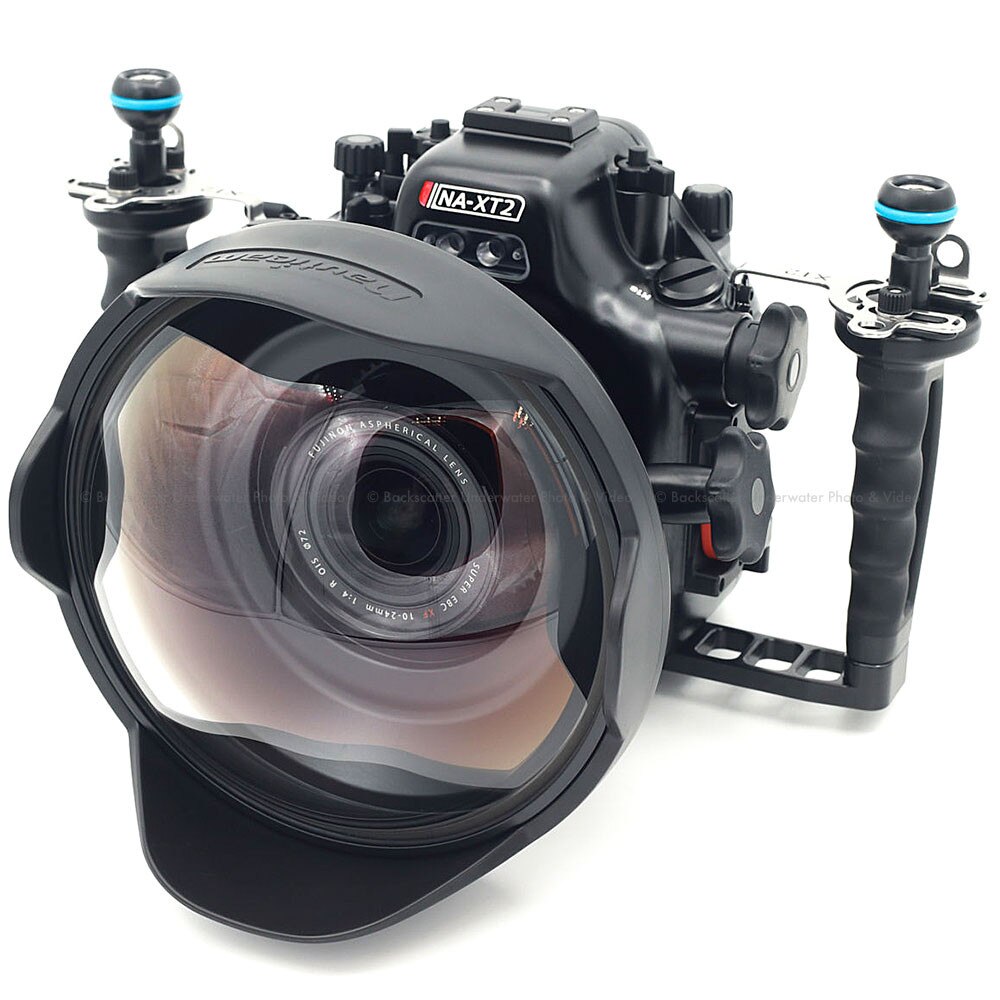

The Fujinon XF10-24mm F4 R OIS wide angle zoom lens and the Zeiss Touit 2.8/50M macro lens are both supported. With Fuji’s high-end lenses (called the “XF” line) and the Zeiss 50mm macro, the aperture is controlled on via a lens ring rather than electronically through the camera. This old school approach will resonate with anyone who, for example, shot older Nikon SLR’s before the days of an electronic aperture. Use Nauticam aperture ring (#36422), for the Zeiss 50mm macro, and (#36421) aperture, (#36441) zoom gears for the 10-24mm.

This is a rugged housing, ready to tackle thousands of hours of underwater abuse. Crafted from solid aircraft aluminum, the housing can reach depths of 100m with ease. The secure single rotating housing latch opens the housing back. The camera drops in easily. The rear mounted housing o-ring makes maintenance simple. Dual fiber optic synch ports are standard and take advantage of the cameras included EF-X8 flash for strobe triggering. To make the most of the excellent X-T2 electronic view finder (EVF), Nauticam allows for installation of the acclaimed 45º and 180º magnified viewfinders, providing the ultimate in clear composition and focus ability.

The NA-XT2 is a professional grade underwater housing, supporting the outstanding Fujifilm X-T2 camera body to its full potential.


FLASH CONNECTORS FOR OPTICAL TTL

Reliable automatic flash exposure is available with the NA-XT2 and a variety of optically fired flashes. The Inon Z-240, D-2000, S-2000, and Sea & Sea YS-D1/YS-D2 strobes provide automated lighting, precisely reproducing the camera’s included EF-X8 flash at a proportionally greater intensity. This system yields accurate automatic TTL flash performance – even in manual exposure mode – with no electrical sync cables to flood!

The NA-XT2 is also compatible with the Nauticam Mini Flash Trigger for Panasonic/Fujifilm (#26305). The Flash Trigger allows for rapid fire manual flash firing via fiber optic, with no camera battery drain.

The NA-XT2 comes fiber optic ready and accepts standard Sea & Sea style bushing connections. Nauticam Universal fiber optic cable system (#26216) for Inon, Sea & Sea strobes, provide exceptional light transmission for accurate TTL performance.


VIEWFINDER OPTIONS

A clear view for fine focus and composition is critical for successful underwater photography, and nothing beats a magnifying viewfinder. These viewfinders use distance, not close up vision, and provide a large, clear view of the high resolution, 2.36M-dot OLED EVF on the X-T2. Available in angled 45º (#32205) and Straight (#32204) formats, both viewfinders have external dioptric adjustments for dialing in perfect correction matched to the photographer’s eyesight.

45º and 180º Magnifying Viewfinders provide a large, clear, corner-corner view of the Fujifilm X-T2 2.36M-dot OLED Electronic Viewfinder.


INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM

The Nauticam vacuum check and leak detection system is available with NA-XT2 as standard equipment. Combined with an optional vacuum valve (PN 25624), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.


TOP FEATURES

Integrated Vacuum Monitoring and Leak Detection

Circuitry included as standard equipment provides constant monitoring of water tight integrity when combined with an optional Nauticam M14 Vacuum Valve II (25624). Green means safe to dive!


Vacuum System Reset Button

A blue button integrated into the camera mounting tray, accessible from the port mount, allows vacuum monitoring electronics to be reset when changing lenses from the front of the housing.


Port Locking Lever

The iconic Nauticam port locking lever allows effortless port changes. No twisting required, just press and lock.

This is a patented Nauticam feature, found on no other housing, providing unmatched ease of use!

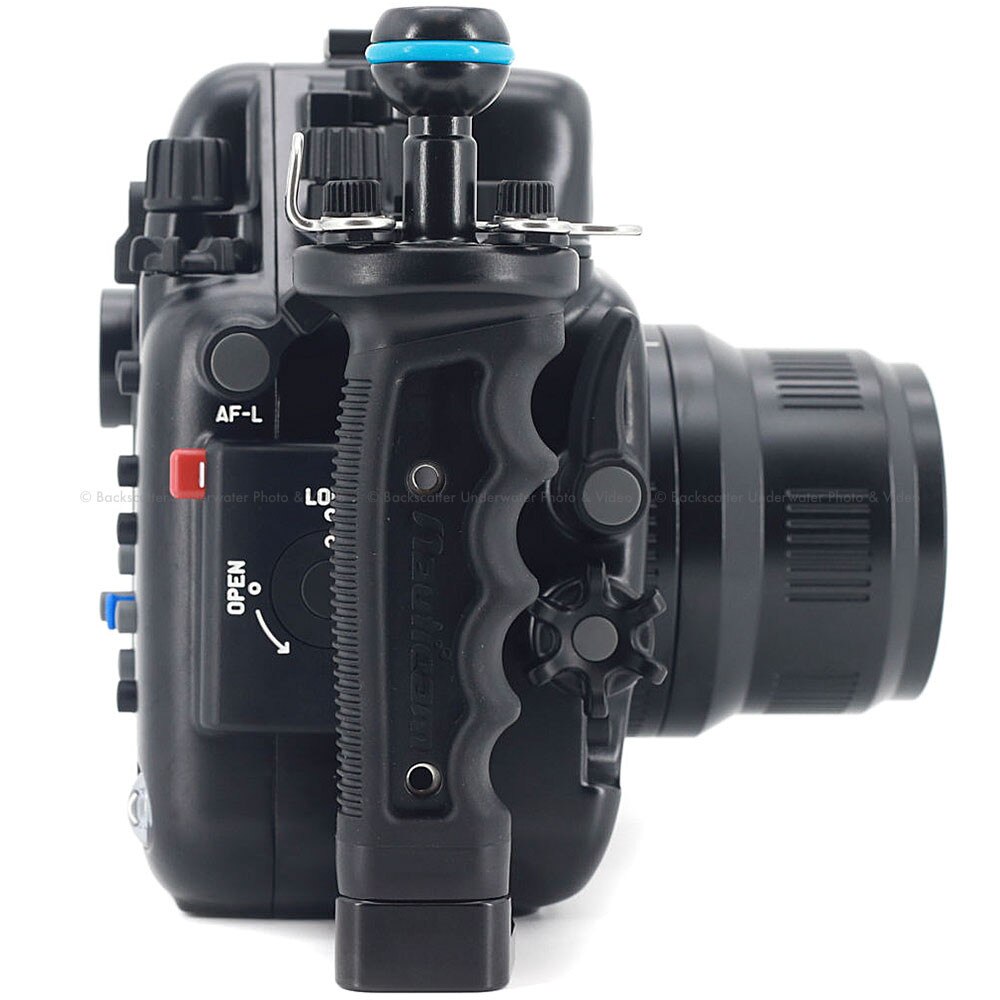

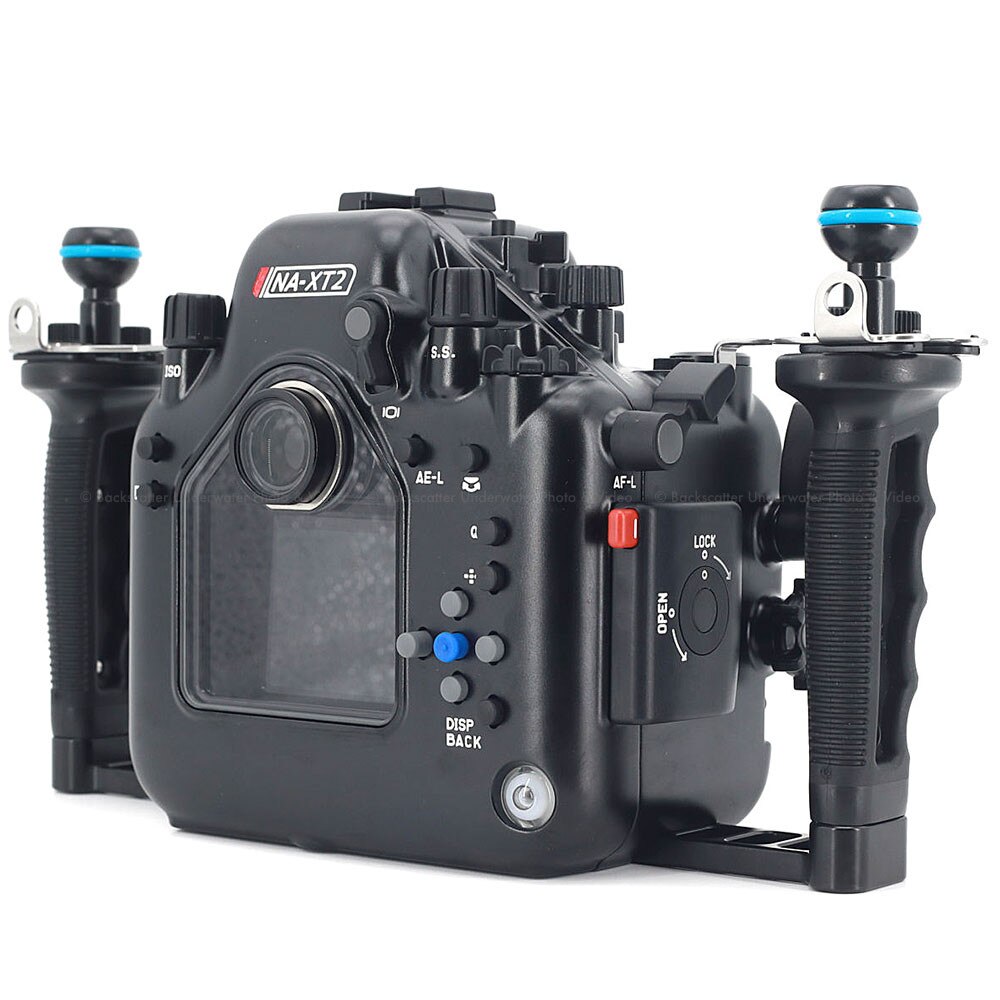

Rotary Locking Latch

An oversized rotary latch seals the housing and securely locks in place without risk of accidental opening.

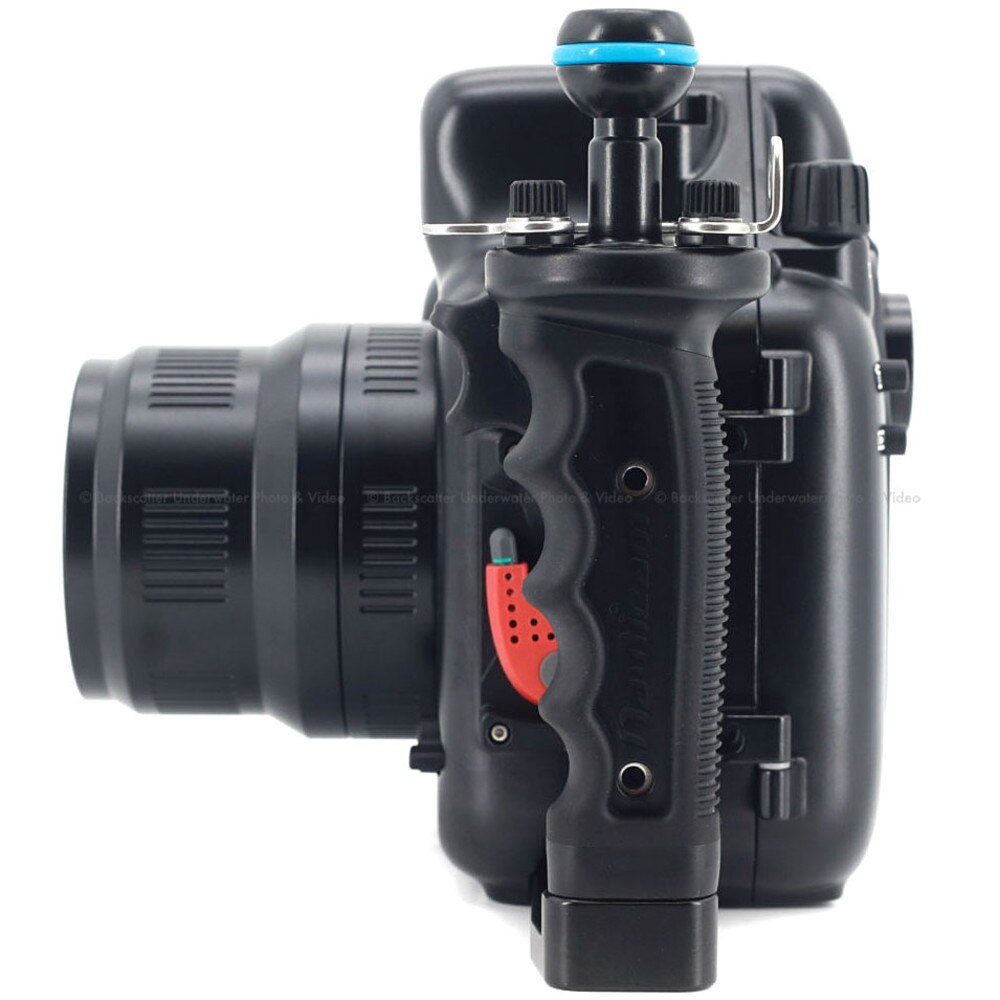

Integrated Handles with Stainless Steel Support Brackets

Rubberized handles and oversized controls are easy to operate even when wearing thick cold water gloves.

Handle support brackets are included with the housing, providing a solid "wobble free" attachment base to shoot from, even with heavy lighting systems. Multiple lanyard attachment points are included in the brackets.


Ergonomic Rubberized Grips

Another legendary Nauticam feature, these integrated rubberized grips are some of the most comfortable in the business.


External Power Supply

An optional battery pack (36332) is available for the NA-XT2. This larger capacity battery greatly extends the time between battery swaps and allows the housing to remain sealed between dives. The battery pack conveniently slides into the underwater housing below the camera mounting plate.


Extensive Accessory Lineup

The range of Nauticam accessories is unmatched, from viewfinders to electronic bulkheads, multiple accessories are available to customize the system to individual needs. A variety of lens ports support all popular lenses. Accessory lenses, like the revolutionary Compact Macro Converters, CMC-1 and CMC-2 enhance the system with super macro capabilities.


TECHNICAL SPECIFICATIONS

• Depth Rating: 100m
• Weight: 2.08kg
• Dimensions: 316mm (W) × 177mm (H) × 110mm (D)
• Port Opening: N85
