Nauticam NA-RX100VII Underwater Housing for Sony DSC-RX100 VII Camera

Sony's CyberShot DSC RX line has long been a favorite of the underwater shooter, packing great image and video quality into a feature-rich compact camera. The seventh iteration of this line, the RX100 VII continues to improve the 1-inch sensor with faster shooting performance and more precise focusing made possible by the redesigned CMOS sensor and improved BIONZ X image processor.

THE SONY CYBERSHOT DSC RX100 VII CAMERA

The continuation of the longer 24-200mm equivalent zoom lens with the RX100 VII (same as the RX100VI) sets this camera apart from the very popular RX100 V. It hosts a redesigned 20.1MP 1-inch Exmor RS CMOS sensor, along with an improved BIONZ X image processor, and highly-accurate 357-point hybrid autofocus system. With 5-axis image stabilization and the 20fps blackout-free silent shooting (with autofocus), the RX100 VII is going to track your subjects more accurately in photo and video modes.

The RX100 VII captures UHD 4K 30/24fps video that downsamples from the entire sensor width giving extremely sharp details. For slow-motion capture, there is 120fps Full HD, as well as a dedicated HFR mode that allows the camera to record frame rates up to 960fps. Also offering "Steady Shot Active Mode", the RX100VII combines in camera and lens stabilization to give a smooth look to your videos even when making big movements, and with the addition of a microphone jack, video shooters will certainly want to give this camera a second look.

Key Camera Specifications

• 20.1MP 1-inch Exmor RS BSI CMOS sensor
• BIONZ X Image Processor & Front-End LSI
• ZEISS Vario-Sonnar T* f/2.8-4.5 Lens
• 24-200mm (35mm Equivalent)
• Up to 20-fps Blackout-Free Shooting
• UHD 4K video at 30/24p with HLG & S-Log3 Gammas
• 0.39-inch 2.36m-Dot OLED Pop-Up EVF
• 3.0-inch 921.6k-Dot 180° Tilting Touchscreen
• Fast Hybrid AF, 357 Phase-Detect Points
• Real-Time Tracking and Eye-AF

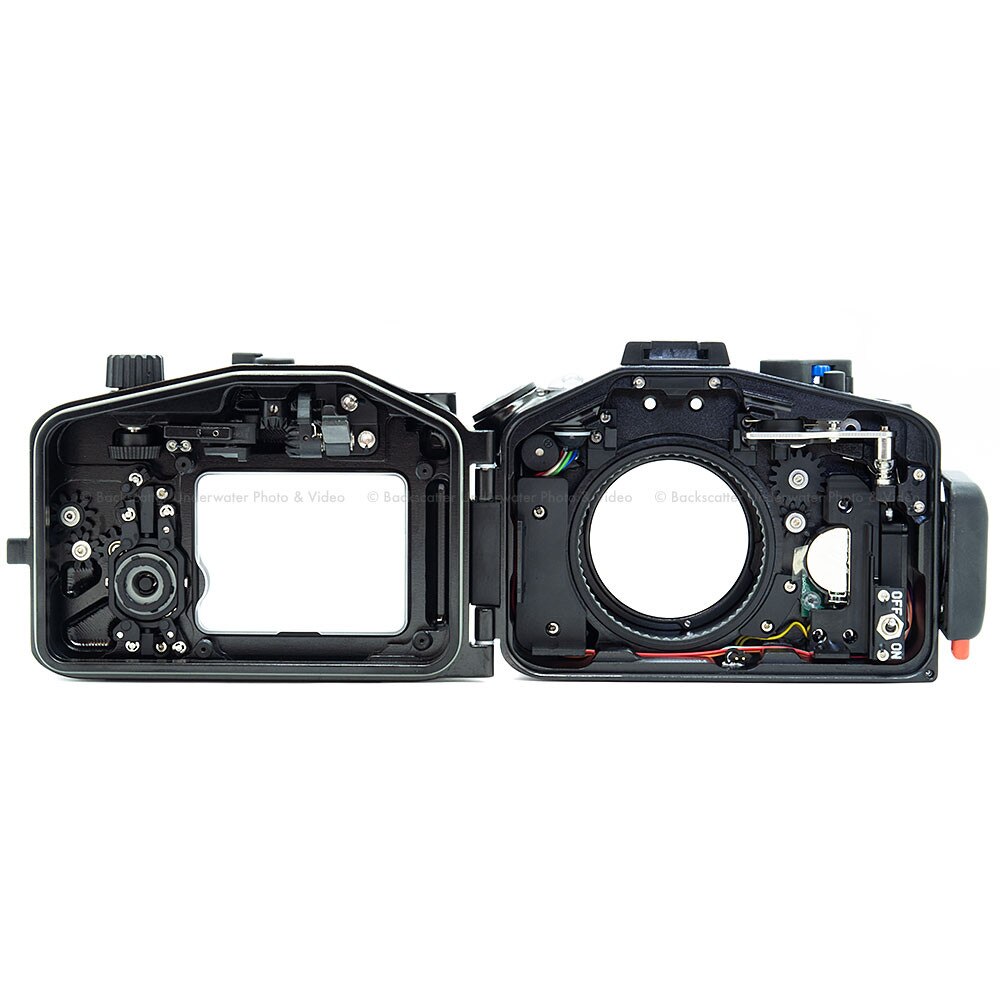

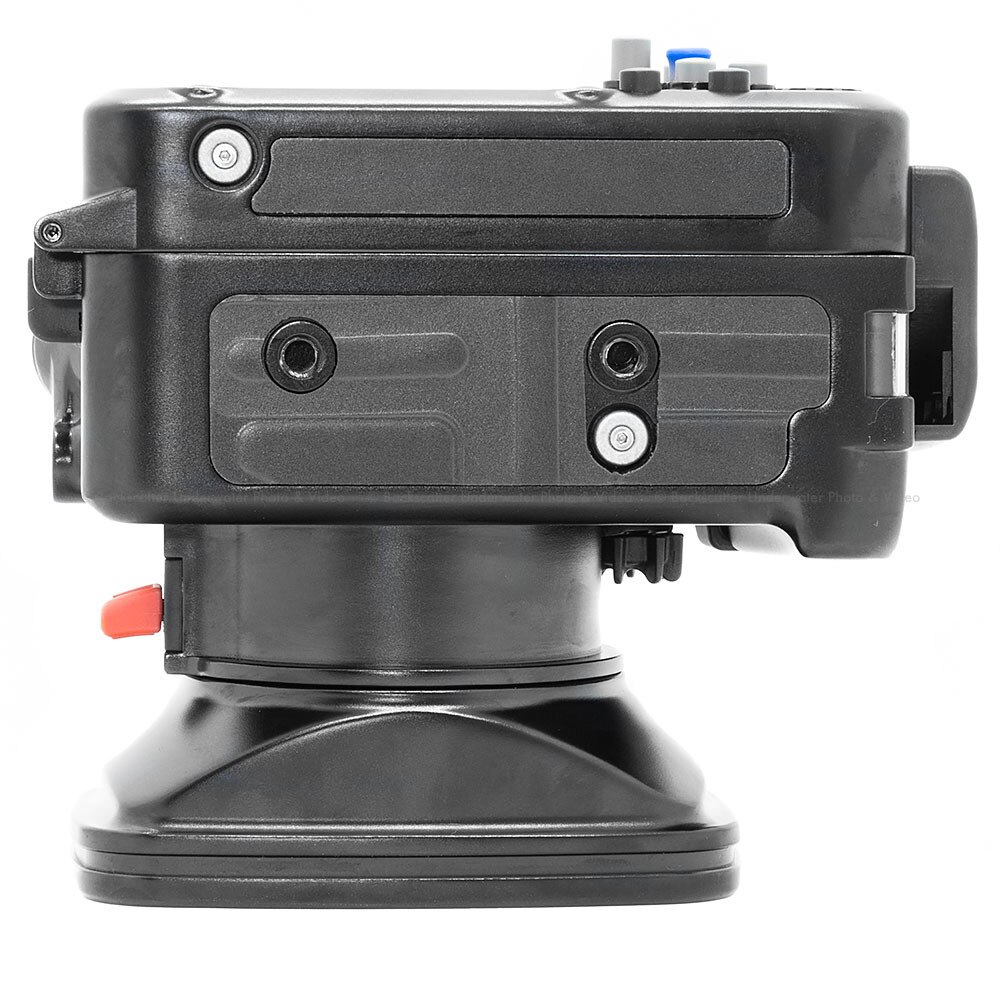

THE NA-RX100VII UNDERWATER HOUSING

Nauticam has supported every version of the Sony RX100 lineup and with the RX100 VII, the housing continues with the N50 interchangeable port system. The NA-RX100VII features the same innovative and user-friendly rotary-latch locking system and two-stage trigger from previous versions as well as the clearly-labeled and intuitive buttons and dials.

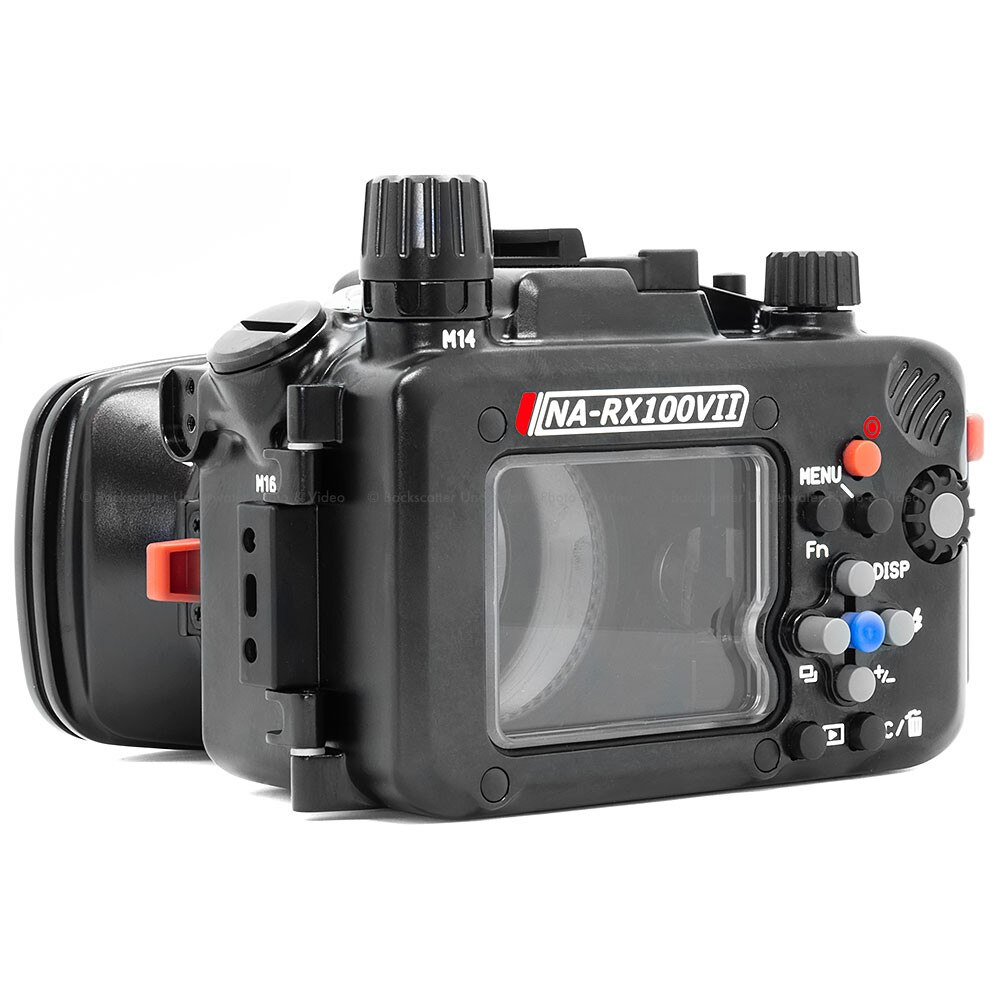

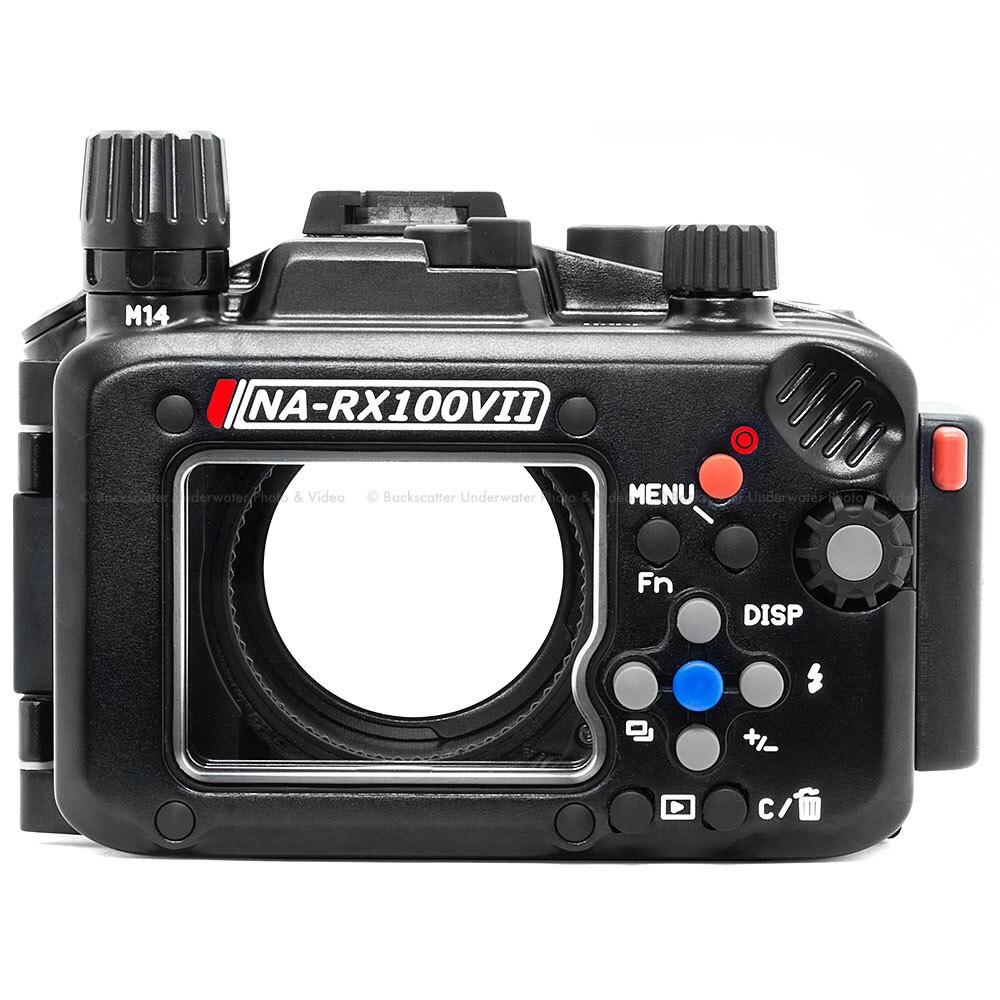

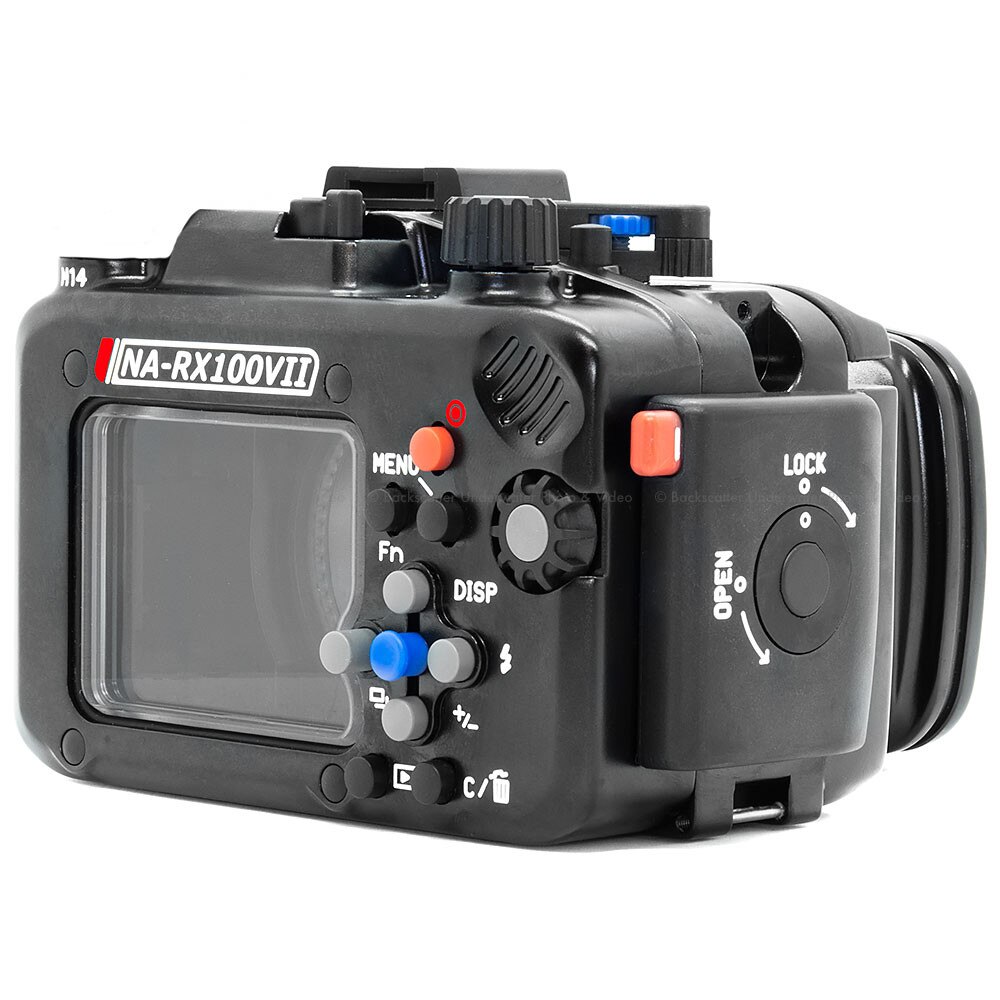

MISSION CONTROL

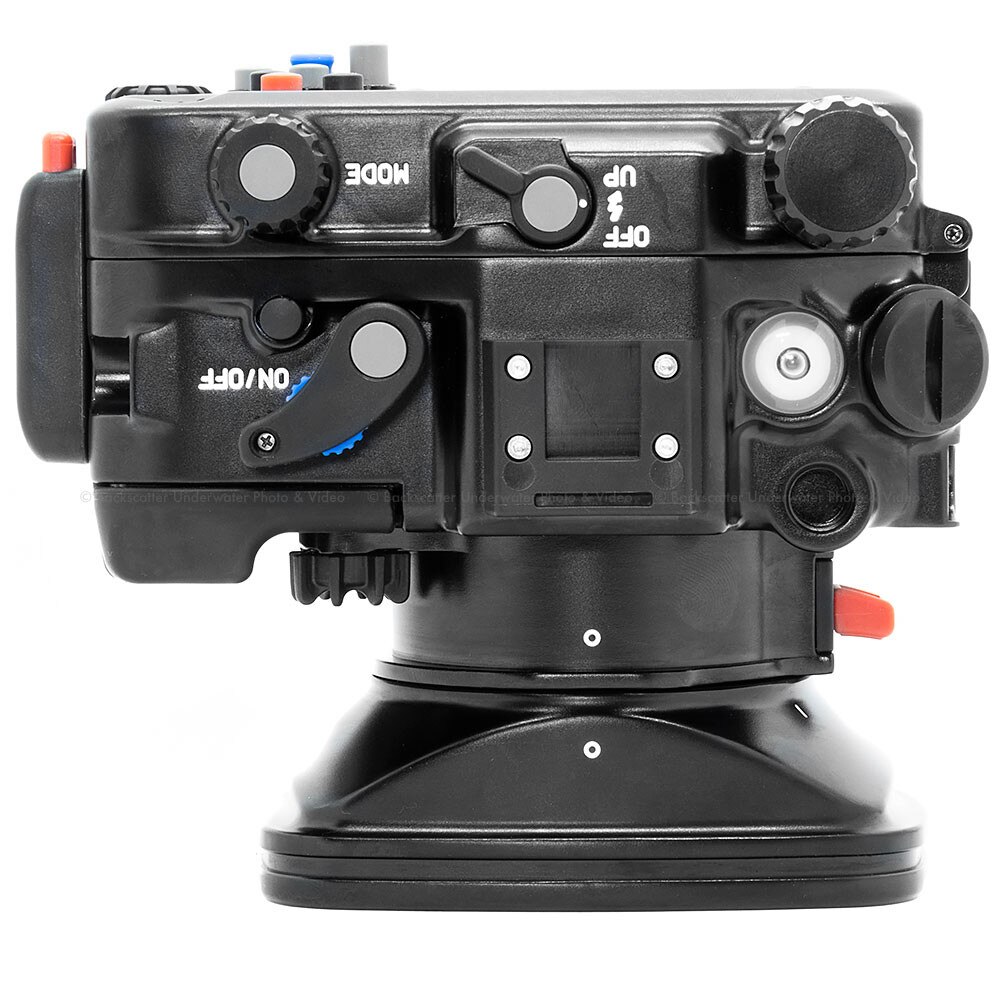

The NA-RX100VII follows Nauticam's design philosophy of placing the camera controls where they are most needed and easily accessible. The record button is colored red and within easy reach of the right side of the housing, even when using an optional tray system. The pop-up flash can be activated or stowed with the camera inside the housing, eliminating the need to preset the flash before inserting the camera and allowing quick changes between artificial and ambient lighting scenarios.

The shutter speed and aperture controls feature easy-to-use control wheels, with the front dial sporting large grooves to facilitate fingertip control without having to reach forward.

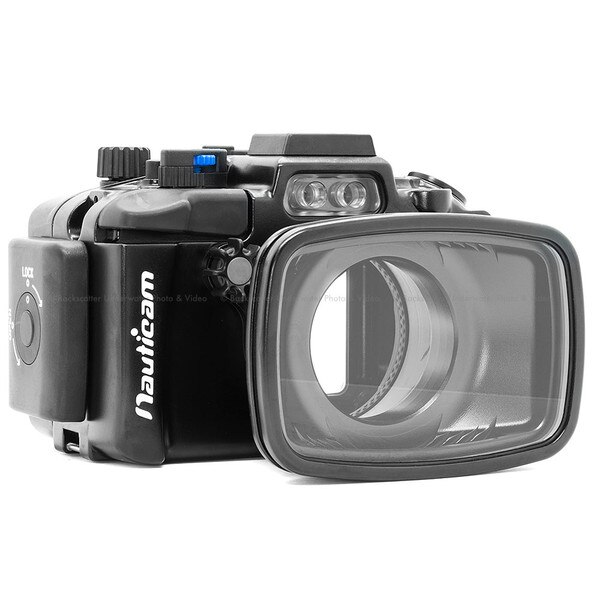

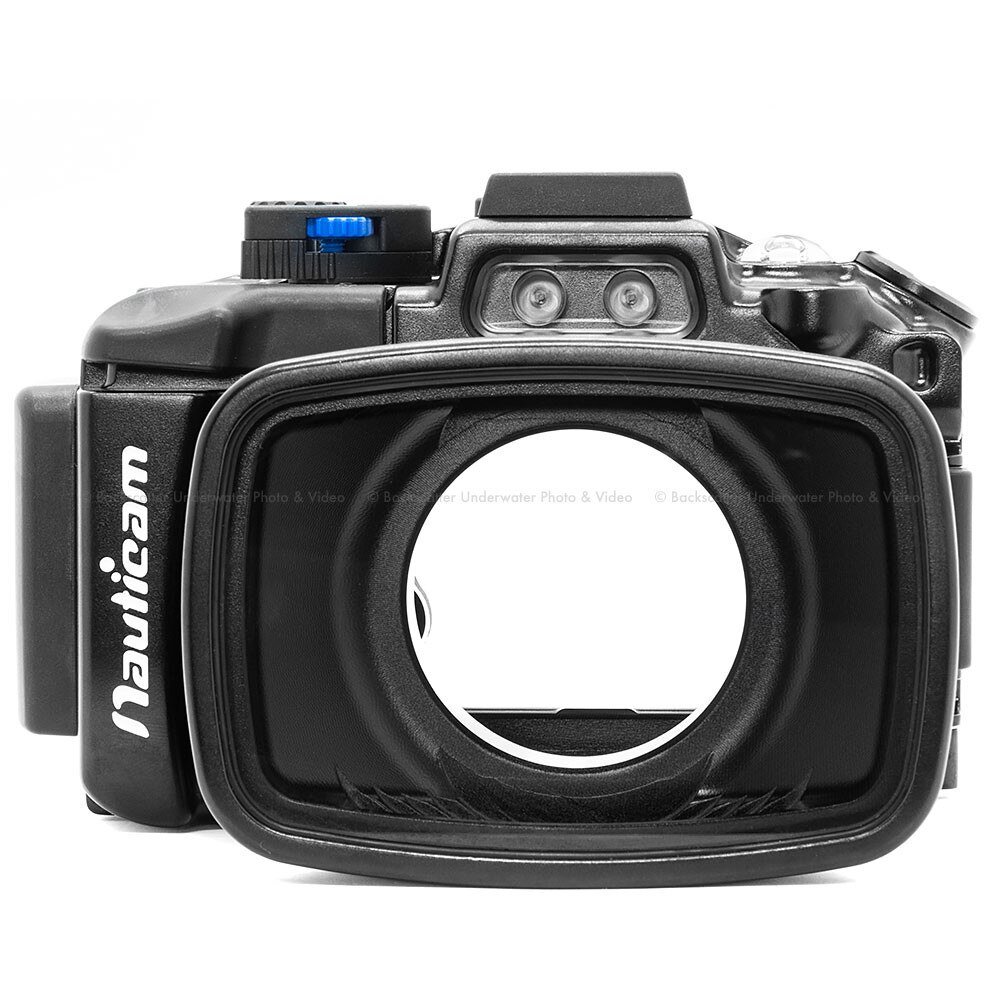

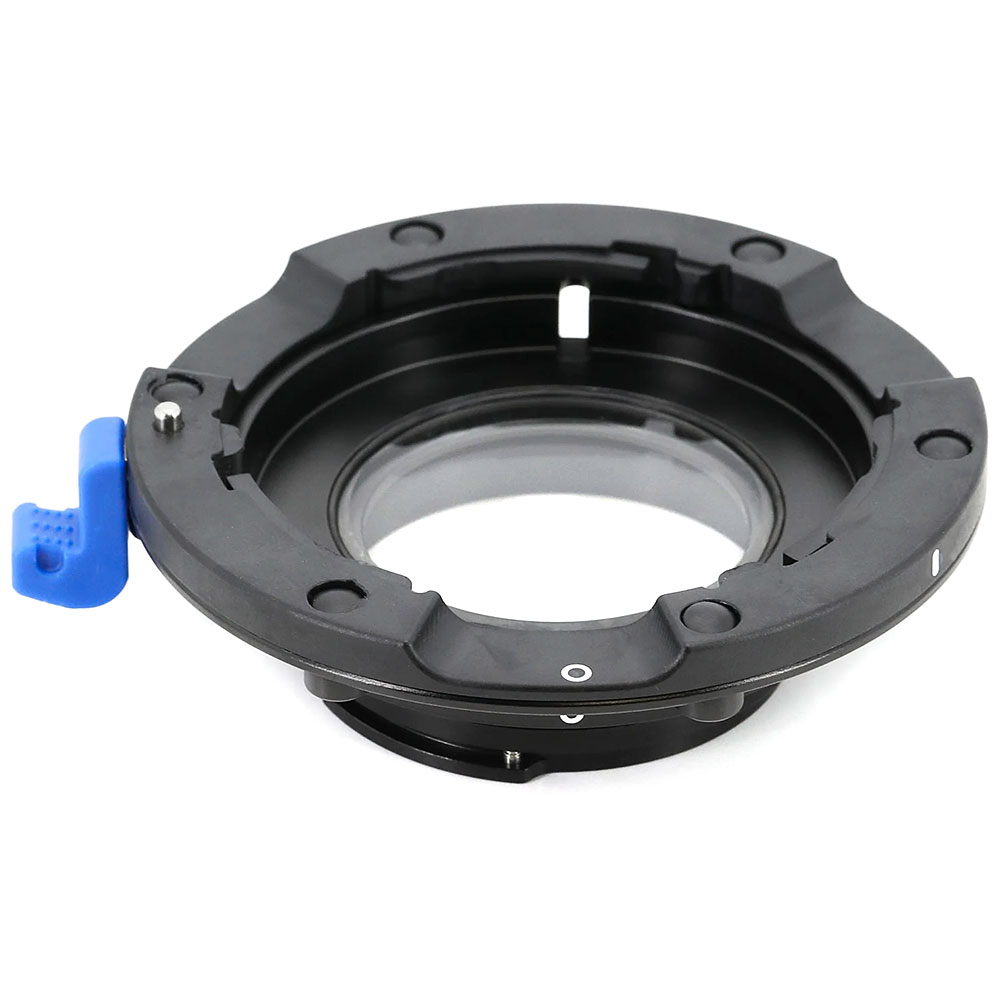

INTERCHANGEABLE N50 PORT

To maximize the added flexibility of the longer zoom lens on the RX100 VII, the NA-RX100VII features an interchangeable N50 port. The Standard Port that is included with the housing allows for the use of the full zoom range and is compatible with the 25107 M67 Flip Diopter Holder. At 90mm equivalent and above, the RX100VII can be used with the SMC-1 wet-optic to achieve true super-macro capability.

PREMIUM PROFESSIONAL OPTICS

For super wide-angle, the standard port can be changed for 38702 N50 Short Port with Bayonet Mount. This port is ready to support the WWL-1 Wet-Wide Lens with the intuitive and convenient bayonet-mounting system. The zoom range is still accessible but is limited to 65mm equivalent. The WWL-1 can be changed underwater with the CMC-1 or CMC-2 to give macro capabilities on the same dive.

OPTIONAL PRO PACKAGE CONFIGURATION

The NA-RX100VII is also available in the Pro Package configuration that comes with the Flexitray II, Right Handle, two ball-mounts and M14 vacuum valve pre-installed. The standard NA-RX100VII ships with stainless steel stiffening brackets and shutter release extension should a Nauticam Easitray or Flexitray be added later.

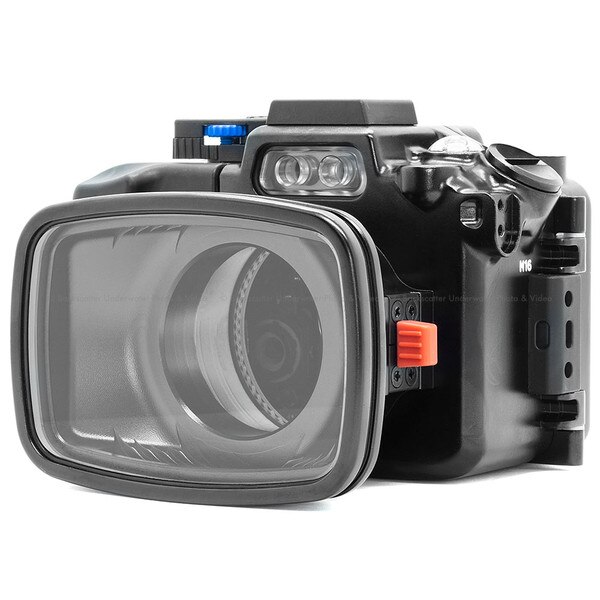

HDMI OUTPUT

The RX100VII has HDMI output for video, allowing for the use of external monitors which make judging exposure, focus and composition easier than using the built-in LCD of the camera. By adding the optional 25028 Socket Extension and 25032 Custom HDMI bulkhead, the NA-RX100VII is compatible with external monitor housings such as the NA-502B-H or NA-Ninja V (HDMI 1.4 connection only).

INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM

The Nauticam vacuum check and leak detection system is shipped with NA-RX100VII as standard equipment. Combined with an accessory M14 Vacuum Valve II (PN 25624), this monitoring system provides constant updates on the watertight and safe-to-dive status of the housing. A simple color-coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action-packed dive.

FEATURES

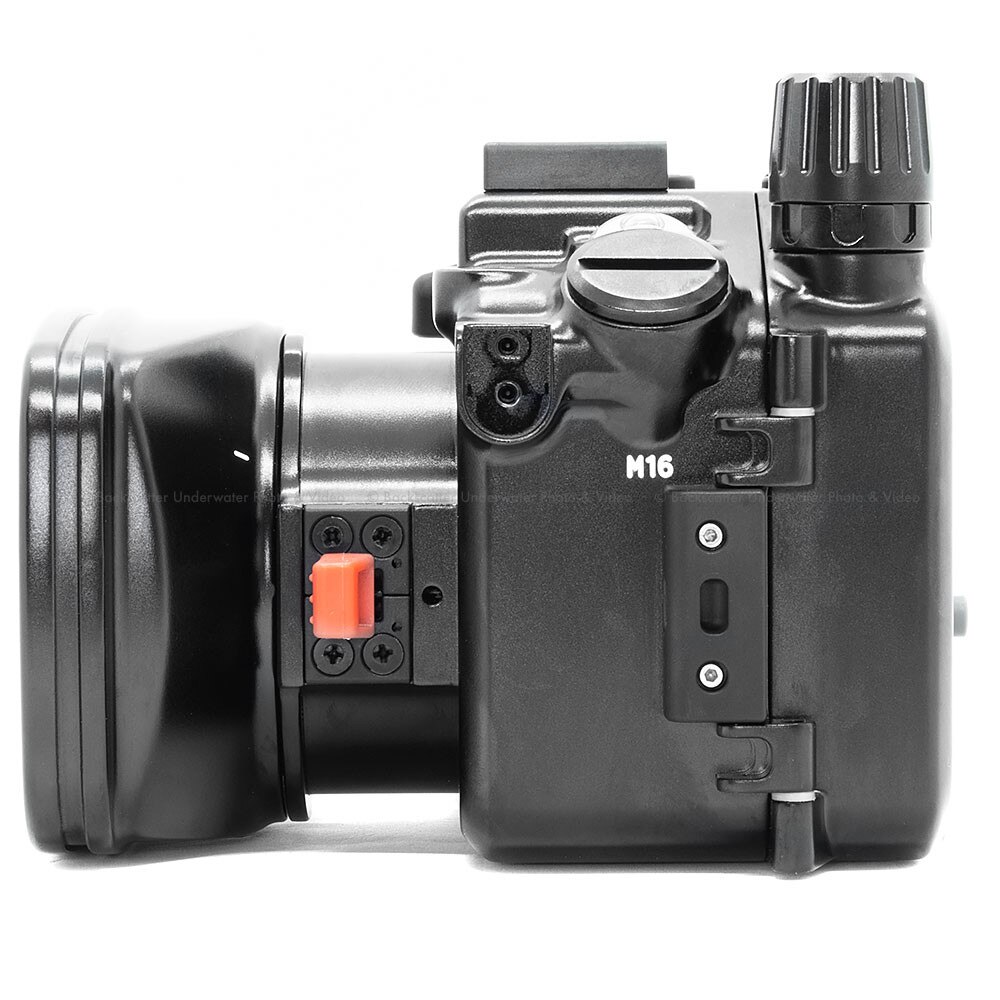

HDMI OUTPUT

The NA-RX100VII has an M16 bulkhead opening to support HDMI output for video, allowing for the use of external monitors which make judging exposure, focus and composition easier than using the built-in LCD of the camera. By adding the optional 25028 Socket Extension and 25032 Custom HDMI bulkhead, the NA-RX100VII is compatible with external monitor housings such as the NA-502B-H or NA-Ninja V (HDMI 1.4 connection only).

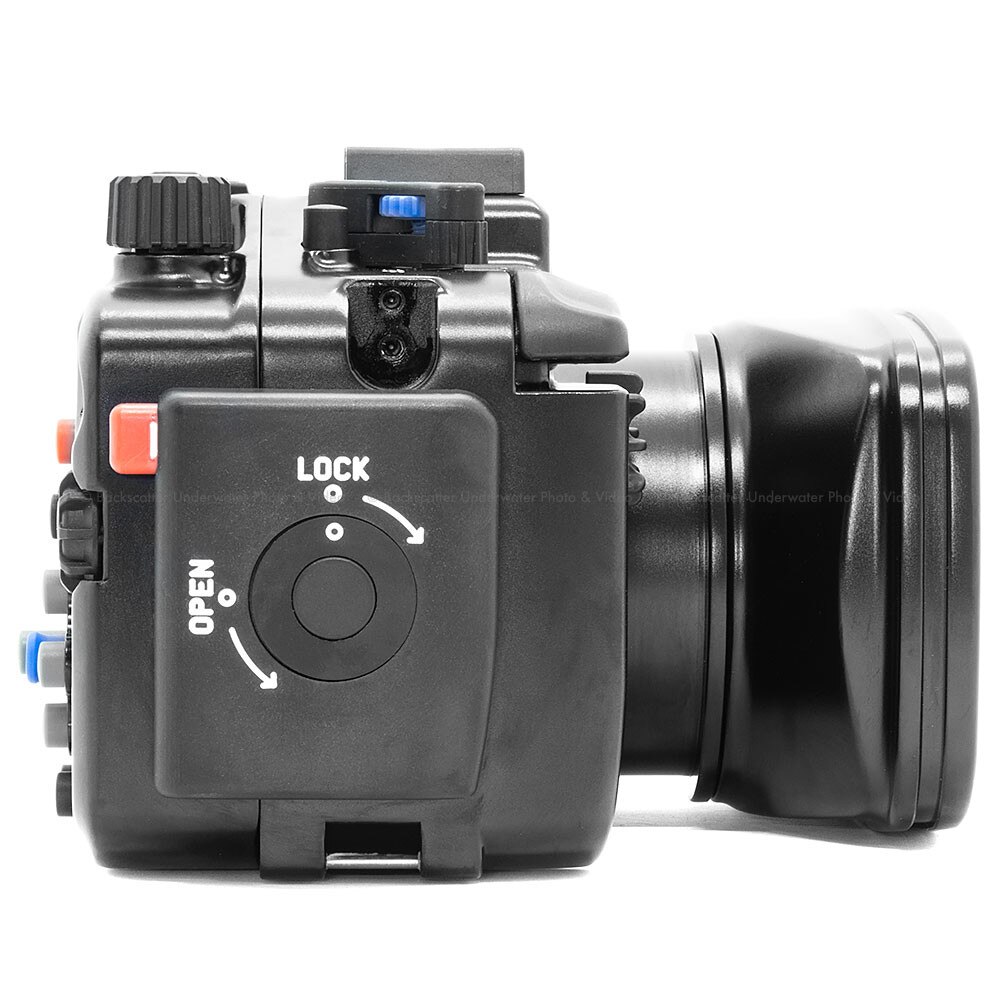

ROTARY LOCKING LATCH

An oversized rotary latch seals the housing and securely locks in place.

What's In The Box

• NA-RX100VII Housing with Standard Port
• Spare O-ring 90135, Removal Tool and Lubricant
• Allen key Set
• Padded Travel Case
• CR2032 Battery (for vacuum system)
• Set of handle brackets with shutter release trigger

Recommended Accessories

• 25624 M14 Vacuum Valve II (Pushbutton Release)
• 25131 LCD Magnifier Attachment Rails for NA-RX100III/RX100IV/RX100V/RX100VI
• 25106 LCD Magnifier with Dioptric Adjustment
• 71206 Easitray II with Left Handle (with 2pcs 1/4-inch screws)
• 71207 Flexitray II with Left Handle (with 2pcs 1/4-inch screws)
• 71208 Adjustable Right Handle II (for Easitray II & Flexitray II)
• 81201 Super Macro Converter 1 (compatible with standard)
• 25107 M67 Flip Diopter Holder for NA-LX100 Standard Port
• 38702 N50 3.5-inch Acrylic Dome Port
• 38703 N50 Short Port with Bayonet Mount (To use with WWL-1) *Zoom range 24-65mm only
• 83201 Wet Wide Lens 1 (WWL-1) 130 deg. FOV with compatible 28mm Lenses
• 83214 Bayonet Mount Adapter for SMC/CMC
• 81301 Compact Macro Converter 1 (CMC-1, 4.5x Magnification)
• 81302 Compact Macro Converter 2 (CMC-2, 2.8x Magnification)

HDMI Connectivity Accessories

• 25028 Socket extension for 25032 HDMI bulkhead with M16 thread
• 25032 Custom HDMI bulkhead to use with socket extension
• 25046 HDMI (D-D) cable in 200mm length (for connection from HDMI Bulkhead to camera)

TECHNICAL SPECIFICATIONS

• Dimensions: 151mm(W) x 101mm(H) x 137mm(D)
• Weight in Air: 1.09 kg
• Depth Rating: 100m
• Alarm Battery: CR2032
• Accessory Ports: 1xM16 (F) and 1xM14(R)
