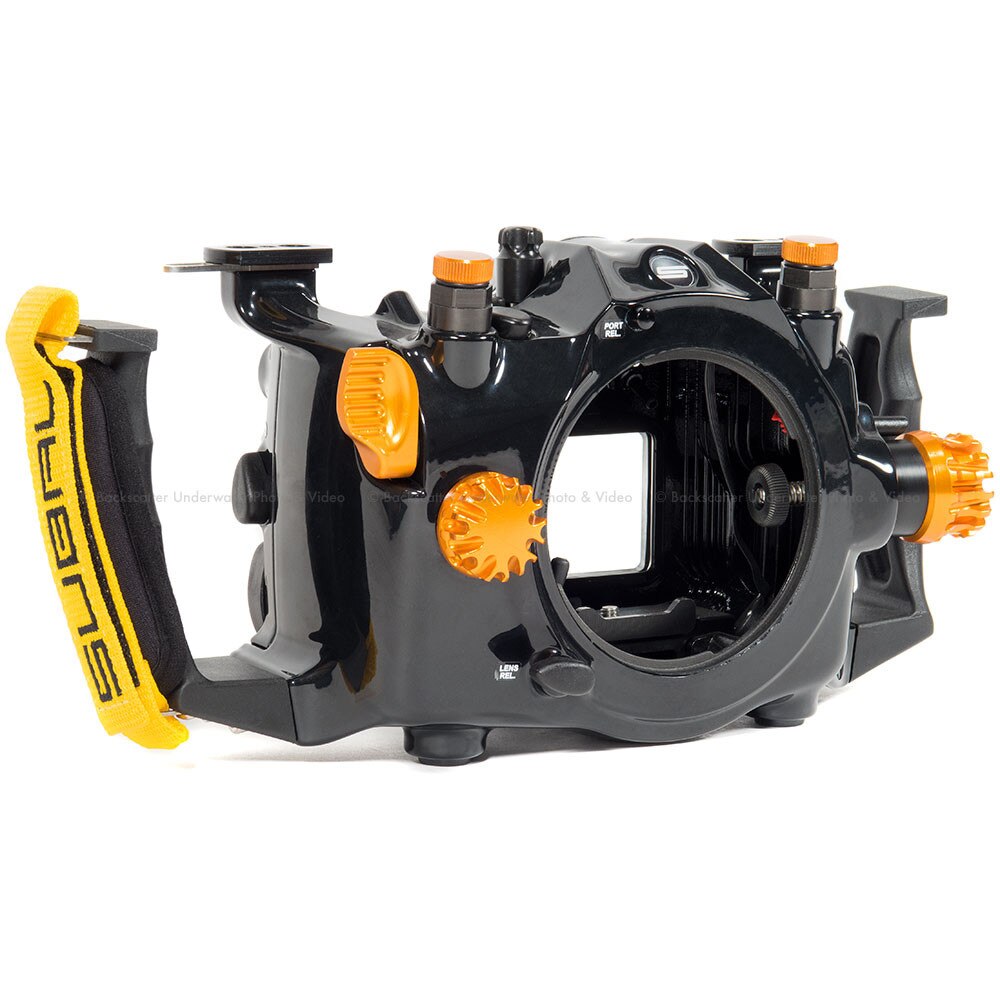

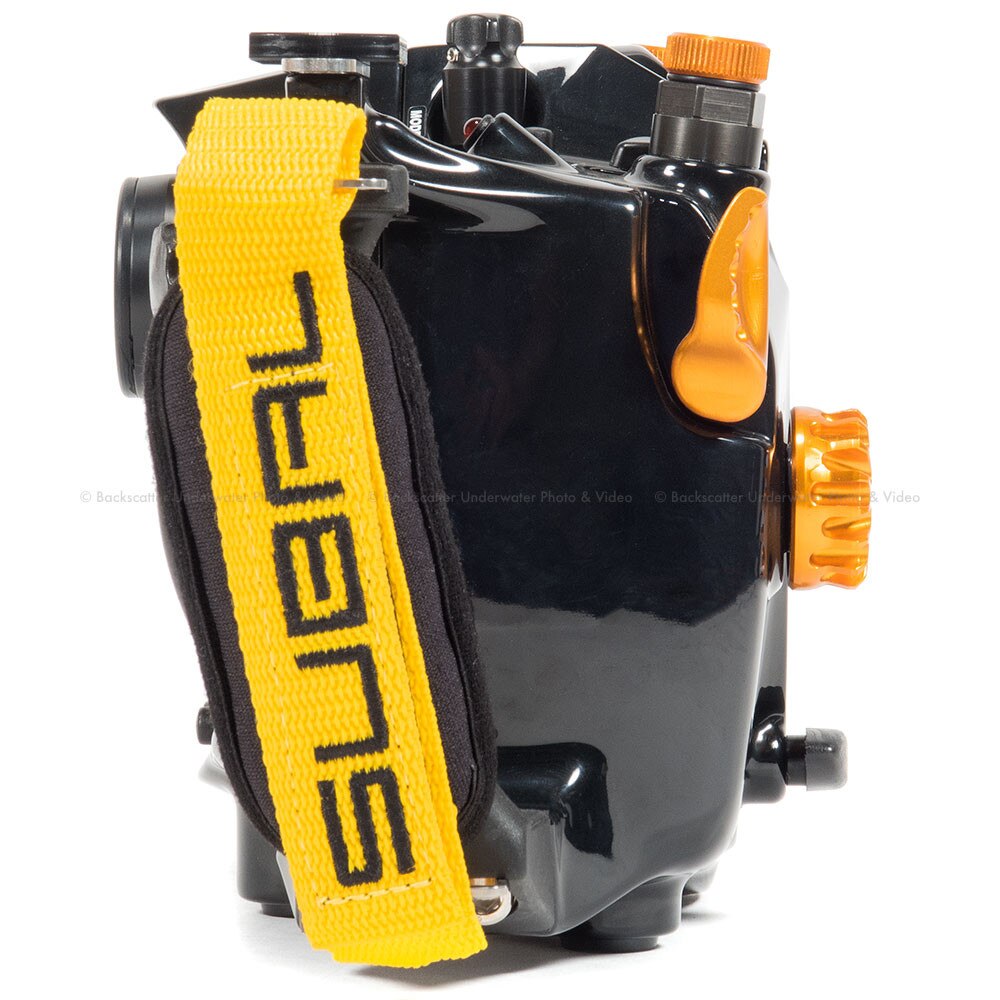

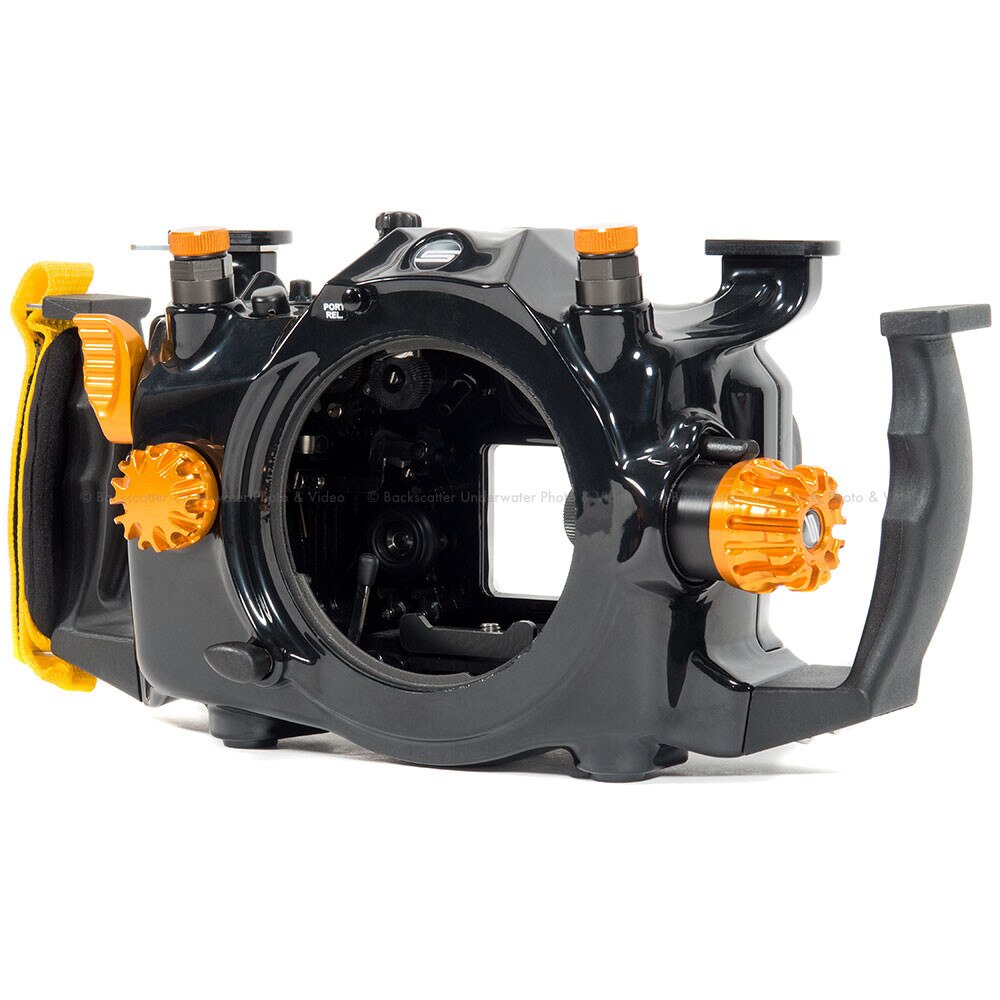

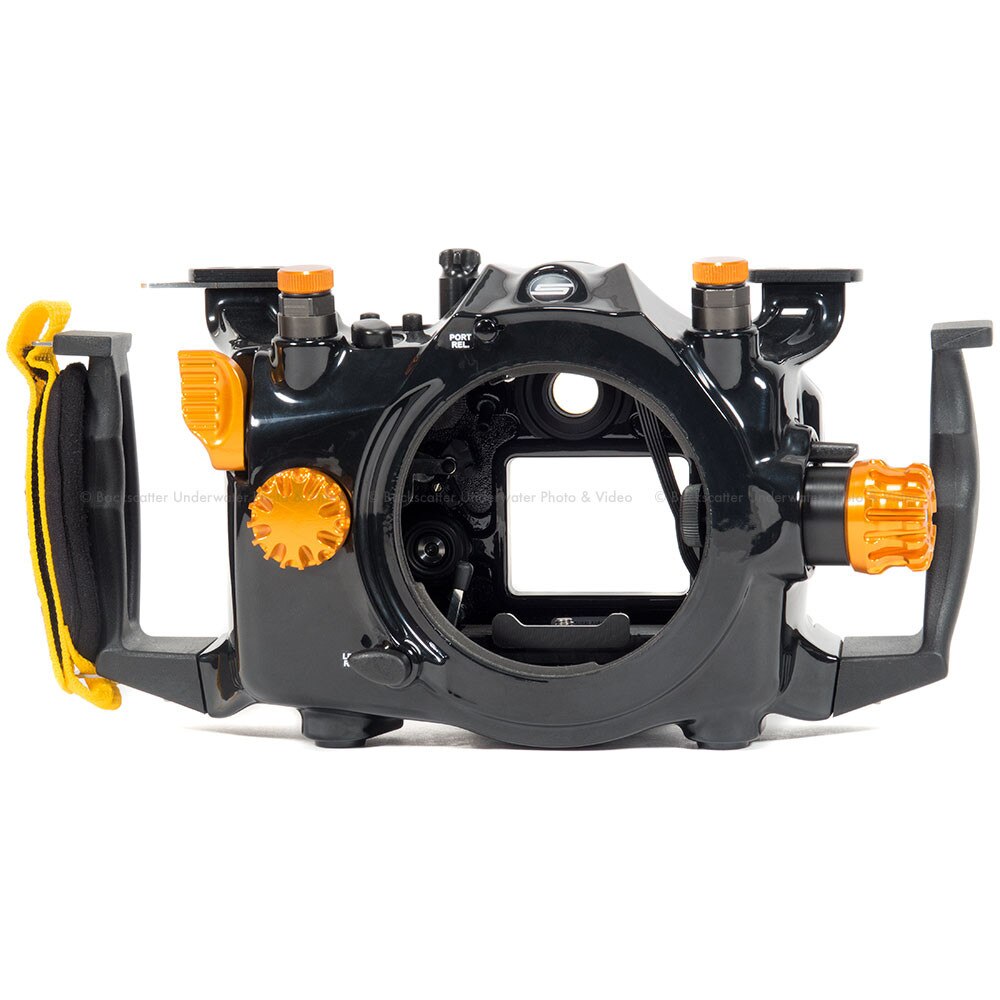

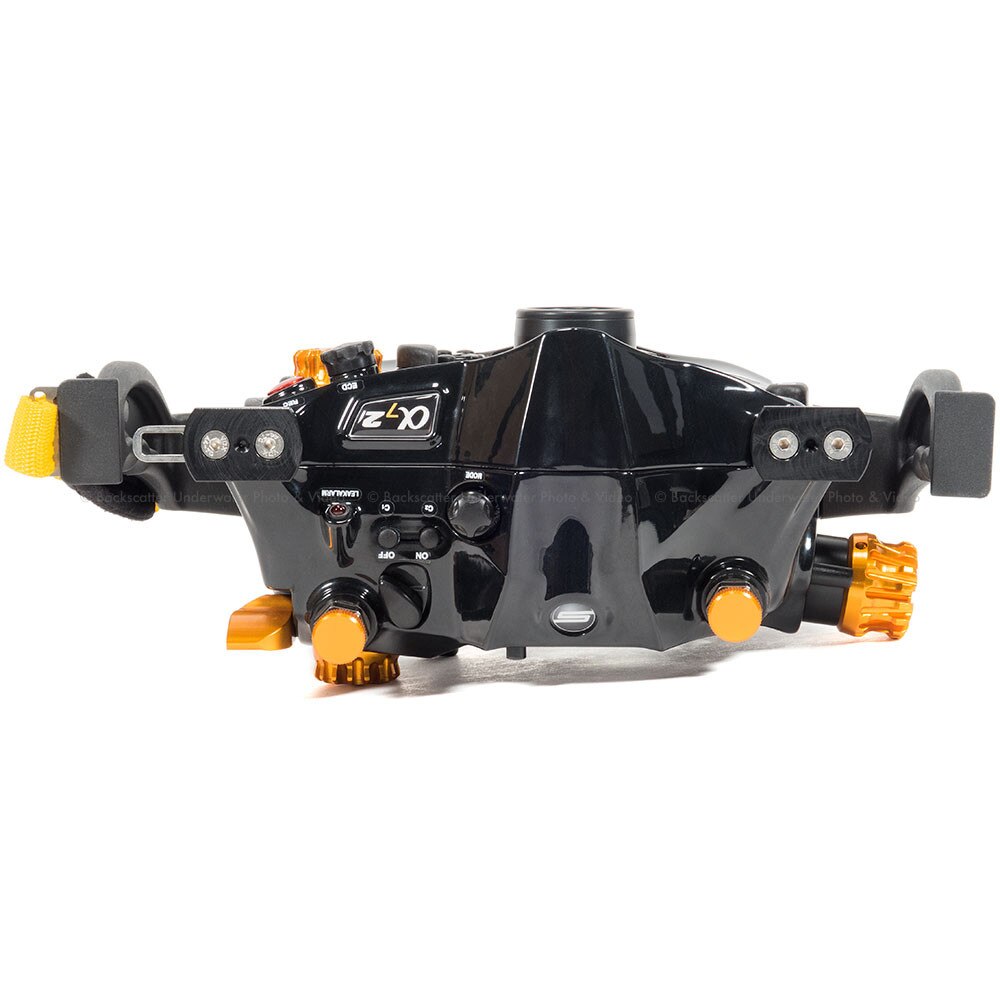

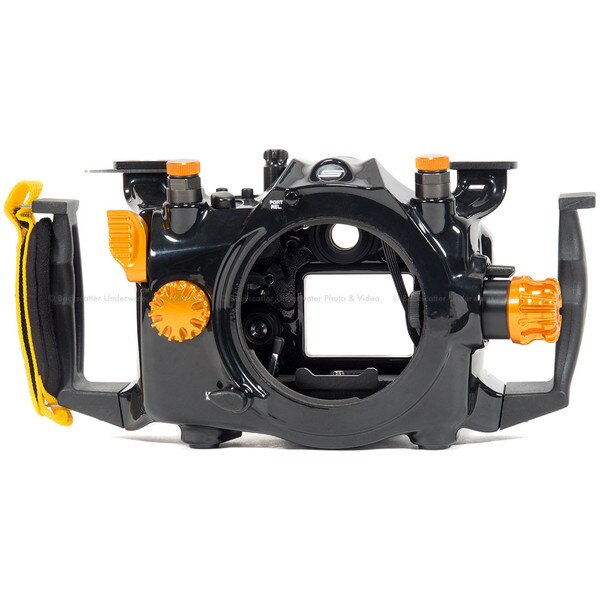

Subal Alpha 7 II Underwater Housing for Sony a7 II, a7R II & a7S II Full Frame Mirrorless Cameras

Subal Alpha 7 II Underwater Housing for Sony a7 II, a7R II & a7S II Full Frame Mirrorless Cameras

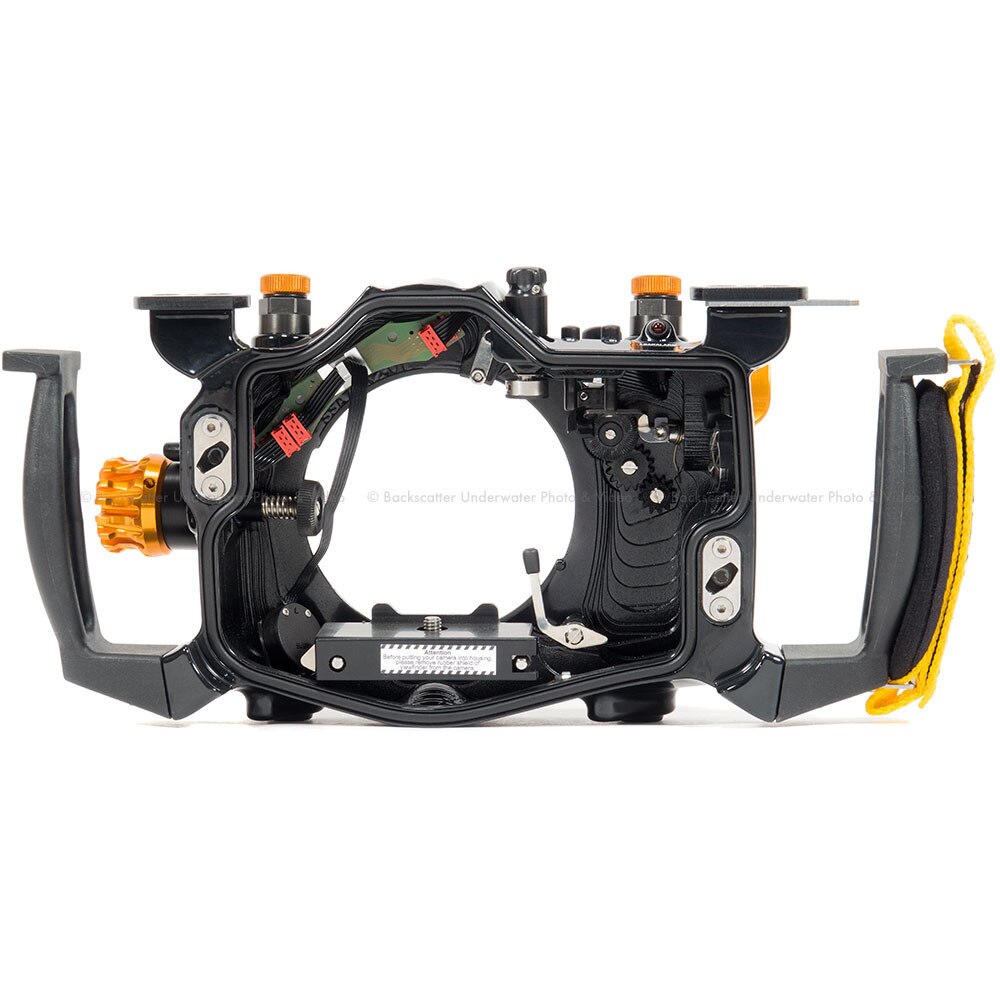

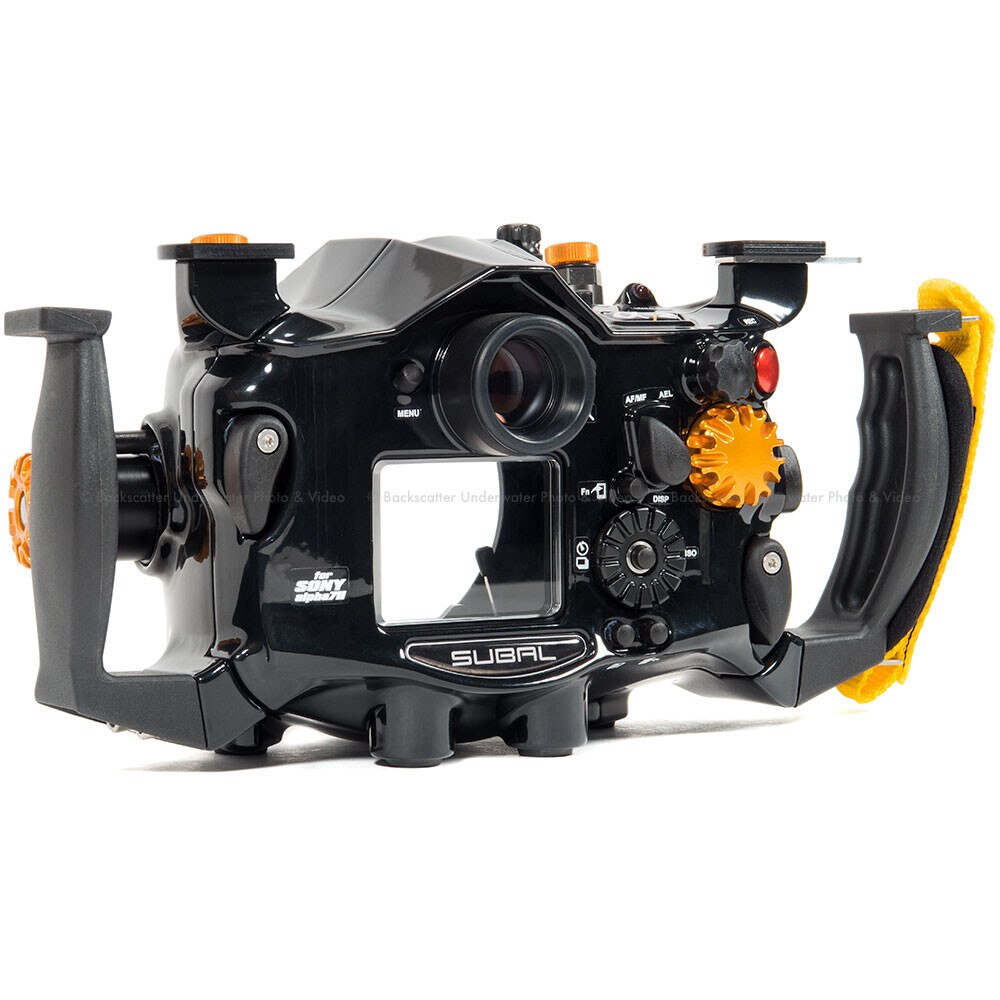

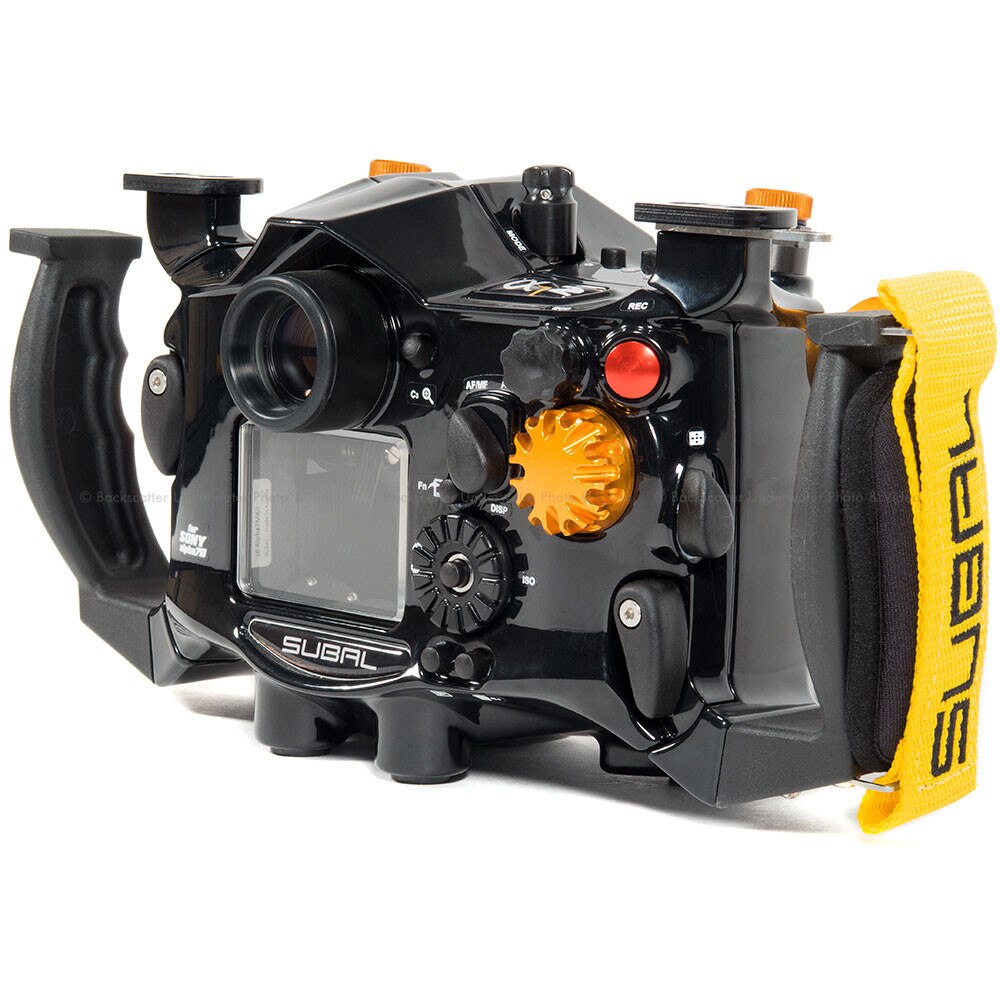

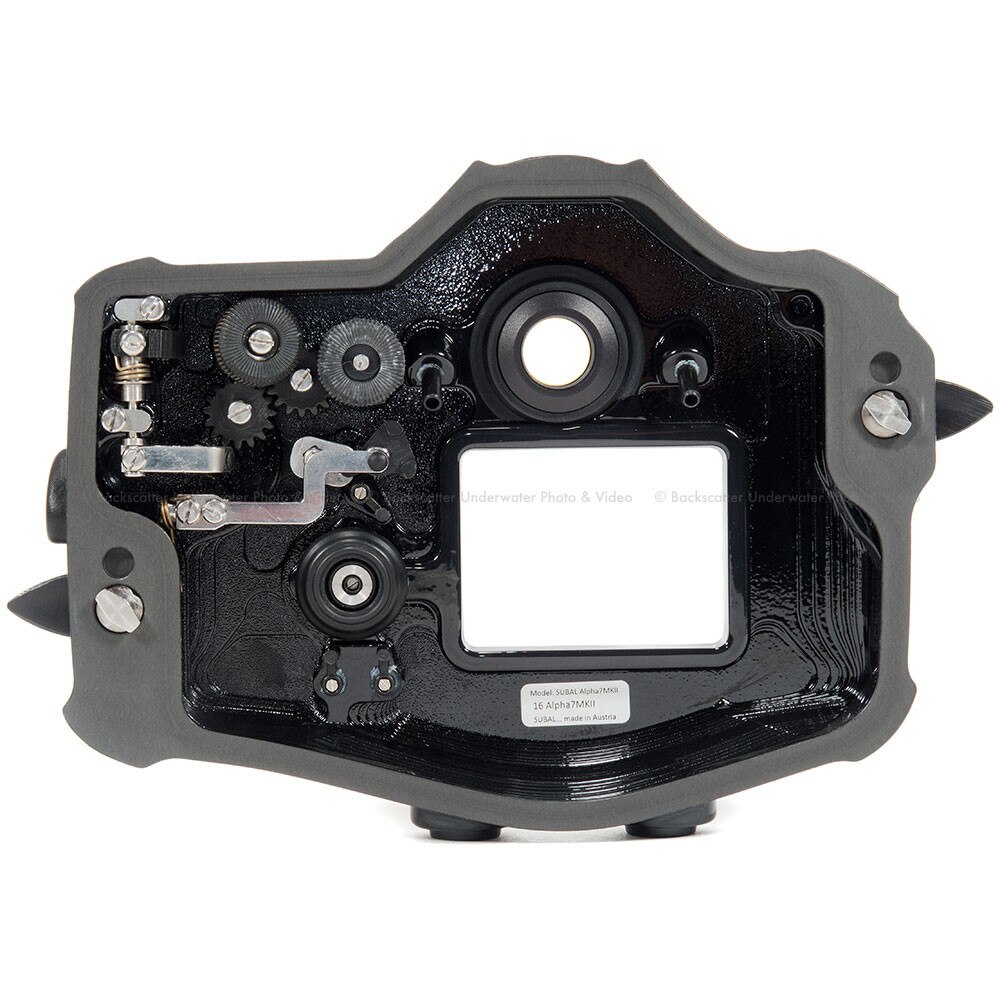

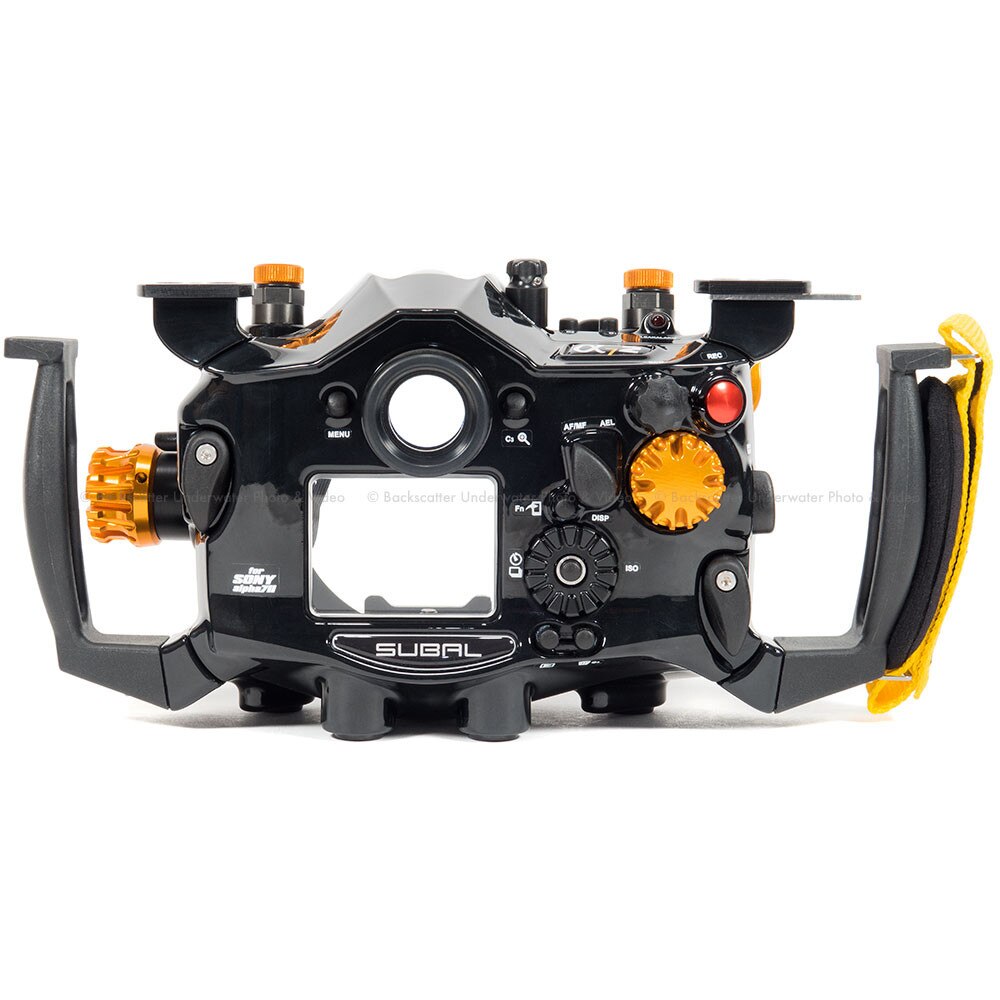

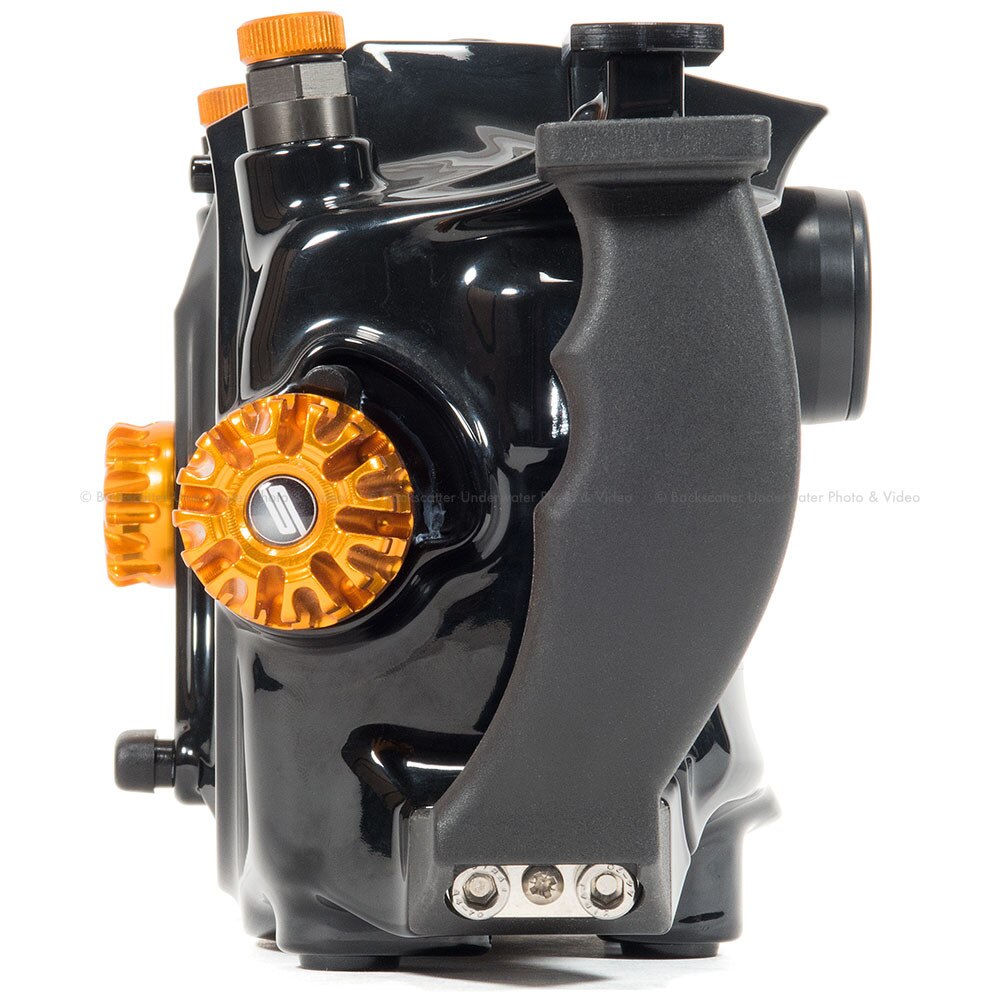

The Alpha 7 Mk2 housing provides access to all the functions of the Sony Alpha 7 II S / R including Live View and Info. The ergonomic SUBAL housing design and arrangement of all the key controls allows easy camera operation without letting go of the grip. The camera is fitted on a special cradle, which enables a precise, and faster, more secure mounting. A 4mm O-ring and the SUBAL Quick-Lock closure system prevents accidental crushing of the O-ring and ensures maximum safety. Threaded holes at the base allow the attachment of a tray. Focusing lights can be attached or mounted to the top shoe. The monitor window provides a glare-free and high-contrast view of the camera monitor. Material selection, processing, surface protection and finish conform to the usual high quality that is common to all SUBAL products. SUBAL offers for this housing model 2 different viewfinder systems: the slim standard viewfinder reduces the viewfinder image so that it can seen fully despite wearing a dive mask. The 45_ viewfinder provide an image approximately corresponding in size to the camera's viewfinder in a 45_ angle. All Subal viewfinders systems are interchangeable and can be installed and removed easily by the user.

SUBAL ports with bayonet type 3 can be mounted

Technical Data:

Seawater-resistant aluminum alloy worked from a solid block. Hard-coating and corrosion treatment is applied to the surface of the housing. In addition 3 layers of powder-coating paint is applied to give the housing the Subal color and unique finish. All parts are made of hard-anodized light alloy, acid-resistant stainless steel and high-quality plastics to cope with the marine environment.

Width x height x depth:

Approx. 258 x 151 x 112 mm (w/o port and handles)

Strobe connections:

• 2 strobe connectors optionally
• Nikonos V
• IKELITE
• Subtronic S6 Sockets connected in parallel
• Optical cable

Flash arm mounting:

• 2 x T-plates 25 mm, TLC - or Ultralight base optional shoe

Transmission and features:

All functions of the camera can be operated.

• main switch/backlight
• shutter
• zoom (manual focus)
• front and rear main dial
• lens release
• focus mode (M-S-C)
• AF mode
• metering
• AF-lock
• AF-ON
• port-lock
• photo/video switching

Push buttons for:

• Mode
• Exposure Compensation
• Bracketing
• Flash Method
• AF Mode, Lock
• Video Start / Stop
• Playback
• Delete
• Menu
• Thumbnail
• Protect
• OK
• ISO
• Quality
• White Balance
• Microphone
• Multifunction Button
• Info
• Live View. AF-On
• PV
• FN
• AF Mode
• Lens Release.
