Nauticam Canon EOS R5 II Underwater Housing NA-R5II

Introducing the Nauticam NA-R5II Underwater Housing for Canon EOS R5 Mark II Camera

The Canon EOS R5II is the next iteration of the widely popular Canon EOS R5 and retains many of the features that were attractive to underwater image makers. Firstly, and most excitingly video shooters now have access to 8K 60 Raw/4K 60 SRAW/4K 120 10-bit Video. The Canon EOS R5II retains its 45MP full-frame mirrorless sensor that utilizes Canon's new RF lens mount and also has next-generation Dual Pixel autofocus.

Introducing NA-R5II

The Canon EOS R5II Camera

The Canon EOS R5II is the latest in Canon's full-frame mirrorless camera lineup which has gained unprecedented demand as it has made considerable improvements from its predecessor. Around the LCD screen are visible cooling vents, which increases its video recording capabilities, making this an excellent choice for video shooters requiring an ergonomic solution or those who enjoyed their Canon EOS R5s. It features the RF lens mount which has the same large 54mm diameter but the ability to have larger rear lens elements that are closer to the sensor gives increased corner and outer edge sharpness.

The R5 uses a completely new Canon-designed 45MP Full-Frame Stacked BSI CMOS Sensor with in-body image stabilization. The camera's Dual Pixel autofocus system uses 1053 autofocus points across the entire frame. It is also capable of recording 8K 60 Raw/4K 60 SRAW/4K 120 10-bit Video

The Canon EOS R5II can also use the large EF-mount lens lineup via three optional adapters, a simple EF to R adapter, one that supports the customizable control ring and another that features a drop-in filter mount.

Canon EOS R5II Specifications

• 45MP Full-Frame Stacked BSI CMOS Sensor
• DIGIC Accelerator Processing
• Dual Pixel Intelligent AF, Eye Control
• 8K 60 Raw/4K 60 SRAW/4K 120 10-Bit Video
• Up to 30 fps, Pre-Continuous Shoot Mode
• 5.76m-Dot EVF with OVF Sim. View Assist
• 3.2" Vari-Angle Touchscreen LCD
• In-Camera Upscaling to 179MP
• CFexpress & SD UHS-II Memory Card Slots
• Wi-Fi 6E/Wi-Fi 6 Support

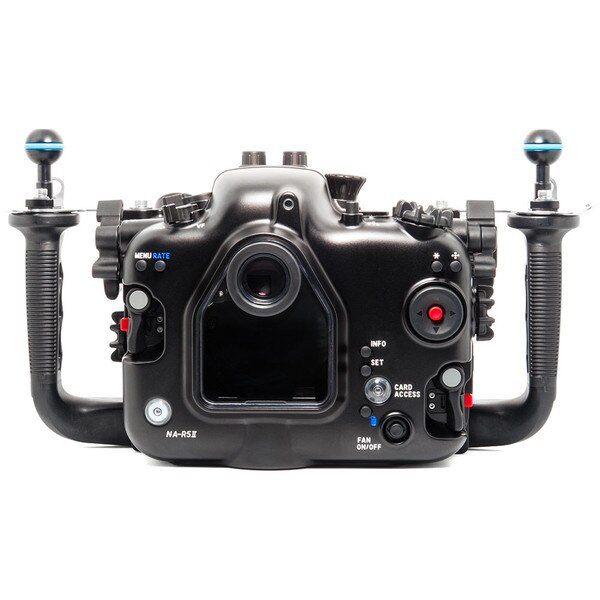

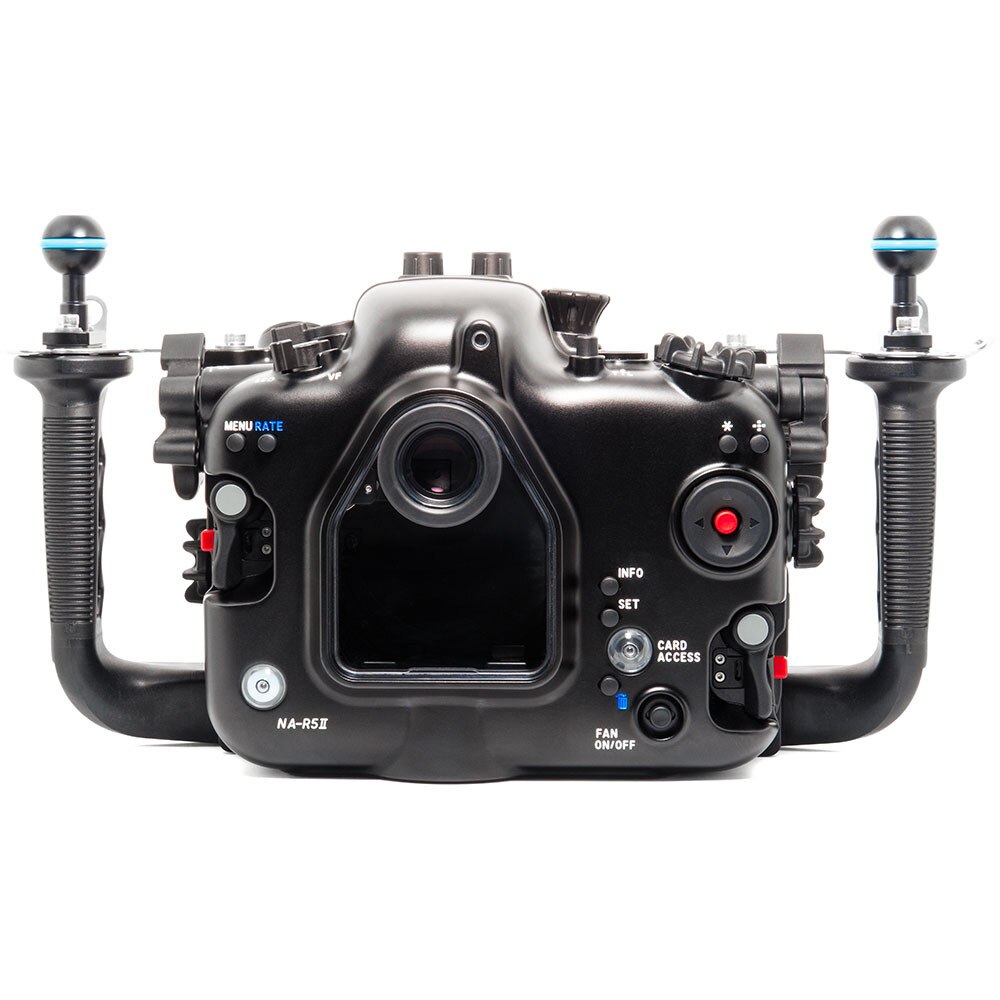

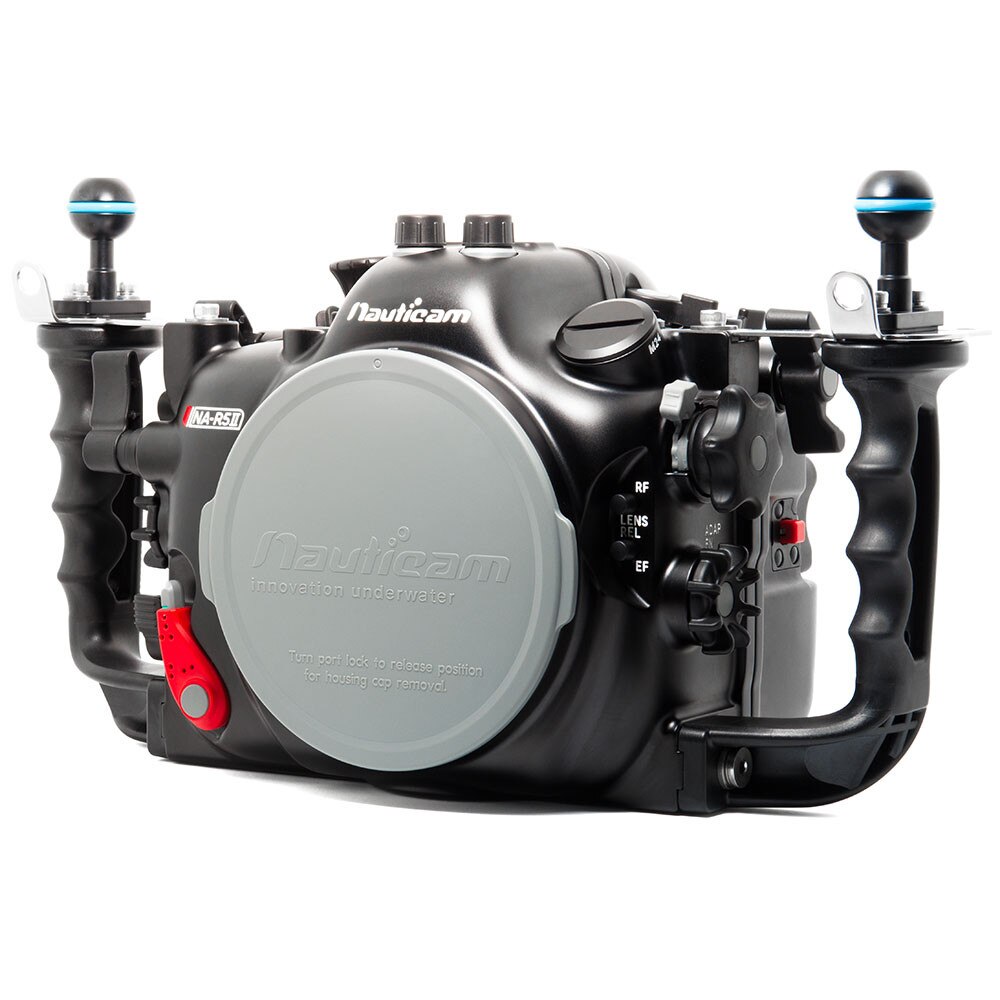

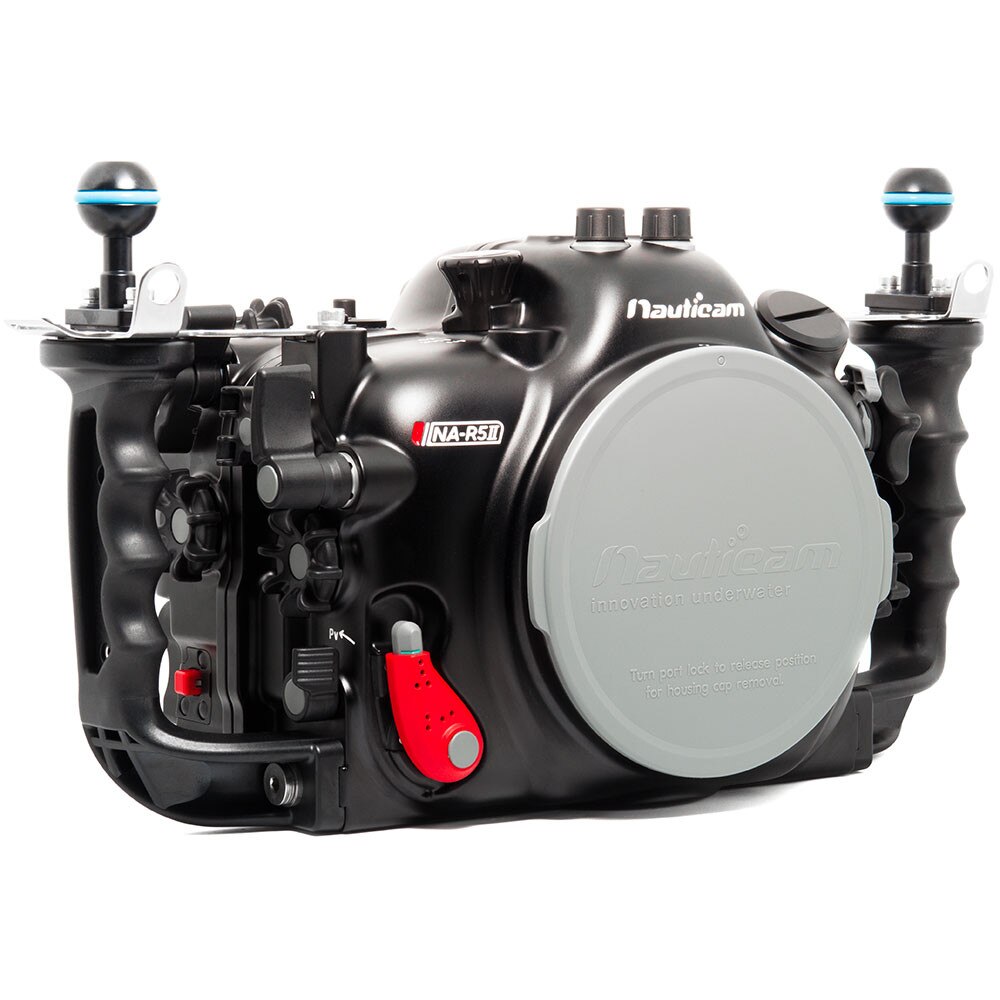

The Nauticam NA-R5II Underwater Housing for the Canon EOS R5II Camera

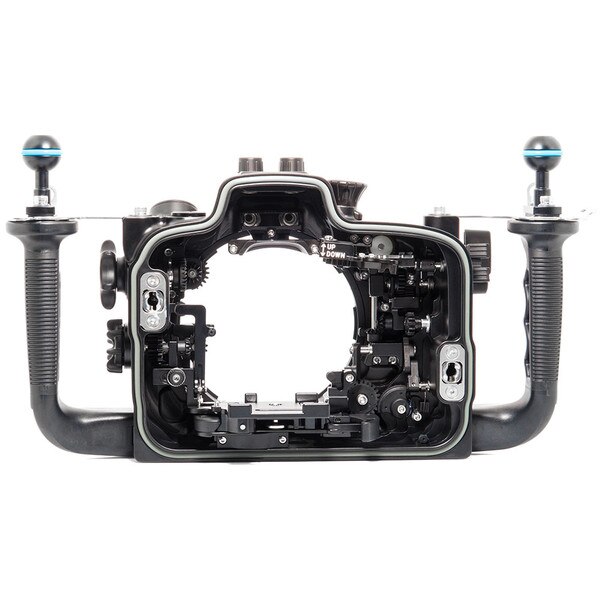

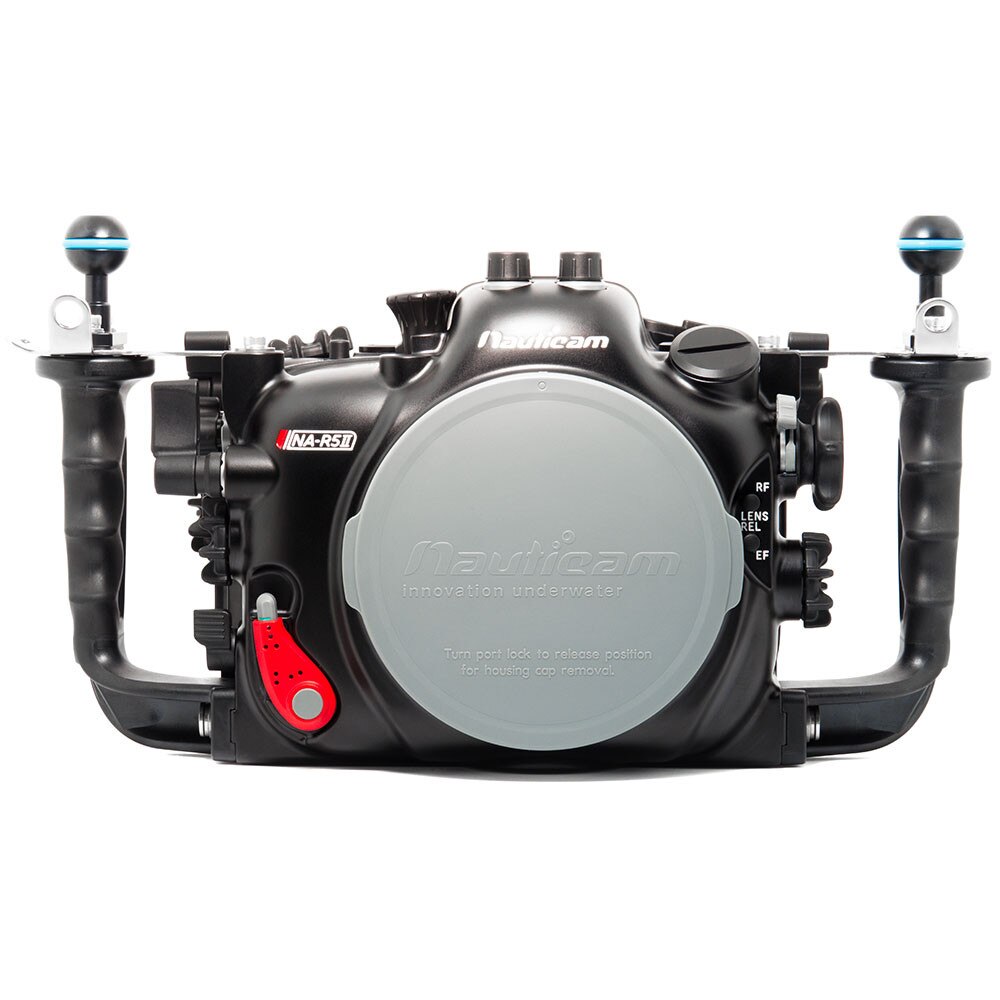

The NA-R5II underwater housing follows suit with Nauticam's drive for innovation. The Canon EOS R5II presents shooters with the ability to use both the available legacy EF lenses via an adapter in addition to their native RF optics. To support both the legacy and native lenses, Nauticam has integrated the NA-R5II into the N120 port system. Canon's EF to RF mount adapters can be affixed to the camera before insertion into the housing. When using the EOS R5II inside the housing with the adapter and a supported EF lens, the port and extension ring arrangement will be identical to the same setup on a Nauticam Canon N120 DSLR. As the RF lens lineup emerges, dedicated port and extension ring combinations will be listed on the Port Chart. Two lens release buttons, one for RF and one for EF lenses used with the optional Canon adapter, are located on the front of the housing to simplify lens removal through the port opening.

Mission Control

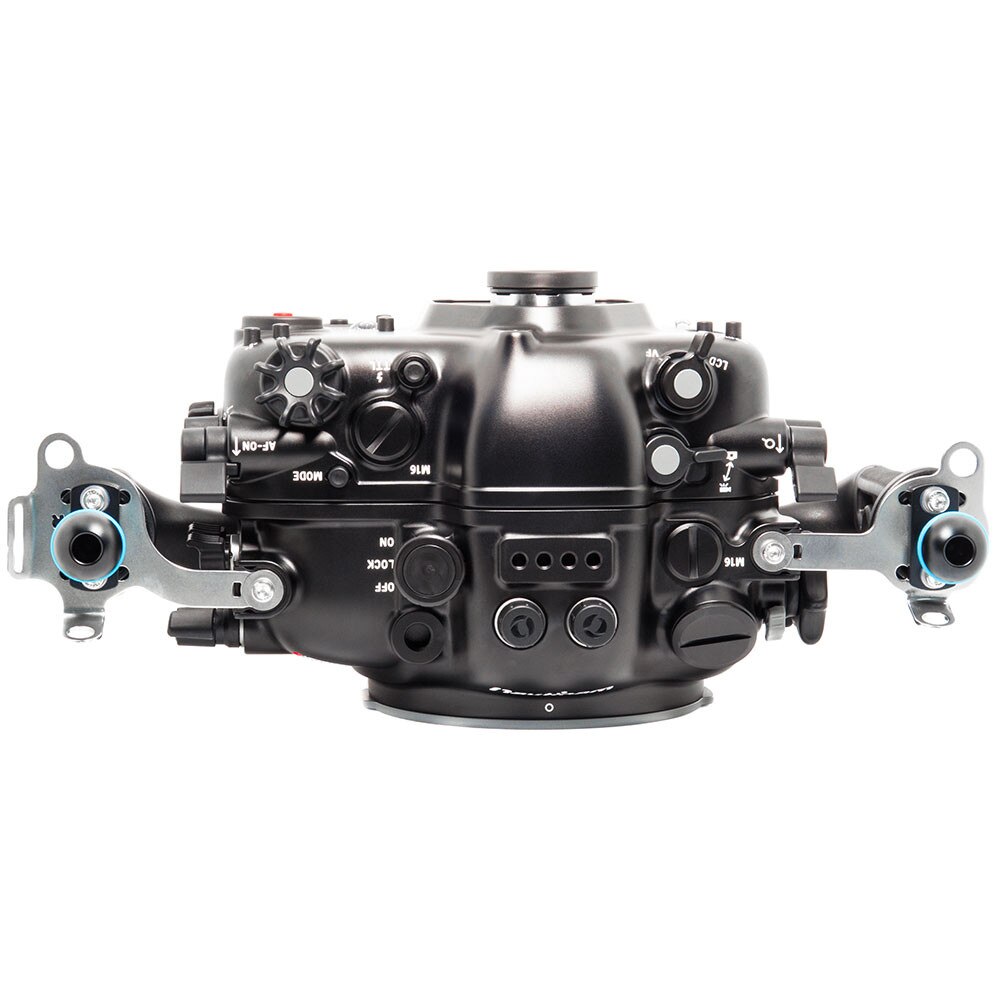

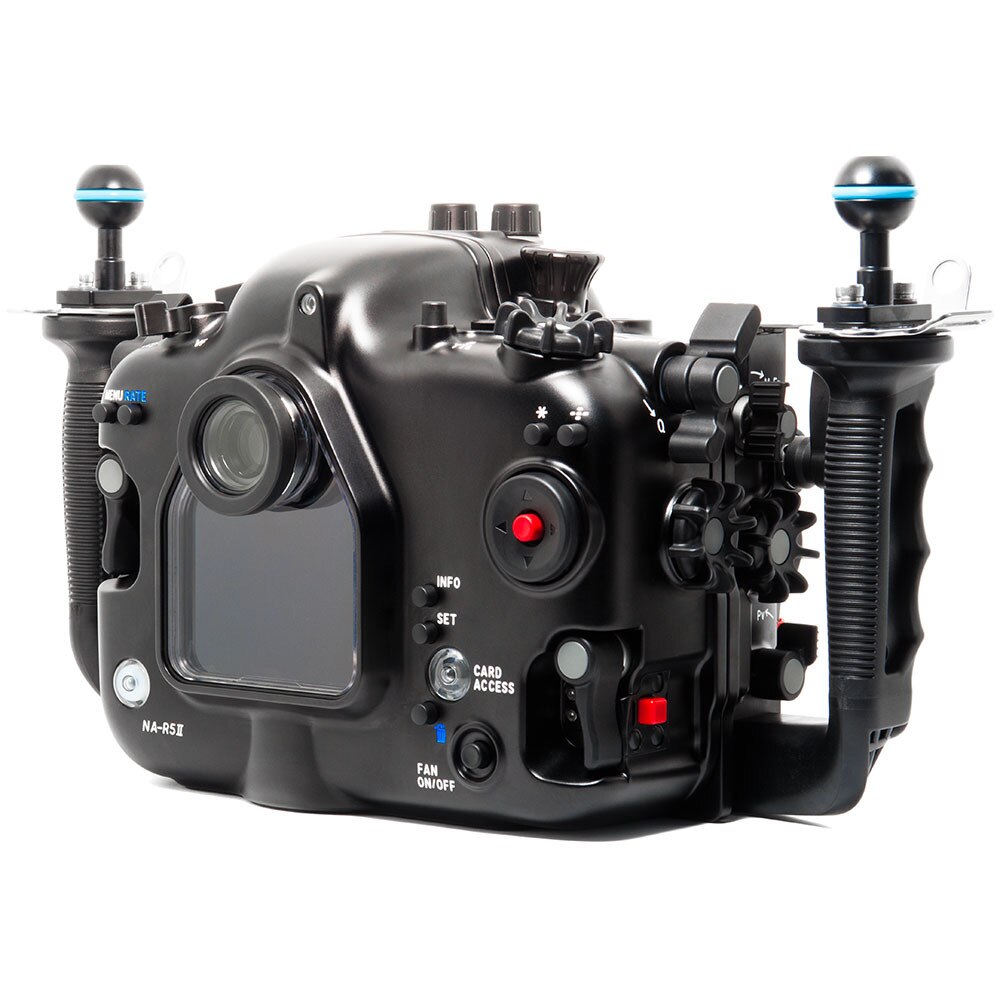

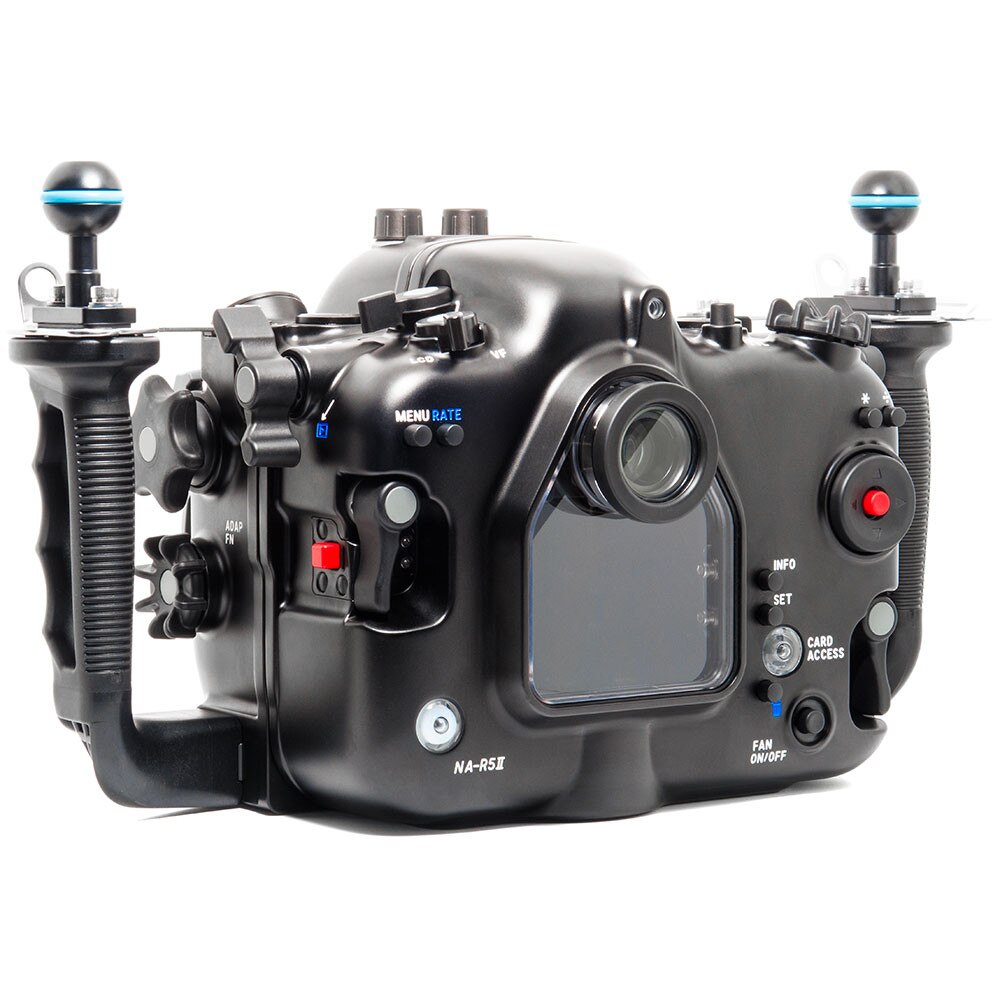

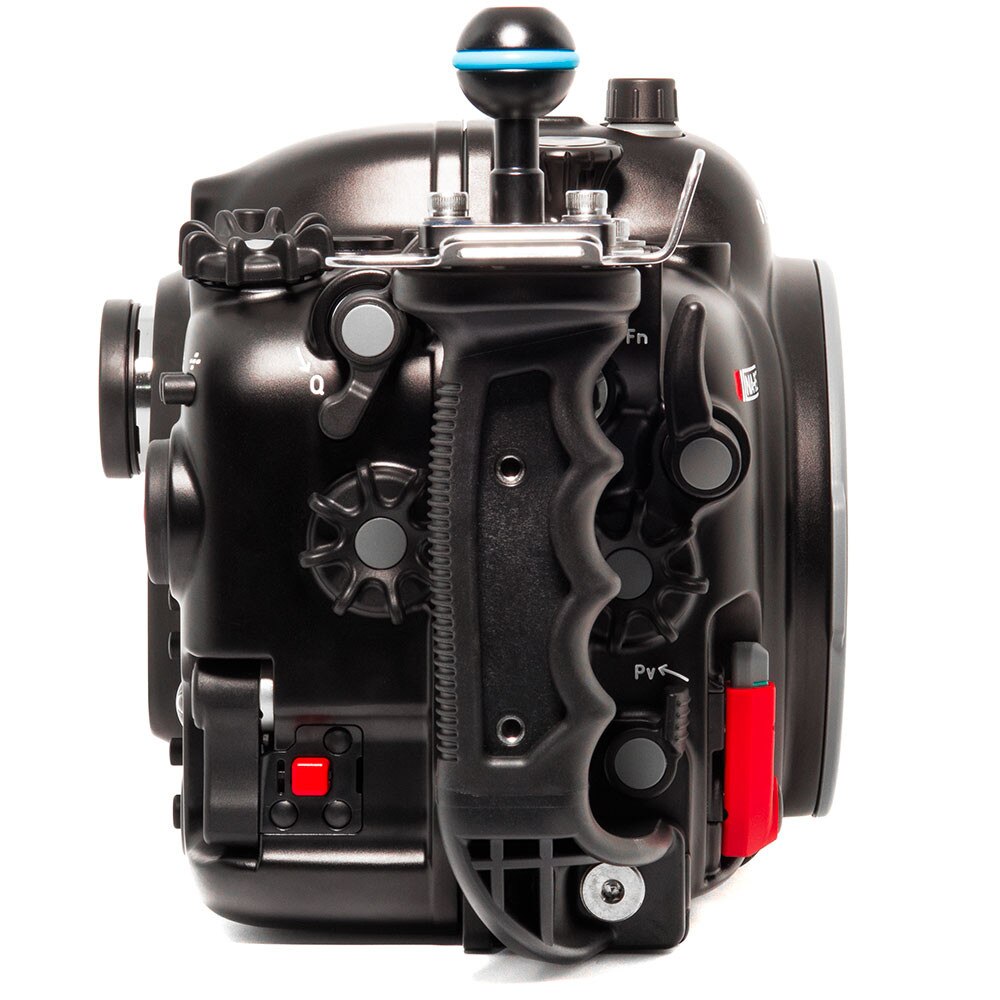

Nauticam engineers are obsessed with getting the underwater image maker unfettered access to all the necessary controls, with as many within easy reach of the ergonomic rubberized handles. This Mission Control philosophy extends to the NA-R5II, where a dual thumb lever and dual sub-lever are placed by the right handle. The upper thumb lever activates the "AF-On" and the lower the "Q" buttons while the sub-lever corresponds to the "M-Fn" and "Record" buttons. Near the left handle is a thumb lever for "Playback" and a dedicated switch to change from LCD to EVF.

Large knurled and rubberized control dials access the camera's "main" and "sub" command dials. The two-stage trigger allows for smooth focus and firing activation. Additional buttons for "Menu," "Focus Point Selection," and others are also easily reached from the handles.

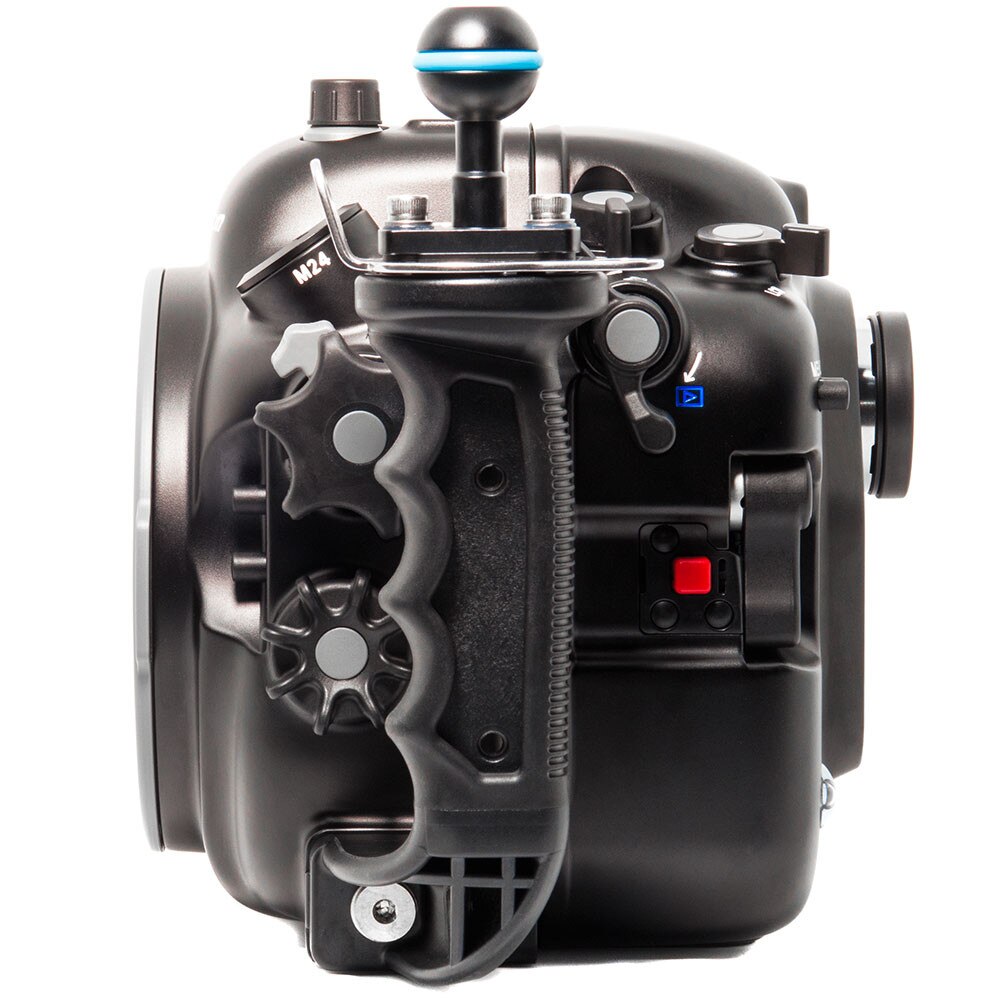

An additional control wheel is located on the left side of the housing. It will interface with the control ring on the supported EF to EOS R Mount Adapter with the Control Ring using the optional gear (PN 19561).

Flash Triggering

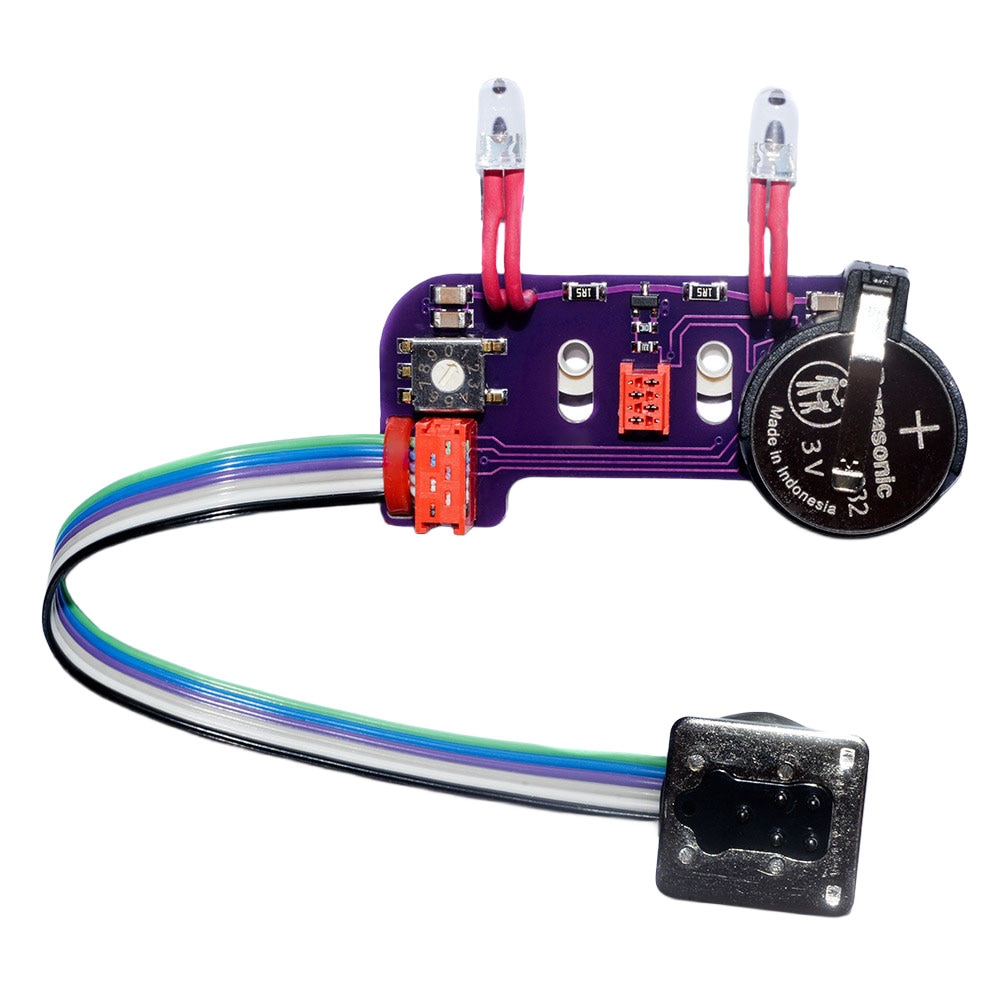

Flash triggering is achieved via one of two optional Flash Triggers, a manual LED trigger (PN 26301) or a TTL Flash Trigger (PN 26321) that use the built-in fiber optic bulkheads with optional fiber-optic cables to trigger supported strobes. For controlling strobes that do not support fiber optic flash triggering, a variety of legacy hot-shoe flash control bulkheads are available.

Integrated Vacuum Check and Leak Detection System

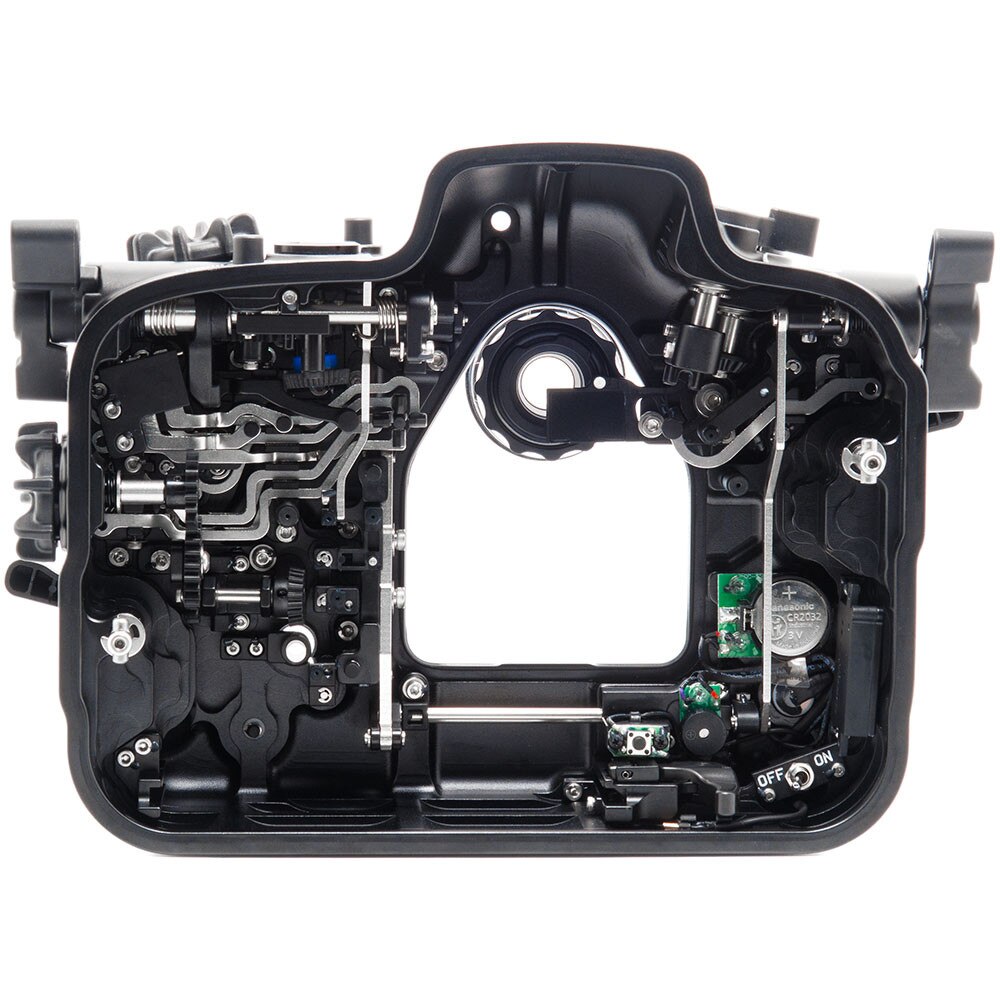

The Nauticam vacuum check and leak detection electronics are shipped with the NA-R5 as standard equipment. Combined with an accessory vacuum valve, this monitoring system provides constant updates on the housing's watertight and safe-to-dive status. A simple color-coded LED lighting system lets the user know that the vacuum is solid or that the housing is losing vacuum. Leak detection is built into the same circuit, so an audible and visual indication will occur if there is water intrusion.

The Nauticam system is temperature-compensated, eliminating false alarms caused by a change in outside temperature or from a camera heating up during an action-packed dive.

What's in the box

• NA-R5II Housing
• 90121 Spare main O-ring, o-ring remover and lubricant
• 2x Optical Bulkhead Caps
• 2x Handles with mounting balls
• Panasonic CR-2032 Battery (for moisture alarm)
• Set of Allen Keys
• Manual Instruction Card
• Padded housing bag and shoulder strap

Optional Accessories

• 25221 M10 Strobe Mounting Ball for housing
• 25224 M10 Strobe Mounting Ball for housing (with hole for using lanyard)
• 25228 M5 Strobe Mounting Ball for housing
• 17959 Housing Mounting Ball with 1/4'' screws
• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 25413 27cm Lanyard with two snaphooks
• 28130 Hand Strap for 28113
• 28123 Pair of Handles - size S (10mm closer to housing)
• 32212 Nauticam Full Frame Straight Viewfinder 40 / 0.8:1
• 32214 Nauticam Full Frame Angle Viewfinder 40 / 0.8:1
• 87213 Reverse Angled Viewfinder for EMWL (40 / 0.8:1)
• 87214 Reverese Straight Viewfinder for EMWL (40 / ).8:1)
• 26325 USB-C Bulkhead with USB-C Connector (Can be mounted directly on M16 port)
• 26326 M24-M16 Adaptor for use with 26325 (only required when used with the M24 port)

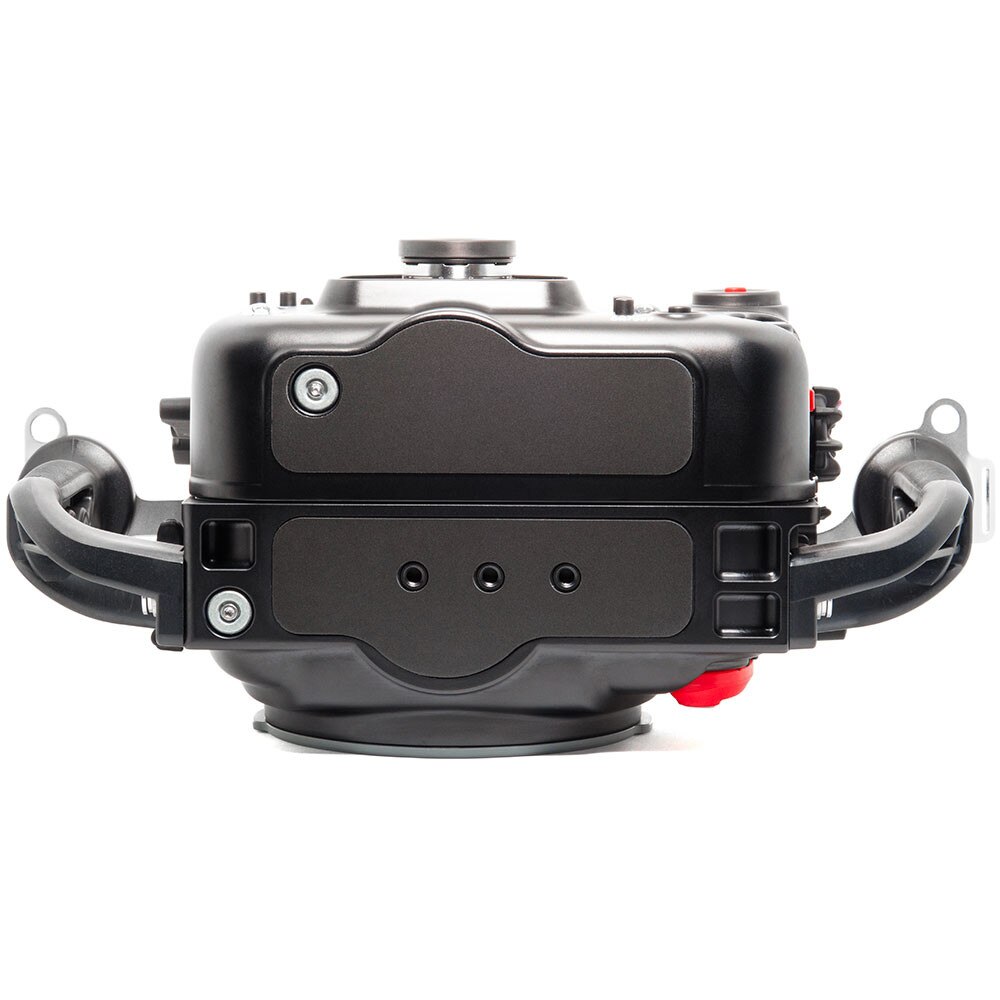

• 17954 Universal Tripod Plate for Nauticam Housings

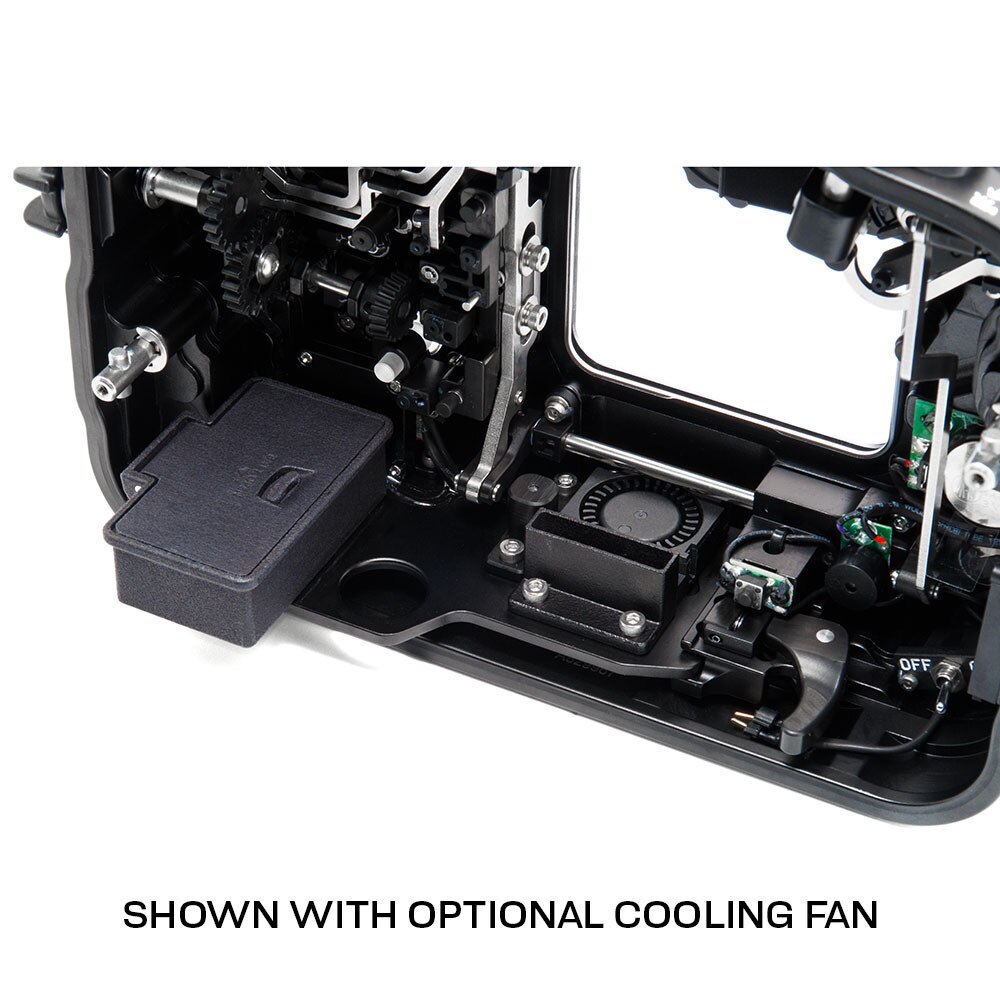

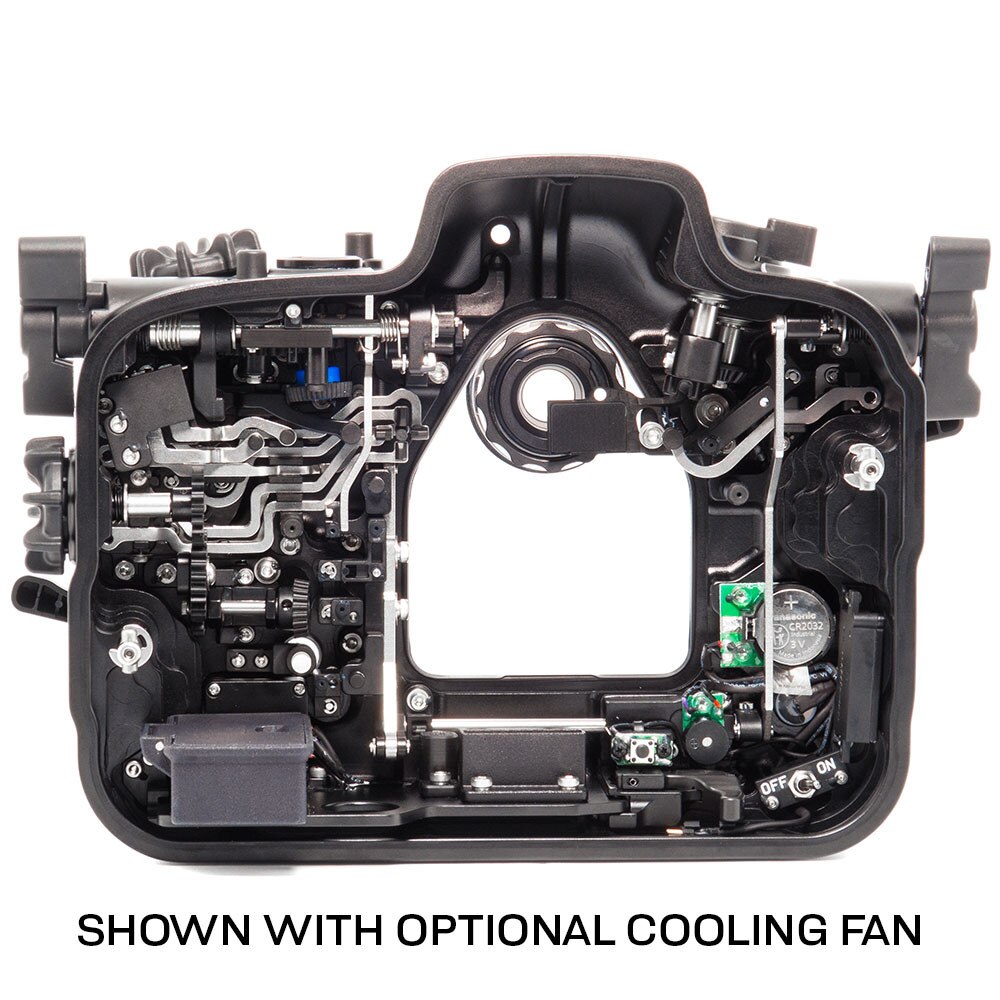

• 16704 Cooling Fan Set for NA-R5II Housing

HDMI Output

1) Required accessories for HDMI 2.0 Cable System

25086 M24 Adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-A1 to use with Ninja V housing)

Compatible Monitor Options

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

2) Required accessories for HDMI 1.4 Cable System (can be installed on either the M24 or the M16 accessory port)

• 25033 Standard HDMI Bulkhead with M16 thread (included in 17923 monitor housing)
• 25100 HDMI (D-A) Cable in 200mm length for NA-A1 (for connection from HDMI bulkhead to camera)
• 26326 M24-M16 Adaptor for use with 26325 (only required when use with M24 port)

Compatible Monitor Options

• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2'' Ak HDMI Monitor with HDMI 1.4 input
• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
• 25082 HDMI1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V Housing to HDMI bulkhead) Required for use with 17922

Required Monitor Mounting Options

• 17951 Nauticam Atomos Shogun Housing Mounting System
• 17957 Nauticam Atomos Shogun Housing Mounting adaptor for NA-S1R/S1H/BMPCC/E2F (after SN A439736)
• 17954 Universal Tripod Plate for Nauticam Housings
• 17960 Universal Quadra-Pod Plate for Nauticam Housings

Technical Specifications

• Dimensions: 357mm(W) x 200mm(H) x 167mm(D) / 14.0in(W) x 7.in(H) x 6.6in(D)
• Weight in air: 3.64kg / 8.0lbs
• Buoyance in water: Positive 100g / 3.5oz (includes camera and battery)
• Depth Rating: 100m / 330ft
